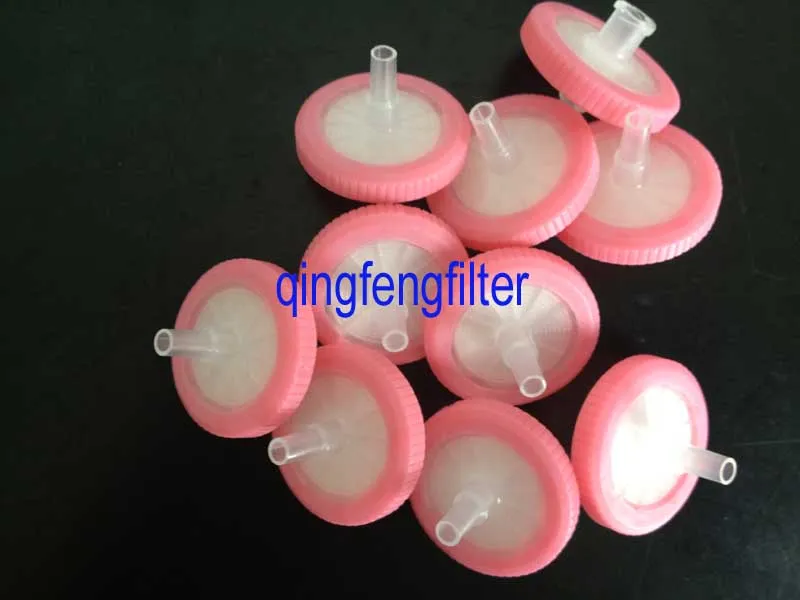

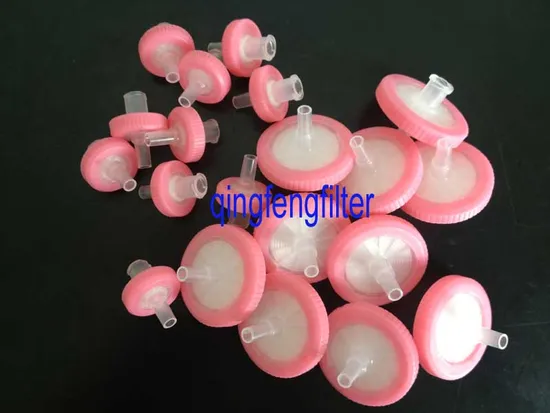

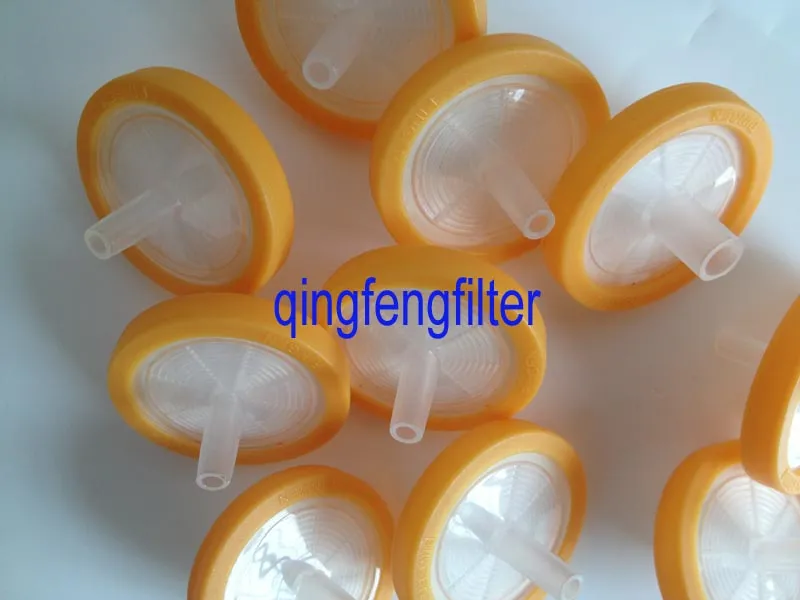

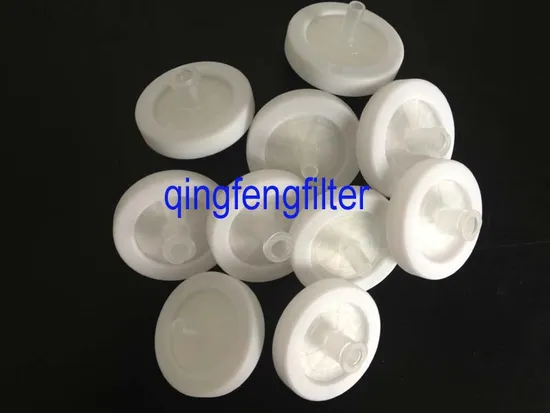

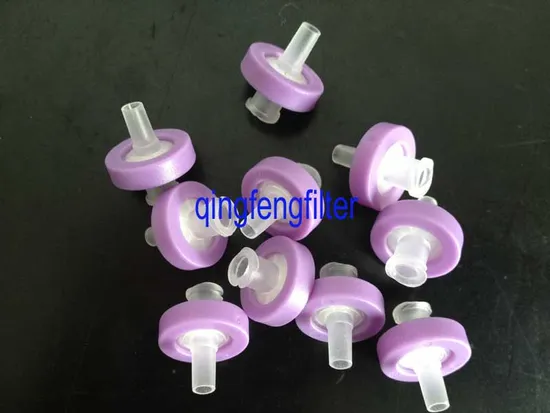

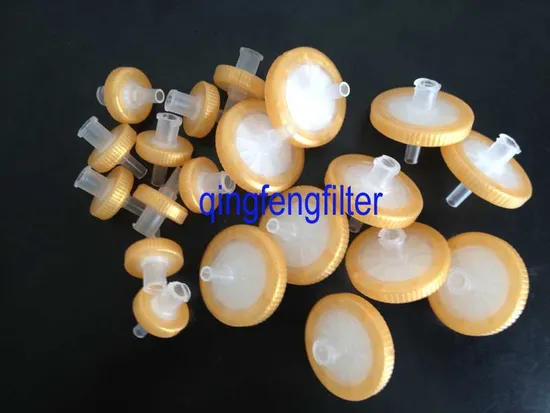

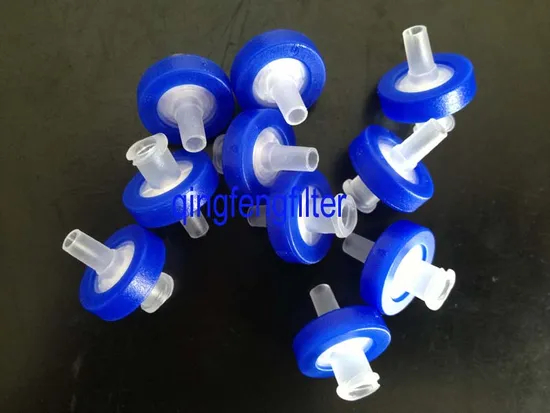

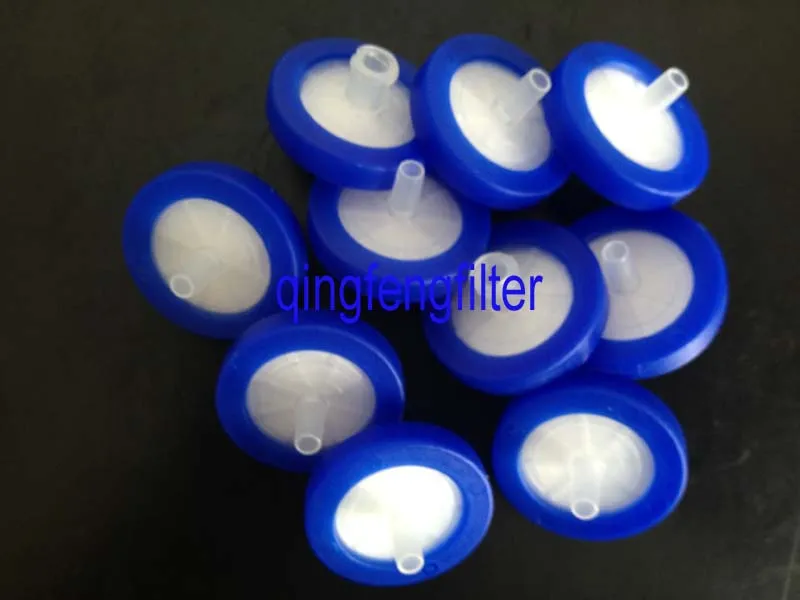

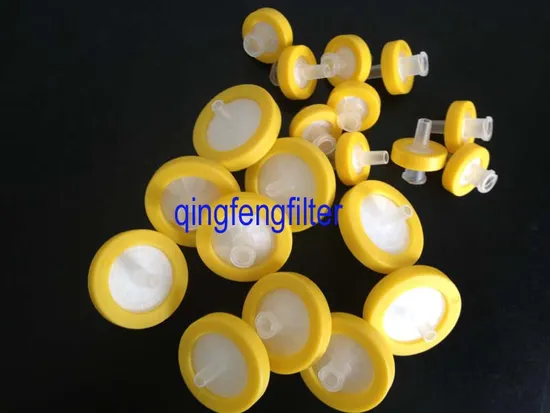

13mm Syringe Filter Main Feature: 1.Reliable Quality
2.Convenient Operation
3.High porosity provides high flow rate
4.Product code clearly marked on each unit denotine, filter material,and pore size
5.Manufactured in a 100,000 clean room in a ISO certified plant Specifications & Technical data: 1.MembraneMaterial: PES,N66,MCE,Hydrophobic PTFE, Hydrophilic PTFE, Hydrophobic PVDF
2.Removal Rating: 0.1um, 0.22um, 0.45um 1.0um
3.Diameter: Φ13mm
Typical Data: Diameter: 13mm
Housing: Polyproylene
Filtration Area: 1.3 cm2
Maximum Pressure: 75 psi (5.2bar)
Hold Up Volume: 0.1ml
Dimensions: 16.0mm x 23mm
Weight: 3 g (approx)
Flow Direction: Flow should enter from the inlet
Inlet Connection: Female luer lock
Outlet Connection: Male luer unlock
Sterilization: Autoclave at 121ºC (131ºC max) at 15 psi (1 bar) for 20 minutes Application: 1.Sample Filtration
2.Liquid Sterilized Filtration Clarification,Particle Removal Filtration

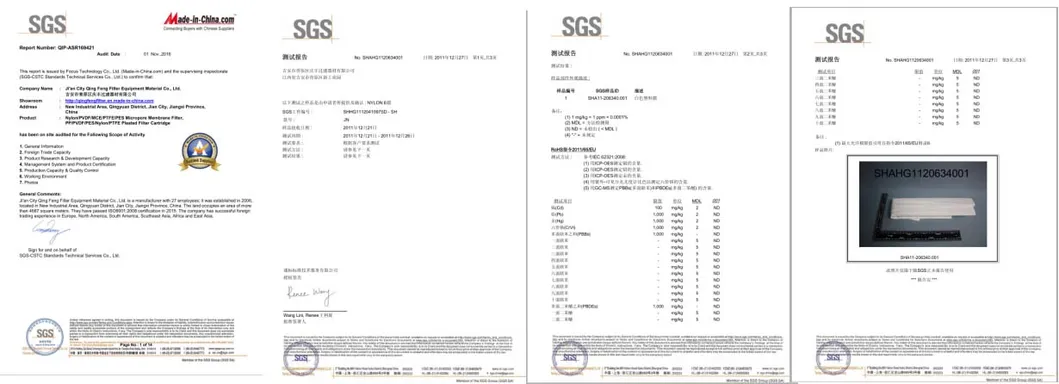

3.Gas Sterilized Filtration Certificates:
