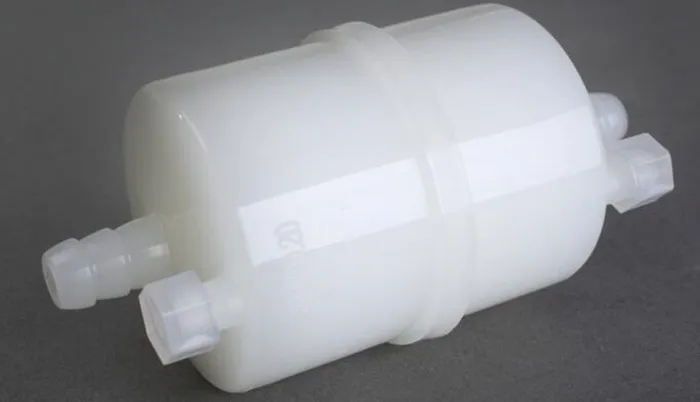

0.2um Disposable PP Capsule Filter for R. O. and Prefiltration of Ultrafiltration

0.2um Disposable PP Capsule Filter for R. O. and Prefiltration of Ultrafiltration

Customization:	Available
Material:	Polypropylene
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Pharmaceutical, Chemical, Food & Beverage

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PP Capsule Filter

Type

Capsule Filter

Filter Connector

1/8"NPT, 1/4"NPT, 1/4"Cnpt; 1/2"NPT, 9/16"Hose Ba

Filtration Grade

Prefiltration

Activated Carbon Filter Type

Capsule Filter

Medium Material

Polypropylene

Micron Rating

0.1um, 0.2um, 0.45um, 1.0um, 3.0um, 5.0um, 10.0um

Length

2.5′′/112mm, 5′′/196mm

Inner Core

Polypropylene

Outer Core

Polypropylene

Connection

Thread, Hose Quick Connection

Usage

R.O., Prefiltration of Ultrafiltration, Ink Filter

Certification

ISO9001 & SGS

Transport Package

Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999090

Production Capacity

15000PCS/Year

Product Description

Product description

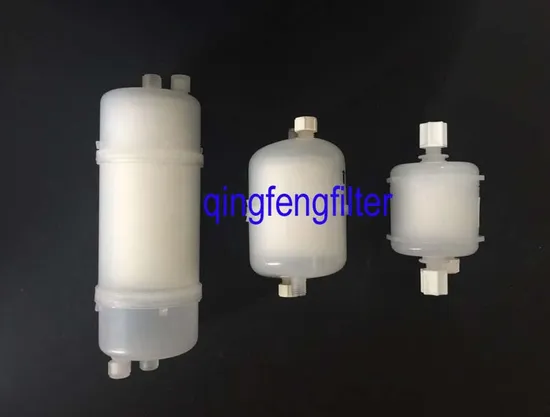

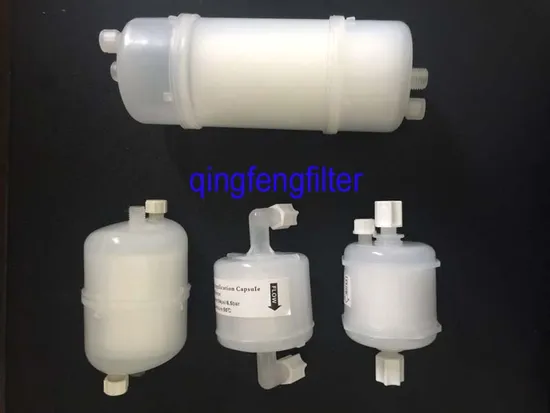

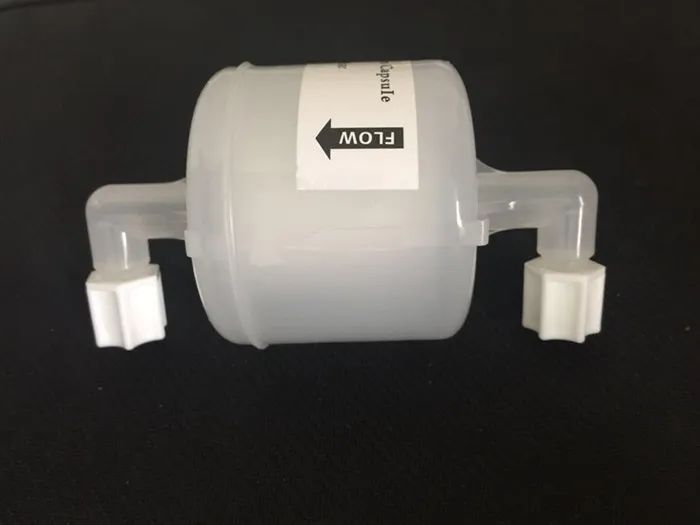

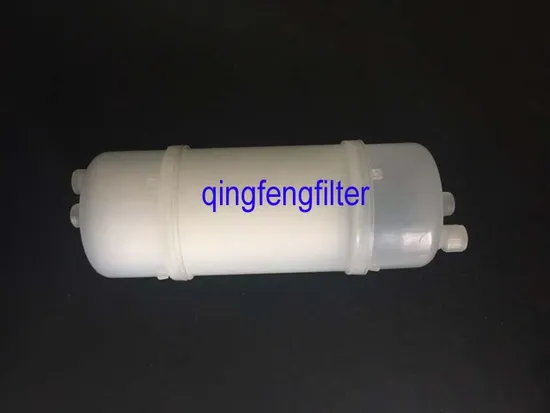

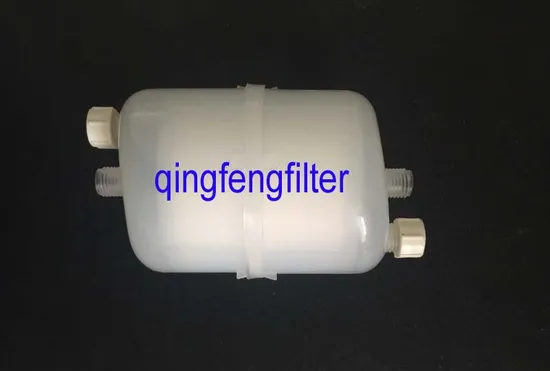

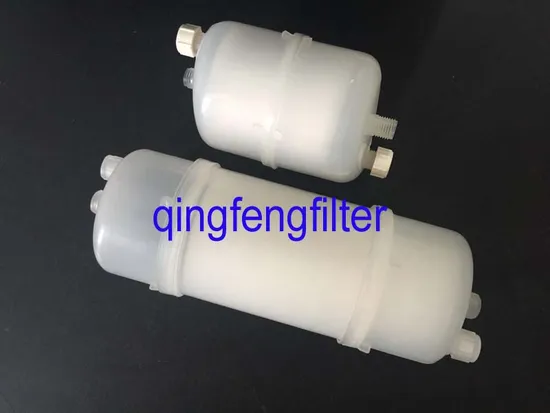

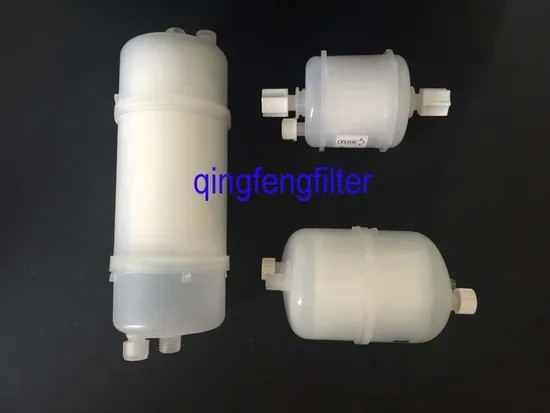

                                                                              Capsule Filters

Kinds of membrane materials can be chosen by the customer's requirements.  Made up of polypropylene cage and pleated membrane filter insider by thermal bonding, good integrality, free of surfactants and adhesives.

Main Characteristics:

Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use

Typical Applications:

PP Capsule filter is with polypropylene membrane filter, suitable for R.O. and prefiltration of ultrafiltration, ink filtration, etc. Can be used for liquid and solvent filtration; Widely used in ink dye and developer filtration of chemical industry

Micron Rating(µm):

PP:  0.10   0.20    0.45   1.00  3.00  5.00   10.0

Materials of Construction:

Filter Media: PP

Inner Core: Polypropylene

Outer Core: Polypropylene

Cartridge Dimensions:

Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3    5" ≥0.28m3

Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange

Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure:  Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

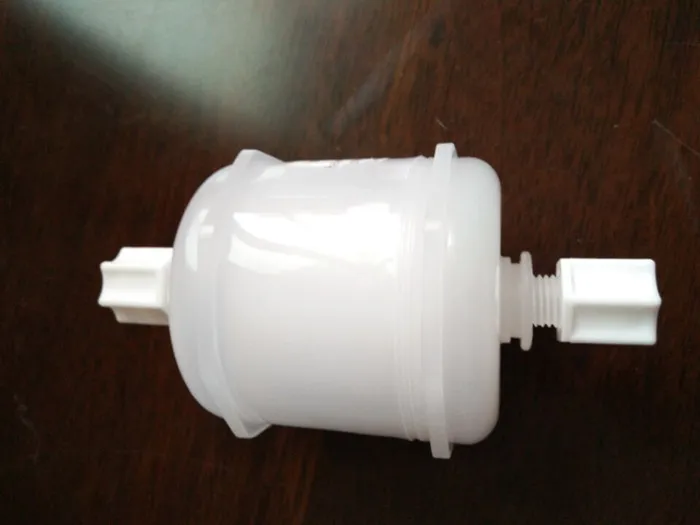

0.2um Disposable PP Capsule Filter for R. O. and Prefiltration of Ultrafiltration

Certifications:

Exhibition:

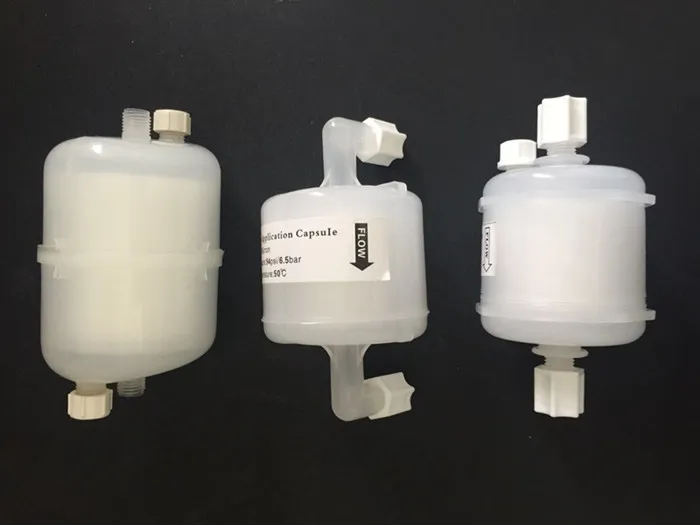

0.2um Disposable PP Capsule Filter for R. O. and Prefiltration of Ultrafiltration

Shipping&Delivery

Delivery time:

1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
