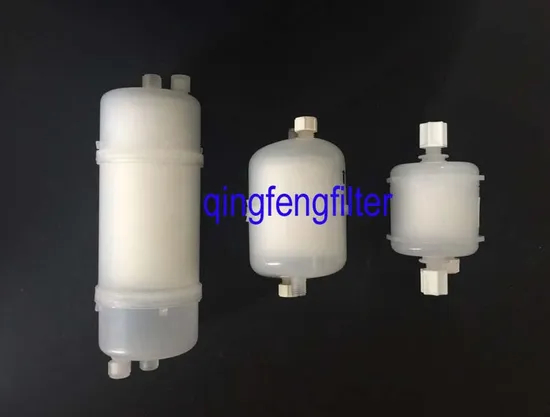

0.45um 1/4′′ NPT Nylon Membrane 5′′ Capsule Filter for Water Treatment

0.45um 1/4′′ NPT Nylon Membrane 5′′ Capsule Filter for Water Treatment

Customization:	Available
Medium Material:	Nylon Membrane
Micron Rating:	0.45um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Nylon Capsule Filter

Length

5′′/196mm

Wettability

Hydrophilic

Connection

1/2′′,1/8′′npt,1/4" Cnpt,9/16" Hose Barb

Support Housing

PP

Application

Pharmaceutical, Chemical, Food & Beverage

Filtration Grade

Prefiltration

Usage

Filtration of Injection and Tissue Cultural Media

Certification

ISO9001 & SGS

Transport Package

Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999090

Production Capacity

15000PCS/Year

Product Description

Product description

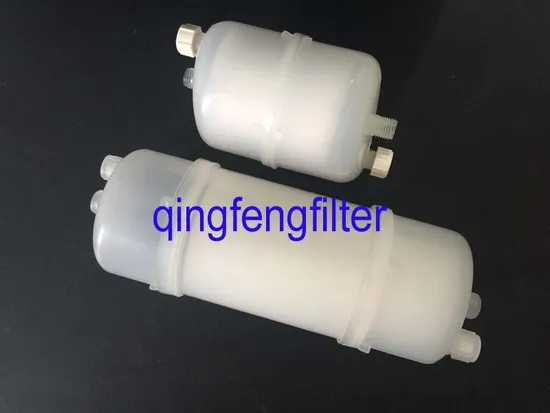

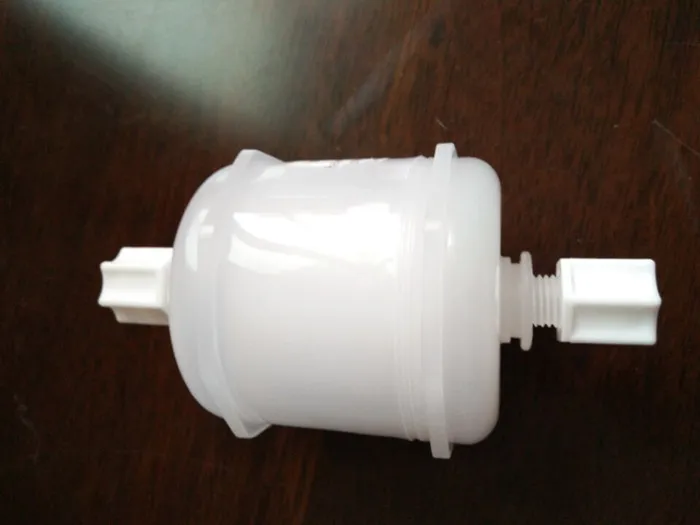

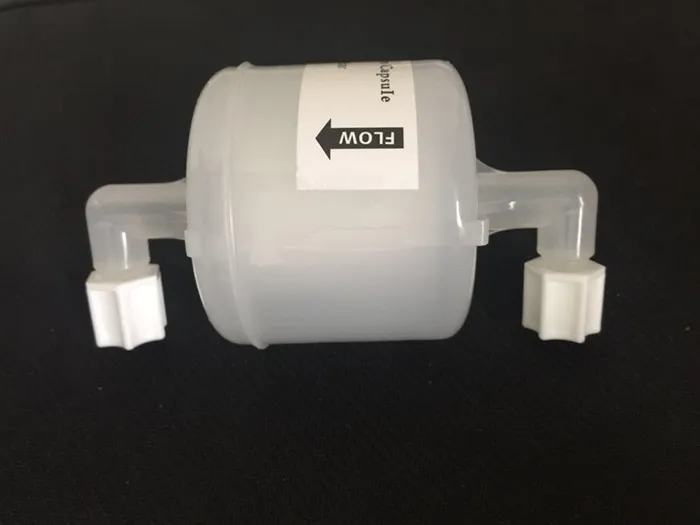

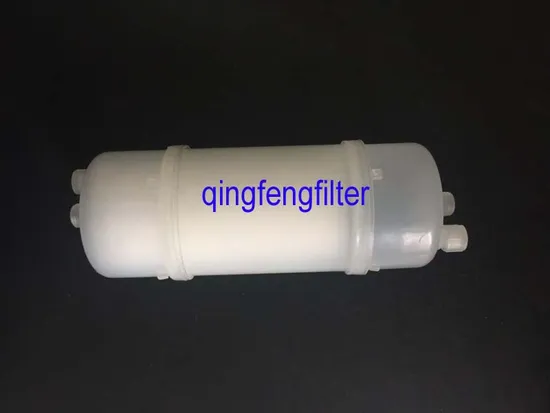

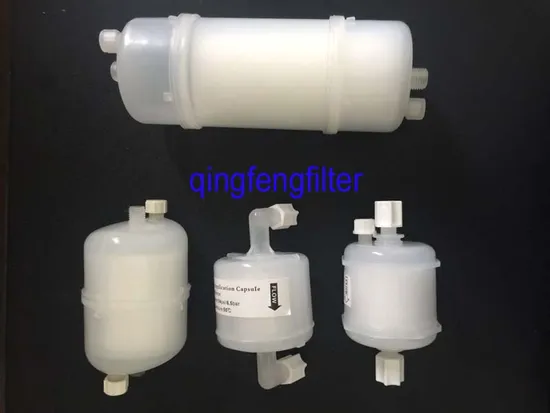

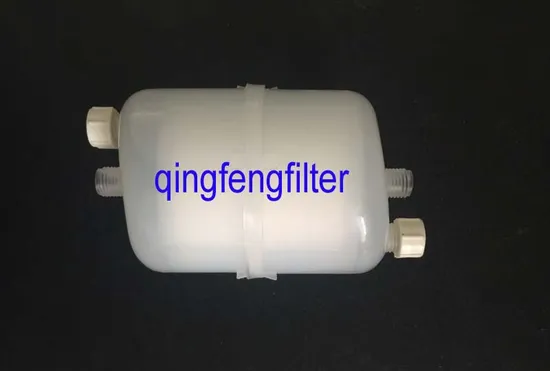

Capsule Filters

Kinds of membrane materials can be chosen by the customer's requirements. Made up of polypropylene cage and pleated membrane filter insider by thermal bonding, good integrality, free of surfactants and adhesives.

Main Characteristics:

Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use

Nylon Capsule Filters:

Typical Applications:

Nylon Capsule filter is with Nylon membrane, high flow rate, can choose filter media with glass fiber to prolong the service life, suitable for large sample volume and something difficult to filter. Widely used in the filtration of pharmaceutical, food and beverage and the filtration of small injection, tissue cultural media and liquid filtration.

Available Micron Rating(µm):

Nylon: 0.10 0.20 0.45 0.65 1.0

Materials of Construction:

Filter Media:Nylon Membrane

Inner Core: Polypropylene

Outer Core: Polypropylene

Cartridge Dimensions:

Available Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3 5" ≥0.28m3

Available Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange

Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure: Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

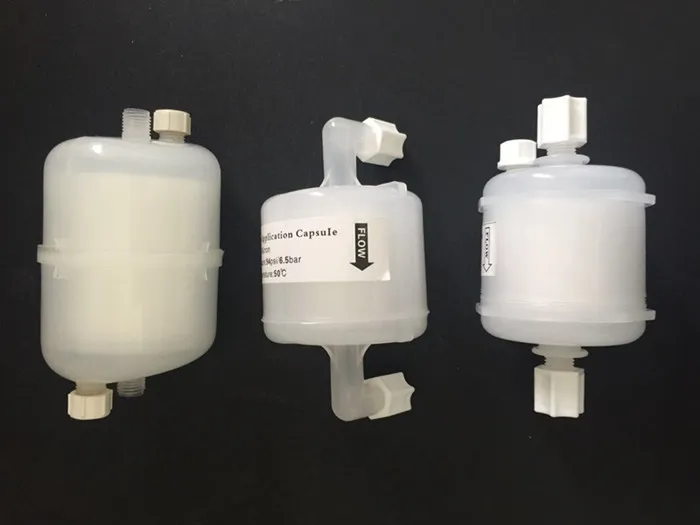

0.45um 1/4′′ NPT Nylon Membrane 5′′ Capsule Filter for Water Treatment

Certifications:

Exhibition:

0.45um 1/4′′ NPT Nylon Membrane 5′′ Capsule Filter for Water Treatment

Shipping&Delivery

Delivery time:

1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.

We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.

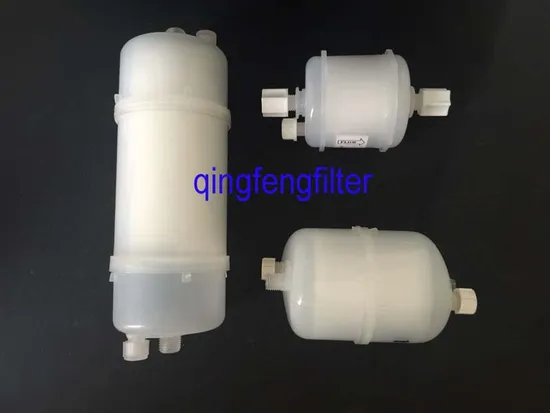

0.45um 1/4′′ NPT Nylon Membrane 5′′ Capsule Filter for Water Treatment
