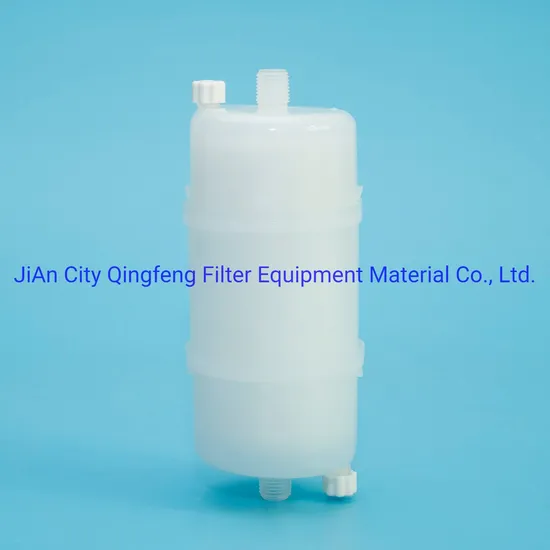

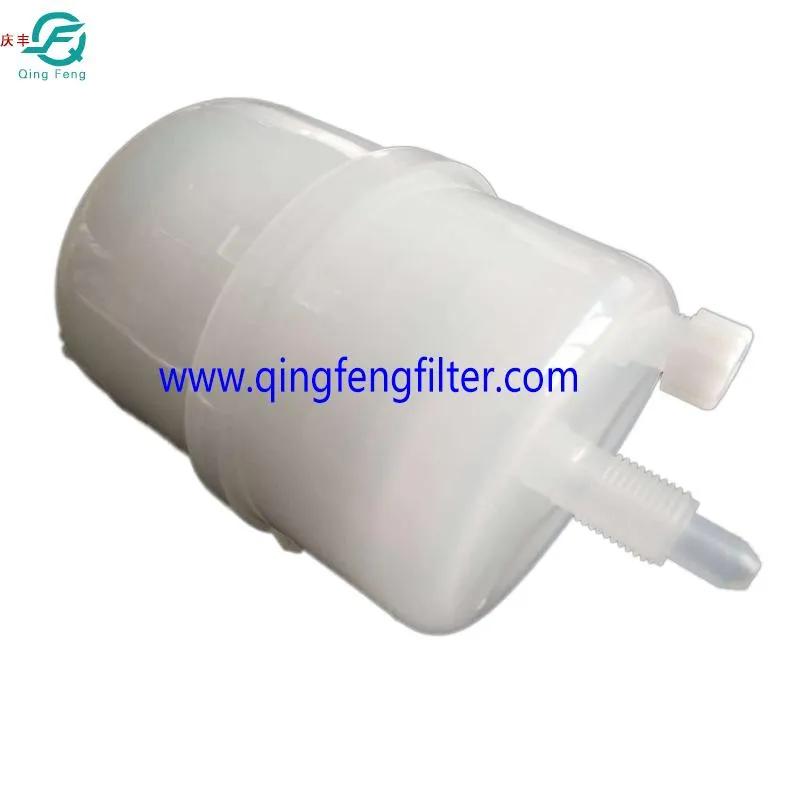

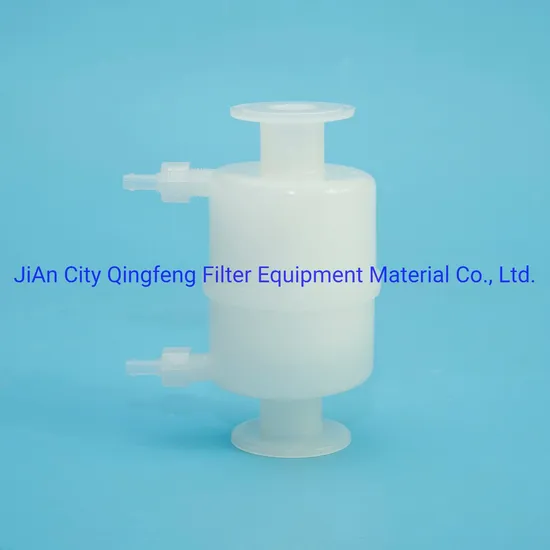

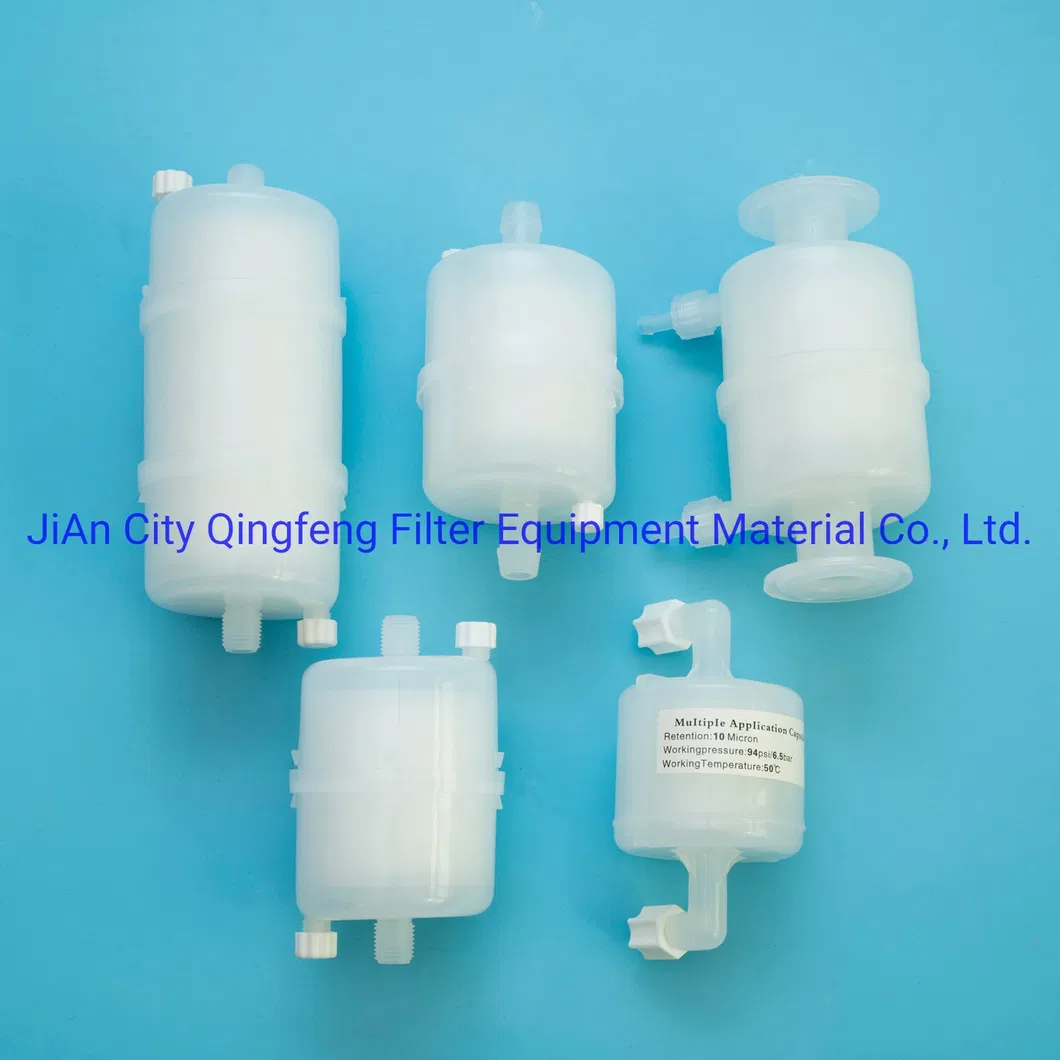

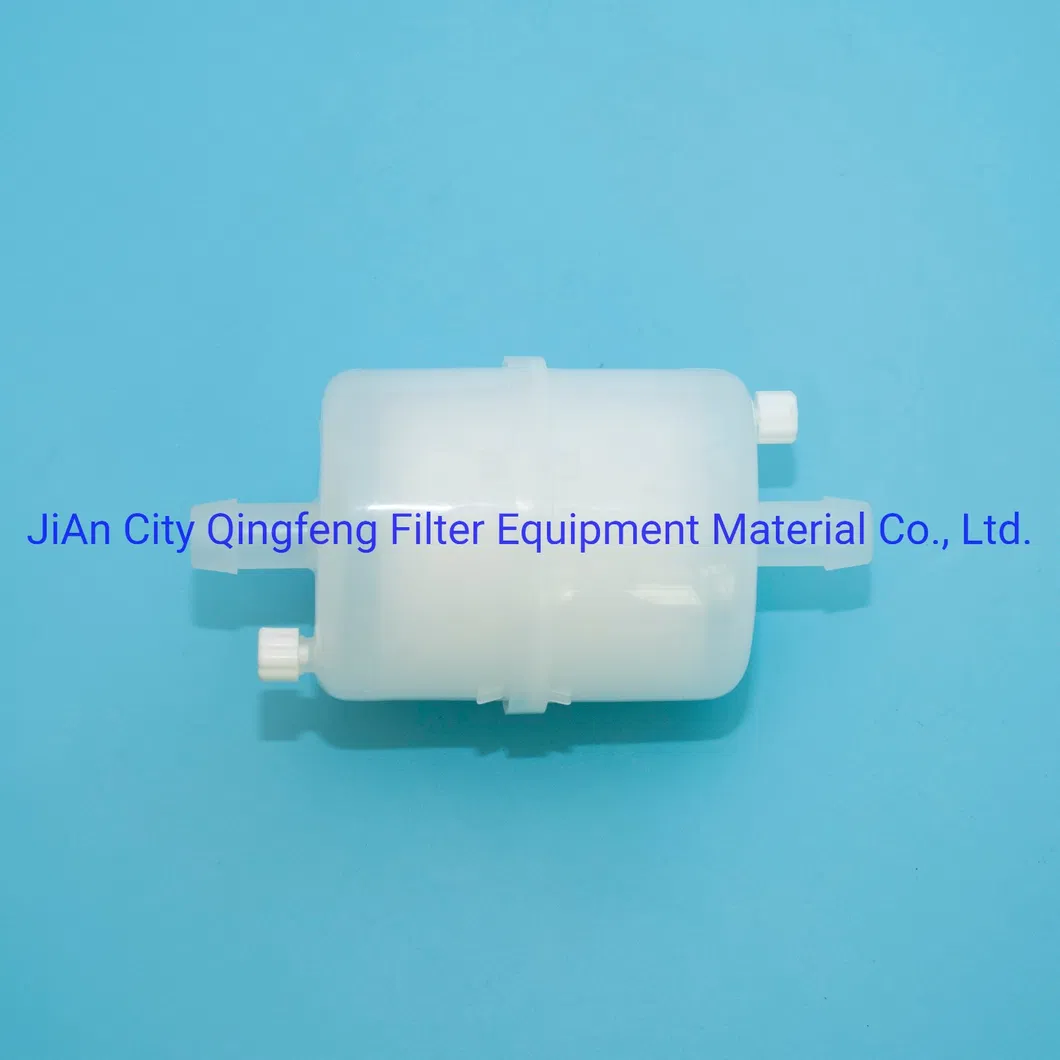

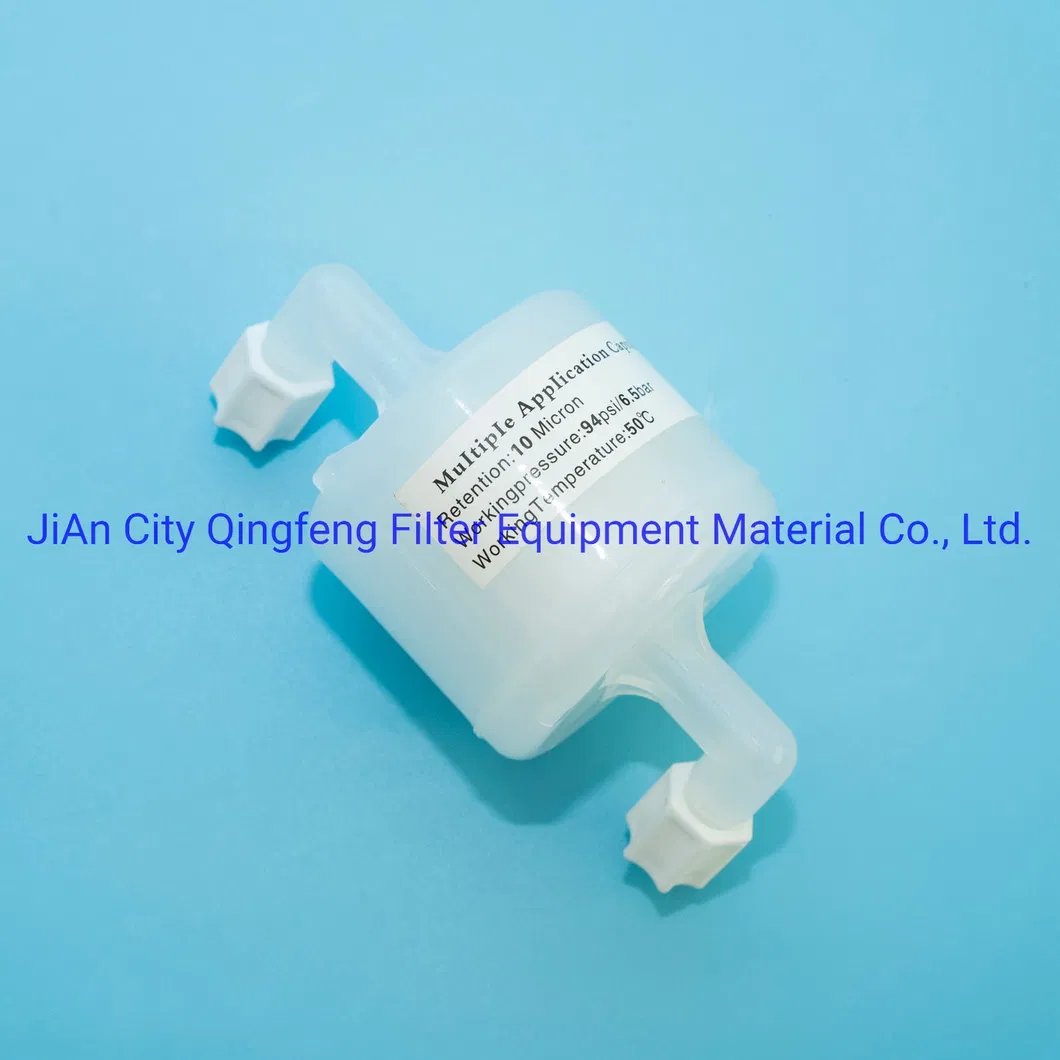

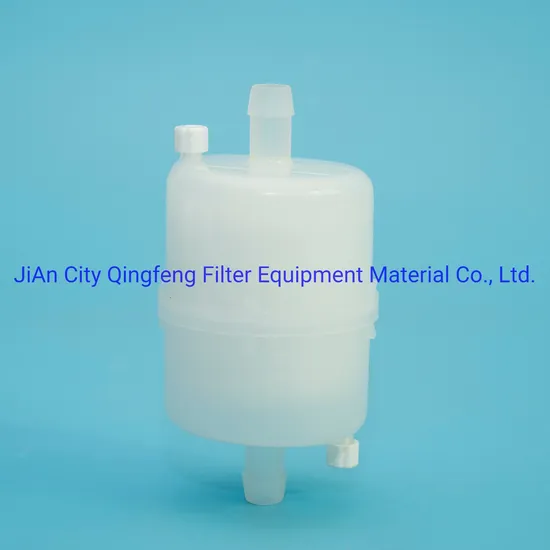

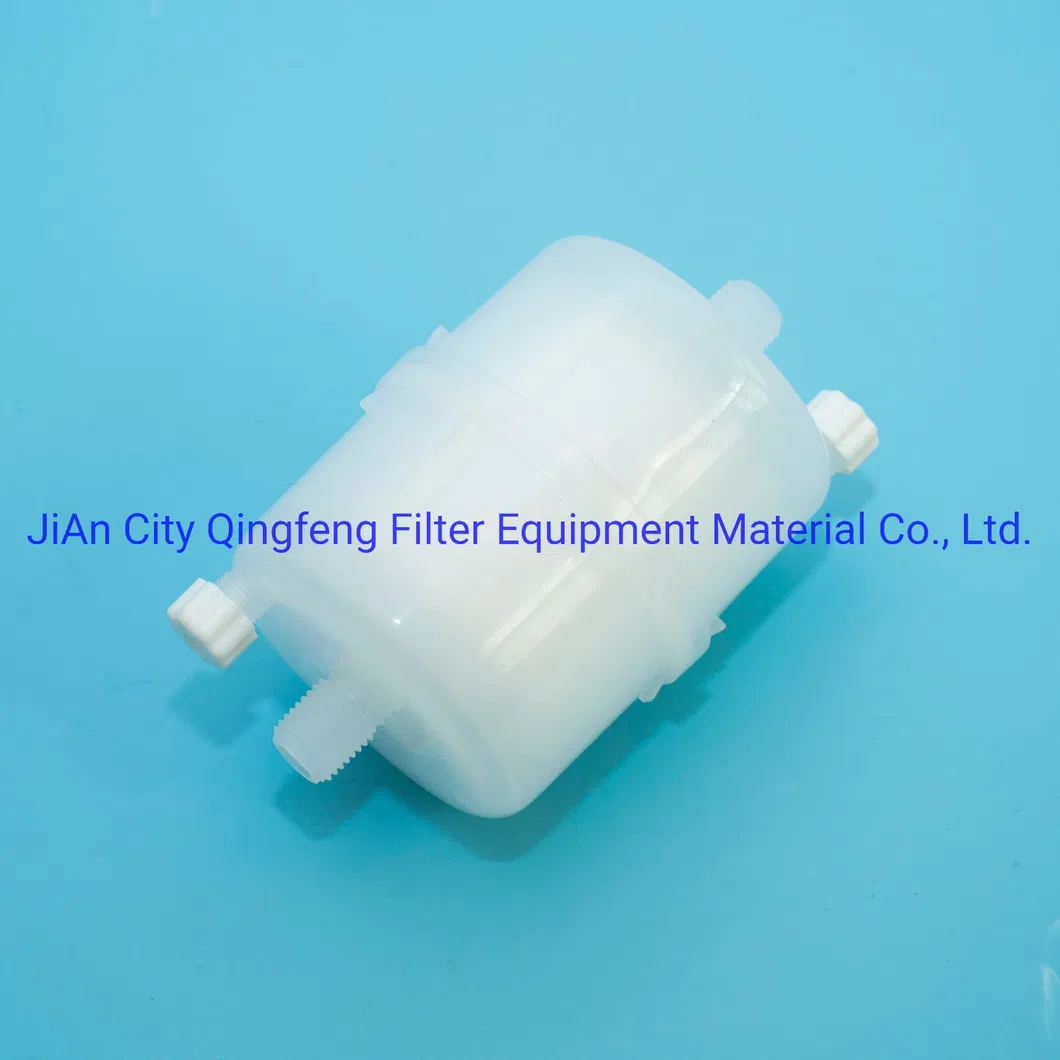

Capsule Filter 1,Small, light, and easy to connect
2,Economical to filter and less waste
3,Good compatibility, safe and economic to disposal
4,Minimal hold up volume of fluids ensures minimum wastage
5,No binders, glues or mold release agents are employed
Specifications & Technical data:
Material of Construction
Medium: PES/Nylon66/PTFE/PP/GF/PVDF
Support & Housing: PP
Removal Rating: Please refer to Ordering Information as attached.
Configurations: Nominal Length: 2.5"/112mm; 5"/196mm
Diameter: ODΦ67
Fittings: Inlet/Outlet: 1/2"NPT,1/4"SW; Vent/ Drain: 1/4"SW
Effective Filter Areas: 2.5" ≥0.14m2
Sealing Quality:
Capsule filters are manufactured to a very high standard of quality assurance and cleanliness. Manufactured in accordance to ISO 9001:2000
Operating Conditions:
• Maximum Temperature:140°F/60°C
• Maximum Forward Differential Pressure :0.42Mpa
• Maximum Reverse Differential Pressure :0.21Mpa
Typical Applications:
1,Chemicals
2,Solvents
3,Coatings
4,Pigment
5,Oil
6,Photoresist
7,Small volume previous chemicals | Materials of Construction |
| Filter Media | PES/Nylon66/PTFE/PP/GF/PVDF |
| Support & Housing | PP |
| Sealing technology | Thermal Bonding, No Adhesives |
| Filtration Area, ft 2 |
| ≥ 2.2 |
| Pore Size, μm |
| Please refer to Ordering Information. |
| Maximum Differential Pressure |
| Forward: 3.5 bar @ 23°C and 3.0 bar @ 60°C for liquid; 3.0 bar @ 23°Cand 2.5 bar @ 60°C for gas & air. |
| Sterilization |
| 3 autoclave cycles of 30 min at 123 °C; steam-in-place sterilization not recommendable. |
Shipping:
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX) Delivery time:
1.If this kind of products is in stock, the product will be sent for you 1-7 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15 days to produce.
Exhibition
FAQ:
1. Package Details: Plastic bags inside,carton outer.
2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.
3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.
4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready. About us:

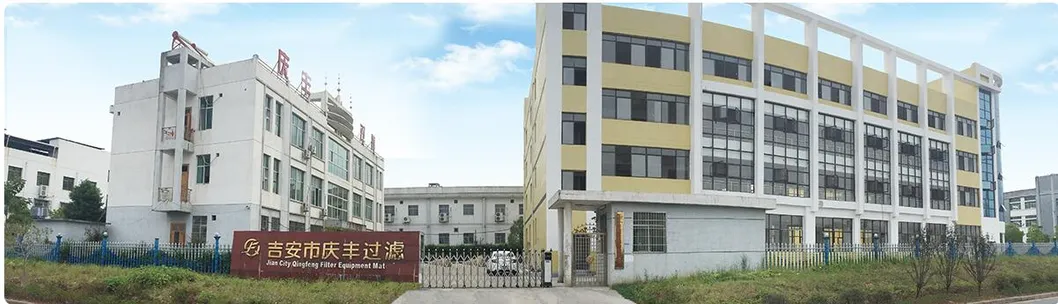

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
