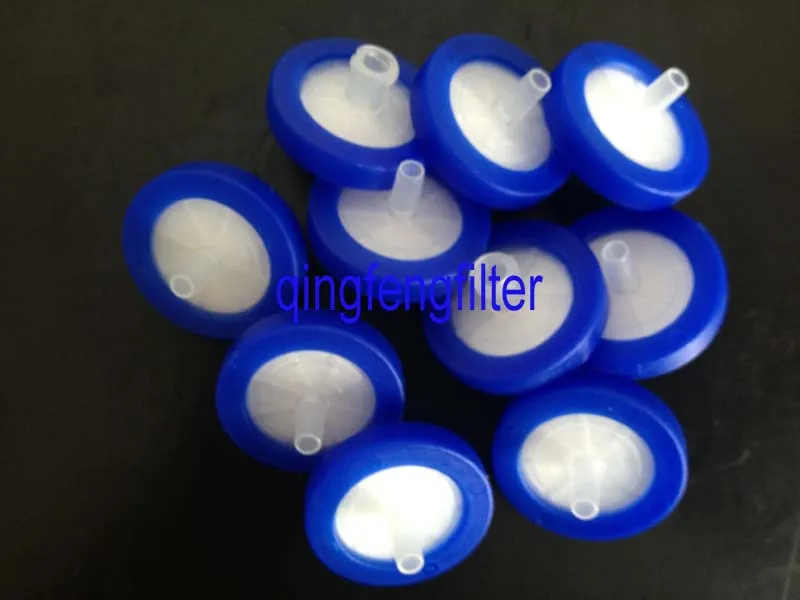

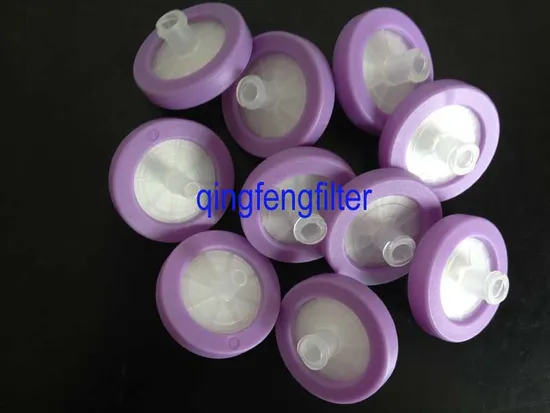

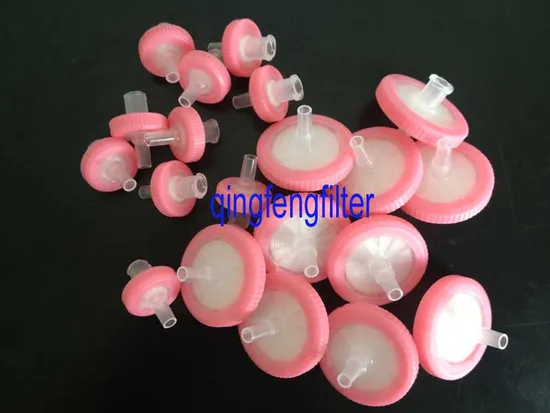

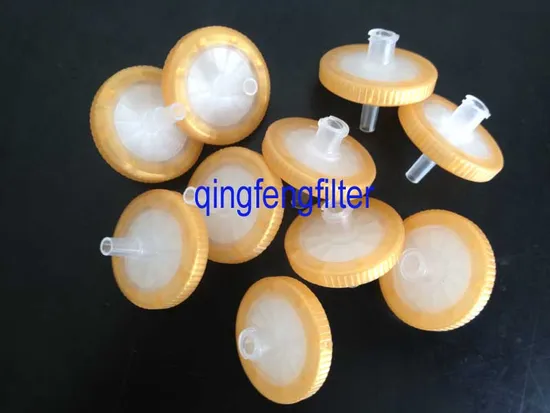

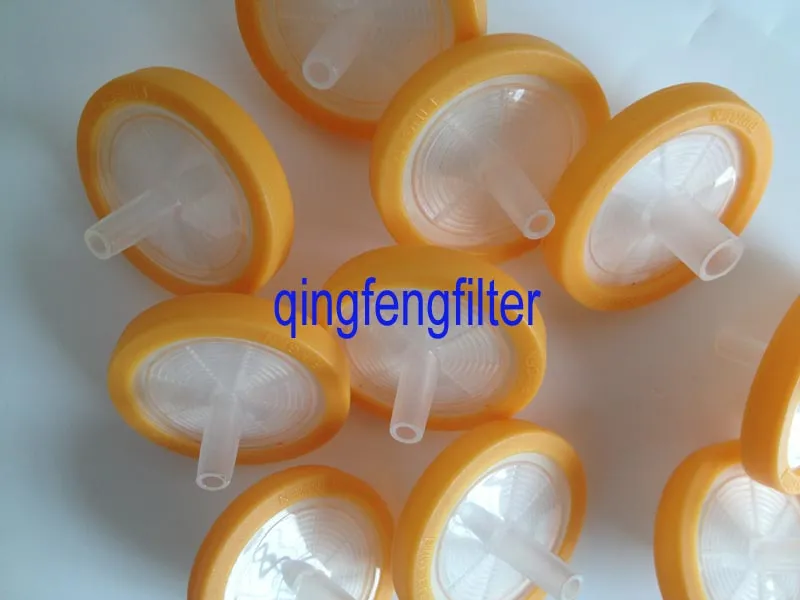

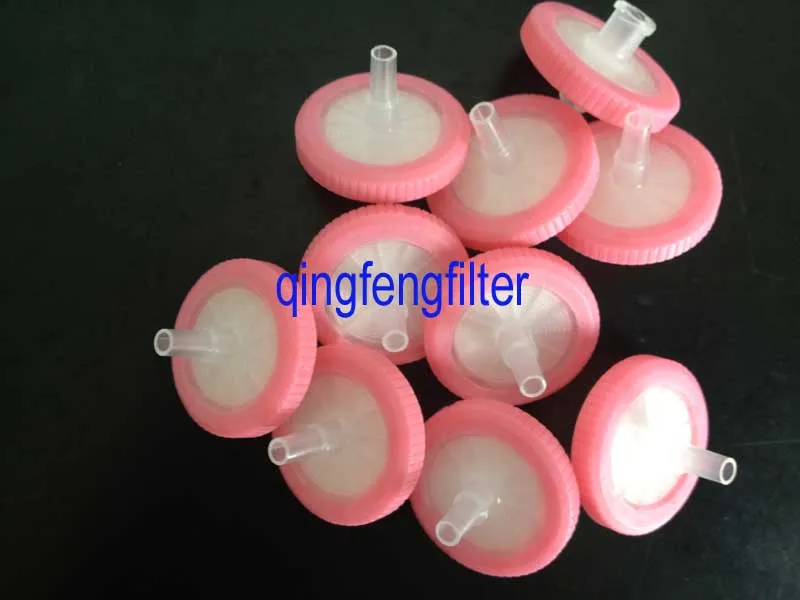

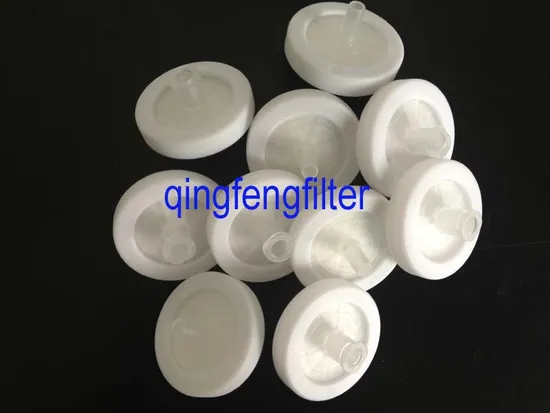

25mm Syringe Filter Main Feature
1.Reliable Quality
2.Convenient Operation
3.High porosity provides high flow rate
4.Product code clearly marked on each unit denotine, filter material,and pore size
5.Manufactured in a 100,000 clean room in a ISO certified plant
Specifications & Technical data
Membrane Material: PES, N66, MCE, Hydrophobic PTFE, Hydrophobic PVDF,
Hydropholic PTFE
Removal Rating: 0.10um,0.20um, 0.45um,1.0um
Diameter: 25mm
Housing: Polyproylen
Filtration Area: 4.6 cm2
Maximum Pressure: 75 psi (5.2bar)
Hold Up Volume: 0.25ml
Dimensions: 28.0mm x 23mm
Weight: 3 g (approx)
Flow Direction: Flow should enter from the inlet
Inlet Connection: Female luer lock
Outlet Connection: Male luer unlock
Sterilization: Autoclave at 121ºC (131ºC max) at 15 psi (1 bar) for 20 minutes
Application
1.Sample Filtration
2.Liquid Sterilized Filtration Clarification,Particle Removal Filtration
3.Gas Sterilized Filtration

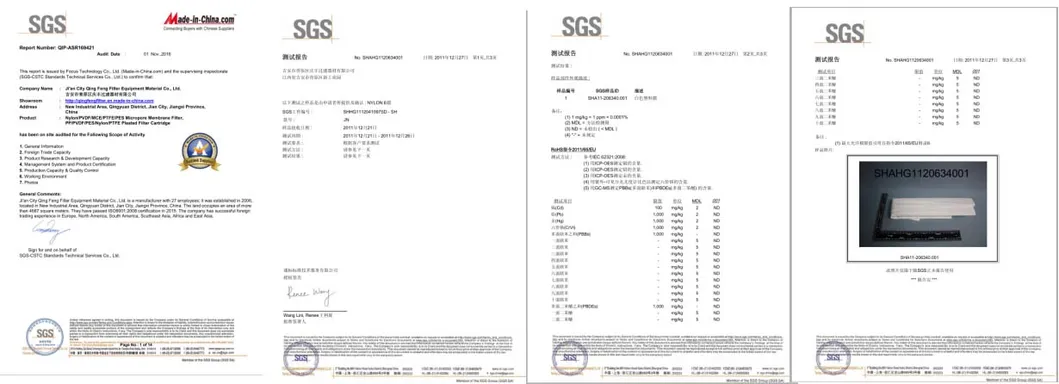

Certificates:

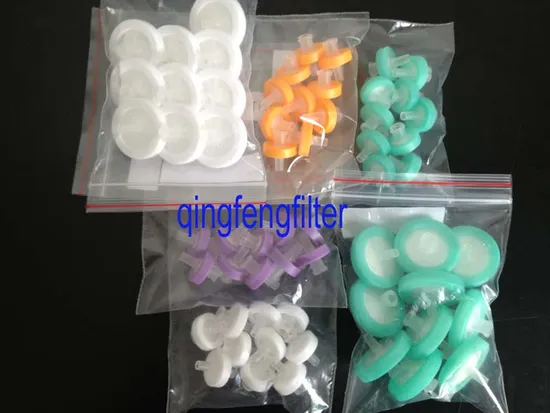

FAQ: 1. Package Details: Plastic bags inside,carton outer.
2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.
3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.
4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.
Shipping: Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
