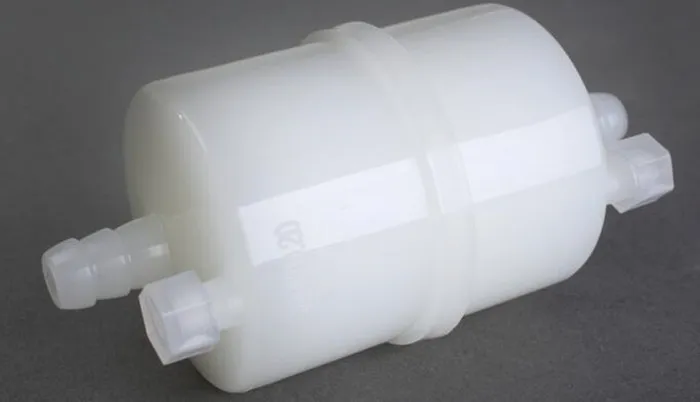

5′′ 0.45um Polypropylene (PP) Capsule Filter for Filtration of Dye and Developing Fluid

5′′ 0.45um Polypropylene (PP) Capsule Filter for Filtration of Dye and Developing Fluid

Customization:	Available
Material:	Polypropylene
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Pharmaceutical, Chemical, Food & Beverage

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Polypropylene (PP) Capsule Filter

Type

Capsule Filter

Filter Connector

1/8"NPT, 1/4"NPT, 1/4"Cnpt; 1/2"NPT, 9/16"Hose Ba

Filtration Grade

Prefiltration

Activated Carbon Filter Type

Capsule Filter

Medium Material

Polypropylene

Micron Rating

0.45um

Length

5′′/196mm

Inner Core

Polypropylene

Outer Core

Polypropylene

Connection

Thread, Hose Quick Connection

Usage

R.O., Prefiltration of Ultrafiltration, Ink Filter

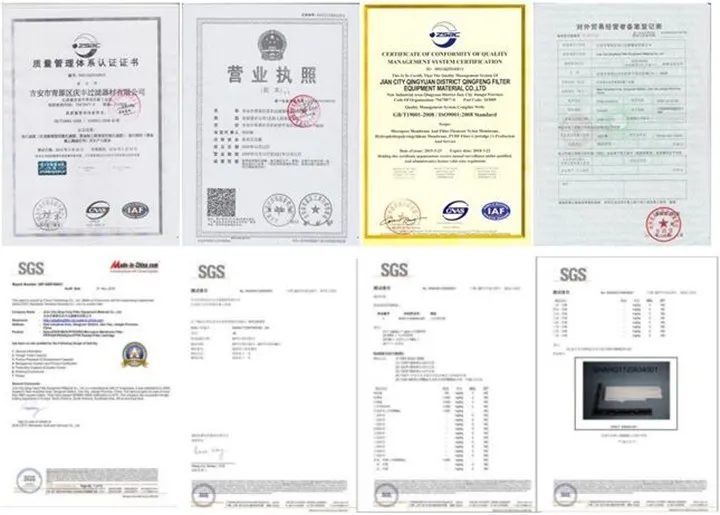

Certification

ISO9001 & SGS

Transport Package

Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999090

Production Capacity

15000PCS/Year

Product Description

Product description

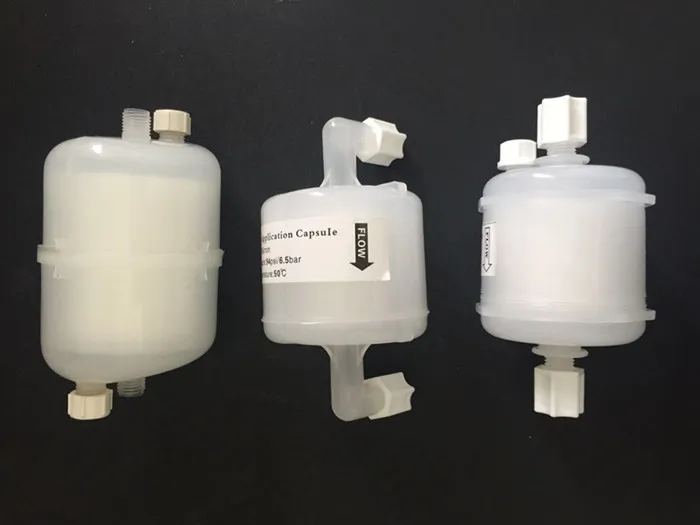

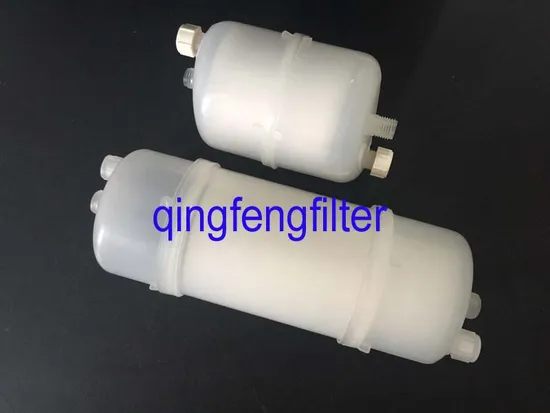

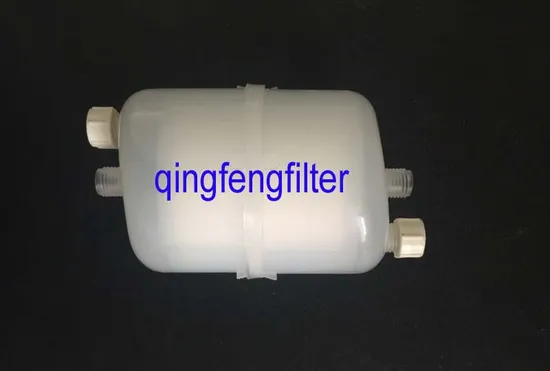

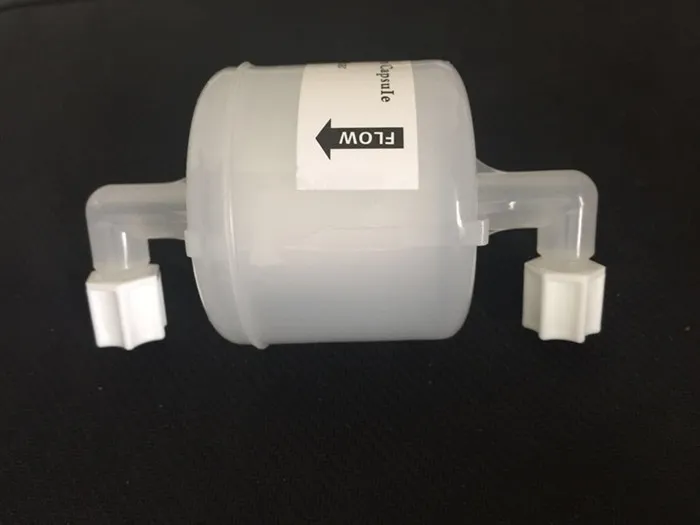

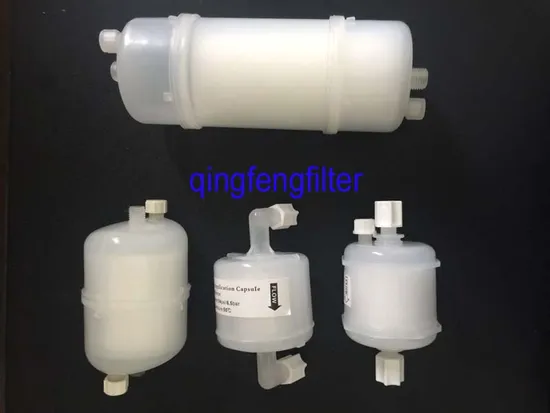

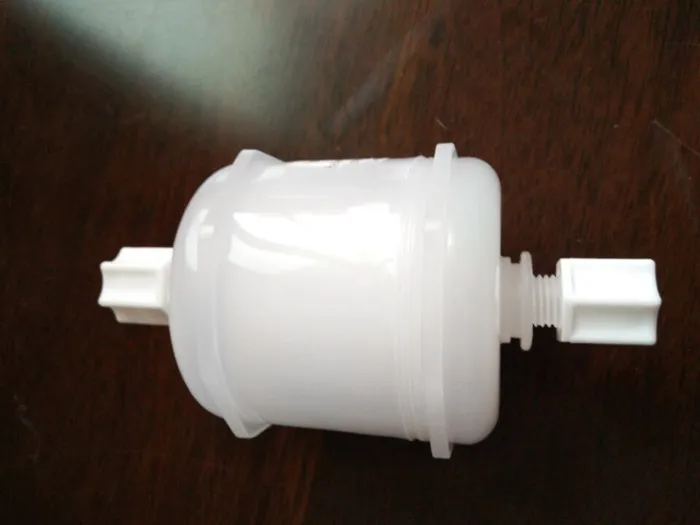

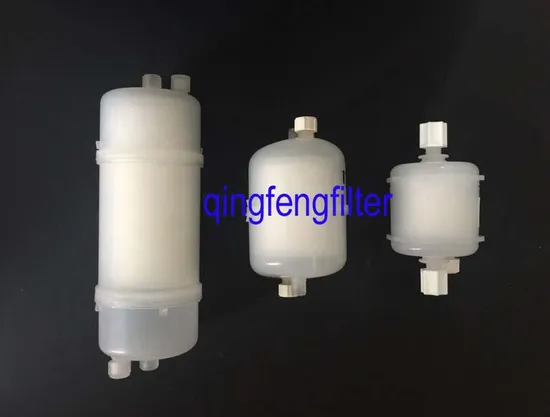

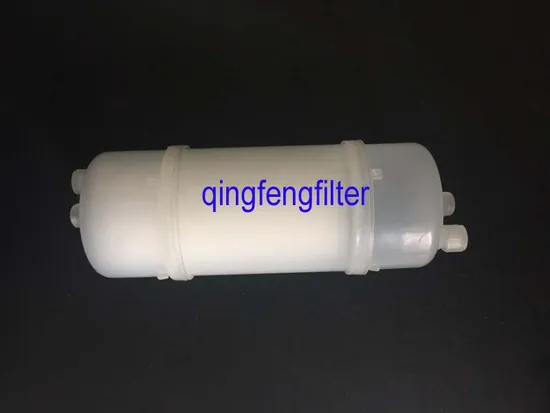

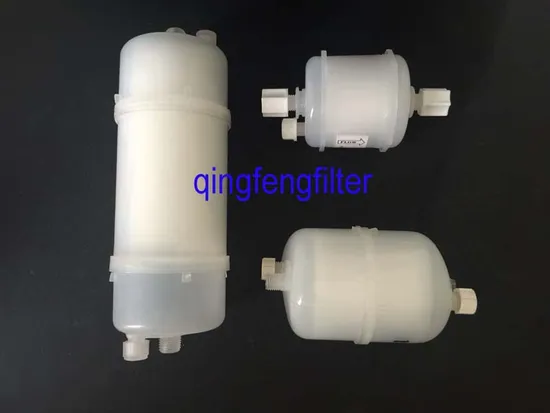

                                                                               Capsule Filters

Kinds of membrane materials can be chosen by the customer's requirements.  Made up of polypropylene cage and pleated membrane filter insider by thermal bonding, good integrality, free of surfactants and adhesives.

Main Characteristics:

Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use

Typical Applications:

PP Capsule filter is with polypropylene membrane filter, suitable for R.O. and prefiltration of ultrafiltration, ink filtration, etc. Can be used for liquid and solvent filtration; Widely used in ink dye and developer filtration of chemical industry

Available Micron Rating(µm):

PP:  0.10   0.20    0.45   1.00  3.00  5.00   10.0

Materials of Construction:

Filter Media: Polypropylene

Inner Core: Polypropylene

Outer Core: Polypropylene

Available Cartridge Dimensions:

Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3    5" ≥0.28m3

Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange

Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure:  Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

5′′ 0.45um Polypropylene (PP) Capsule Filter for Filtration of Dye and Developing Fluid

ABOUT US:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
