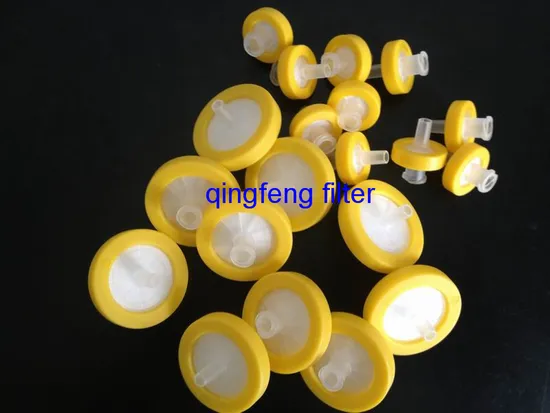

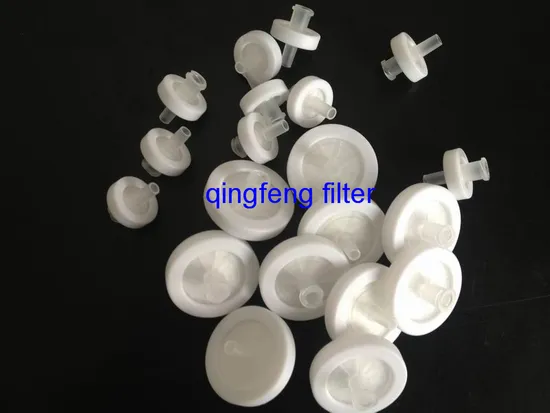

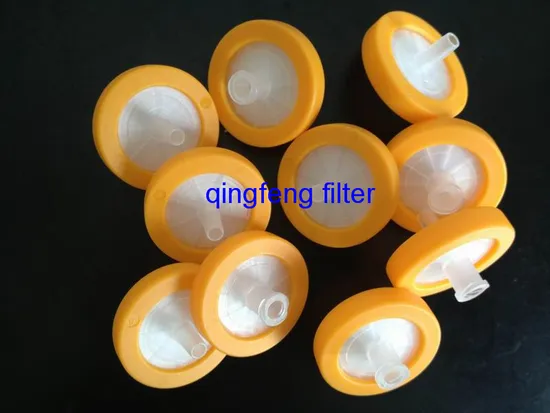

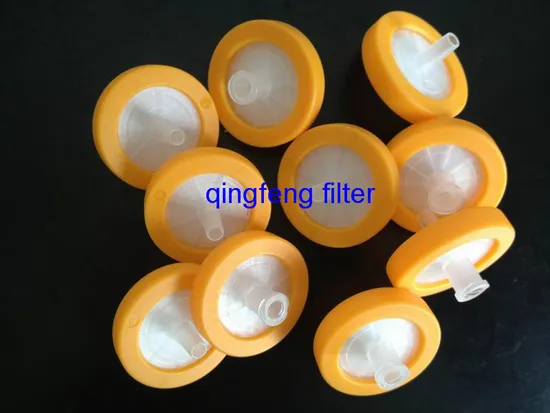

ISO90010.2 Micron Nylon Membrane Syringe Filter Used in Laboratory / Medical /Hospital

ISO90010.2 Micron Nylon Membrane Syringe Filter Used in Laboratory / Medical /Hospital

Customization:	Available
Outer Diameter:	13mm/25mm
Pore Size:	0.2um-5um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Nylon Syringe Filter

Media Material

Nylon ,Pes ,PP,PTFE,PVDF ,Mce

Filter Media

Nylon Membrane

Diameter

13mm/25mm

Wettability

Hydrophilic

Service Life

Disposable

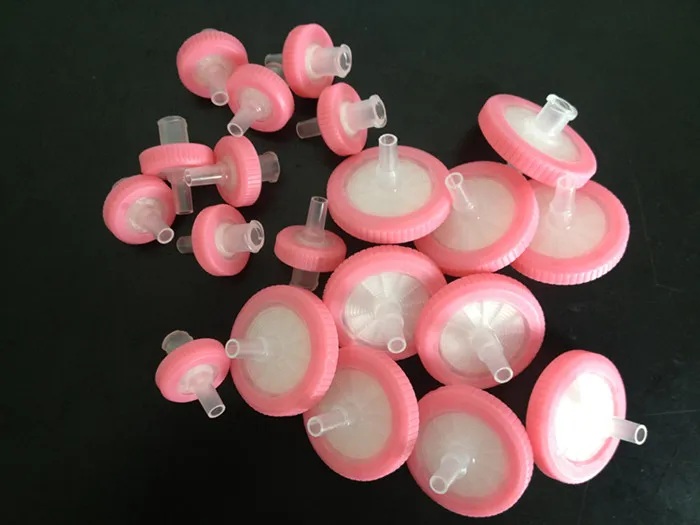

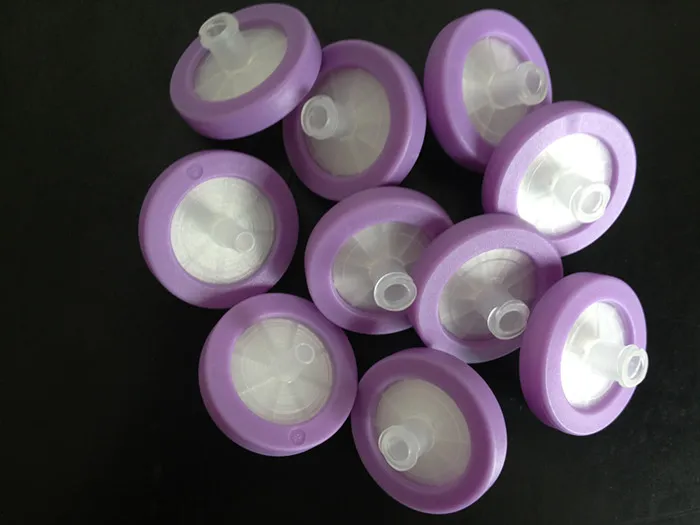

Color

White/Yellow/ Blue/ Pink/Purple

Structure

Work with Needle Barrels

Special Appication

Oil Filtration with 2.0/5.0um Membrane

Usage

Laboratory and Hospital Filtration

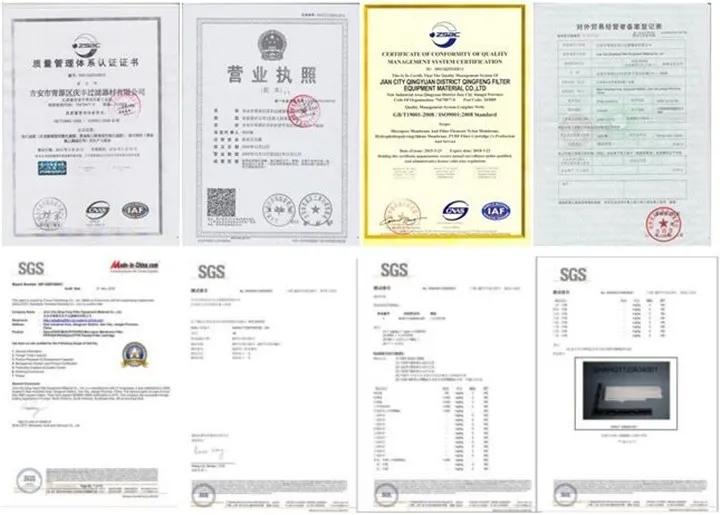

Certifications

ISO9001 & SGS

Cost Calculation

Cost-Efficient

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

Product Description

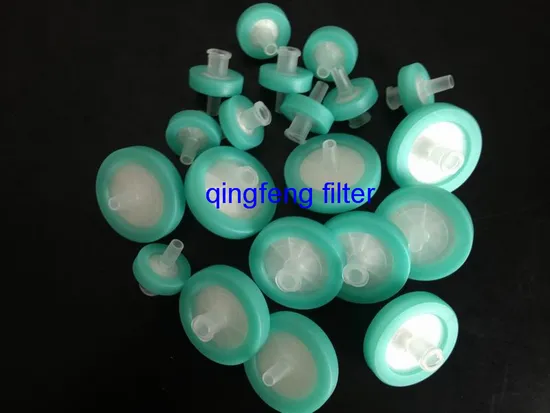

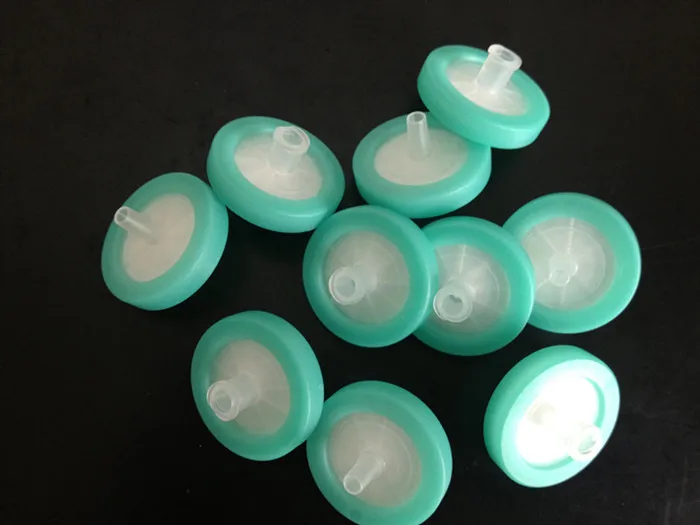

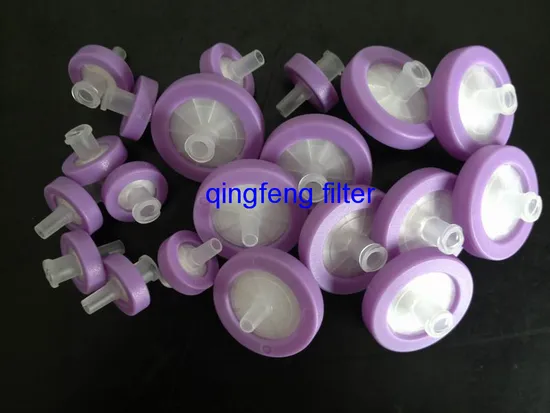

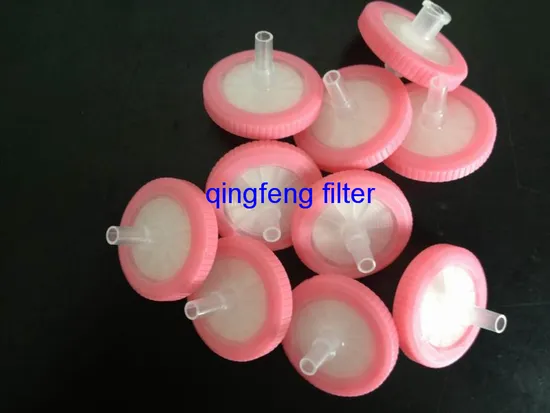

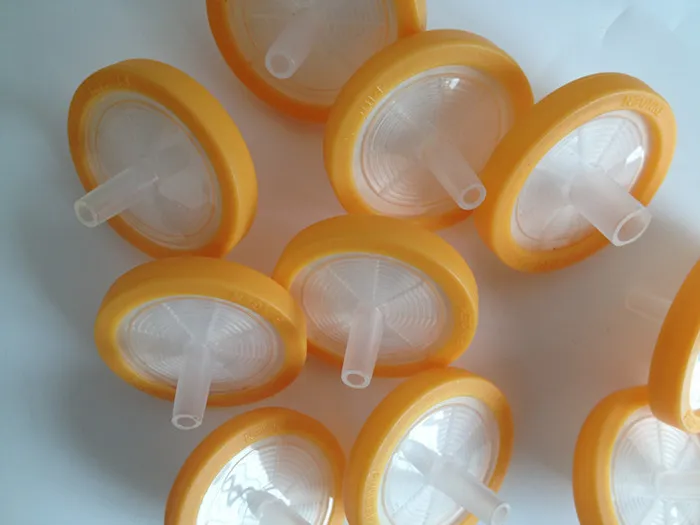

Nylon Syringe Filter


Parameters	13mm		25mm		33mm
Membrane material	nylon		nylon		nylon
Housing material	PP		PP		PP
Filter diameter (mm)	13mm		25mm		33mm
Filtration area (cm2 )	0.65		3.90		4.60
Pore Size(μm)	0.22	0.45	0.22	0.45	0.22	0.45
Holdup volume (μl)	<10		<30		<55
Sample volume (ml)	<12		<100		<140
Maximum Operating Temperature	60°C		60°C		60°C
Maximum Operating Pressure (psi)	130		130		130
Applicable pH value	6-13		6-13		6-13

Main Characteristics:

1. Alkali and organic solution resistance

2. Natural hydrophilic

Typical Applications:

1. Liquid clarification,removal of bacteria and particles

2. Filtration of photoresist in Electronic Industry

3. Filtration of various solvent and medication solvent

Specifications:

Product specification: Φ13/Φ25

Shell material: polypropylene (PP)

Execution standard: enterprise standard

Effective filtering area: 1.3m²/4.9m²

Max. working pressure: 0.54 MPa

Max. Working temperature: 60ºC

Membrane material: Nylon membrane

Micron: 0.2μm-5μm

Inlet: Female Luer Lock

Outlet: Male Lurer unlock

ISO90010.2 Micron Nylon Membrane Syringe Filter Used in Laboratory / Medical /Hospital

ABOUT US:

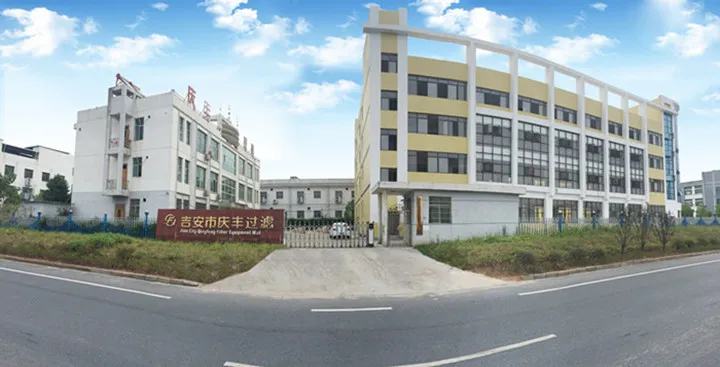

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

CONTACT US:

Ji'an Qingfeng Filter Equipment Material Co.,Ltd
Mobile Phone:86-150
Tel: 86-796-8106818
Fax: 86-796-8105786
Website: qingfengfilter.en.made-in-china.com
ISO90010.2 Micron Nylon Membrane Syringe Filter Used in Laboratory / Medical /Hospital


Parameters	13mm	25mm	33mm
Membrane material	nylon	nylon	nylon
Housing material	PP	PP	PP
Filter diameter (mm)	13mm	25mm	33mm
Filtration area (cm2 )	0.65	3.90	4.60
Pore Size(μm)	0.22	0.45	0.22	0.45	0.22	0.45
Holdup volume (μl)	<10	<30	<55
Sample volume (ml)	<12	<100	<140
Maximum Operating Temperature	60°C	60°C	60°C
Maximum Operating Pressure (psi)	130	130	130
Applicable pH value	6-13	6-13	6-13
