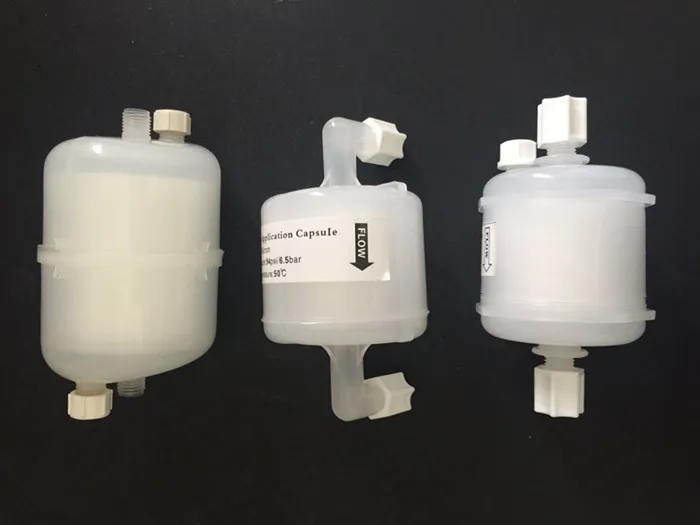

OEM PTFE Disposable 0.2um 5 Inch Capsule Filter for Biopharmaceutical

OEM PTFE Disposable 0.2um 5 Inch Capsule Filter for Biopharmaceutical

Customization:	Available
Application:	Industry, Medicine, Textile, Food and Beverage, Pharmaceutical and Chemical, Metallurgy
Material:	PP + PTFE Filter Membrane

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PTFE Capsule Filter

Medium Material

PTFE Membrane

Micron Rating

0.2um

Length

5′′/196mm

Wettability

Hydrophilic & Hydrophobic

Connection

1/2′′ 1/4′′ 1/8′′ NPT, 1/4′′cnpt, 9/16" Hose Barb

Support Housing

PP

Filter Type

Micronporous Filter

Usage

Filtration of Air and Gas

Certifications

ISO9001 & SGS

Type

Capsule Filter

Filter Connector

1/2′′ 1/4′′ 1/8′′ NPT, 1/4′′ Cpnt, 9/16" Hose Barb

Filtration Grade

PRE Filter

Activated Carbon Filter Type

PTFE Capsule Filter

Transport Package

Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999090

Production Capacity

15000PCS/Year

Product Description

Product description

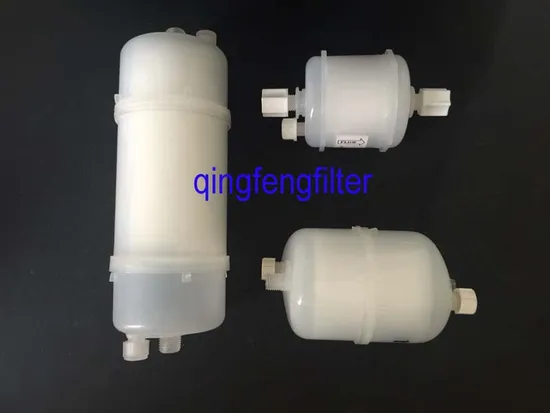

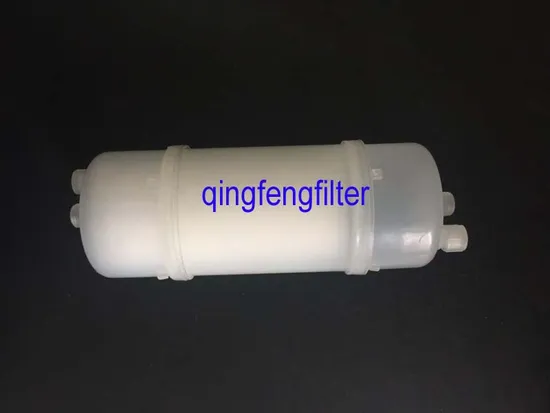

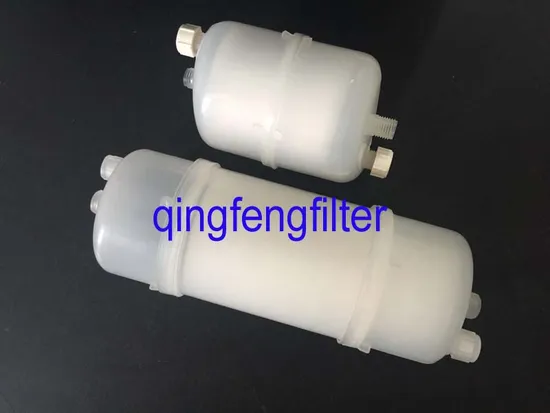

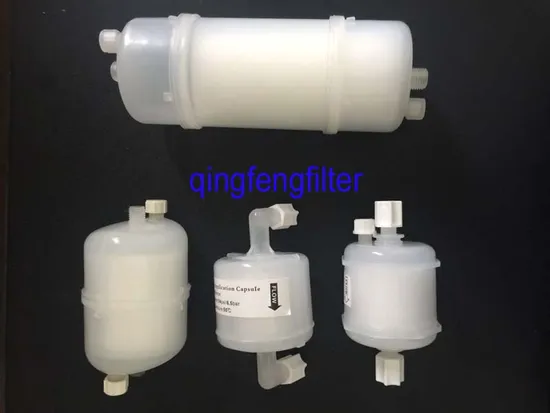

                                                                       Capsule Filters

Kinds of membrane materials can be chosen by the customer's requirements.  Made up of polypropylene cage and pleated membrane filter insider by thermal bonding, good integrality, free of surfactants and adhesives.

Main Characteristics:

Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use

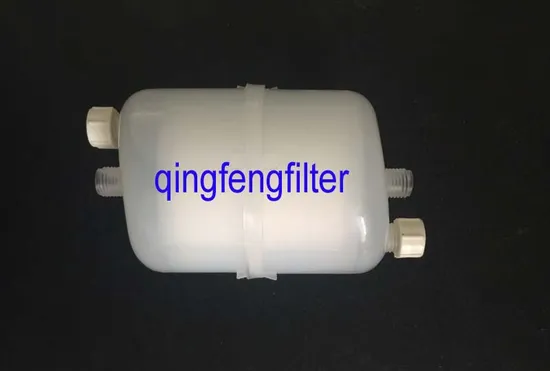

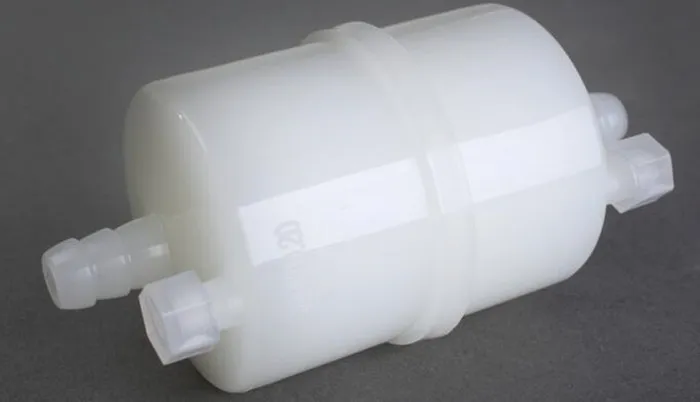

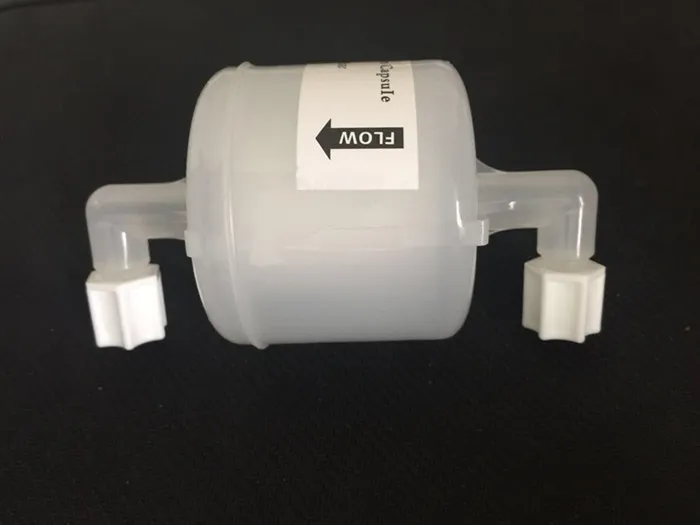

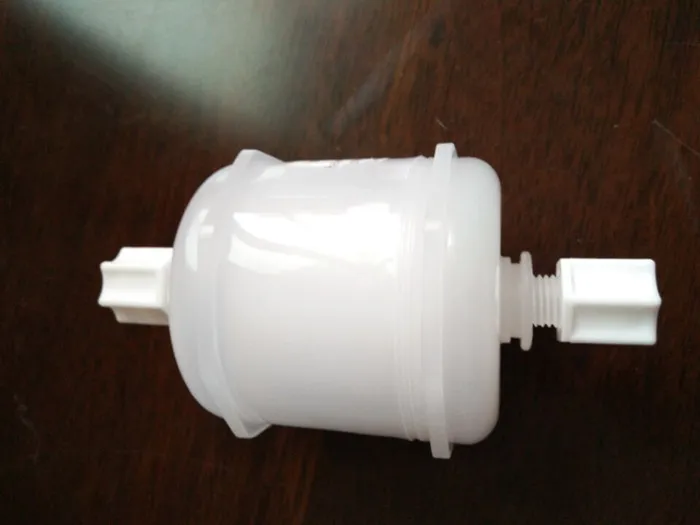

PTFE Capsule Filters:

Typical Applications:

PTFE Capsule filter is with PTFE membrane, high flow rate, can choose filter media with glass fiber to prolong the service life, suitable for large sample volume and something difficult to filter. Widely used in the filtration of pharmaceutical, food and beverage and the filtration of small injection, tissue cultural media and liquid filtration.

Available Micron Rating(µm):

PTFE:  0.10   0.20    0.45   1.0

Materials of Construction:

Filter Media:PTFE Membrane

Inner Core: Polypropylene

Outer Core: Polypropylene

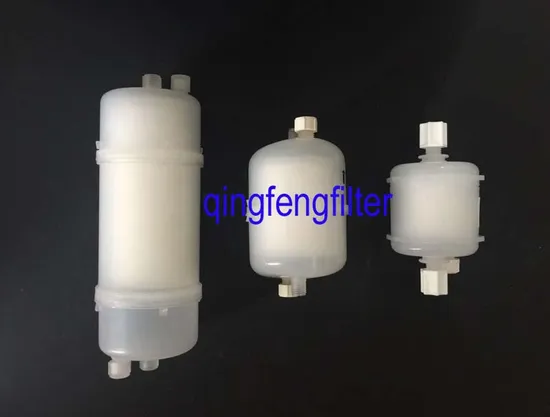

Cartridge Dimensions:

Available Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3    5" ≥0.28m3

Available Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange

Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure:  Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC

Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

OEM PTFE Disposable 0.2um 5 Inch Capsule Filter for Biopharmaceutical

Certifications:

Exhibition:

OEM PTFE Disposable 0.2um 5 Inch Capsule Filter for Biopharmaceutical

Shipping&Delivery

Delivery time:

1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
