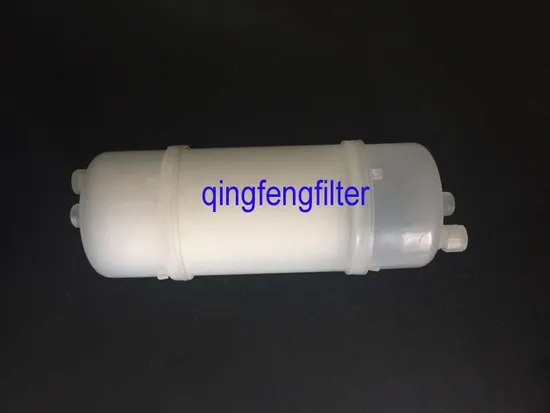

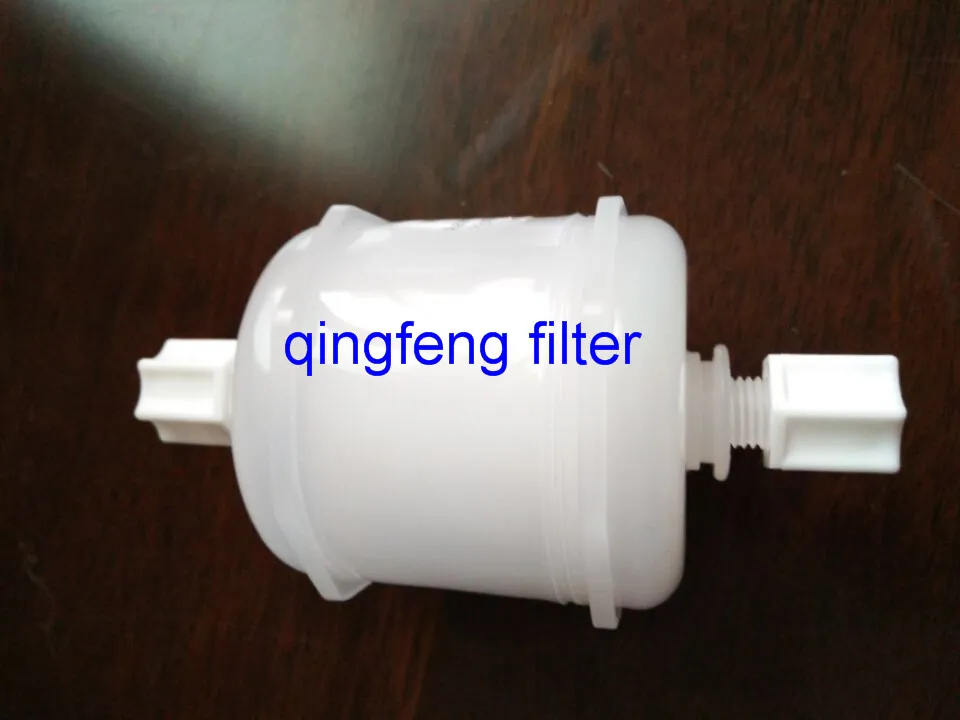

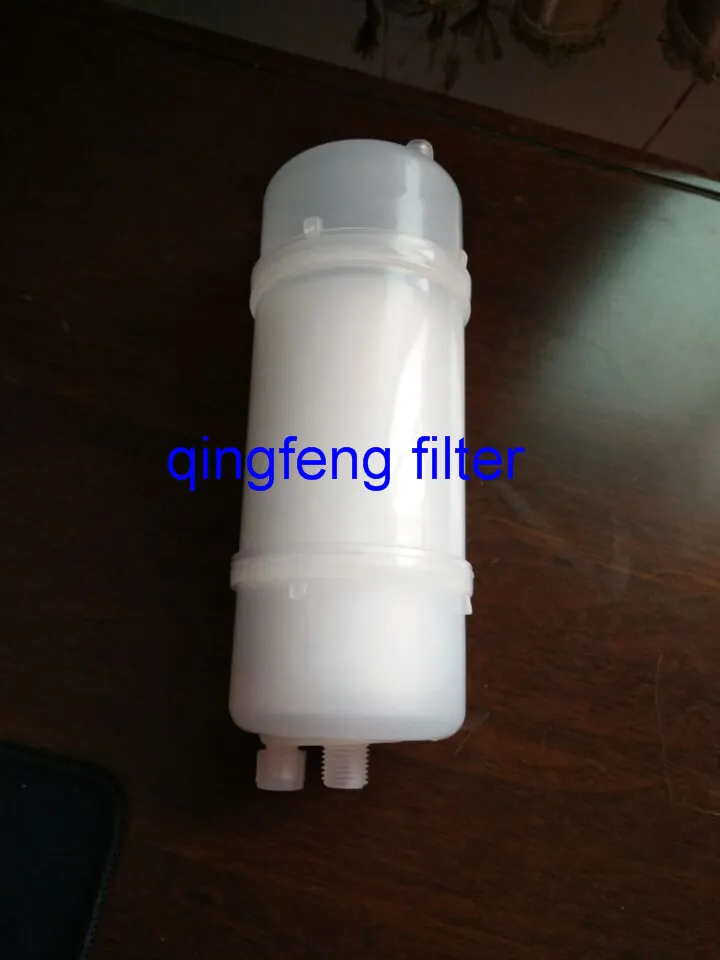

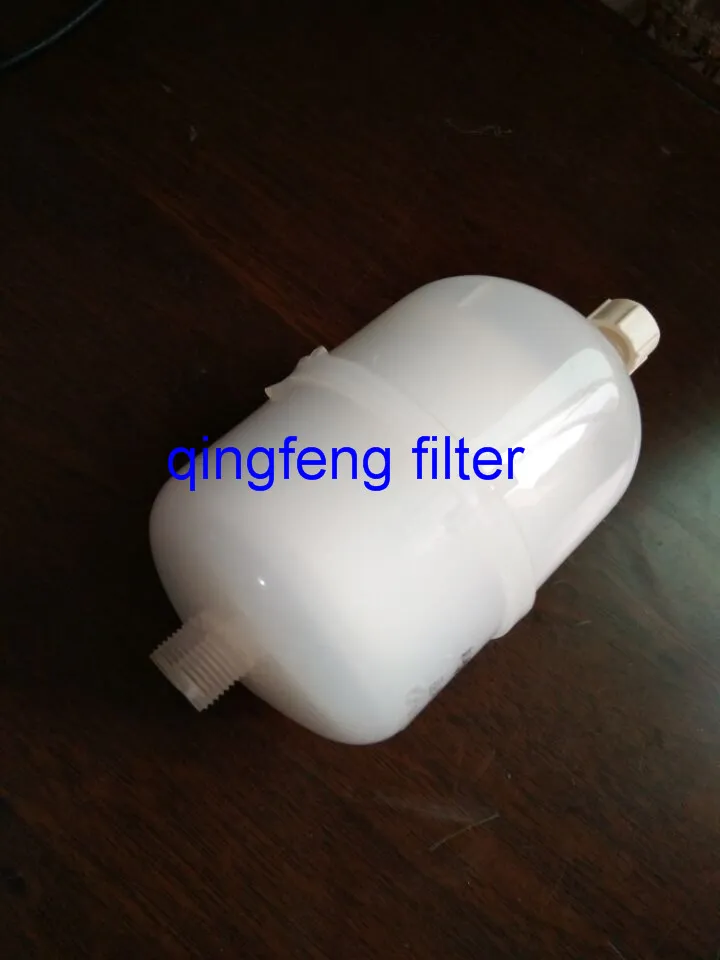

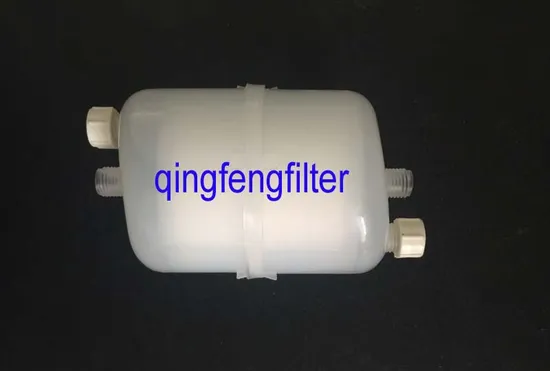

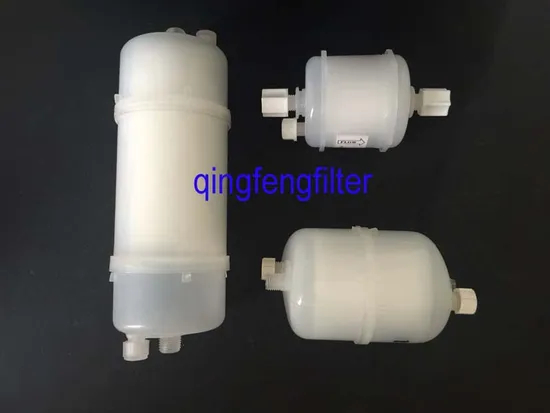

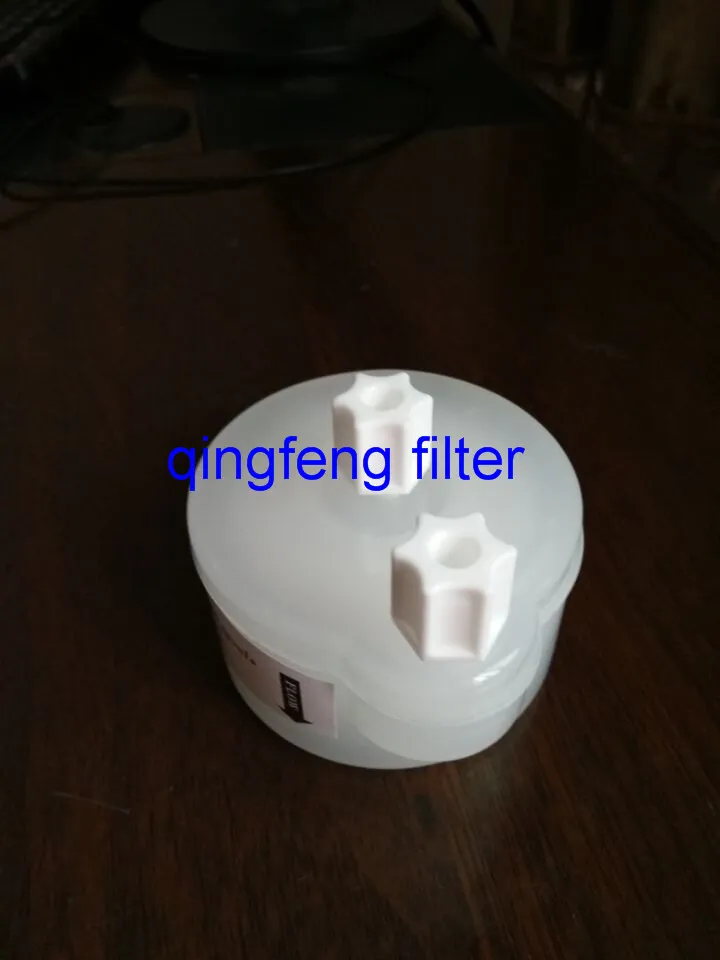

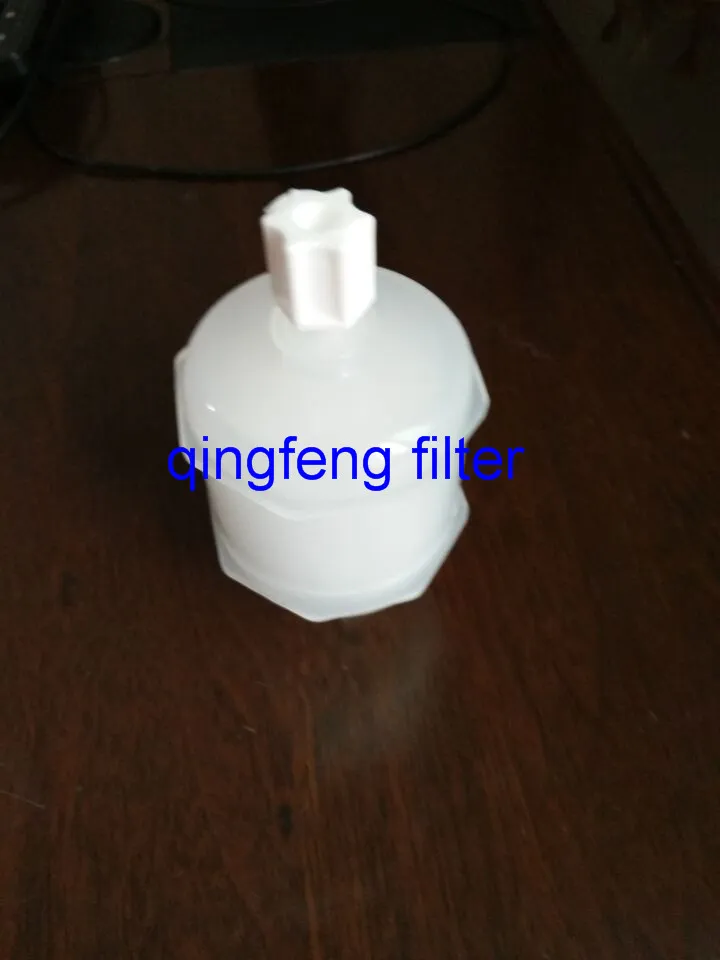

Capsule Filter 1,Small, light, and easy to connect
2,Economical to filter and less waste
3,Good compatibility, safe and economic to disposal
4,Minimal hold up volume of fluids ensures minimum wastage
5,No binders, glues or mold release agents are employed
Specifications & Technical data:
Material of Construction
Medium: PES/Nylon66/PTFE/PP/GF/PVDF
Support & Housing: PP
Removal Rating: Please refer to Ordering Information as attached.

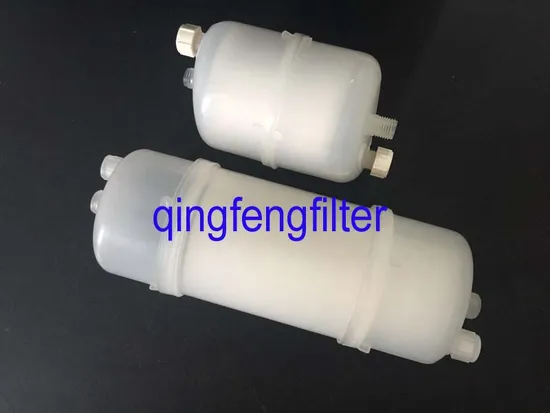

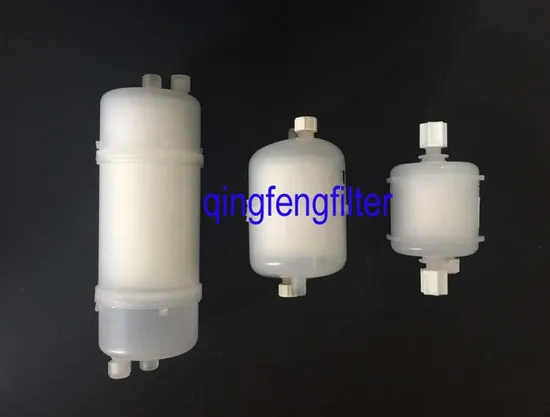

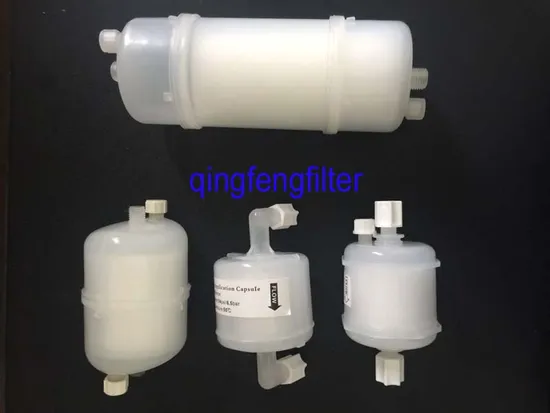

Configurations: Nominal Length: 2.5"/112mm; 5"/196mm
Diameter: ODΦ67
Fittings: Inlet/Outlet: 1/2"NPT,1/4"SW; Vent/ Drain: 1/4"SW
Effective Filter Areas: 2.5" ≥0.14m2
Sealing Quality:
Capsule filters are manufactured to a very high standard of quality assurance and cleanliness. Manufactured in accordance to ISO 9001:2000
Operating Conditions:
• Maximum Temperature:140°F/60°C
• Maximum Forward Differential Pressure :0.42Mpa
• Maximum Reverse Differential Pressure :0.21Mpa
Typical Applications:
1,Chemicals
2,Solvents
3,Coatings
4,Pigment
5,Oil
6,Photoresist
7,Small volume previous chemicals | Materials of Construction |
| Filter Media | PES/Nylon66/PTFE/PP/GF/PVDF |
| Support & Housing | PP |
| Sealing technology | Thermal Bonding, No Adhesives |
| Filtration Area, ft 2 |
| ≥ 2.2 |
| Pore Size, μm |
| Please refer to Ordering Information. |
| Maximum Differential Pressure |
| Forward: 3.5 bar @ 23°C and 3.0 bar @ 60°C for liquid; 3.0 bar @ 23°Cand 2.5 bar @ 60°C for gas & air. |
| Sterilization |
| 3 autoclave cycles of 30 min at 123 °C; steam-in-place sterilization not recommendable. |
