Product Description:

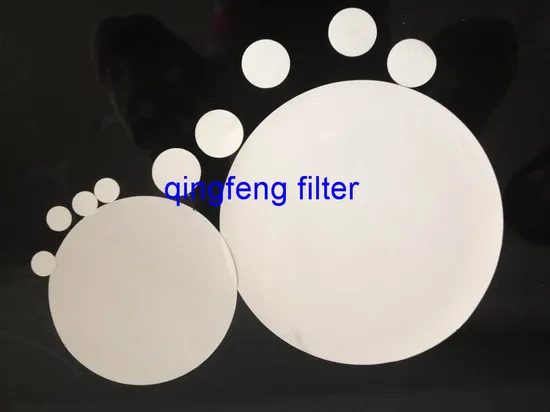

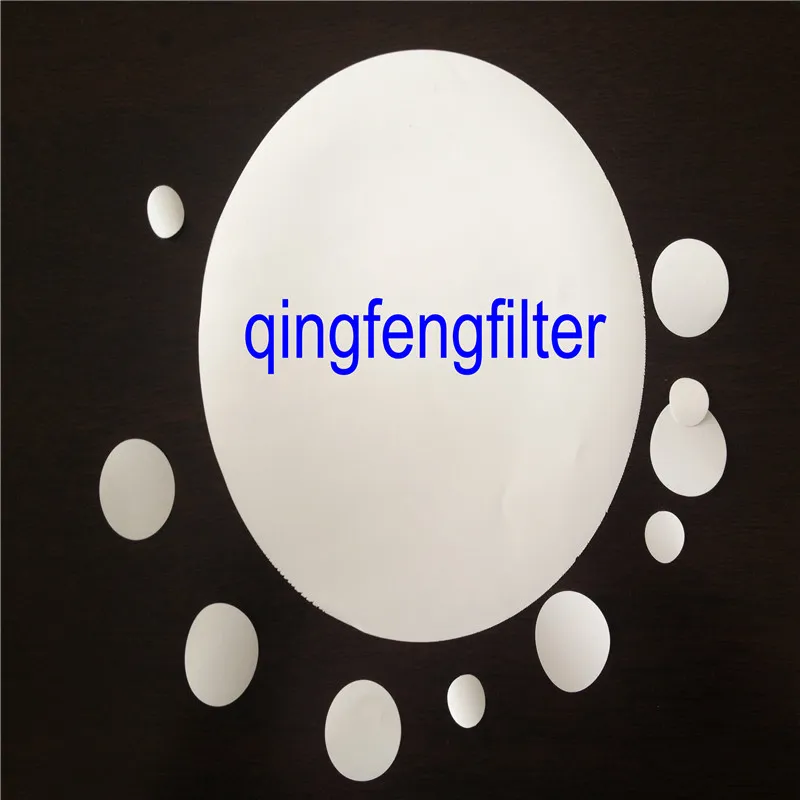

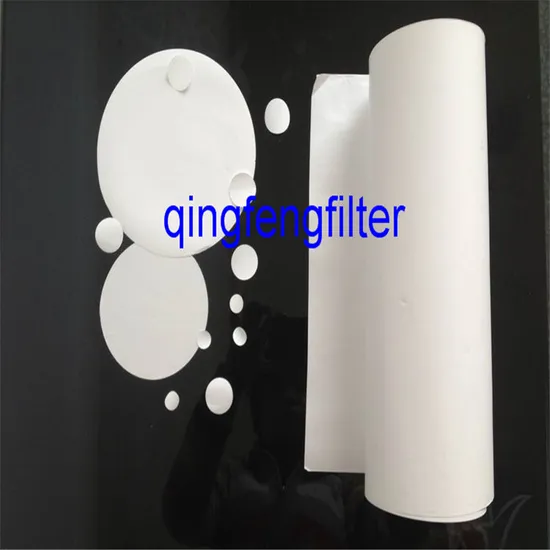

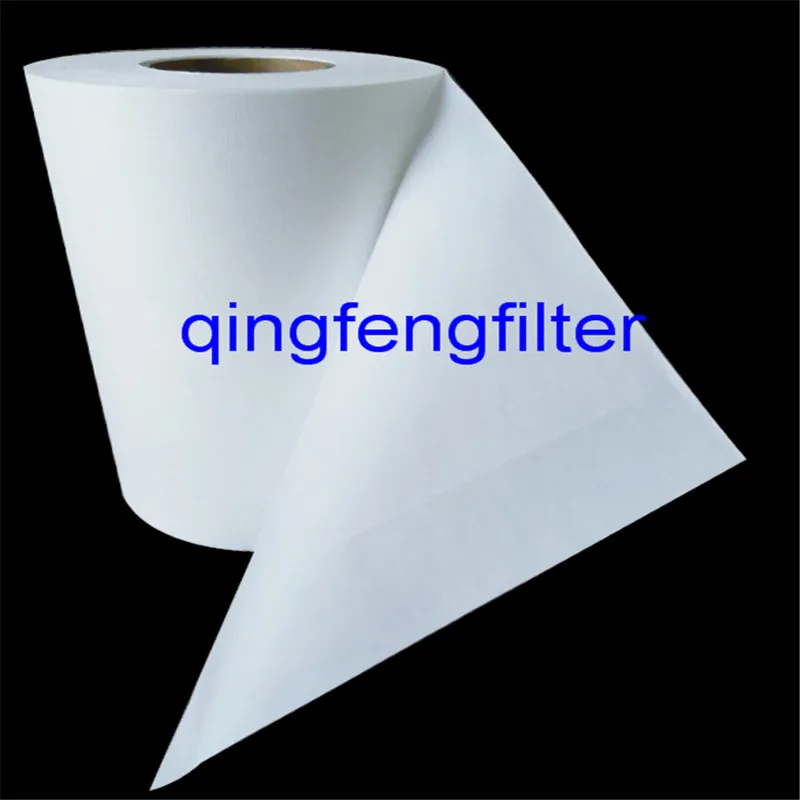

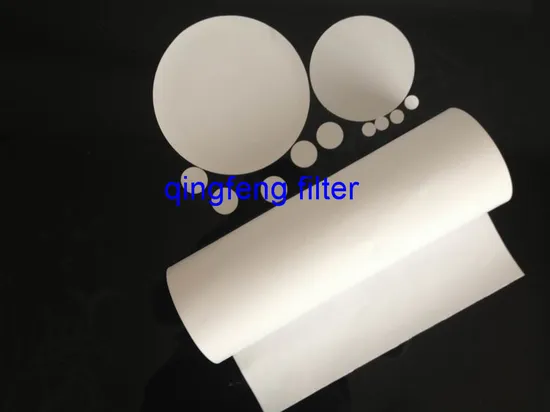

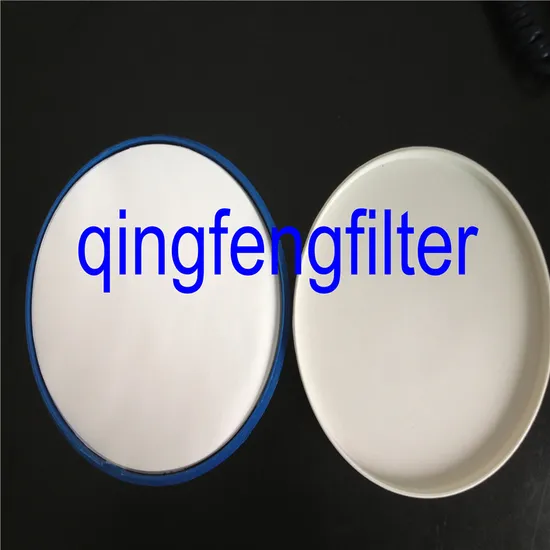

PTFE Filter Membrane The hydrophobic and oleophobic filter membrane has strong hydrophobicity and oleophobicity. The film can prevent the penetration of low surface tension contaminants, including: detergents, detergents, oils and chemicals. The test of oleophobicity method is: drop a liquid with a known surface tension on the surface of the membrane material, observe the wetting, the process is liquid The process of entering the membrane structure. The oleophobic grade is the lowest surface tension liquid that cannot wet the membrane material.
Product Characteristics:
Oil repellency level 8
High flow rate & no volatility
High chemical resistance, high temperature resistance
Strong mechanical properties.
Micron size from 0.1µm to 5.0um
Support materials: PP or PET Application:
filtration of Organic gas
Recovery of organic droplets in industrial exhaust
Removal of gas in biomass liquid
Removal of volatile components in solution
Reservoir breathing
sensor
Electronic accessories
Any parts exposed to chemicals Specification: | specification | pore size(um) | material | support layer | thickness(um) | Air permeability (@1psi) | Oleophobic |
| PTFE010 | 0.1 | PTFE | pp | 140-190 | ≥0.1slmp | oleophobic |
| PTFE022 | 0.22 | PTFE | pp | ≥0.2slmp | oleophobic |
| PTFE045 | 0.45 | PTFE | pp | ≥0.4slmp | oleophobic |
| PTFE100 | 1 | PTFE | pp | ≥0.7slmp | oleophobic |
| PTFE300 | 3 | PTFE | pp | ≥1.5slmp | oleophobic |
| PTFE500 | 5 | PTFE | pp | ≥2.5slmp | oleophobic |
| PTFE010 | 0.1 | PTFE | PET | ≥0.08slmp | oleophobic |
| PTFE022 | 0.22 | PTFE | PET | 200±10 | ≥0.16slmp | oleophobic |
| PTFE045 | 0.45 | PTFE | PET | ≥0.32slmp | oleophobic |
| PTFE100 | 1 | PTFE | PET | ≥0.56slmp | oleophobic |
| PTFE300 | 3 | PTFE | PET | ≥1.2slmp | oleophobic |
| PTFE500 | 5 | PTFE | PET | ≥2.0slmp | oleophobi |
| | | | | | |

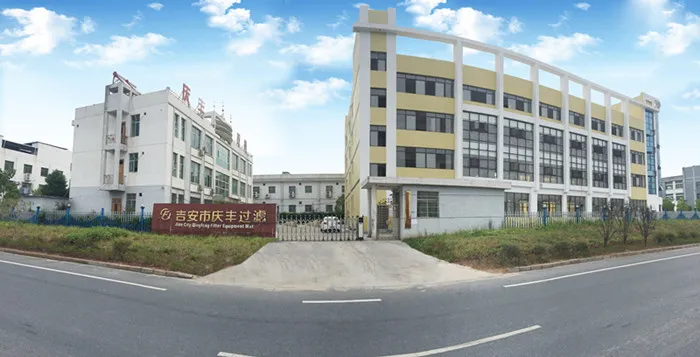

ABOUT US: QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality. CONTACT US: Ji'an Qingfeng Filter Equipment Material Co.,Ltd
