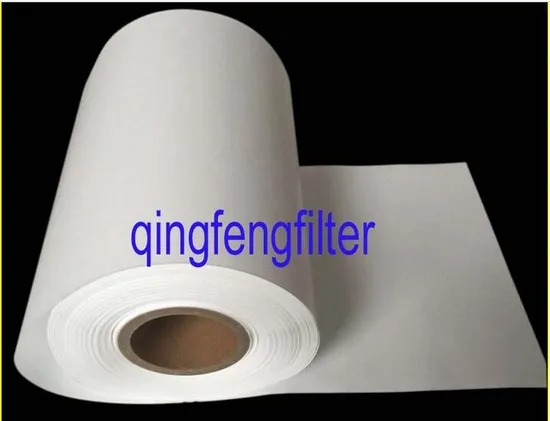

0.1um ~5um Roll PP Filter Membrane for Water Filtration

Customization: Available
Membrane Type: PP Filter Membrane
Type: 0.1/0.2/0.45/1.0/3.0/5.0/10./20.0um
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
PP filter membrane
Certification

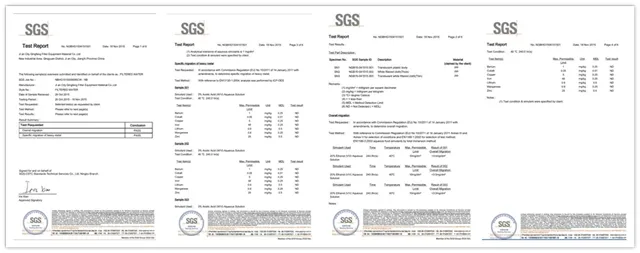

SGS and ISO9001
Color
White
Material
Polyethylene Polypropylene
Usage
Air and Liquid Filter
Thickness
110um-120um
Transport Package
Carton Packing
Specification
width: 270mm&1050mm
Trademark
QingFeng, OEM
Origin
China
HS Code
8421999000
Production Capacity
150000square Meter/Year

Product Description

                                                                 PP Roll Membrane of Polypropy Filter Membrane
Polypropylene filter membrane is made of polypropylene ultra-fine fibers hot-melt bonded together, which is a kind of membrane material for deep filtration. It uses food-grade isotactic polypropylene as raw material, without any additives during the whole production process; it has stable physical and chemical properties and good compatibility; it has various series of pore sizes, high porosity, large dirt holding capacity, and can be recoiled And high temperature disinfection; good pressure resistance.

The PP microfiltration membrane provided  is a hydrophobic microporous membrane with good chemical stability and good chemical compatibility in both aqueous and alcohol solutions. It is suitable for high-performance liquid chromatography, gas separation and production of photoresist materials.

We could  provide 0.22, 0.45, 1.0, 3.0 and 5.0μm PP microfiltration membranes.

Features and Benefits
1. The PP filter membrane is the filter medias of the pleated filter cartridges
2 which are capable of high dirt-holding capacity, high flow rates and broad chemical compatibility. Due to their features, they are ideal and most cost-effective for the wide range of classification and prefiltration for both liquids and gases in the Food & Beverage industry.
Application
1. Prefiltration for draft beer
2. Clarification for wine, liquor and other alcohol drinks(alcoholic fluids)
3. Filtration for mineral water and purified water
4. Security filtration for reverse osmosis
5. Clarification during primary food process
For air & gas
Prefiltration before terminal gas filtration

Membrane material Pore size(um) Width(mm) Thickness(mm) Bubble point efficiency Flow rate(L/min)
PP membrane 0.10 270/1000mm 0.18-022 0.019-0.020 >98% 8
0.22 270/1000mm 0.18-022 0.017-0.018 >98% 10
0.45 270/1000mm 0.17-0.20 0.016-0.017 >98% 12
1.00 270/1000mm 0.16-0.20 0.007-0.008 >98% 15
3.00 270/1000mm 0.16-0.20 0.005-0.006 >98% 17
5.00 270/1000mm 0.18-0.23 0.0035 >95% 20
10.00 270/1000mm 0.16-0.22 0.002 >95% 25
20.00 270/1000mm 0.16-0.22 0.001 >95% 30

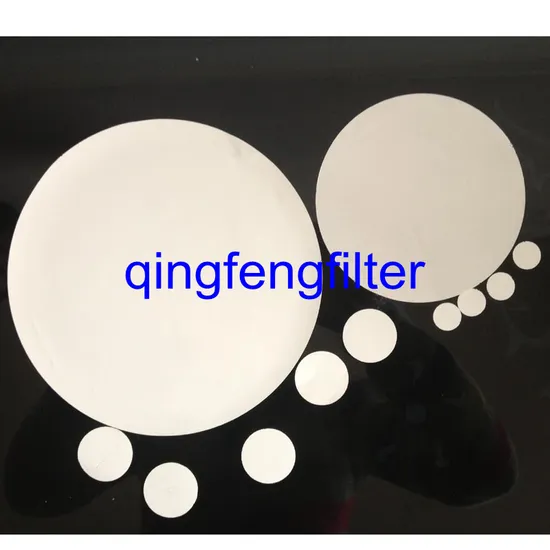

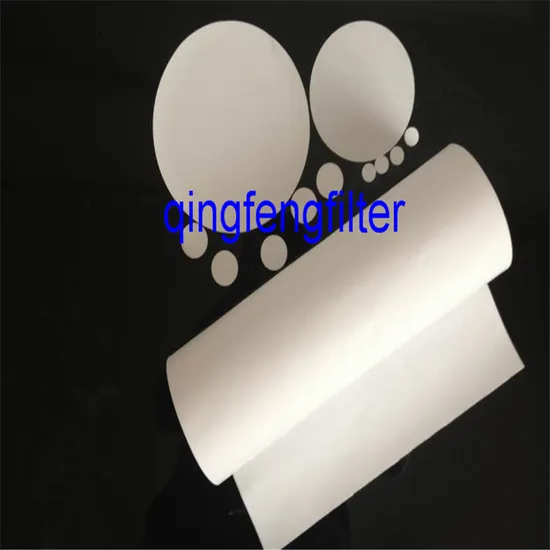

0.1um ~5um Roll PP Filter Membrane for Water Filtration 0.1um ~5um Roll PP Filter Membrane for Water Filtration

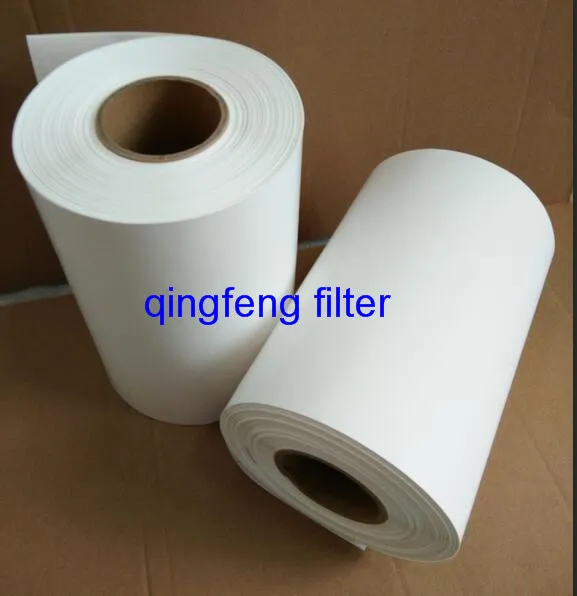

0.1um ~5um Roll PP Filter Membrane for Water Filtration

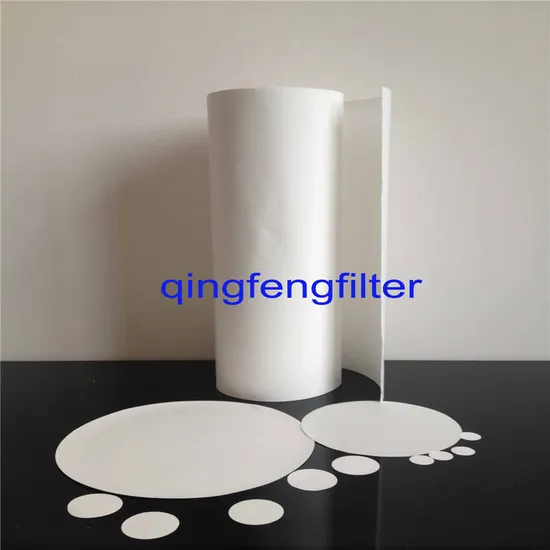

0.1um ~5um Roll PP Filter Membrane for Water Filtration

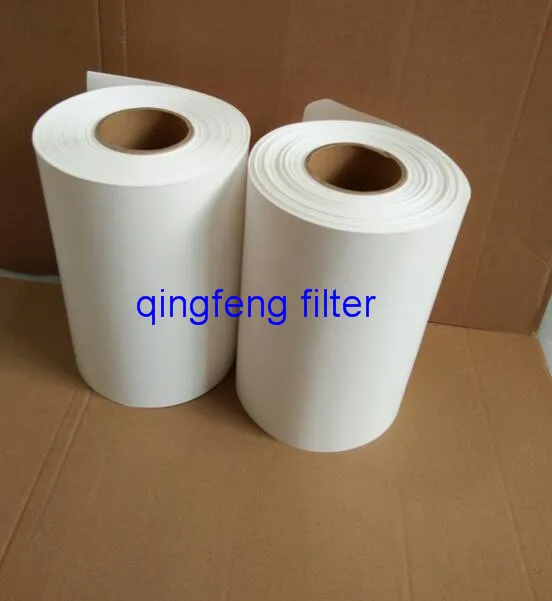

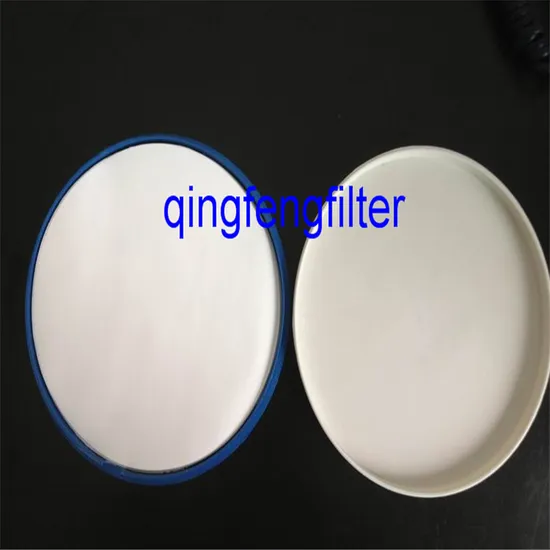

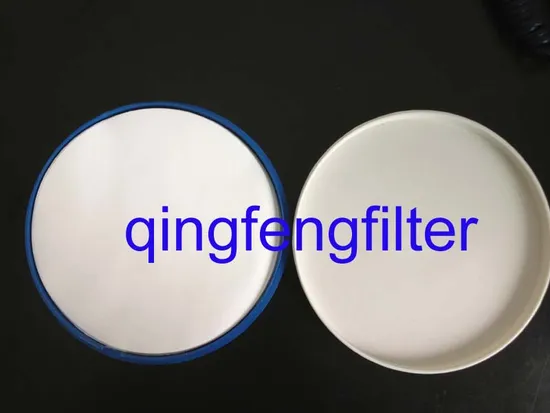

0.1um ~5um Roll PP Filter Membrane for Water Filtration 0.1um ~5um Roll PP Filter Membrane for Water Filtration
