Nylon membrane (N6/N66) Product Characteristics:
1.With imported non-textile supporting bolster, good resilience, torn-up tolerance and durability
2.Intense filtration and high filtration quality
3.Naturally hydrophilic. No need to use humectant, which prevents the filtrate from being contaminated
4.Applies to water solvent and most organic solvent, especially to filtration of alkalinity and alcohol solvents
5.But Nylon 66 is better mechanical strength, and temperature tolerance, better endure low temperature than Nylon 6 membrane
6.Superior strength, eases handling when used with automated equipment
Product Applications:
1.Purification and filtration of liquid and removal of particles
2.Filtration of various solvent and medication solvent
3.Filtration of corrosion-resistance amentia
4.Ultimate filtration of ink
5. Bacterial removal
6. HPLC flowing particle removal
7. Organic solvents filtration IV filters
Sterilization Methods:
Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)
Specifications:
1.Pore size(um): 0.1, 0.22, 0.45, 0.65, 0.8, 1.0, 3.0, 5.0, 10.0
2.Configuration size (mm):

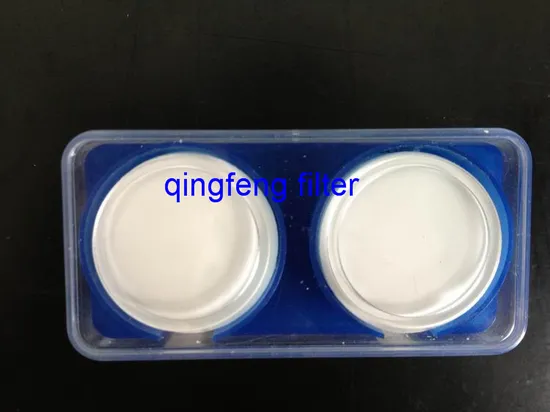

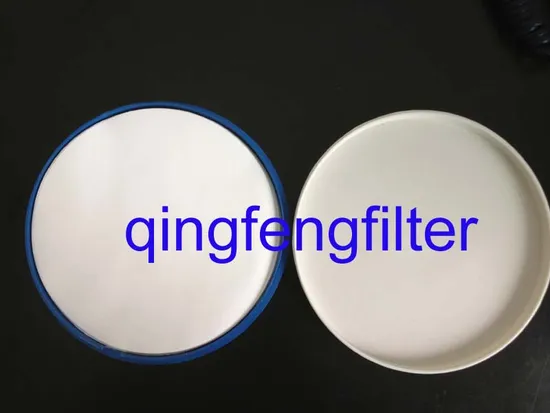

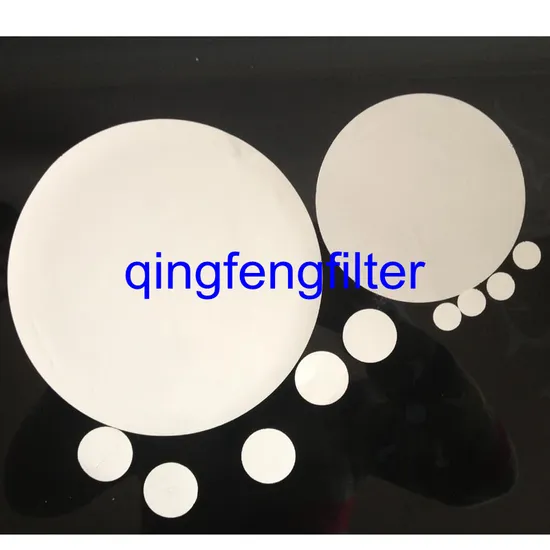

Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built, maximum size 400*400mm/315mm*640mm.
Rolling film: length for your choice,Width : 280/320/420mm
| | Pore size(um) | Bubble Point(Mpa) | Flux Time(sec) | Thickness(um) | PH value | Working Temp. | Max. Temp. |
| | 0.10 | 0.38-0.48 | ≤240 | 95±5 | 6~13 | ≤60ºC | 80ºC |
| | 0.20 | 0.30-0.38 | ≤100 |
| | 0.45 | 0.20-0.29 | ≤55 |
| | 0.65 | 0.14-0.19 | ≤21 |
| | 1.00 | 0.08-0.11 | ≤9 |
| | 3.00 | 0.05-0.08 | ≤6 |
1. Bubble point is tested under water filtration
2. Flux time is tested under 25ºC, 100ml water, filter through 33mm diameter disc filter membrane, pressure is -0.1Mpa. |

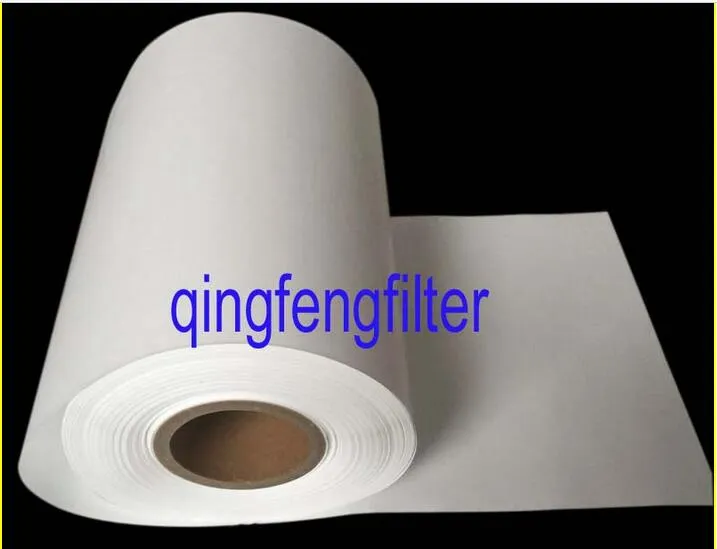

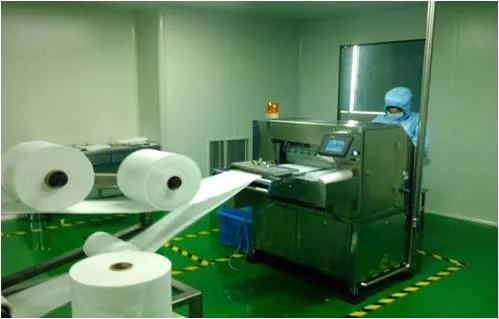

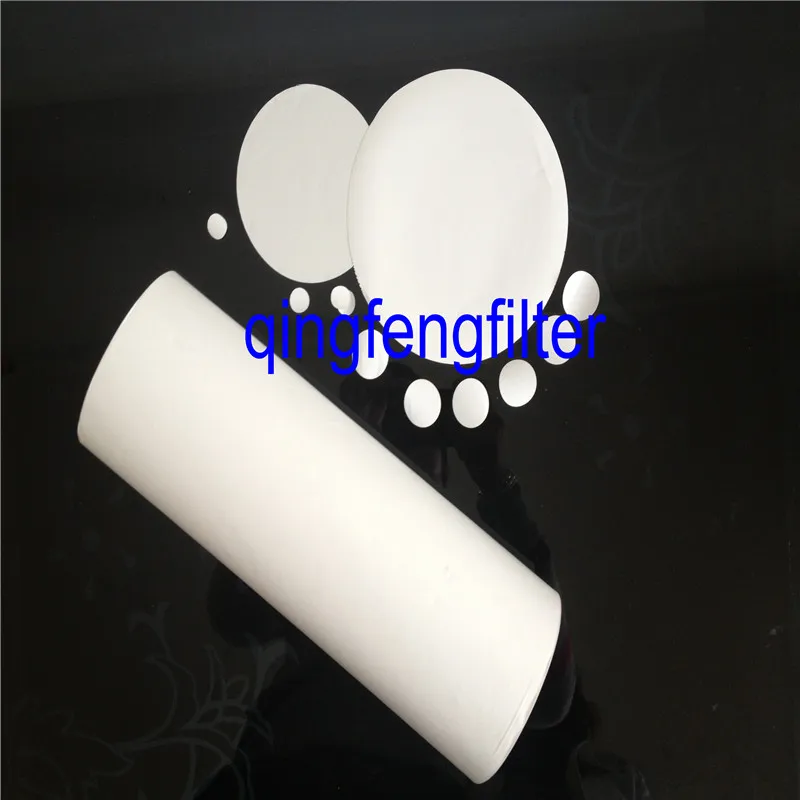

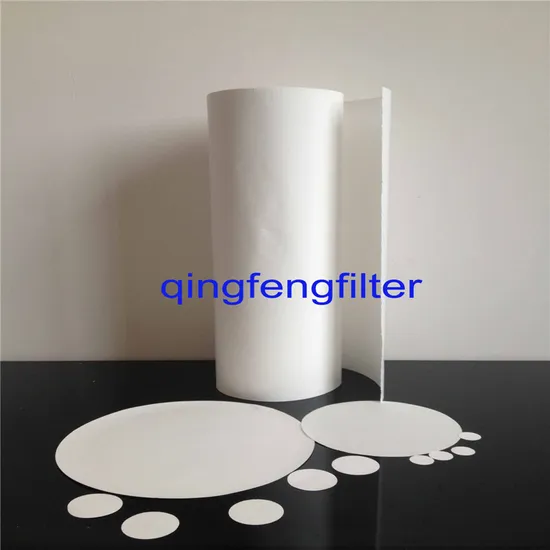

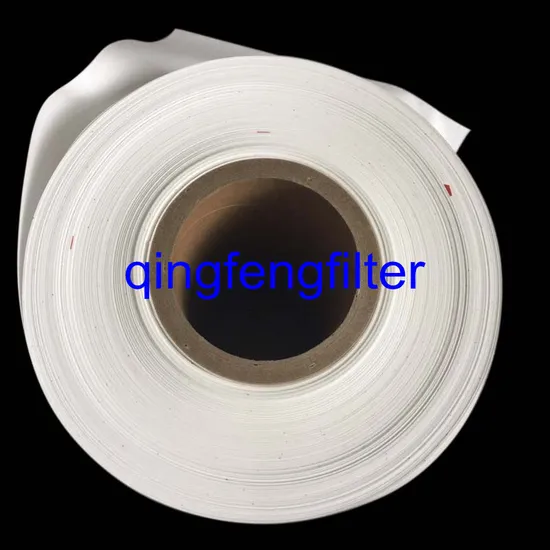

Nylon membrane is available in rolls up to 280/320/420 mm wide, as well as sheets, cut discs that can be customized to meet your application and size requirements. Because the nylon membrane is manufactured on-site in Qingfeng facilities, all customization is easy and cost-effective

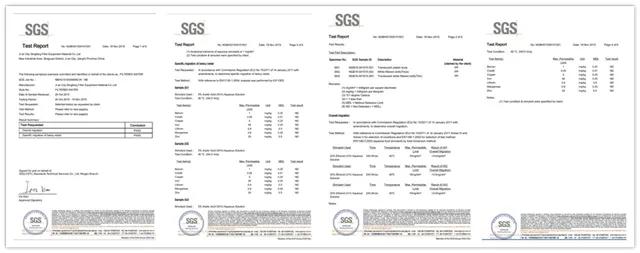

Certificates:
