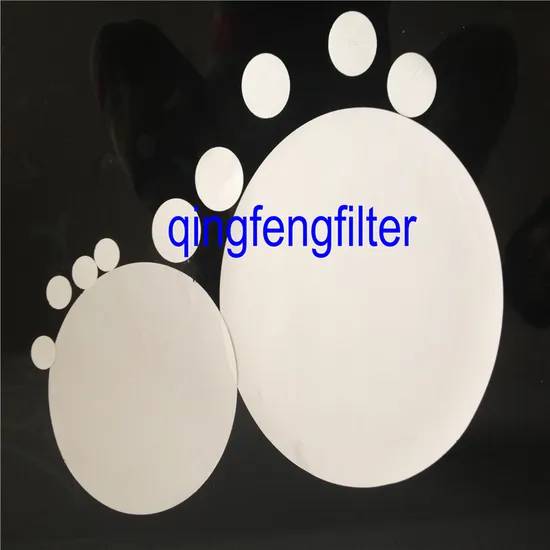

PVDF Filter Membrane
Product Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc.
2.Superior temperature tolerance and anti-pollution
3.Two types, hydrophobic and modified-hydrophobic
Product Applications:
1.Effective filtration of organic solvent and additive
2.Ultimate filtration of ink
3.Filtration of solvent and chemical materials
4.Aspetic treatment for reagent
5.Filtration of high-temperature liquid
6.Dust-filtration of air and gas
7.Aseptic filtration of gas and vapor
Sterilization Methods:
Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)
Specifications:
1.Pore size (um): 0.10,0.22, 0.45, 1.0, 3.0,5.0um
2.Configuration size (um)

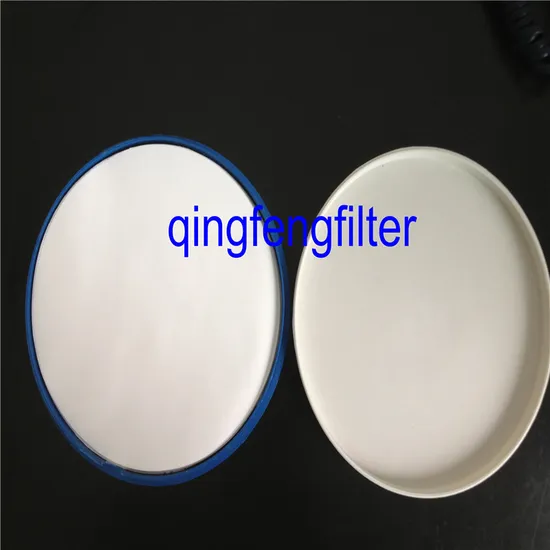

Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built

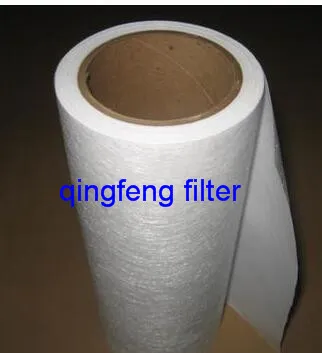

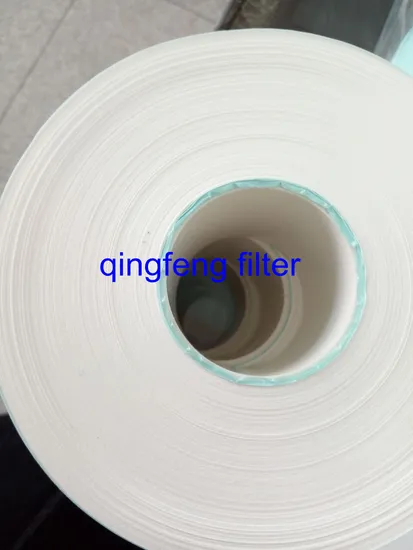

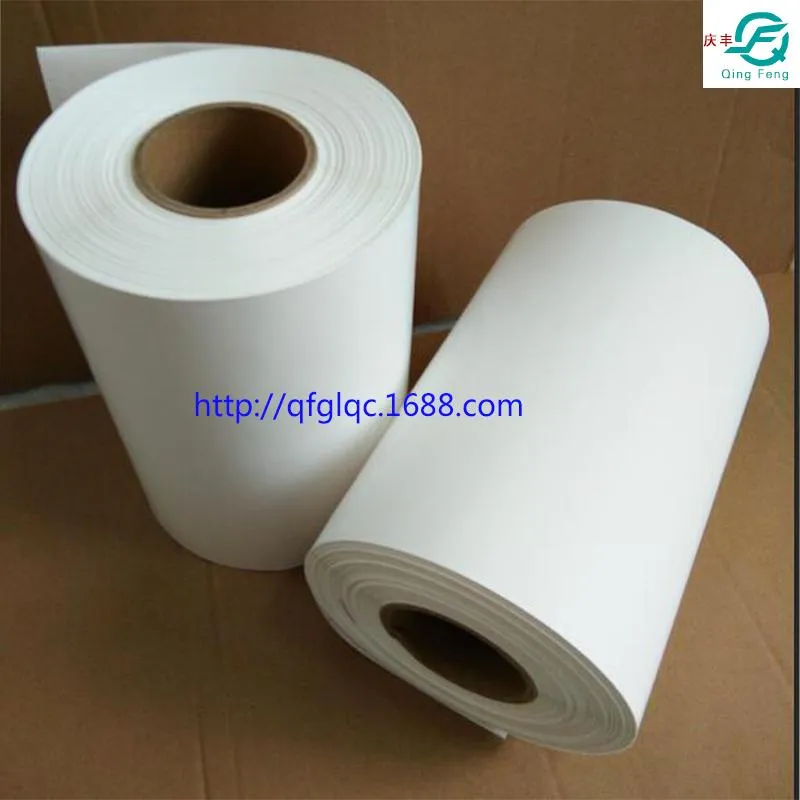

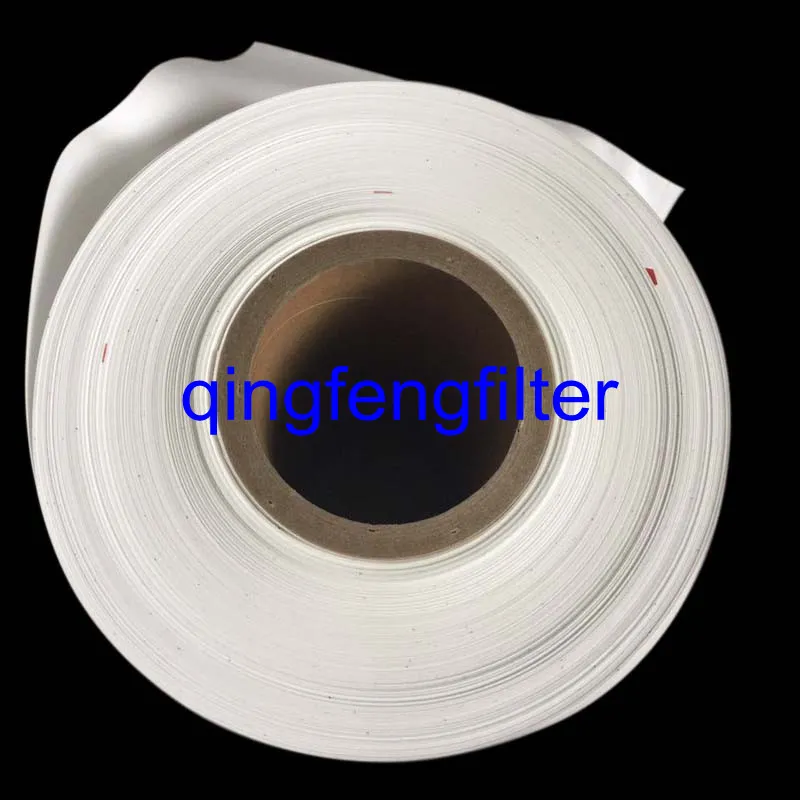

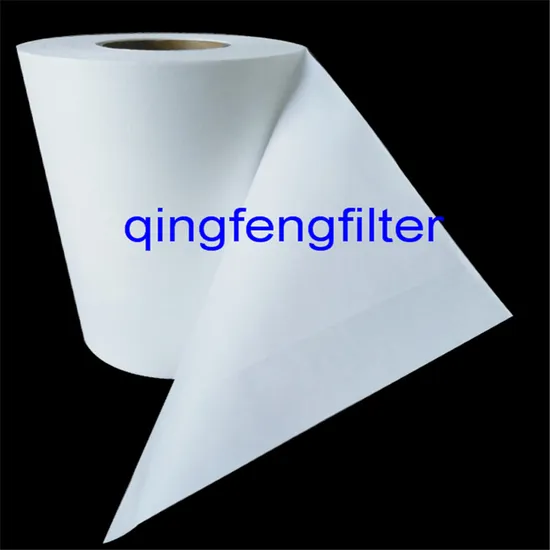

Rolling Film: custom-built,Width : 280,315,317,320,326,420mm | Membrane | Hydrophobic Polyvinylidene (PVDF) |
| Color | White |
| Thickness, μm | 90~100 |
| Width | 280,315,317,320,326,420mm |
| Pore Size, μm | 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 |
| Absorption, 0.22 μm | 8 μg/cm 2 γ-globulin |
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85 ºC |
| Flow Rate |
| 0.22 μm | ≥ 3 mL/min/cm 2 at 1 bar |
| 0.45 μm | ≥ 7 mL/min/cm 2 at 1 bar |
| Particle Removal Efficiency (%) |
| > 98 |
FAQ: 1. Package Details: Plastic bags inside,carton outer.
2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.
3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.
4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.
Shipping Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
