1.0um Glass Fiber Membrane for Air Filtration

Customization: Available
Type: 1/3/5/10/15/20/25um

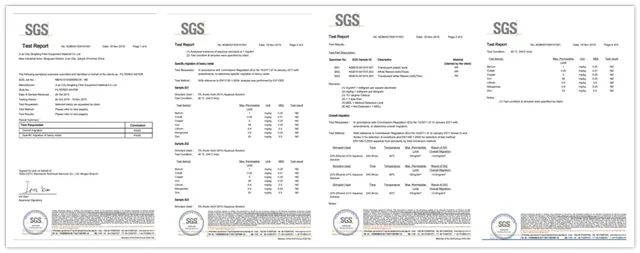

Certification: SGS and ISO9001
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
Glass Fiber Membrane
Material
Glass Fiber
Usage
Air Filter, Powder Filter, Solid Filter
Color
White
Thickness
130mm-140mm
Transport Package
Carton Packing
Specification
width have1000mm, can be customer-built
Trademark
QingFeng, OEM
Origin
China
HS Code
8421999000
Production Capacity
150000square Meter/Year

Product Description

                               Glass Fiber Membrane(GF)
Glass filter membrane is made from 100% glass fiber. With high flow rate and retention rate, could filter particles. GF membrane is higher filtration efficiency and stronger assimiative capacity than the other fiber material and artificial material

Product Characteristic:
1.      GF membrane is made from glass fiber, including binder free and binder
2.      High temperature resistance, tolerance under 500ºC(Grade GF10,tolerance under 180ºC)
3.      Be available for pre-filtration
4.      Excellent interception capacity due to Large surface area of GF membrane
5.      High folw rate
6.      Could decrease cost of filtration and previous resistance when substance difficult to filter or solvent high polluted
Typical Application:
1.      Efficient and conventional filtration
2.      Filtration of reagent
3.      Pre-filtration of membrane filter

CODE
Basic Weight
(g/Square )
Beta 200 Efficiency
(200β)		 Pressure Drop
(pa)
Dust Holding Capacity
(g/Square meter)
Thickness
(mm)
QFU1 130±10 1 400 90
0.50±0.02

QFU3 130±10 3 150 90 0.50±0.02

QFU5
 		 130±10 5 85 100 0.50±0.02

QFU10
 		 130±10 10 50 115 0.50±0.02

QFU15
 		 130±10 15 40 120 0.50±0.02

QFU20
 		 130±10 20 30 120 0.50±0.02

QFU25
 		 130±10 25 20 130 0.50±0.02
1.0um Glass Fiber Membrane for Air Filtration 1.0um Glass Fiber Membrane for Air Filtration
1.0um Glass Fiber Membrane for Air Filtration 1.0um Glass Fiber Membrane for Air Filtration
Company Profile:
QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
