50mm 47mm 0.45um 0.22um Ca Cellulose Nitrate Membrane Filter

50mm 47mm 0.45um 0.22um Ca Cellulose Nitrate Membrane Filter

Customization:	Available
Membrane Type:	in Disc
Type:	0.1/0.2/0.45/0.65/0.8/1.0/1.2um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

CA membrane

Certification

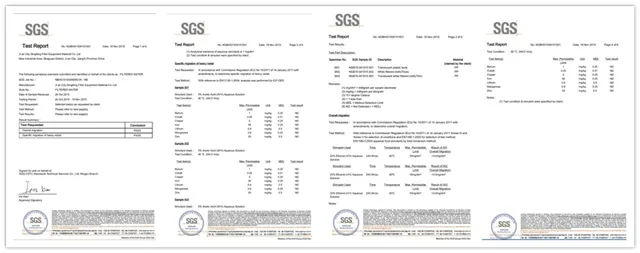

SGS and ISO9001

Diameter

13/25/35/47/50/60/70/80/90/100/142/150

Usage

Air/ Liquid/ Powder/Solid Filter

Thickness

0.91-1.2mm

Color

White

Material

Ca(Cellulose Acetate)

Transport Package

Plastic Box + Carton Packing

Specification

470mm*900mm

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

100000square Meter/Year

Product Description

CA(Cellulose acetate) membrane Filter Paper

Product Applications:

1,Purification and filtration of liquid and removal of particles
2,Sterile filtration of culture medium
3,Detection of special pollutant in the air
4,Detection of in the Escherichia coli in the waters
5,Detection of dust
6,Applications in biology. For instance, the collection and cleaning of cells

Sterilization Methods:

Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)

Specifications:

1,Pore size (um):0.1,0.2,0.45,0.65,0.8,1.0,1.2um
2,Configuration size (mm):

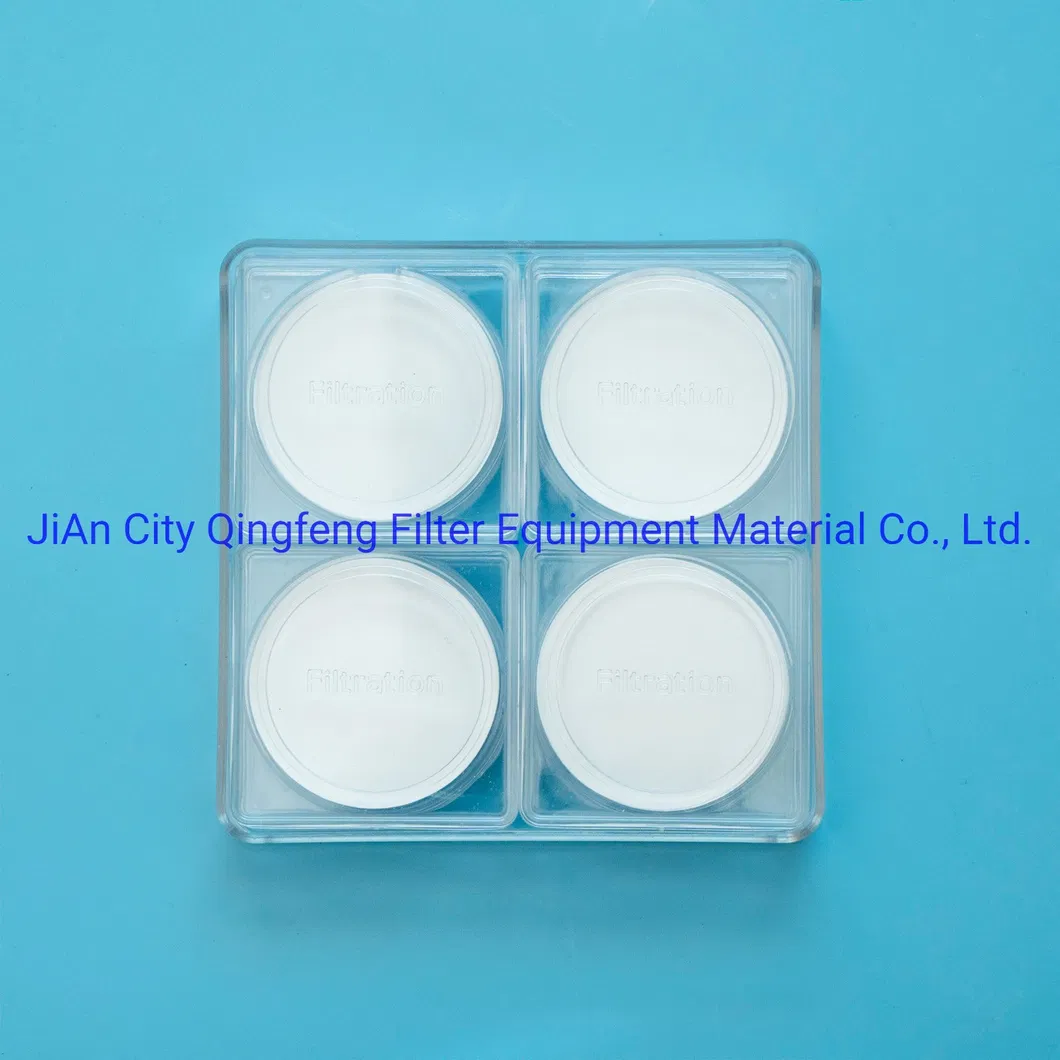

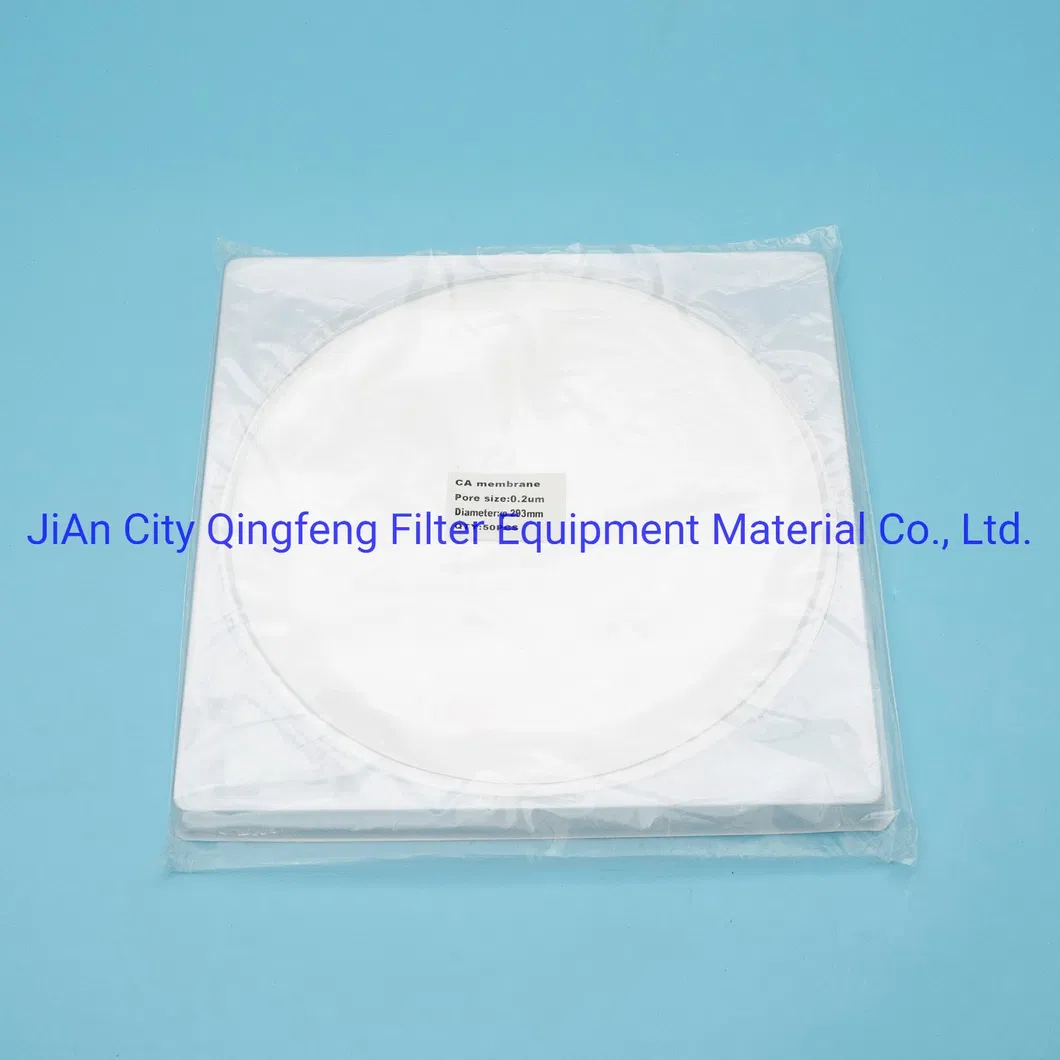

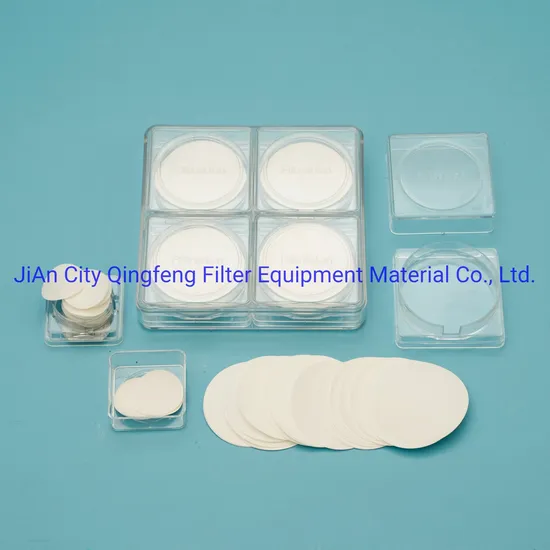

       Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300
       Rectangle: custom-built

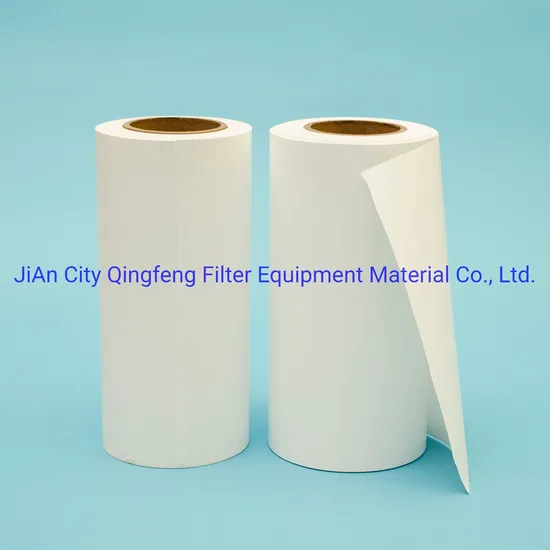

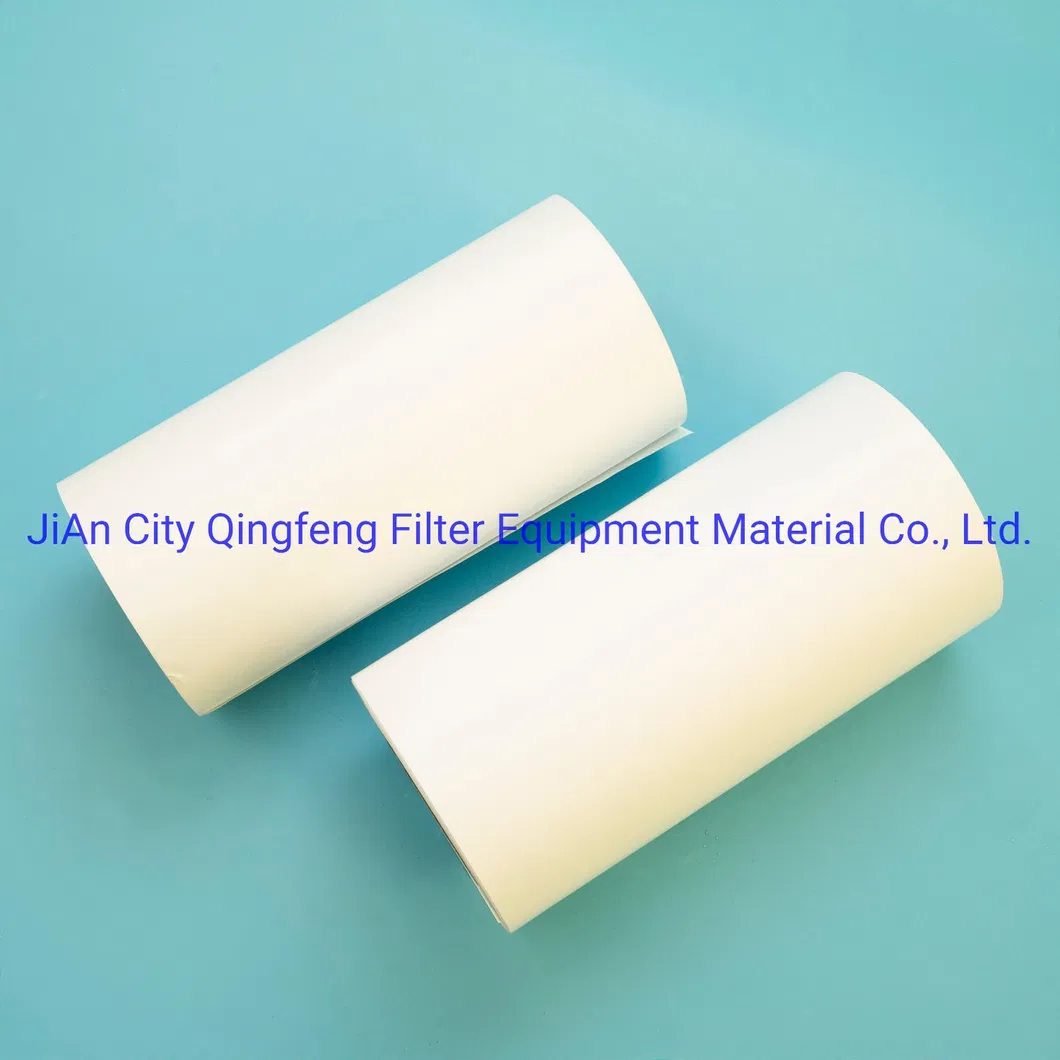

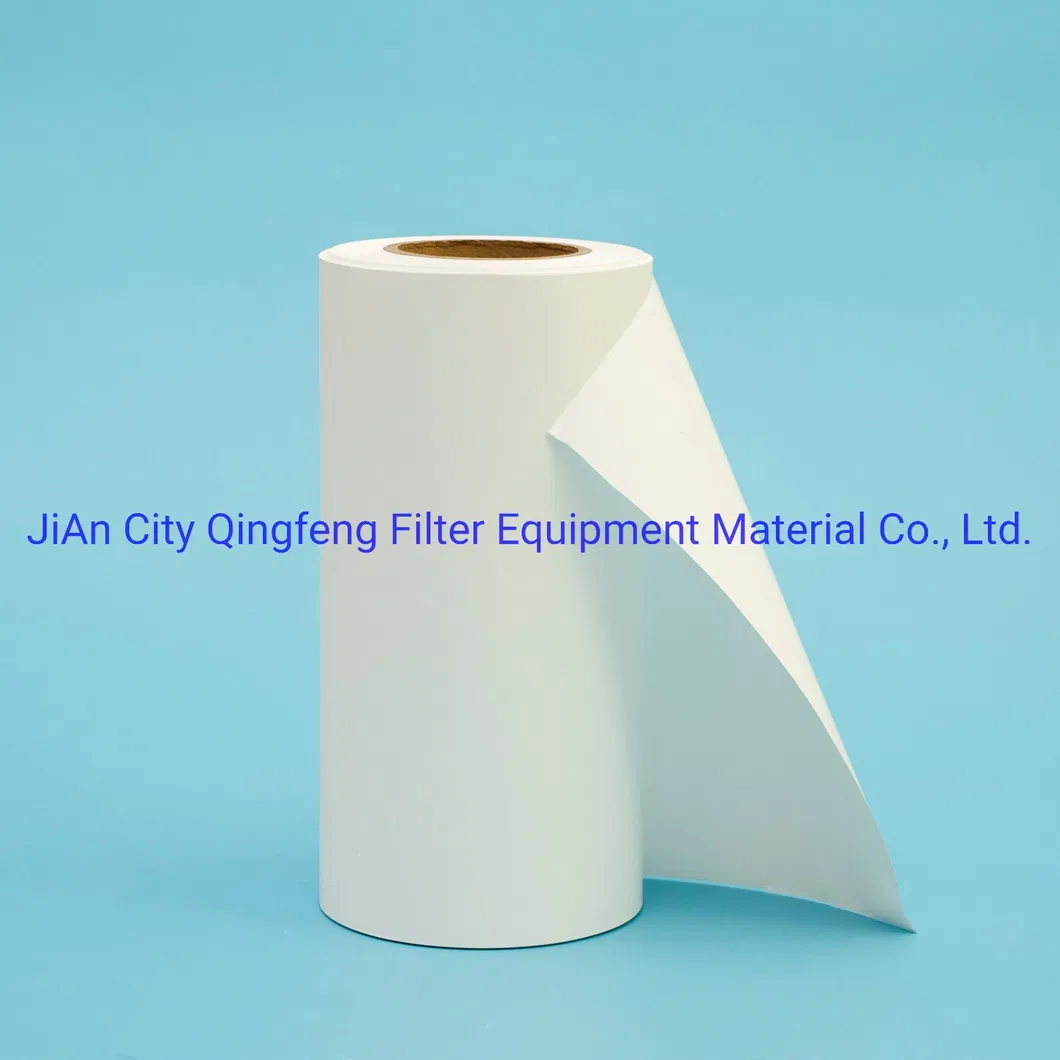

        Rolling film: custom-built,Width : 470mm*900 mm

Name of filter membrane	material	pore size(um)	Bubble point(Mpa)	Water flow rate(ml/min.cm2)	Thickness(um)	PH value	sterilization	Normal operating temperature
Nylon	N6/N66	0.10	≥0.38	≥4	95±15	6--13	(121°C/30min)	≤60ºC(Max operating temperature 80ºC)
		0.22	≥0.28	≥7.5
		0.45	≥0.18	≥14
		0.65	≥0.12	≥39
		1.00	≥0.07	≥70
		3.00	≥0.045	≥120
		5.00	≥0.025	≥194
		10.00	≥0.01	≥278
MCE without supported layer	CN and CA	0.22	≥0.28	≥25	95±15	4--8	(121°C/30min)	≤60ºC(Max operating temperature 80ºC,0.15MPa)
		0.45	≥0.18	≥32
		0.65	≥0.12	≥61
		0.80	≥0.10	≥81
		1.20	≥0.07	≥108
MCE with supported layer	CN and CA	0.10	≥0.38	≥4	90±15
		0.22	≥0.28	≥7.5
		0.45	≥0.18	≥14
		0.65	≥0.12	≥39
		1.00	≥0.07	≥70
		3.00	≥0.045	≥120
		5.00	≥0.025	≥194
		10.00	≥0.01	≥278

About us:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
Delivery time:

1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15days to produce.
