| Customization: | Available |
|---|---|
| Membrane Type: | PTFE Memnbrane |
| Type: | 0.1/0.2/0.45/1.0/3.0/5.0um |
| Quantity: | |
|---|---|
Product Description:

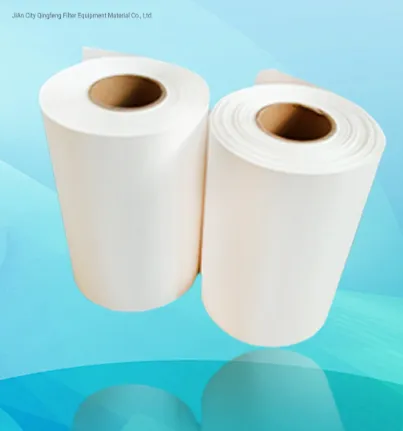

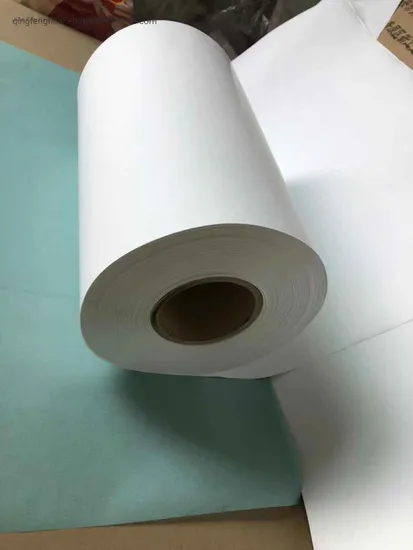

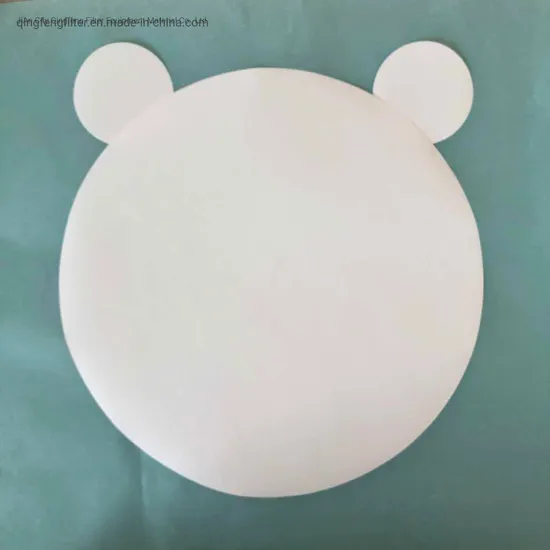

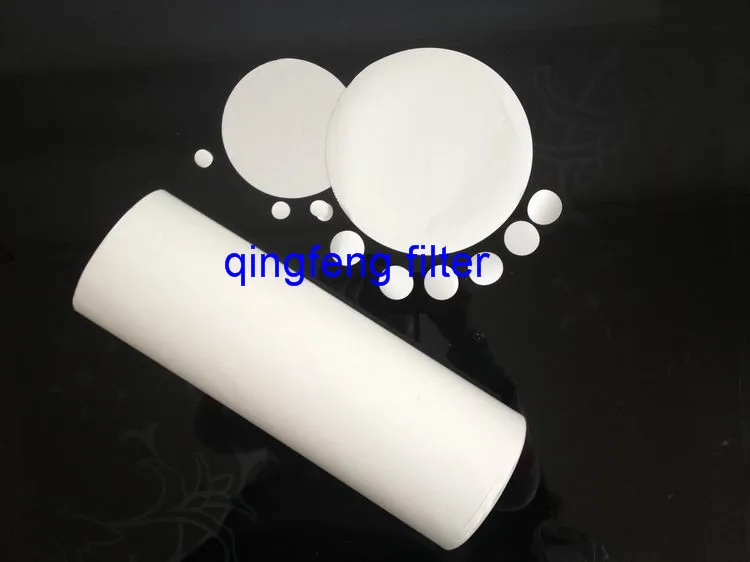

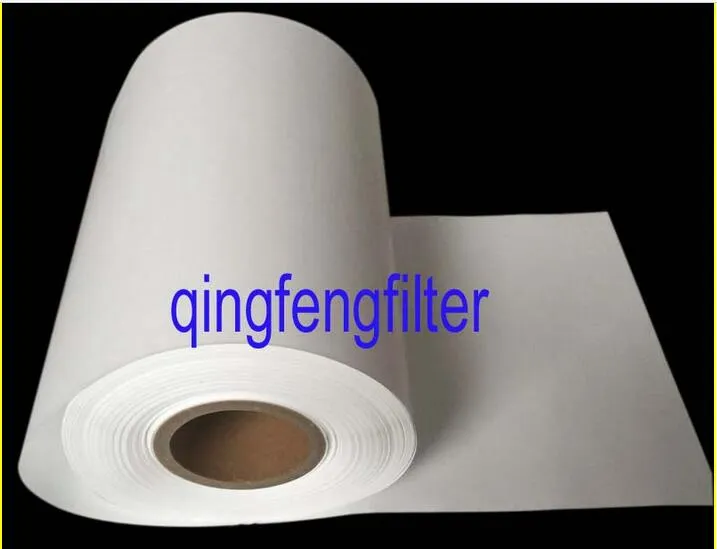

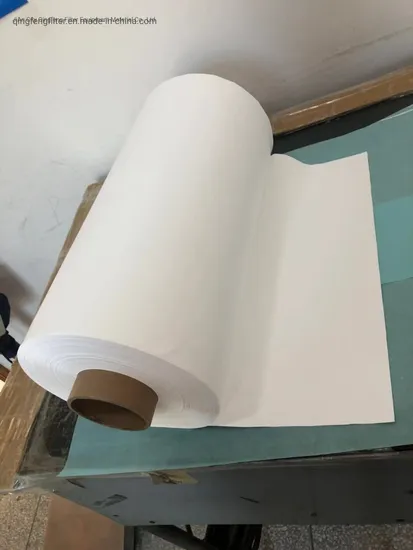

PTFE Membrane media for filtration is made of PTFE(polytetrafluoroethylene), are drawn 2-dimension. It is micro-pore film. The PTFE membrane was laminated with a great variety of fabric and paper. They are new filter media. Applied to extensive industries, including pharmacy, biochemistry, microelectronic, and lab material, etc. Directly and indirectly related to pharmacy, brewing, manufacture of pure water and special need water, beverage and dairy, chemical reagent, biochemical reagent, air filtration of fermentation tank in microelectronic, purification and filtration in microelectronic plants, filtration and separation of antibacterial fluid, production of medicine, air conditioning of hospitals and commercial buildings.
Features and Benefits:
PTFE membrane with supporting layer polyester or polypropylene.
The PTFE membrane can effectively filtrate microorganism and other particulates.
Wide chemical compatibility
High temperature resistance
Low starting resistance
Applications:
Filtration of strong acids and aggressive solutions
Venting applications
Phase separations
Aerosol samplings
Technical Parameter:
| Membrane | Hydrophobic Membrane (PTFE) | ||
| Support | PP | ||
| Color | White | ||
| Filter Surface | Plain | ||
| Thickness, μm | 150~250 | ||
| Width | 255/260/510/520mm | ||
| Pore Size, μm | 0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 | ||
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C | ||
| Flow Rate | Liquid | Air | |
| 0.22 μm | ≥ 6 mL/min/cm 2 at 1 bar | ≥ 3.5 L/min/cm 2 at 1 bar | |
| 0.45 μm | ≥ 30 mL/min/cm 2 at 1 bar | ≥ 7 L/min/cm 2 at 1 bar | |
| Ji'an Qingyuan Qingfeng Filter Equipment Co., Ltd | ||
| Tel: | 0796-8106818 | |
| Address: | New Industrial Area,Qingyuan District, Jian City, Jiangxi Province,China | |
| Mobile: | 13979608348 | |
| Fax: | 0796-8106818 | |
