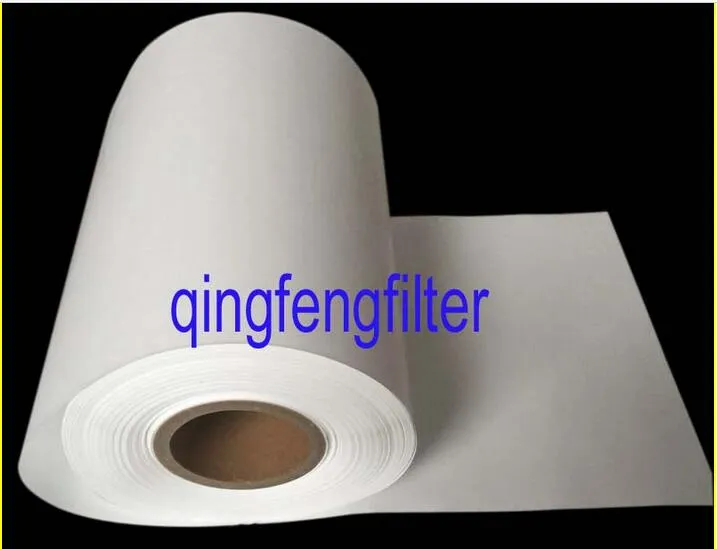

Hot Saled Pes Filter Membrane for Food & Beverage Industry

Customization: Available
Material: Pes Membrane
Usage: Air Filter, Liquid Filter, Powder Filter, Solid Filter
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
PES filter membrane
Thickness
>1.2mm
Type
Pore Size:0.1, 0.22, 0.45um
Color
White
Certification
SGS and ISO9001
Transport Package
Carton Packing
Specification
width have 260/270/420mm
Trademark
QingFeng, OEM
Origin
China
HS Code
8421999090
Production Capacity
150000square Meter/Year

Product Description

                                                                 PES Membrane
PES membrane is a highly microporous membrane composed of modified polyethersulfone that is a tough, durable, and temperature-resistant aromatic polymer.

PES membrane provides high flow rate, low extractables and greater mechanical strength than competitive membranes. This membrane is specifically designed for biological, analytical, electronic, pharmaceutical, beverage, and sterilizing filtration applications.
PES membrane is available in pore sizes ranging from 0.01 μm to 1.0 μm. It is inherently hydrophilic as standard, but can be made hydrophobic upon request.

Filter Membrane Hydrophilic PES
Color White
Filter Surface Plain
Thickness, μm 110~140
Diameter Disc: Φ13, Φ25, Φ47, Φ50, Φ60, Φ90, Φ100,  Φ142, Φ150, Φ200, Φ250, Φ293, Φ300
Pore Size, μm 0.1, 0.22, 0.45, 0.65, 0.8, 1.2, 3.0
Maximum Operating Pressure Forward: 4.2 bar @ 23°C ; 1.5 bar @ 85 °C
pH 1~14
Flow Rate
0.22 μm ≥ 15 mL/min/cm 2 at 1 bar
0.45 μm ≥ 35 mL/min/cm 2 at 1 bar
Integrity Test -water bubble point at 23 °C
0.22 μm ≥ 3500 mbar
0.45 μm ≥ 2500 mbar

Hot Saled Pes Filter Membrane for Food & Beverage Industry
Hot Saled Pes Filter Membrane for Food & Beverage Industry

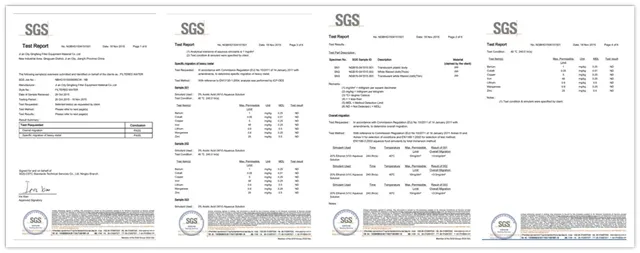

Certificates:

Hot Saled Pes Filter Membrane for Food & Beverage Industry
Hot Saled Pes Filter Membrane for Food & Beverage Industry
Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

Contact us:
Ji'an Qingyuan Qingfeng Filter Equipment Co., Ltd
Tel:  0796-8106818
Address: New Industrial Area,Qingyuan District, Jian City, Jiangxi Province,China

Mobile:  13979608348
Fax: 0796-8106818
Hot Saled Pes Filter Membrane for Food & Beverage Industry
Hot Saled Pes Filter Membrane for Food & Beverage Industry
