| Customization: | Available |
|---|---|
| Material: | PTFE |
| Usage: | Air Filter |
| Quantity: | |
|---|---|
| Materials of Construction | |
| Filter Media | Polytetrafluoroethylene(PTFE) |
| Color | |
| White | |
| Surface | |
| Plain | |

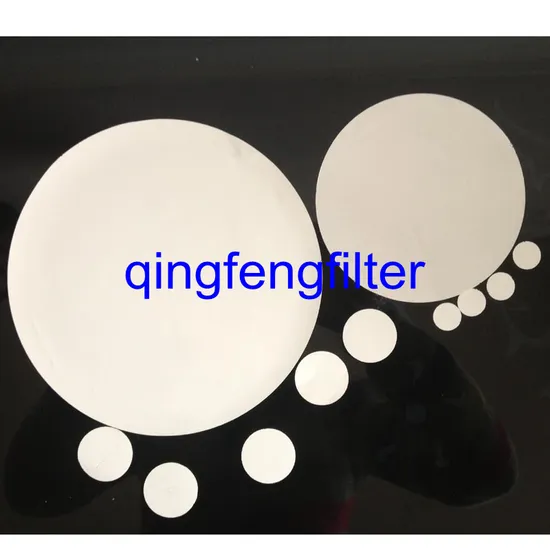

| Filter Disc Dimensions | |
| Outer Diameter, mm | Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300 |
| other size can be customized | |
| Thickness, μm | 150~250 |

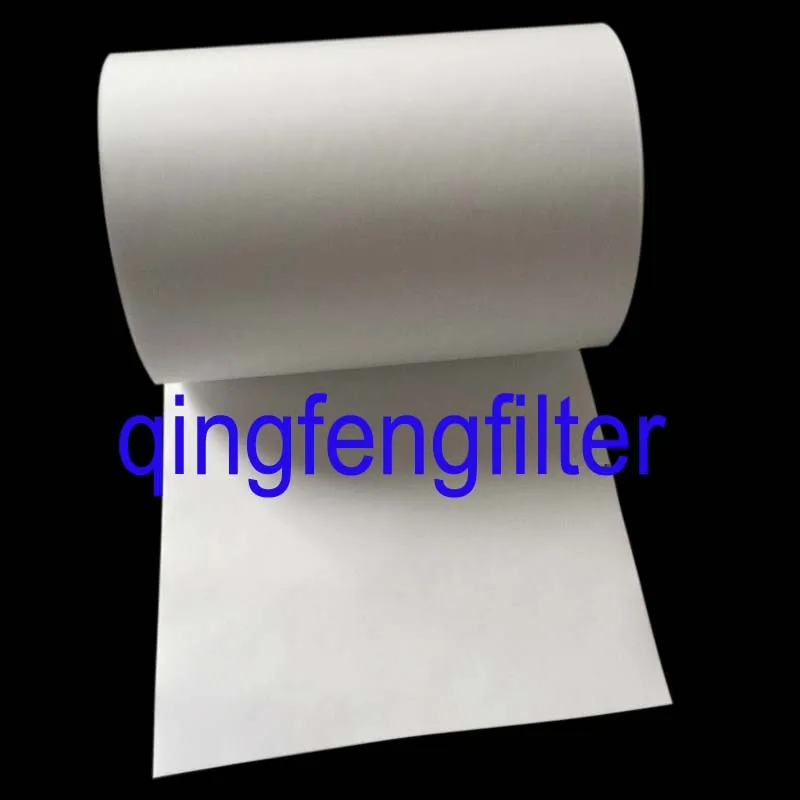

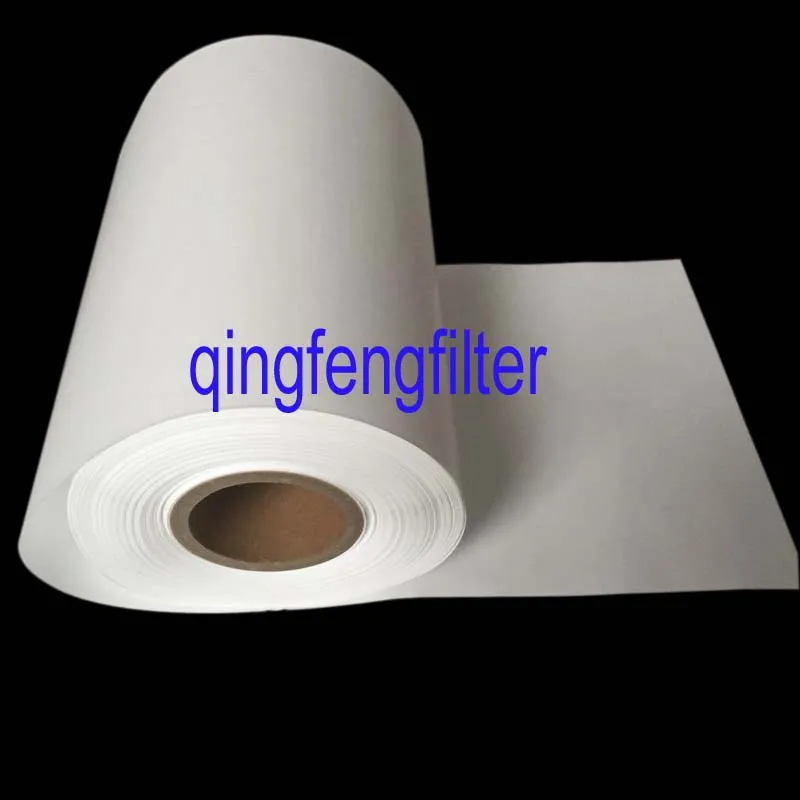

| Membrane Roll Width | 255,260,510,520mm |
| Removal Ratings, μm | |
| 0.1/0.2/0.45/1.0/3.0/5.0um | |
| PH Range | |
| 1~14 | |
| Wettability | |
| Hydrophobic & Hydrophilic | |
| ForwardMaximum Operating Pressure | |
| 4.2 bar@23 ºC,1.5 bar@85 ºC | |
| Water Flow Rate@23 ºC, 1 bar | |
| 0.22 μm | ≥ 6 mL/min/cm2@1 bar |
| 0.45 μm | ≥ 30 mL/min/cm2@1 bar |
| Integrity Test-IPA bubble point@23 ºC | |
| 0.22 μm | ≥ 1000 mbar |
| 0.45 μm | ≥ 600 mbar |
| Sterilization | |
| By autoclave at 121ºC, 20min or EO | |
| Materials of Construction | |
| Filter Media | Polytetrafluoroethylene(PTFE) |
| Color | |
| White | |
| Surface | |
| Plain | |
| Filter Disc Dimensions | |
| Outer Diameter, mm | Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300 |
| other size can be customized | |
| Thickness, μm | 150~250 |
| Membrane Roll Width | 255,260,510,520mm |
| Removal Ratings, μm | |
| 0.1/0.2/0.45/1.0/3.0/5.0um | |
| PH Range | |
| 1~14 | |
| Wettability | |
| Hydrophobic & Hydrophilic | |
| ForwardMaximum Operating Pressure | |
| 4.2 bar@23 ºC,1.5 bar@85 ºC | |
| Water Flow Rate@23 ºC, 1 bar | |
| 0.22 μm | ≥ 6 mL/min/cm2@1 bar |
| 0.45 μm | ≥ 30 mL/min/cm2@1 bar |
| Integrity Test-IPA bubble point@23 ºC | |
| 0.22 μm | ≥ 1000 mbar |
| 0.45 μm | ≥ 600 mbar |
| Sterilization | |
| By autoclave at 121ºC, 20min or EO | |
