Hydrophobic and Hydrophilic PTFE Filter Membrane
PTFE Membrane media for filtration is made of PTFE(polytetrafluoroethylene), are drawn 2-dimension. It is micro-pore film. The PTFE membrane was laminated with a great variety of fabric and paper. They are new filter media. Applied to extensive industries, including pharmacy, biochemistry, microelectronic, and lab material, etc. Directly and indirectly related to pharmacy, brewing, manufacture of pure water and special need water, beverage and dairy, chemical reagent, biochemical reagent, air filtration of fermentation tank in microelectronic, purification and filtration in microelectronic plants, filtration and separation of antibacterial fluid, production of medicine, air conditioning of hospitals and commercial buildings.
Features and Benefits
1. Micron size from 0.05µm to 10µm
2. High temperature resistant and wide chemical compatibility.
3. Strong mechanical properties
4. Support materials: with any support layer or with PP support layer or PET support layer .
5. Special wide diameter and special micron can be customized
Application:
1. Liquid filtration and purification.
2. Precision filtration of industrial water treatment.
3. Filtration in the pharmaceutical and electric industry.
4. Purification
Sterilization: Non-Sterilization packaging; High temperature and high pressure
sterilization 121 ° C for 30 minutes,
Specification:
Pore Size (um): 0.10,0.22,0.3,0.45,1.0
Shape Size(mm): Disc Membrane : Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300:
Square Membrane: Can be customized. Max Size: 1000 * 300

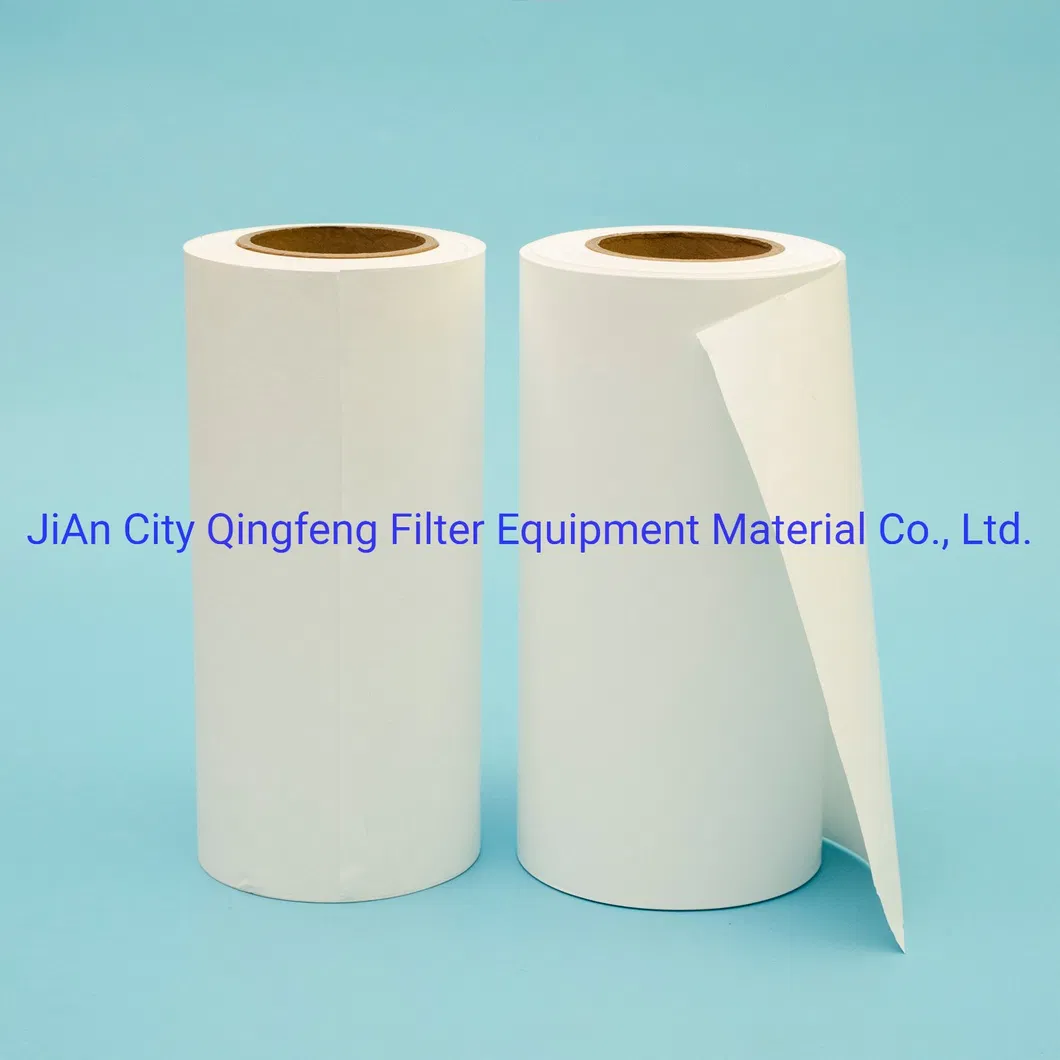

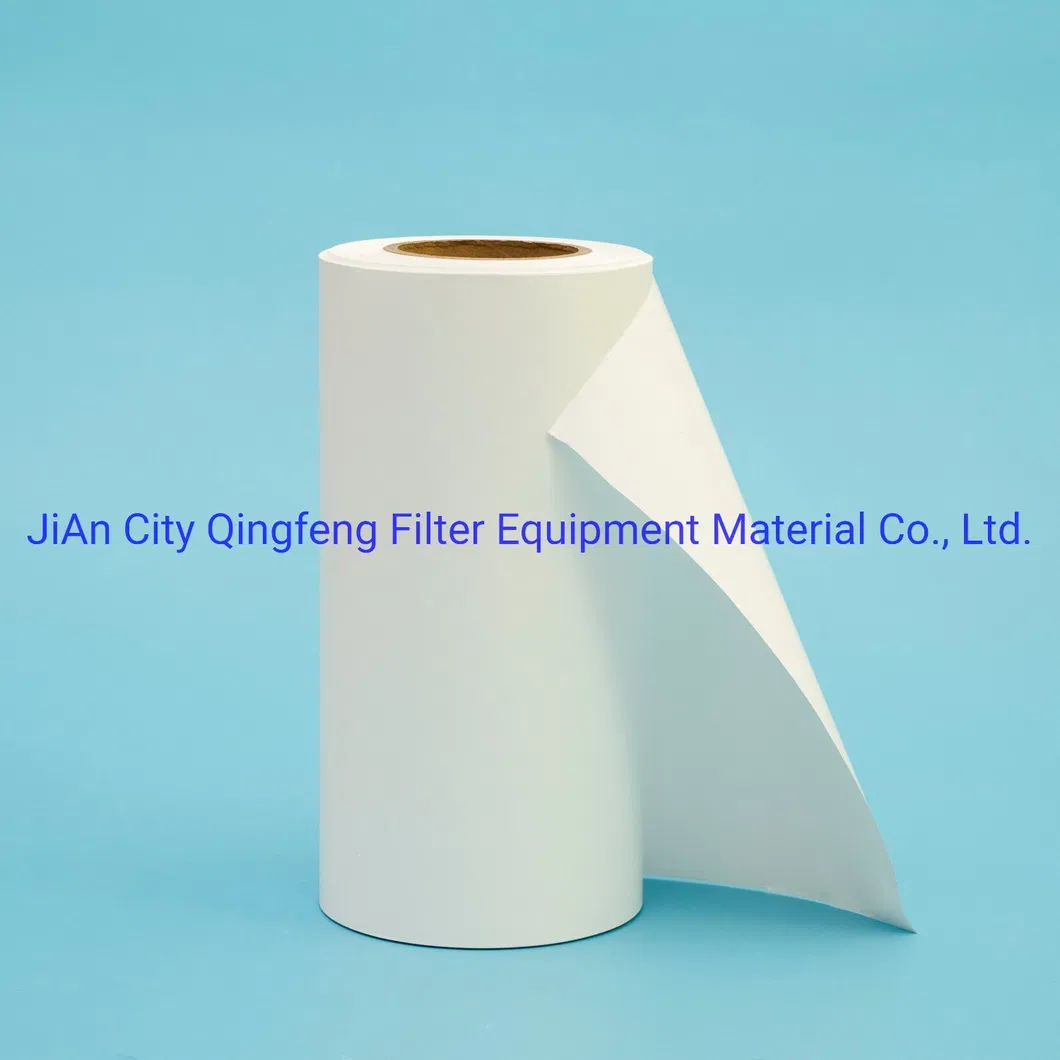

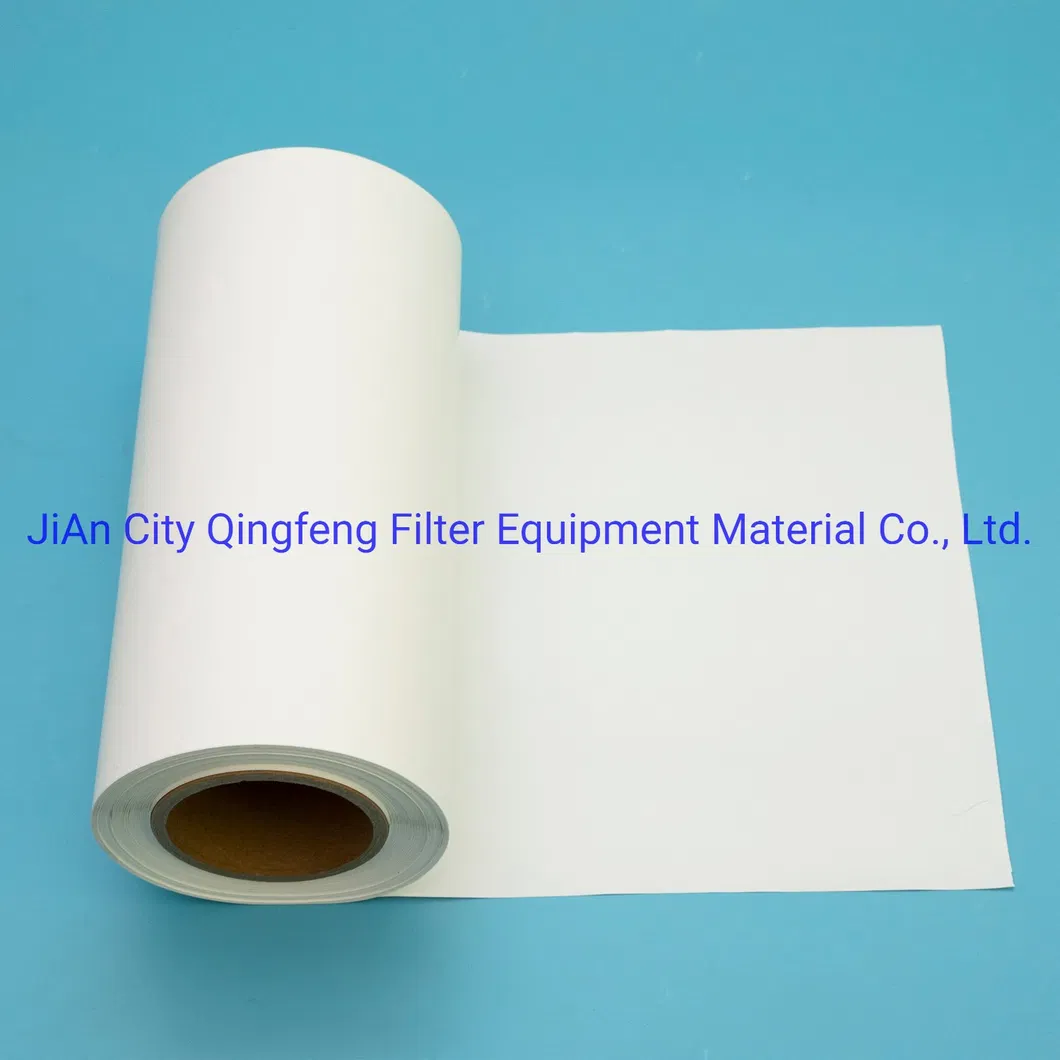

Roll Membrane: The width : 260,280,320,420mm; the length can be customized.
| Item No. | Pore size (μm) | Thickness(μm) | Alcohol bubblePoint (MPa) | Alcohol flow rate (25ºC,Δp =-0.07MPa)(ml/min/cm2) | Support layer |
|
|
| QFPTFE010WSY | 0.1 | 50-60 | 0.20-0.24 | 10--15 | without Support layer |
| QFPTFE022WSY | 0.22 | 0.14-0.16 | 20--25 |
| QFPTFE045WSY | 0.45 | 0.08-0.10 | 45--55 |
| QFPTFE100WSY | 1 | 20-30 | 0.04-0.06 | 100--120 | without Support layer |
| QFPTFE300WSY | 3 | 0.03-0.04 | 250--300 |
| QFPTFE500WSY | 5 | 0.02-0.03 | 380--450 |
| QFPTFE010WPP | 0.1 | 140-190 | 0.2-0.24 | 8--15 | With PP support layer |
| QFPTFE022WPP | 0.22 | 0.14-0.17 | 15--25 |
| QFPTFE045WPP | 0.45 | 0.07-0.1 | 35--50 |
| QFPTFE100WPP | 1 | 0.04-0.05 | 60--80 |
| QFPTFE300WPP | 3 | 0.03-0.04 | 180--250 |
| QFPTFE500WPP | 5 | 0.02-0.03 | 350--450 |
| QFPTFE010PET | 0.1 | 160-170 | 0.20-0.24 | 5--10 | With PET support layer |
| QFPTFE022PET | 0.22 | 0.13-0.15 | 15--20 |
| QFPTFE045PET | 0.45 | 0.07-0.08 | 30--40 |
| QFPTFE100PET | 1 | 0.04-0.05 | 50--70 |
| QFPTFE300PET | 3 | 0.03-0.04 | 150--200 |
| QFPTFE500PET | 5 | 0.02-0.03 | 300--350 |

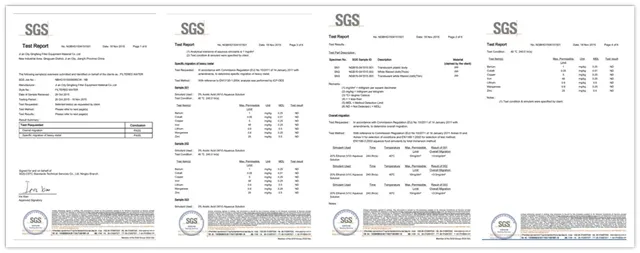

Certificates:
Exhibition
Warehouse
Shipping Maritime; Railway; Air (DHL/UPS/TNT/FEDEX) Delivery time:
1.If this kind of products is in stock, the product will be sent for you 1-7 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15 days to produce. Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and filter elements since 2006 year.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality. Contact us: | Ji'an Qingyuan Qingfeng Filter Equipment Co., Ltd |
