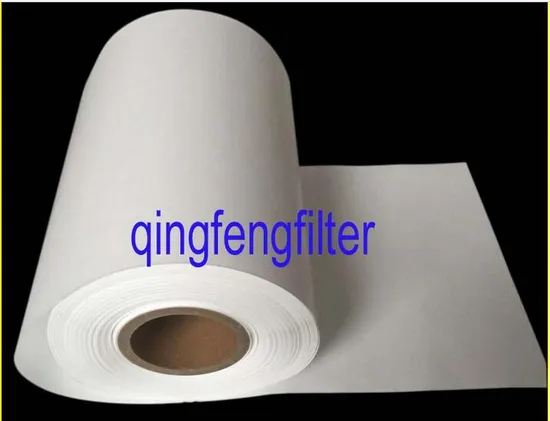

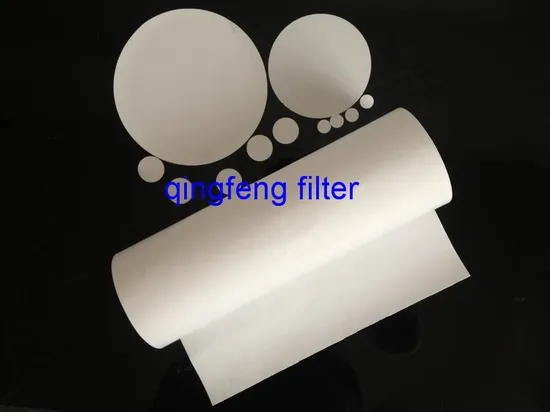

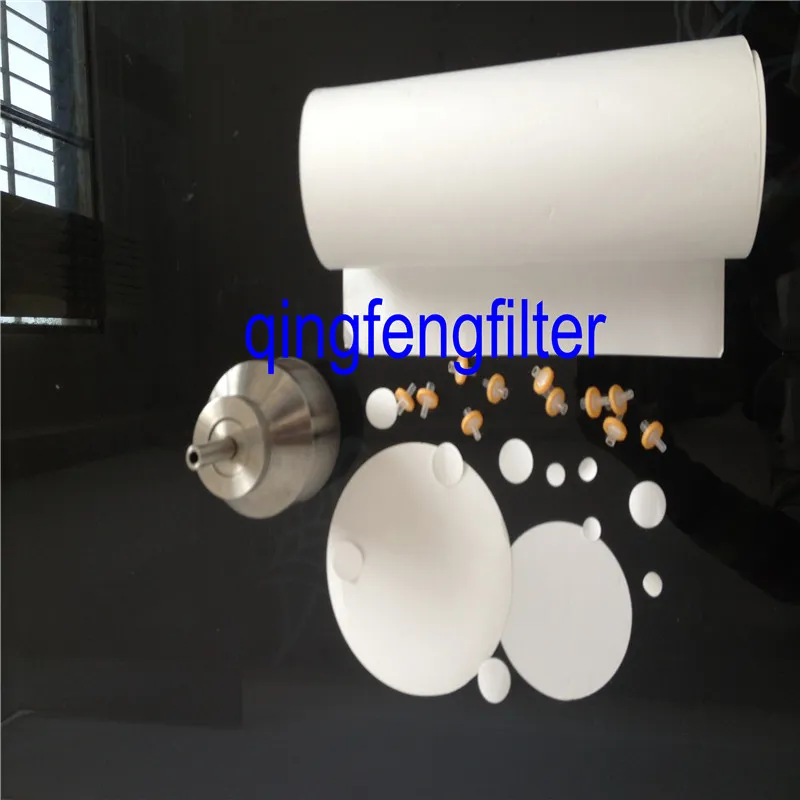

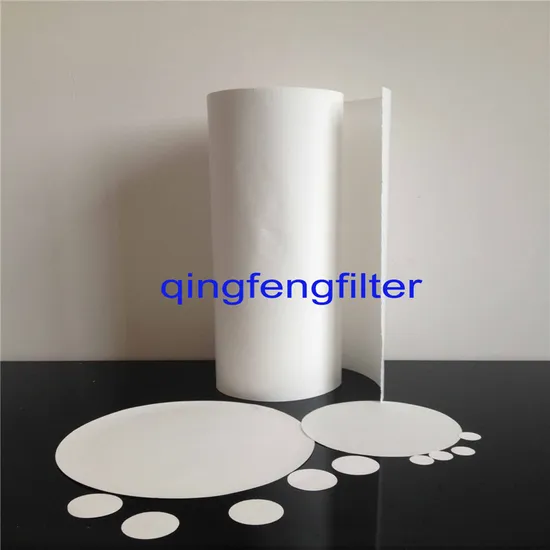

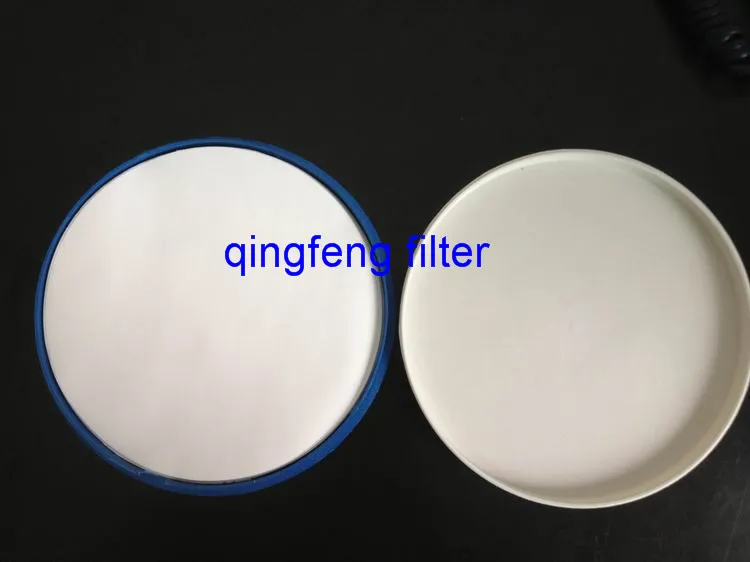

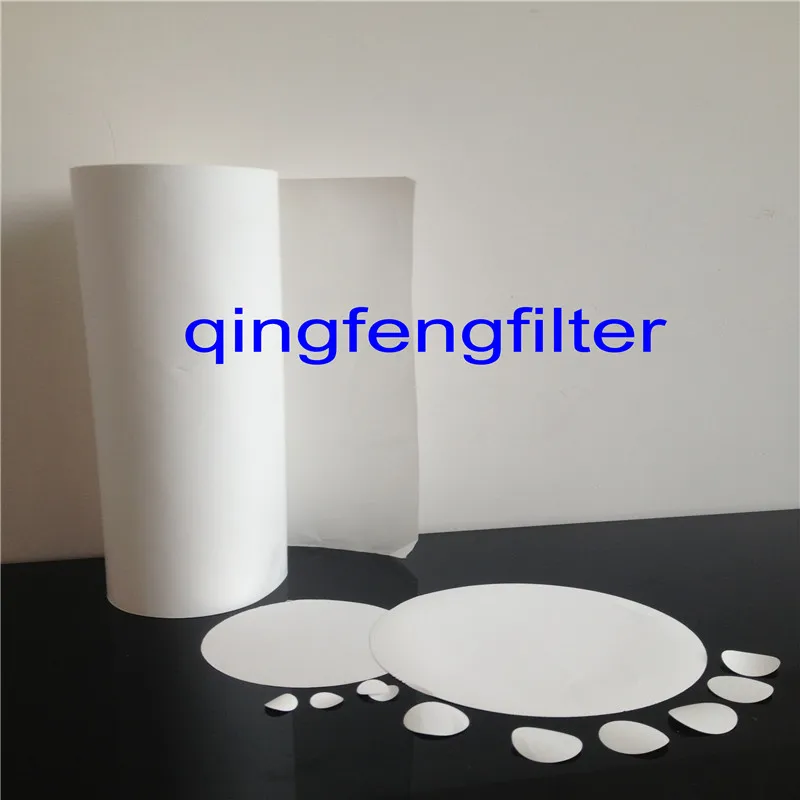

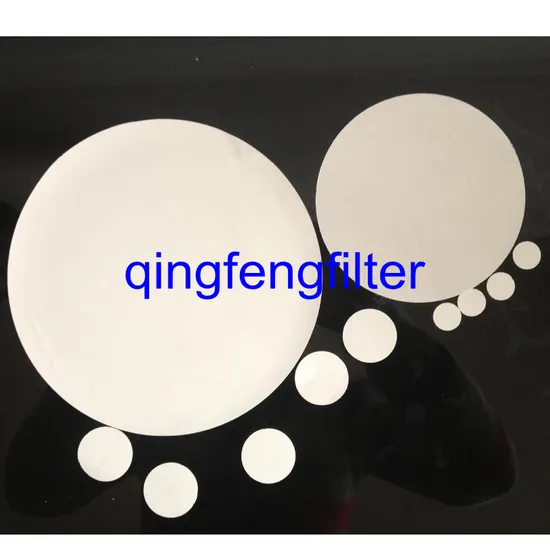

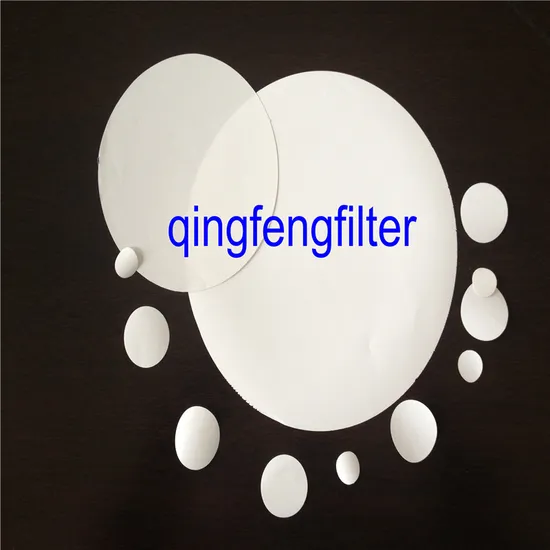

Hydrophobic PVDF/PTFE 0.22um 0.45 Micron Filter Membrane for Air Filtration
Main Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc
2.Superior temperature tolerance and anti-pollution.
3.Two types: Hydrophilic and Hydrophobic
Applications:
1.Effective filtration of organic solvent and additive
2.Filtration of solvent and chemical materials
3.Clarification Filtration of air and gas filter
4.Filtration of high-temperature liquid
5.Sterile Filtration of gas and steam
6.Aseptic treatment for reagent
7.Ultimate filtration of ink
Specification: | Filter media | Polyvinylidene Difluoride |
| Color | White |
| Filter Surface | Plain and Opaque |
| Thickness | 85-110μm |
| Working Temperature | 90ºC |
| Pore Size (μm) | 0.22, 0.45, 1.0 |
| Wettability | Hydropholic & Hydrophobic |
| Diameter For Membrane Filter Disc | Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300 |
| Filter Membrane Roll Width | 280mm, 320mm, 420mm |
| Minimum Bubble Point: |
| 0.22μm | 0.08Mpa |
| 0.45μm | 0.04Mpa |
| Standard Water Flow (ml/m2.min): |
| 0.22μm | ≥8 |
| 0.45μm | ≥18 |
| Sterilization Methods: |
| Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min) |
Certifications:
Exhibition:
Shipping&Delivery
Delivery time: 1.If products is in stock, the lead time will be about 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.

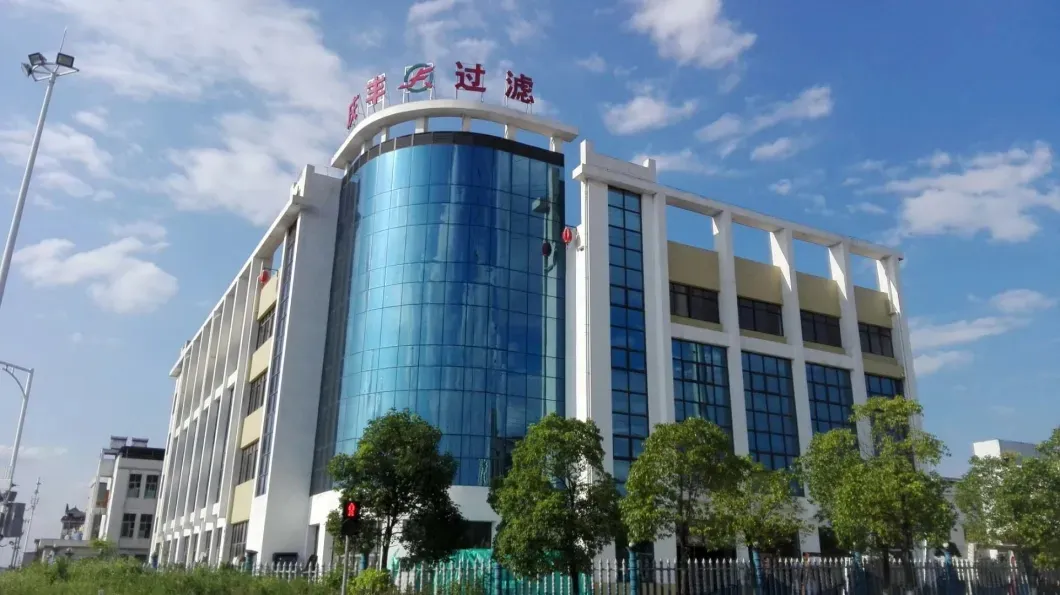

Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.
Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China
in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
