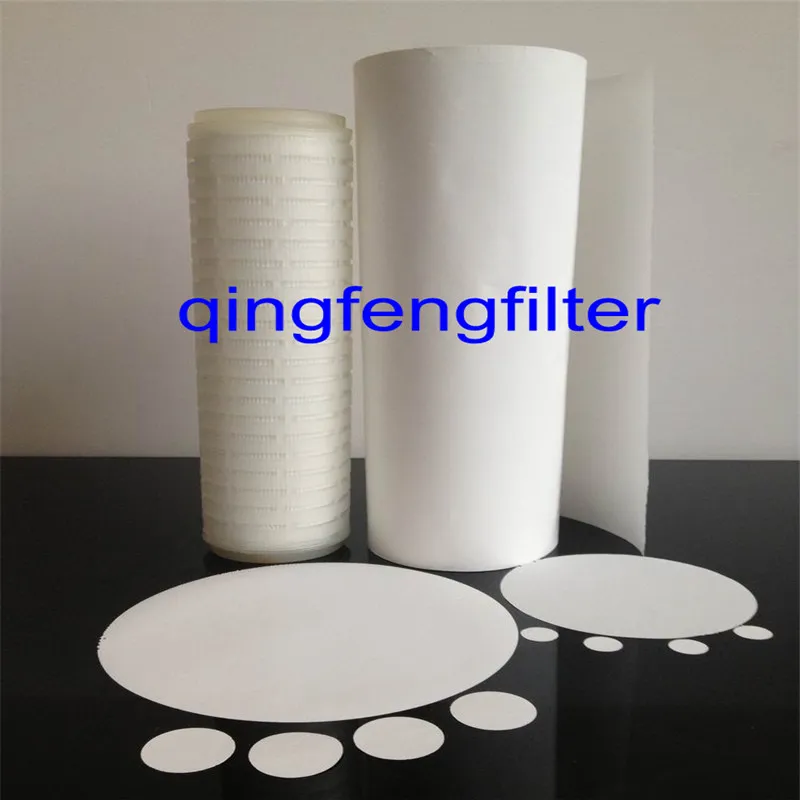

PVDF Membrane
Product Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc.
2.Superior temperature tolerance and anti-pollution
3.Two types, hydrophobic and modified-hydrophobic
Product Applications:
1.Effective filtration of organic solvent and additive
2.Ultimate filtration of ink
3.Filtration of solvent and chemical materials
4.Aspetic treatment for reagent
5.Filtration of high-temperature liquid
6.Dust-filtration of air and gas
7.Aseptic filtration of gas and vapor
Sterilization Methods:
Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)
Specifications:
1.Pore size (um): 0.10,0.22, 0.45, 1.0, 3.0,5.0um
2.Configuration size (um)

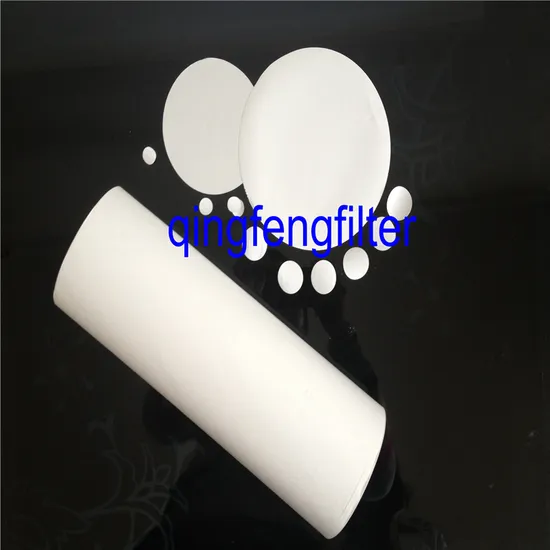

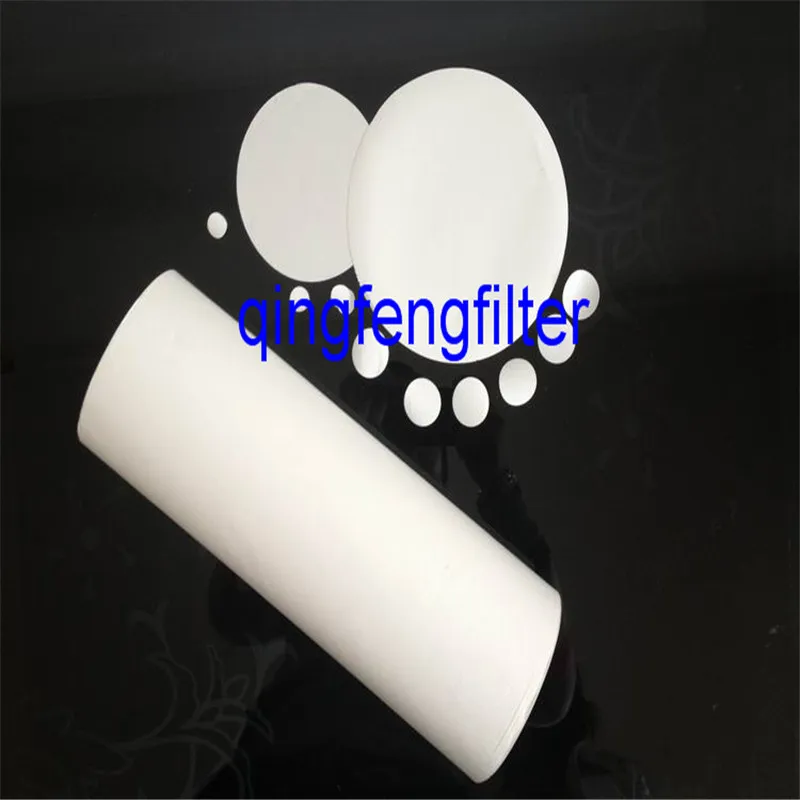

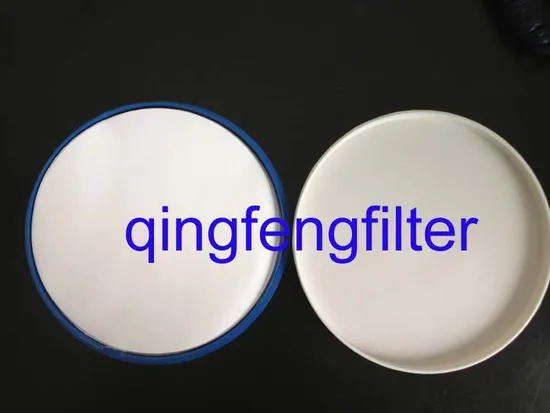

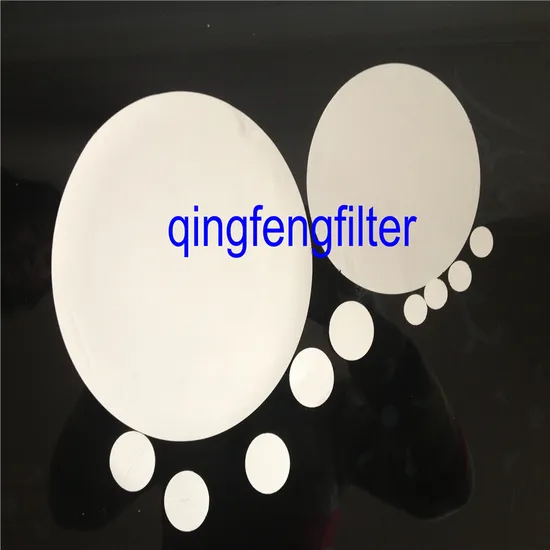

Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built

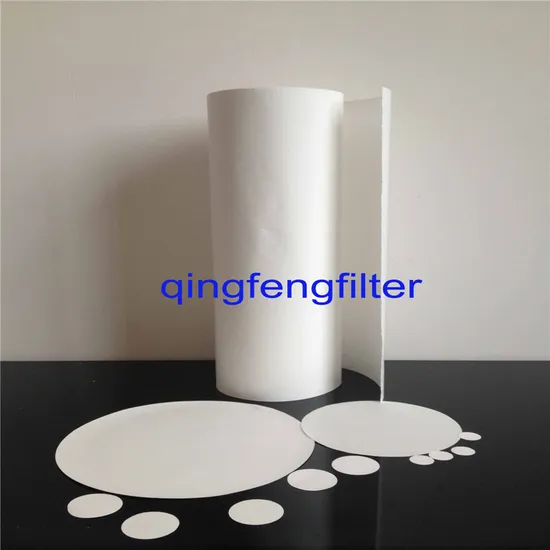

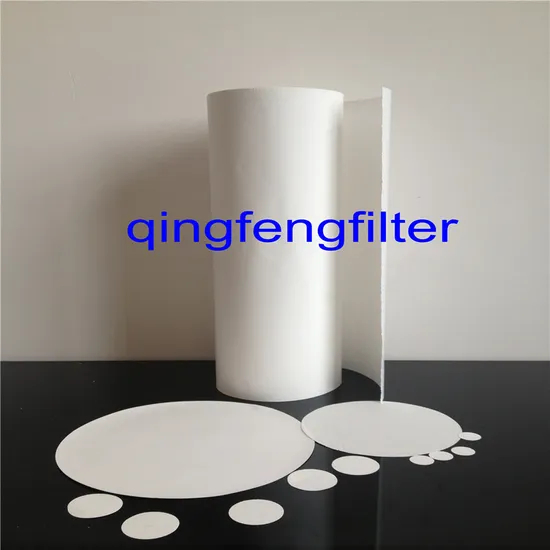

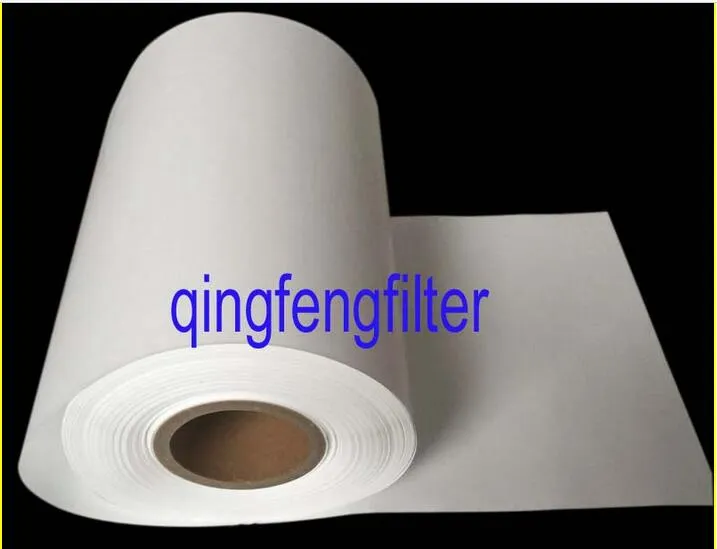

Rolling Film: custom-built,Width : 280,315,317,320,326,420mm | Membrane | Hydrophobic Polyvinylidene (PVDF) |
| Color | White |
| Thickness, μm | 90~100 |
| Width | 280,315,317,320,326,420mm |
| Pore Size, μm | 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 |
| Absorption, 0.22 μm | 8 μg/cm 2 γ-globulin |
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85 ºC |
| Flow Rate |
| 0.22 μm | ≥ 3 mL/min/cm 2 at 1 bar |
| 0.45 μm | ≥ 7 mL/min/cm 2 at 1 bar |
| Particle Removal Efficiency (%) |
| > 98 |
