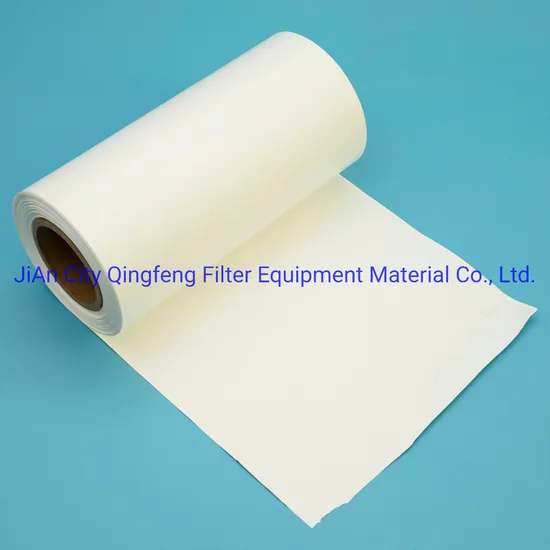

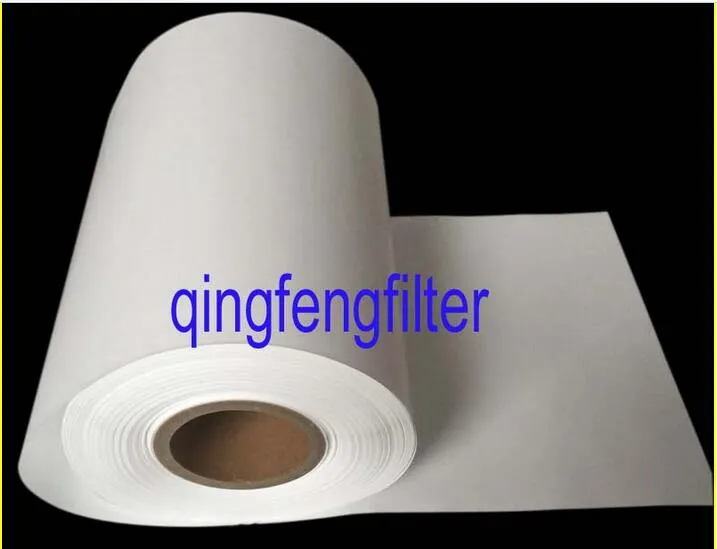

Microporous Hydrophilic PVDF Blotting Filter Membrane in Rolls for Solvent Filtration

Microporous Hydrophilic PVDF Blotting Filter Membrane in Rolls for Solvent Filtration

Customization:	Available
Membrane Type:	PVDF Membrane
Type:	0.1/0.2/0.45/1.0/3.0/5.0um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PVDF Filter Membrane

Certification

SGS and ISO9001

Filter Media

PVDF Membrane

Diameter

13/25/35/47/50/60/70/80/90/100/142/150

Usage

Air Liquid Powder Solidgas and Corrosive Solutions

Thickness

0.91-1.2mm

Color

White

Material

PVDF Membrane

Transport Package

Carton Packing

Specification

width have 280/315/317/320/326/420mm

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

1500000square Meter/Year

Product Description

PVDF Membrane

Product Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc.
2.Superior temperature tolerance and anti-pollution
3.Two types, hydrophobic and modified-hydrophobic

Product Applications:
1.Effective filtration of organic solvent and additive
2.Ultimate filtration of ink
3.Filtration of solvent and chemical materials
4.Aspetic treatment for reagent
5.Filtration of high-temperature liquid
6.Dust-filtration of air and gas
7.Aseptic filtration of gas and vapor

Sterilization Methods:

Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)

Specifications:
1.Pore size (um): 0.10,0.22, 0.45, 1.0, 3.0,5.0um
2.Configuration size (um)

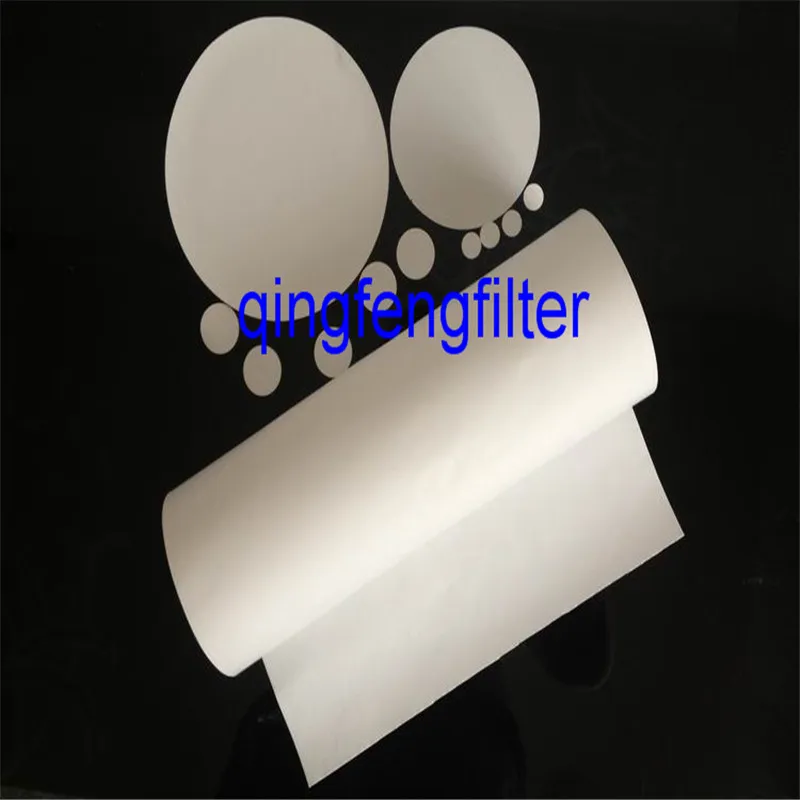

        Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
        Rectangle: custom-built
        Rolling Film: custom-built,Width : 280,315,317,320,326,420mm

Membrane	Hydrophobic Polyvinylidene (PVDF)
Color	White
Thickness, μm	90~100
Width	280,315,317,320,326,420mm
Pore Size, μm	0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Absorption, 0.22 μm	8 μg/cm 2 γ-globulin
Maximum Operating Pressure	Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85 ºC
Flow Rate
0.22 μm	≥ 3 mL/min/cm 2 at 1 bar
0.45 μm	≥ 7 mL/min/cm 2 at 1 bar
Particle Removal Efficiency (%)
> 98

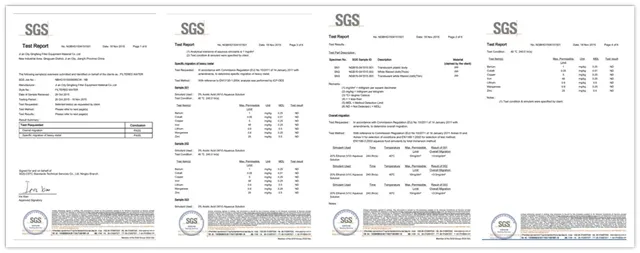

Certificates:
Microporous Hydrophilic PVDF Blotting Filter Membrane in Rolls for Solvent Filtration

Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
