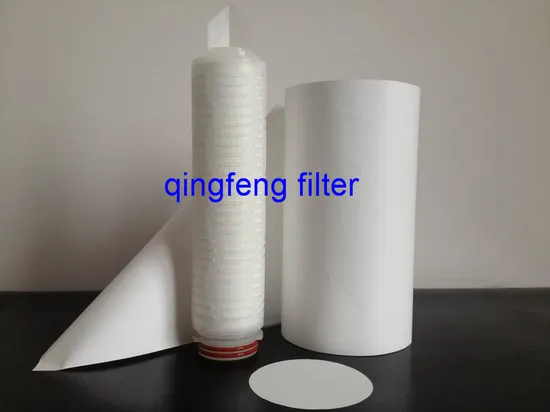

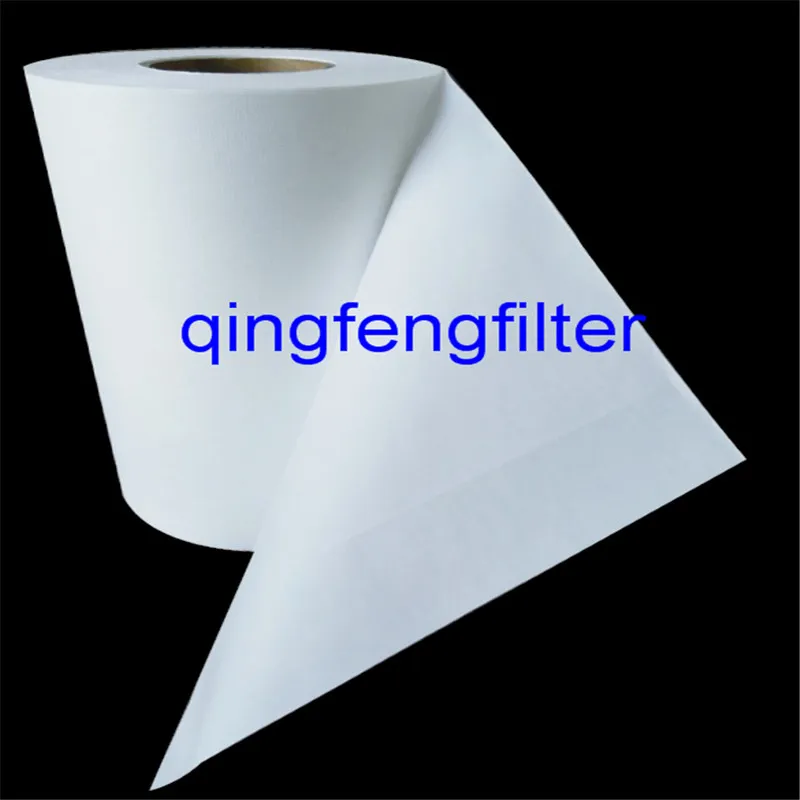

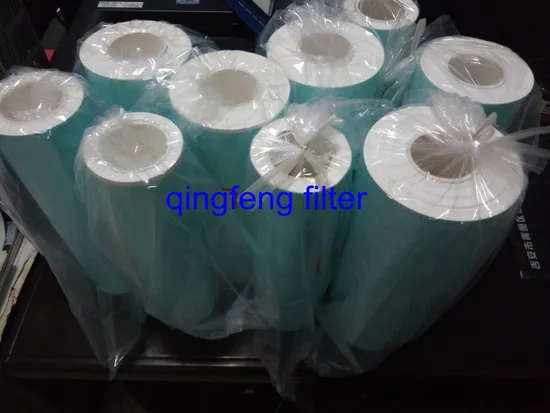

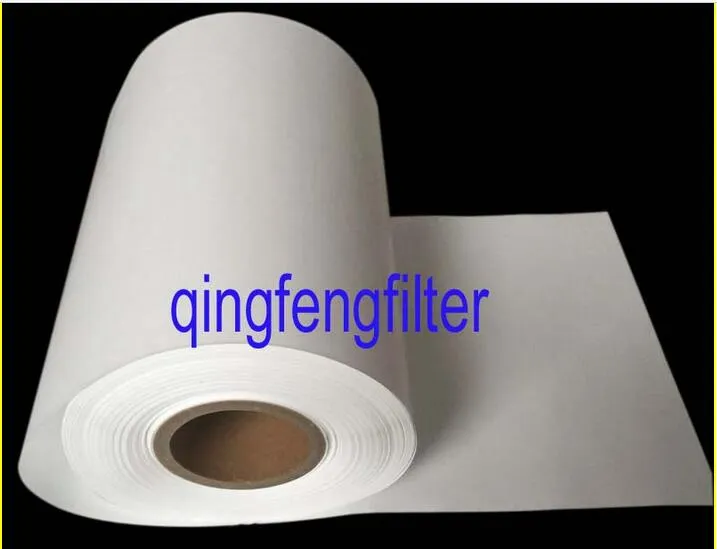

Oleophilic PTFE Filter Membrane for Organic Gases Filtration

Oleophilic PTFE Filter Membrane for Organic Gases Filtration

Customization:	Available
Membrane Type:	PTFE Memnbrane and PP
Type:	0.1/0.2/0.45/1.0/3.0/5.0um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Oleophilic PTFE filter Membrane

Certification

SGS and ISO9001

Diameter

13/25/35/47/50/60/70/80/90/100/142/150

Usage

Air Filter, Liquid Filter, Solid Filter

Color

White

Material

PTFE Memnbrane

Thickness

110-210um

Transport Package

Carton Packing

Specification

width have 255/260/510/520mm

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

150000square Meter/Year

Product Description

Oleophobic PTFE membrane

Oleophobic PTFE membranehas strong hydrophobicity and Oleophobic property, which can prevent the permeation of low surface tension pollutants, including detergents, oils and chemicals.
The test method is that the liquid with known surface tension is dropped on the surface of the membrane material to observe the wetting process, which is the process of liquid entering the membrane structure. The level of oleophobic is the lowest surface tension liquid which can not wet the membrane material.

The features
The level of oleophobic oil (3-8)
High flow & no volatility
High chemical resistance and high temperature resistancs
Strong mechanical properties

Application
1.Filtration of organic gases
2.Recovery of organic droplets from industrial exhaust gas
3.Removal of gases from biomass liquids
4.Removal of volatile components from solution
5.Liquid storage vessel respiration
6.sensor
7.Electronic accessories
8.control unit
9.Any component exposed to chemical reagents.

Item No,	Pore size(um)	Membrane	Support layer	Thickness(um)	air permeability (@1psi)	oleophobic	The level of oleophobic oil
QFPTFE010PP	0.1	PTFE	pp	140-190	≥0.1slmp	oleophobic	3 to8
QFPTFE022PP	0.22	PTFE	pp		≥0.2slmp	oleophobic
QFPTFE045PP	0.45	PTFE	pp		≥0.4slmp	oleophobic
QFPTFE100PP	1	PTFE	pp		≥0.7slmp	oleophobic
QFPTFE300PP	3	PTFE	pp		≥1.5slmp	oleophobic
QFPTFE500PP	5	PTFE	pp		≥2.5slmp	oleophobic
QFPTFE010PET	0.1	PTFE	PET		≥0.08slmp	oleophobic
QFPTFE022PET	0.22	PTFE	PET	200±10	≥0.16slmp	oleophobic
QFPTFE045PET	0.45	PTFE	PET		≥0.32slmp	oleophobic
QFPTFE100PET	1	PTFE	PET		≥0.56slmp	oleophobic
QFPTFE300PET	3	PTFE	PET		≥1.2slmp	oleophobic
QFPTFE500PET	5	PTFE	PET		≥2.0slmp	oleophobic

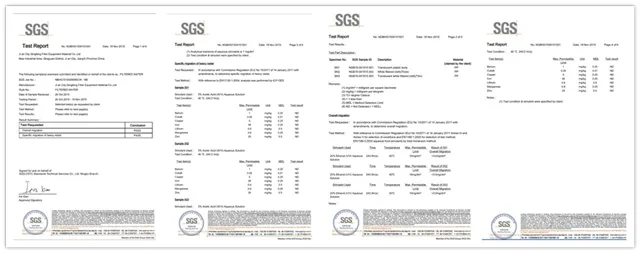

Certificates:
Oleophilic PTFE Filter Membrane for Organic Gases Filtration

Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
