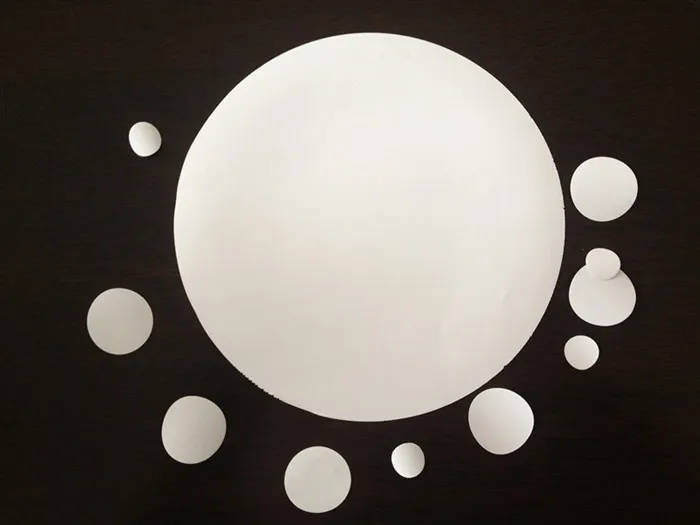

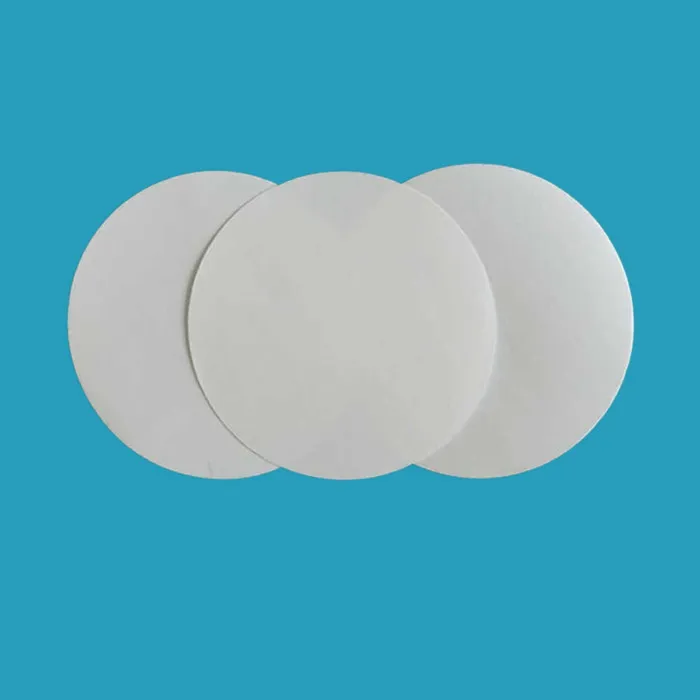

PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier

Customization: Available
Membrane Type: PTFE Filter Membrane
Type: MF
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
PTFE membrane
Color
White
Material
Polytetrafluoroethylene(PTFE)
Pore Size
0.1um, 0.22um, 0.3um, 0.45um, 1.0um
Thickness
100-150um
Support Material
None/PP/Pet
Wettability
Hydrophilic & Hydrophobic
Shape
in Disc/Roll/Sheet
Series
TF, NF, CF, Wf
Usage
Air/Liquid/Oil Filtration
Certifications
ISO9001 & SGS
Transport Package
Package + Carton
Specification
Customized
Trademark
Qingfeng OEM
Origin
China
HS Code
8421999090
Production Capacity
100000PCS/Year

Product Description



                                               PTFE Filter Membrane (TF, NF, CF, WF)

TF Series has hydrophilic membrane and hydrophobic membrane. Permanent hydrophilic membrane is mainly applied in clarification, absolute steam filtration and sewage treatment. Permanent hydrophilic membrane is used for proton conduction, electric conduction and ion exchange.

NF Series is hydrophobic membrane, mainly for the clarification, absolute filtration of organic solvent, and all kinds of gas particles and absolute bacteria removal.

CF Series is hydrophobic membrane, mainly for the purification of air dust and gas. And high temperature and high corrosion gas particles removal.

WF Series is hydrophilic membrane. is supported by PP fiber, the thickness of the membrane is  1-3 mm. It is mainly used for solid and liquid separation of filter bag industry.

Product Characteristics:

1.Micron size from 0.05µm to 10.0µm

2.High temperature resistant and wide chemical compatibility.

3.Strong mechanical properties

4.Support materials: no, PP or PET

5.Special wide diameter and special micron can be customized

Applications:

1.Liquid filtration and purification.

2.Precision filtration of industrial water treatment

3.Filtration in the pharmaceutical and electric industry

4.Filtration purification and products collection

Specification:

Filter Media Polytetrafluoroethylene
Thickness 80-95μm
Working Temperature 75ºC
Pore Size (μm) 0.1um, 0.22um, 0.3um, 0.45um, 1.0um

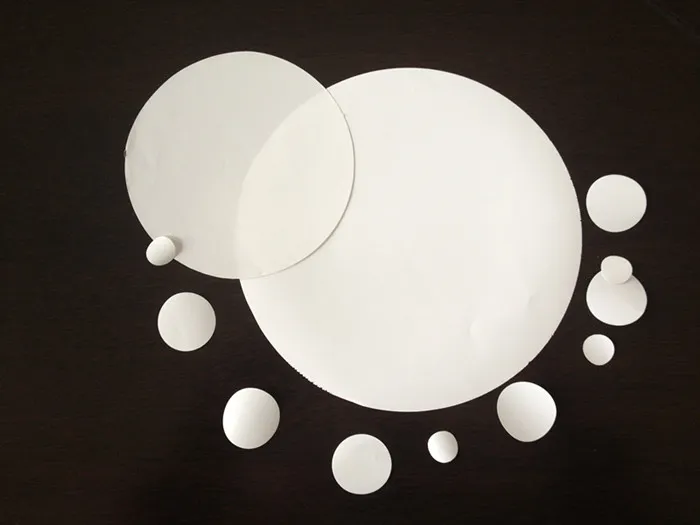

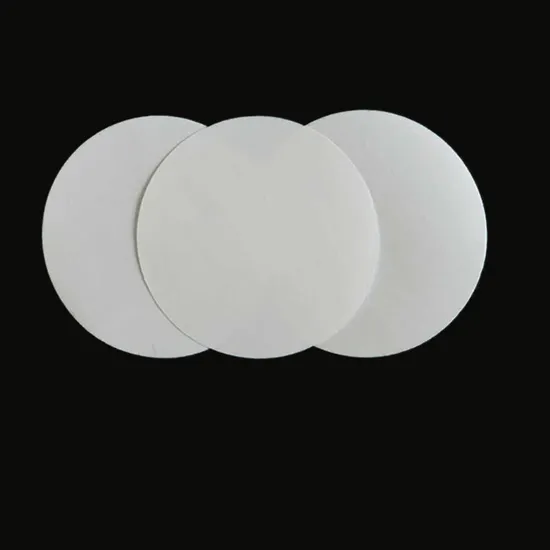

Diameter For Membrane Filter Disc Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300
Filter Membrane Roll Width 280mm, 320mm, 420mm
Minimum Bubble Point:
0.22μm 0.10Mpa
0.45μm 0.06Mpa
Standard Water Flow (ml/m2.min):
0.22μm ≥5
0.45μm ≥10
Sterilization Methods:
Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min)
PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier
PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier
PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier



PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water PurifierPP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier PP, Nylon, PVDF, Pes, PTFE Filter Membrne 0.45um F Membrane Filter for Water Purifier
