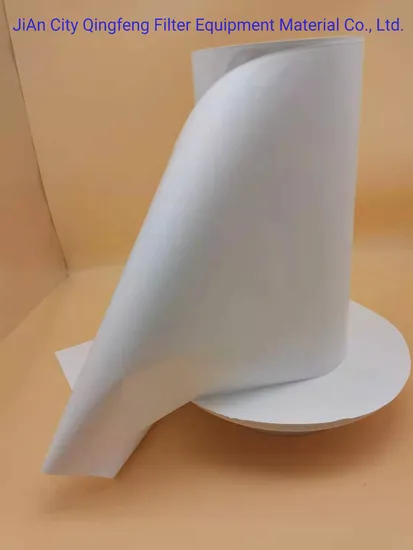

PTFE/PP/Pes/Nylon/PVDF Pleated Filter Membrane Water Filter Membrane for Filtration

PTFE/PP/Pes/Nylon/PVDF Pleated Filter Membrane Water Filter Membrane for Filtration

Customization:	Available
Membrane Type:	PTFE Memnbrane and PP
Type:	0.1/0.2/0.45/1.0/3.0/5.0um

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PTFE filter membrane

Certification

SGS and ISO9001

Diameter

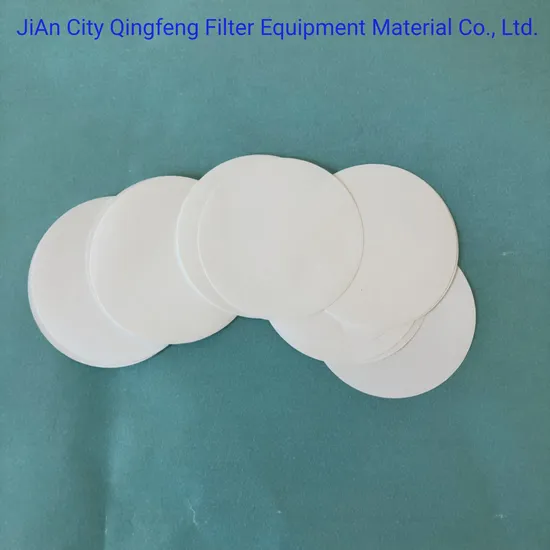

13/25/35/47/50/60/70/80/90/100/142/150

Usage

Air Filter, Liquid Filter, Solid Filter

Color

White

Material

PTFE Memnbrane

Thickness

130mm±15

Transport Package

Carton Packing

Specification

width have 255/260/510/520mm

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

150000square Meter/Year

Product Description

                                                               PTFE Membrane
Polytetrafluoroethylene(PTFE)membrane belongs to microporous membrane, mainly including TF,NF,CF three series of them:

   TF is divided into hydrophilic membrane and functional hydrophilic membrane. Permanent hydrophilic membrane is mainly used in turbidity removal, clarification, absolute degermation and sewerage treatment in hydro products. Permanent functional hydrophilic membrane is used in proton conduction, electron conduction and ion exchange.
   NF is hydrophobic membrane, which is mainly used in turbidity removal, clarification, and absolute degermation in organic solvent products and particle removal and absolute degermationin in all kinds of gas.
   CF is hydrophobic membrane, which is mainly used in air dust removal and gas ultra-cleaning filtration and particle removal in high-temperature or high-corrosion air.
  typical most aperture includes 1.0,0.45,0.22, 0.10μm

Basic Info

Model NO.: Hydrophobic PTFE
Material of Membrane: Hydrophobic PTFE Filter Membrane
Pore Size: 0.1, 0.22, 0.45, 0.65, 0.8, 1.0, 2.0, 3.0
Clapboard: without Clapboard
Medium Material: PTFE Membrane
Filtration Grade: Medium Filter
Transport Package: 50PCS/Box; 100PCS/Box
Origin: China

Type: PTFE Filter Membrane
Function: Lab and filtrarion

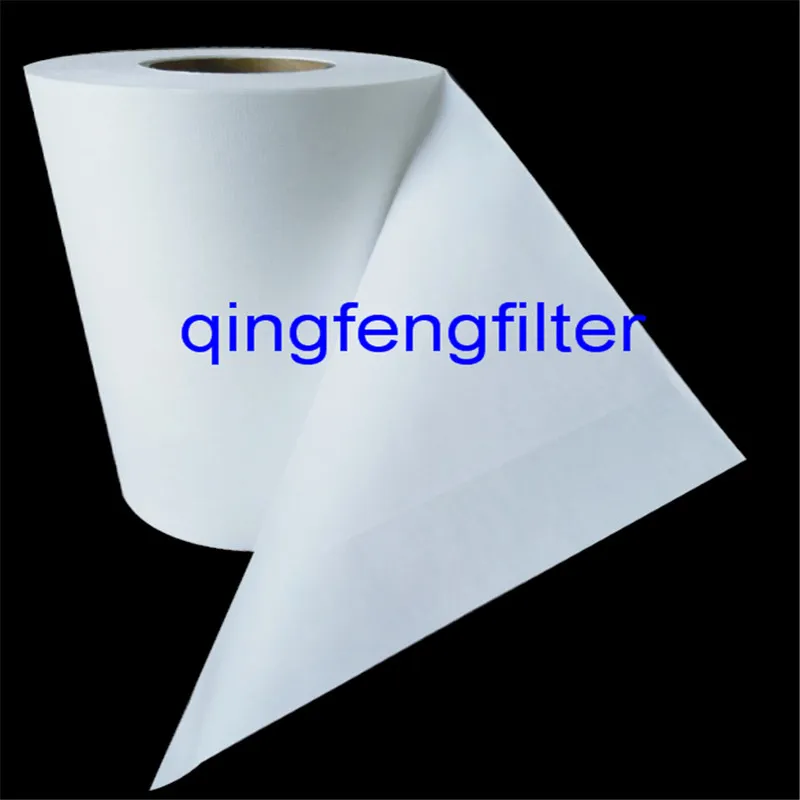

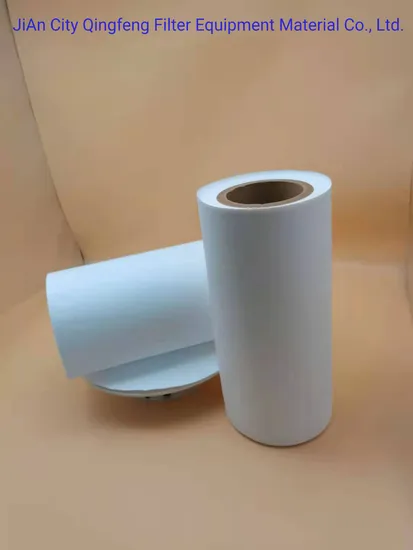

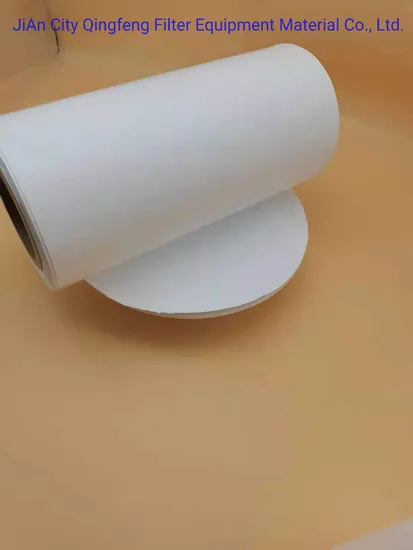

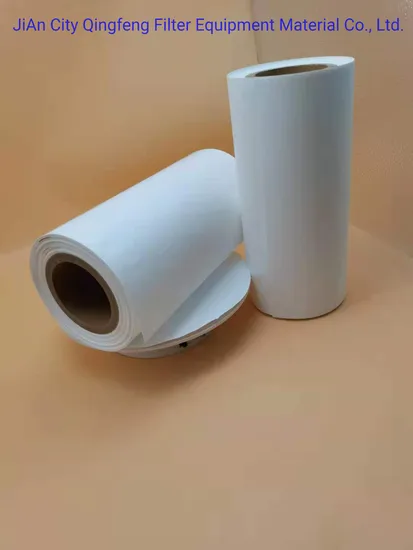

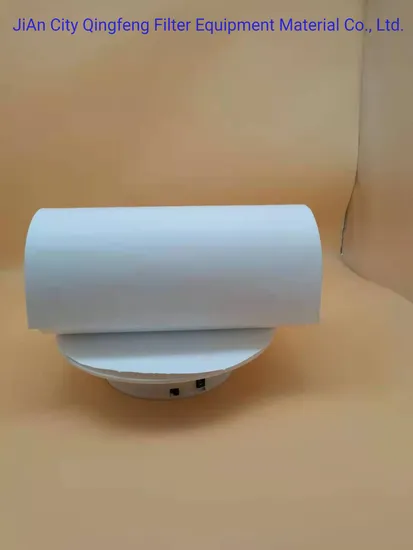

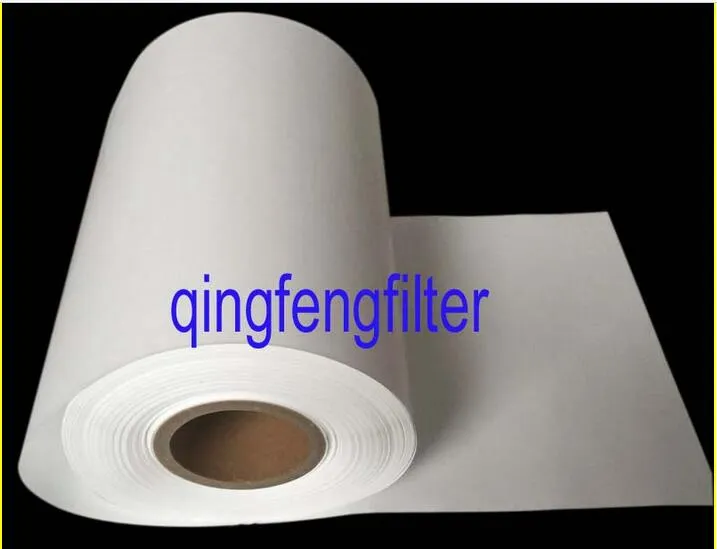

Roll: 23mm, 47mm, 270mm, 300mm
Efficiency: 0.2um
Trademark:Qingfeng and OEM
Specification: Roll: 270 mm, 300 mm

Membrane		Hydrophobic Membrane (PTFE)
Support		PP
Color		White
Filter Surface		Plain
Thickness, μm		150~250
Width		255/260/510/520mm
Pore Size, μm		0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Maximum Operating Pressure		Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C
Flow Rate	Liquid		Air
0.22 μm	≥ 6 mL/min/cm 2 at 1 bar		≥ 3.5 L/min/cm 2 at 1 bar
0.45 μm	≥ 30 mL/min/cm 2 at 1 bar		≥ 7 L/min/cm 2 at 1 bar

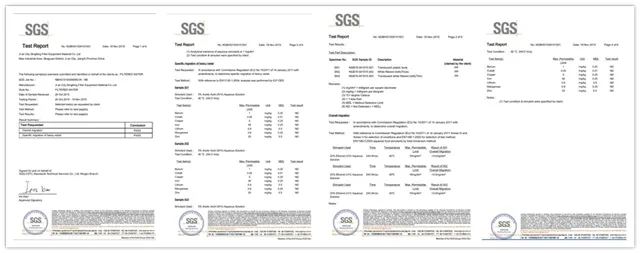

Certificates:
PTFE/PP/Pes/Nylon/PVDF Pleated Filter Membrane Water Filter Membrane for Filtration

Shipping
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
PTFE/PP/Pes/Nylon/PVDF Pleated Filter Membrane Water Filter Membrane for Filtration

Delivery time:

1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15days to produce.

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
