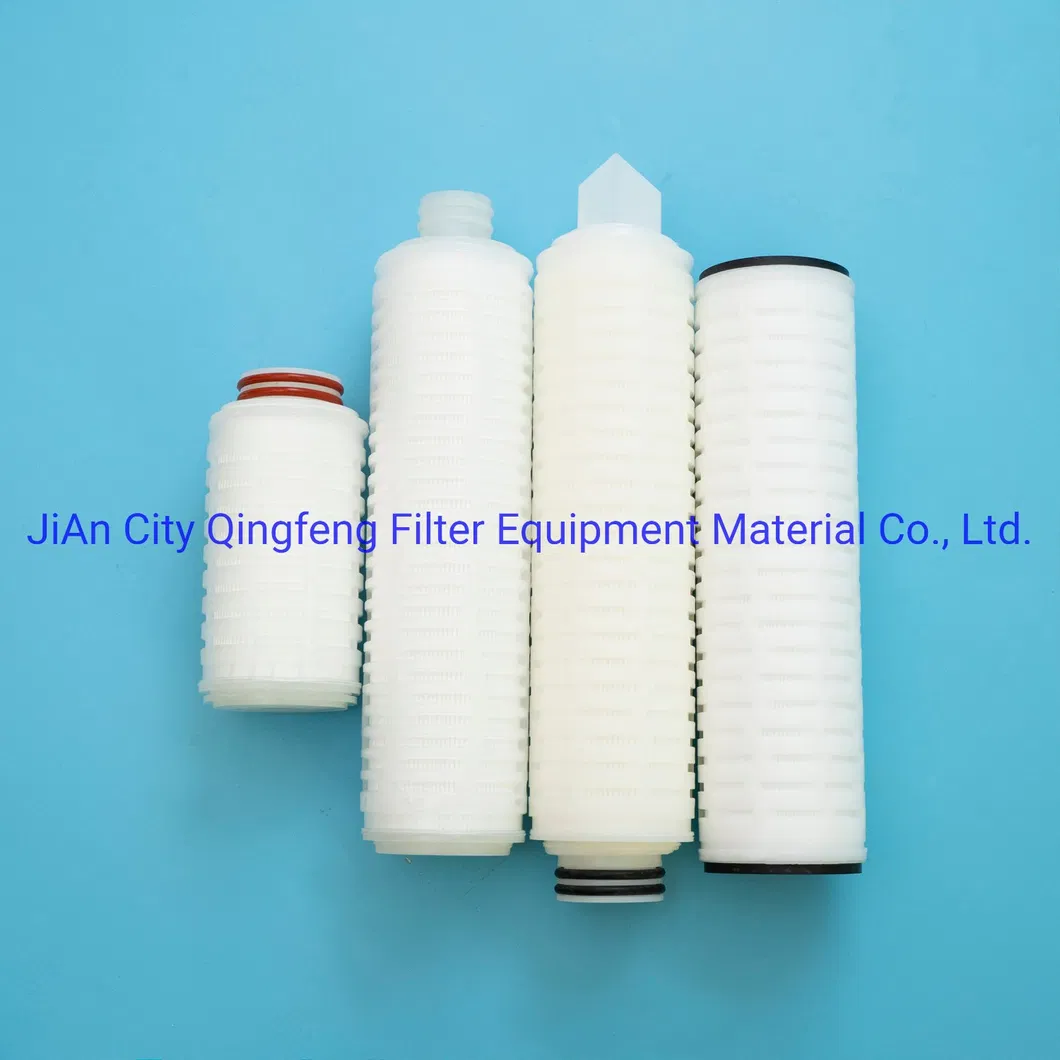

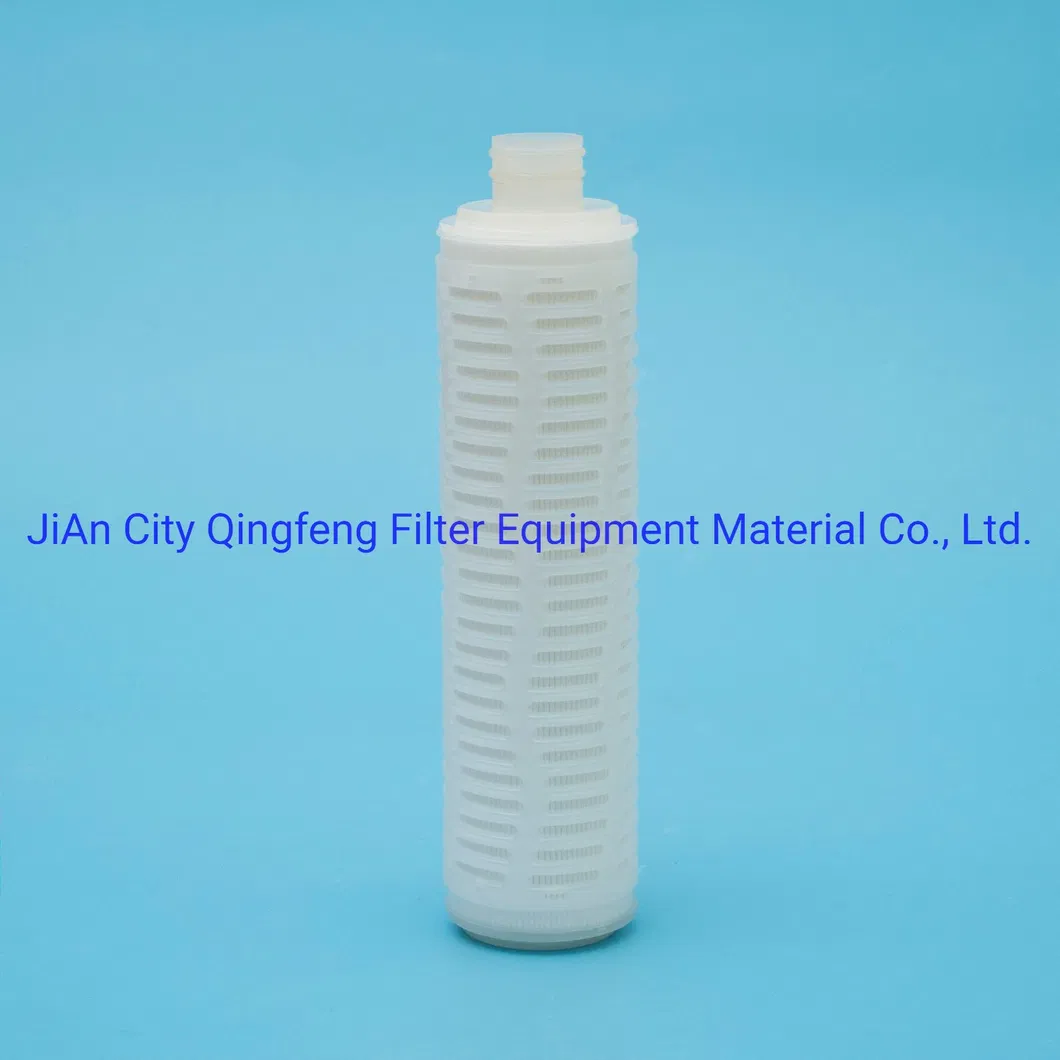

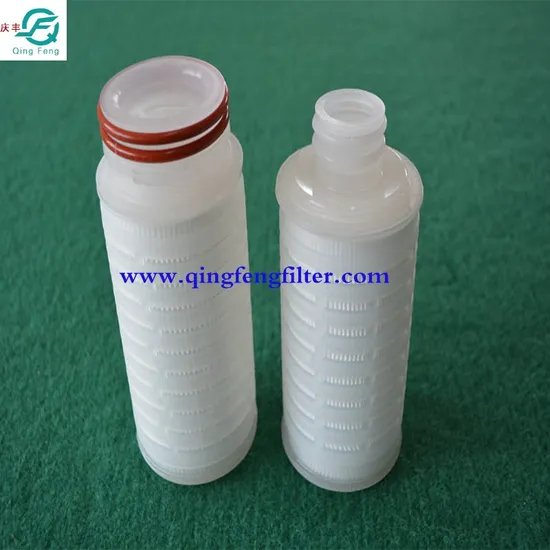

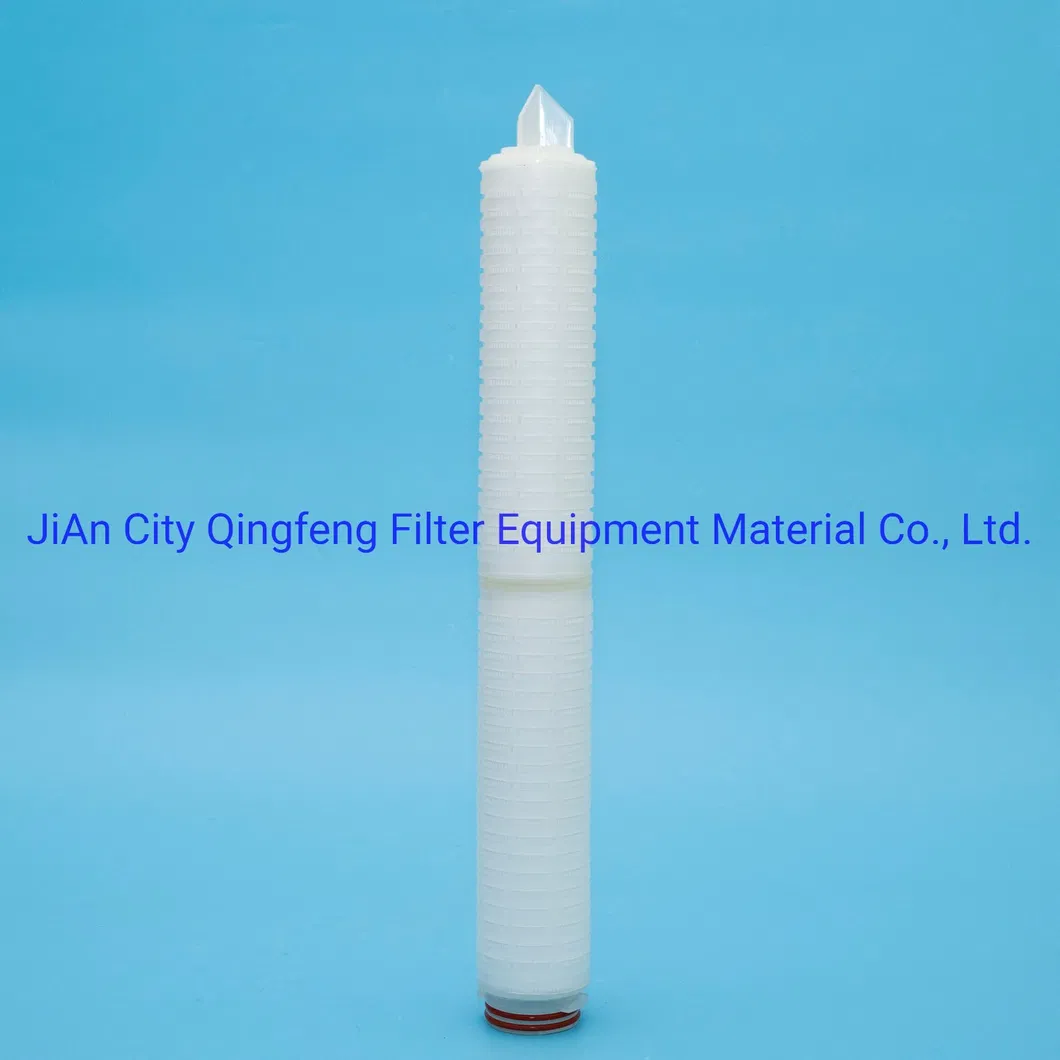

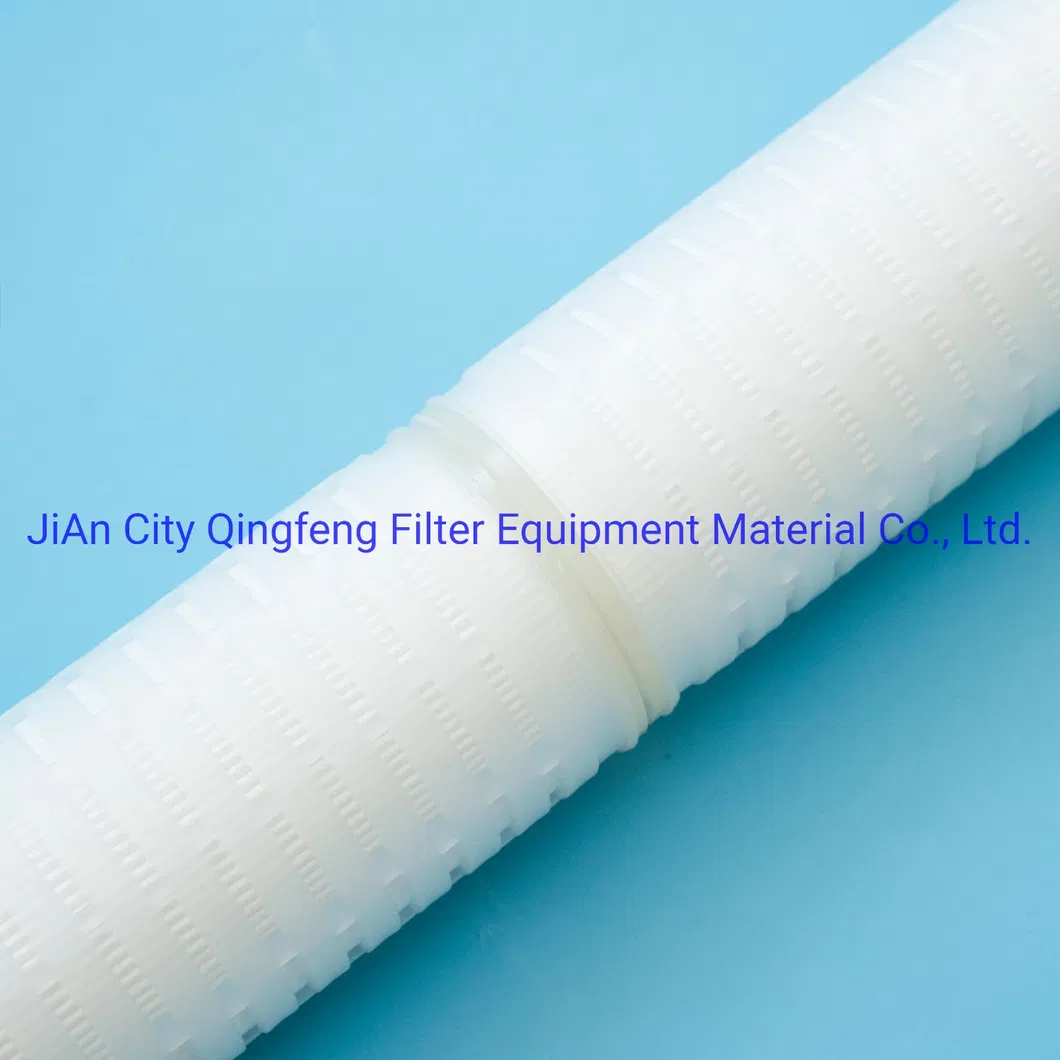

0.22 Micron PTFE Membrane Pleated Filter Cartridge for High Purity Gas

0.22 Micron PTFE Membrane Pleated Filter Cartridge for High Purity Gas

Customization:	Available
Material:	PTFE Memnbrane and PP
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PTFE Filter Cartridge

Type

Pore Size:0.1/0.2/0.45/1.0um

Filter Connector

DOE, Soe(Code2/3/7/8)

Filtration Grade

HEPA Filter

Certification

SGS and ISO9001

pH Value

1--14

Types

Hydrophilc & Hydrophobic

Pore Size

0.1/0.2/0.45/1.0/3.0/5.0um

Thickness

150-250um

Color

White

Length

5/10/20/30/40inch

Transport Package

Carton Packing

Specification

Length: 5inch, 10inch, 20inch, 30inch, 40inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

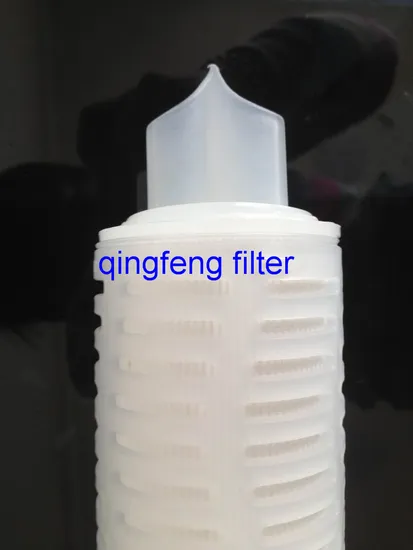

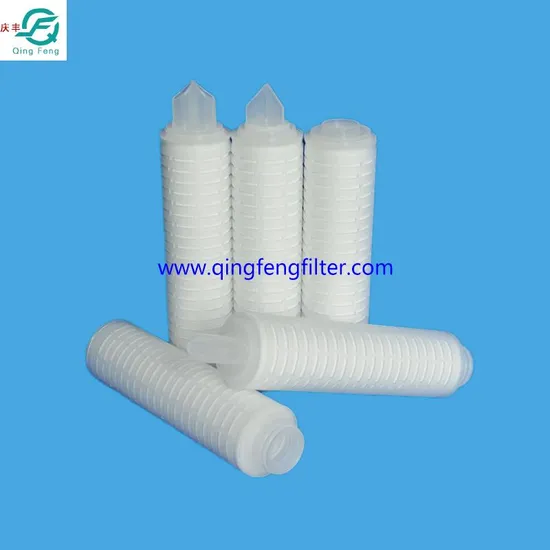

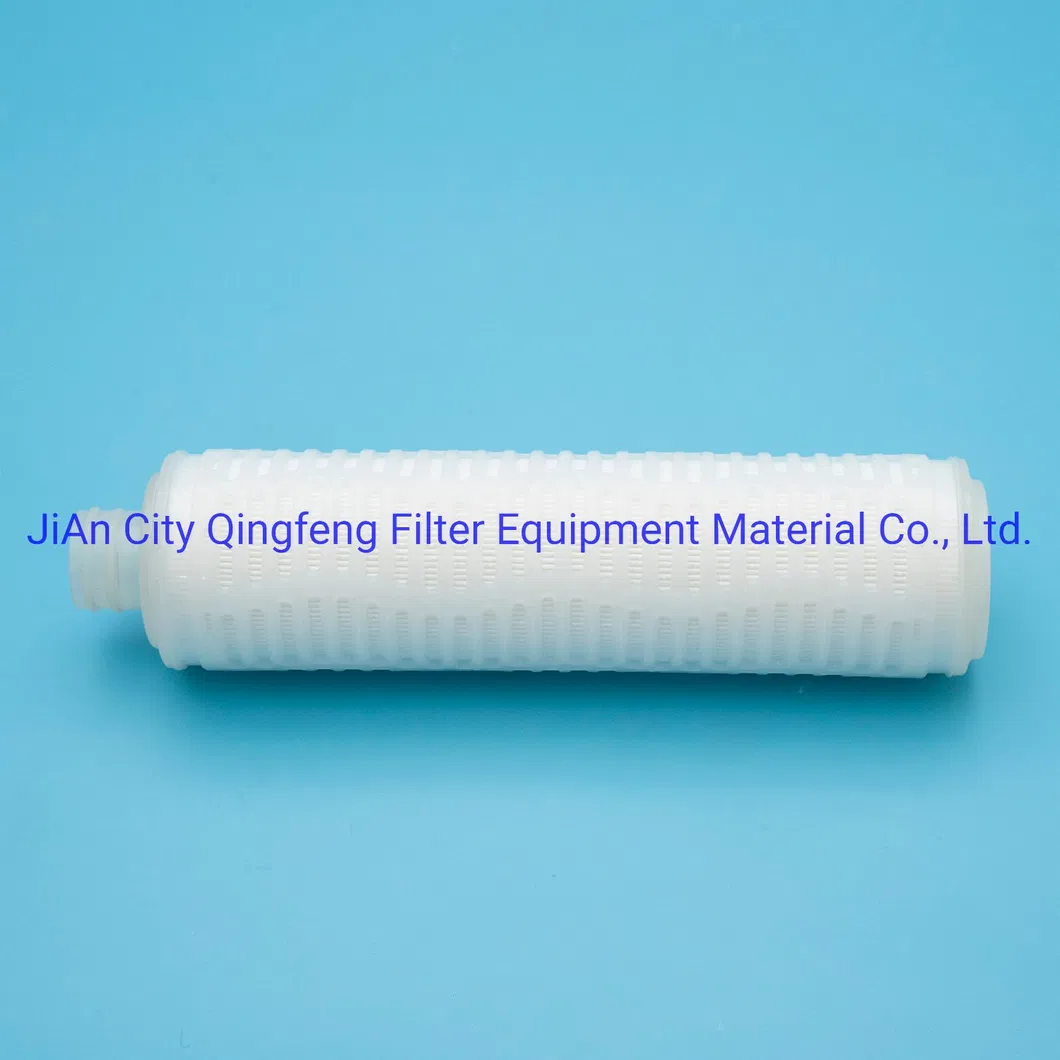

PTFE Filter Cartridge
Introduction:

The filtration media of PTFE micropore filter catridge is hydrophobicity PTFE membrane, it is constructed of two materials PTEE and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: strong hydrophobicity, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressure. All products have passed 100% integrity accord with FDA and chinese Pharmacopoeia.

Specifications:

Filter medium: hydrophobicity PTFE membrane
Support layer: PP
Filter cage: PP
Pore size: 0.1, 0.2, 0.45, 1 (um)
Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: >=0.64square meter/10"
Diameter: 68mm
Working temperature: ≤65ºC
Max. operating temperature: 90ºC(P≤0.1Mpa)
Max. bear temperature: 140ºC, 0.27Mpa
Max. positive pressure: 0.42Mpa (23ºC)
PH value: 1--14
Sterilizing: temperature: 121ºC 30min
Others: special requirement of diameter and end caps can be customized

Typical Applications:
Chemical industry; Gas filtration etc.

Materials of Construction
Membrane	PTFE
Support and Drainage	PP
Core, Cage	PP

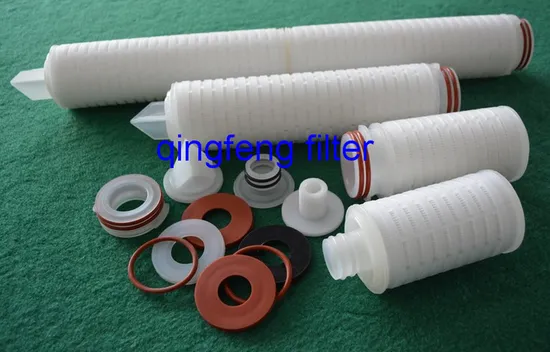

End Caps	DOE, SOE (code2, code3, code7, code8)
O-rings/Gasket	Silicone/EPDM/Viton/TEV
Sealing Technology	Thermal Bonding, No Adhesives
Dimensions
Diameter	Φ68
Length	5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, ft 2
≥ 6.4 per 10-inch element
Pore Size, μm
0.01 (for gas),0.1, 0.2, 0.45, 1 (um)
Maximum Differential Pressure
Forward: 4.2 bar @ 23 C
Nitrogen Flow Rate & Pressure Drop , per 10-inch cartridge
≥ 60 m 3 /h at 0.1 bar with 0 bar outlet pressure
≥ 120 m 3 /h at 0.1 bar with 2 bar outlet pressure
Integrity Test - at 23 C
Bubble point	≥ 1100 mbar with 60/40% IPA/water
HydroCorr (water intrusion test)	≤ 0.75mL/min per 10-inch cartridge with water at 2620mbar

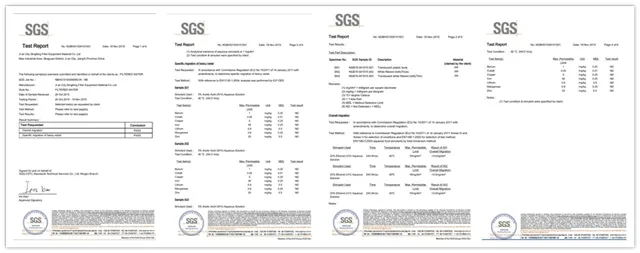

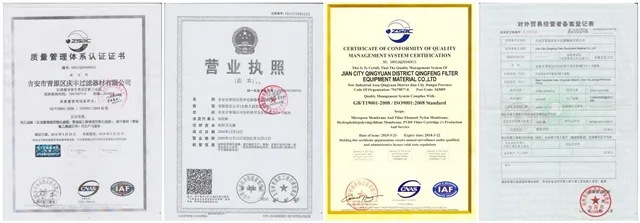

Certificates:
0.22 Micron PTFE Membrane Pleated Filter Cartridge for High Purity Gas

Exhibition
0.22 Micron PTFE Membrane Pleated Filter Cartridge for High Purity Gas

Shipping
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)

elivery time:

1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.
2.If this kind of products is not in stock, the products will take about 7-15days to produce.

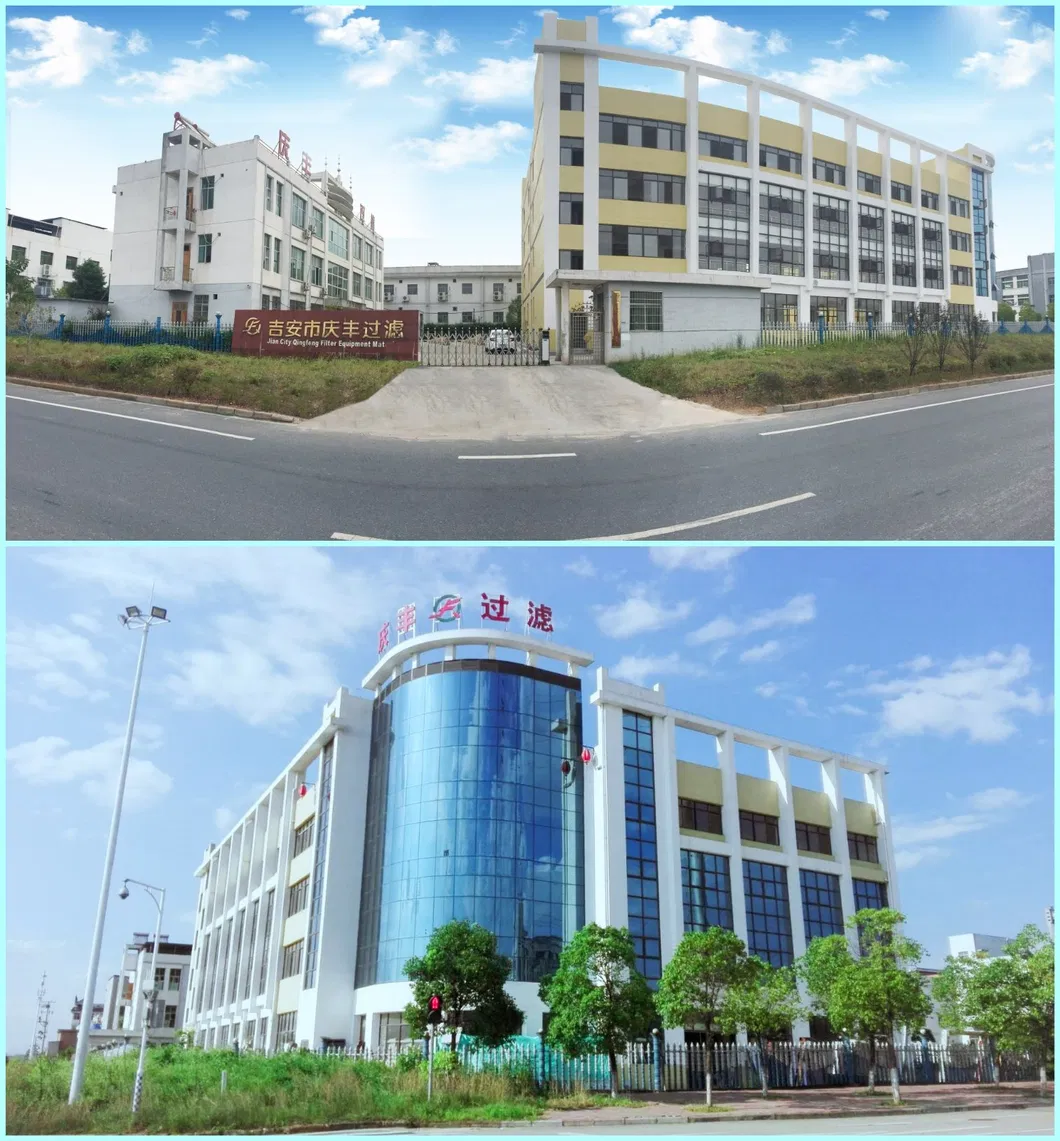

About us:
JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
