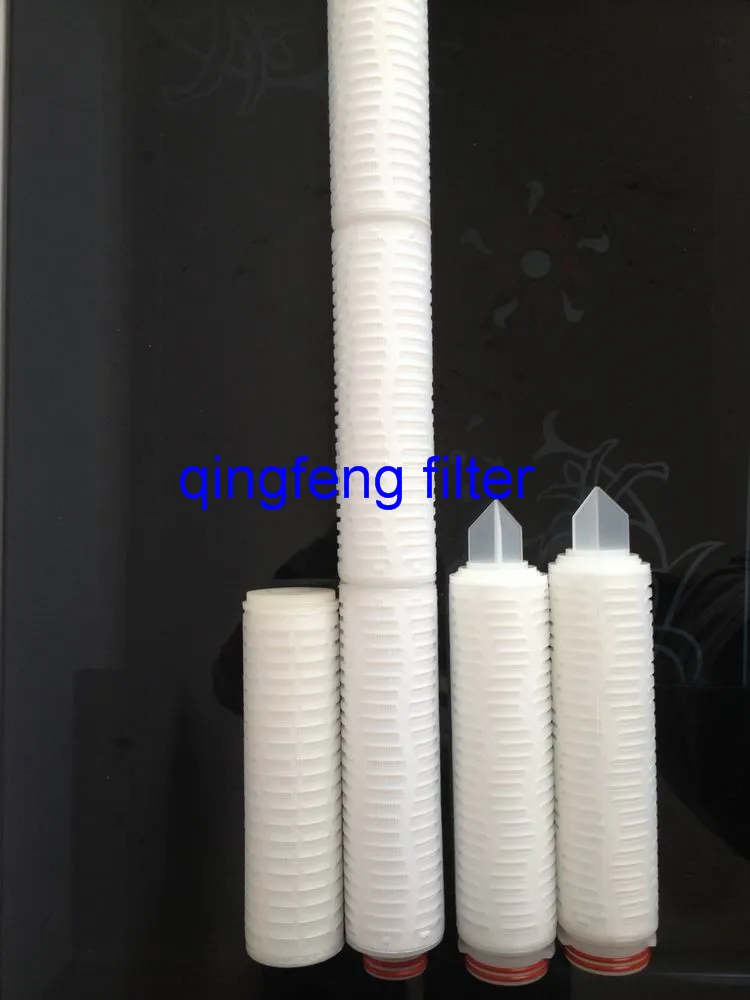

0.22um Autoclavable Pes Membrane Filter Cartridge for Beer Vodka Final Filtration

0.22um Autoclavable Pes Membrane Filter Cartridge for Beer Vodka Final Filtration

Customization:	Available
Material:	Pes Membrane and PP
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PES filter cartridge

Type

Pore Size: 0.1um, 0.2um, 0.45um, 0.65um, 1.0um

Filter Connector

DOE, Soe Code2 Code3 Code7 Code8

Filtration Grade

HEPA Filter

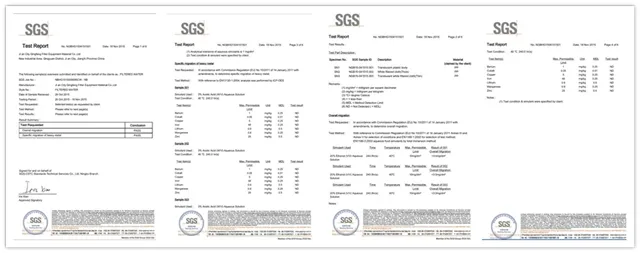

Certification

SGS and ISO9001

pH

2-13

Transport Package

Carton Packing

Specification

Length: 5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

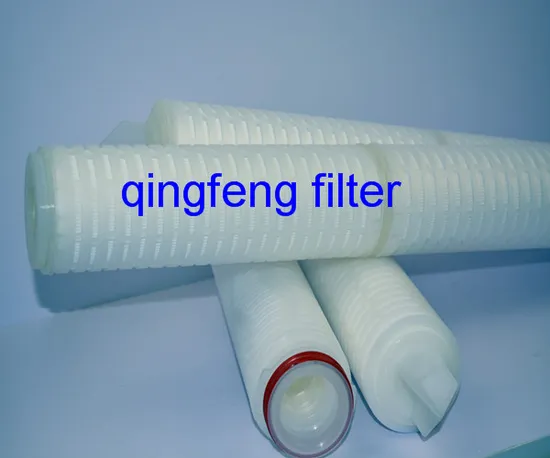

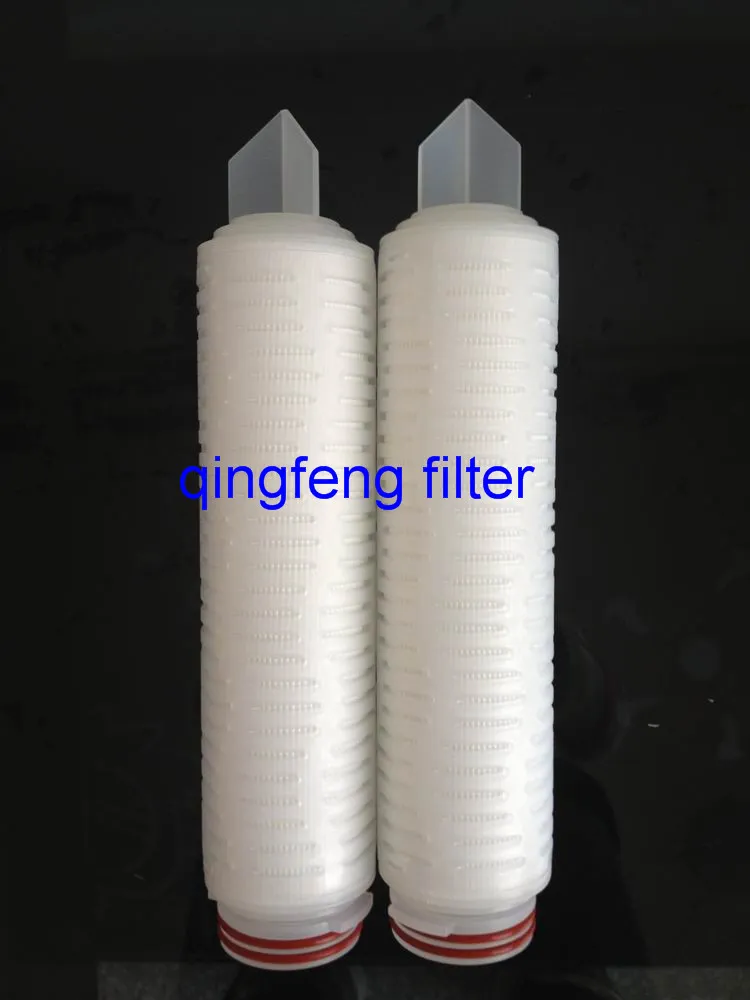

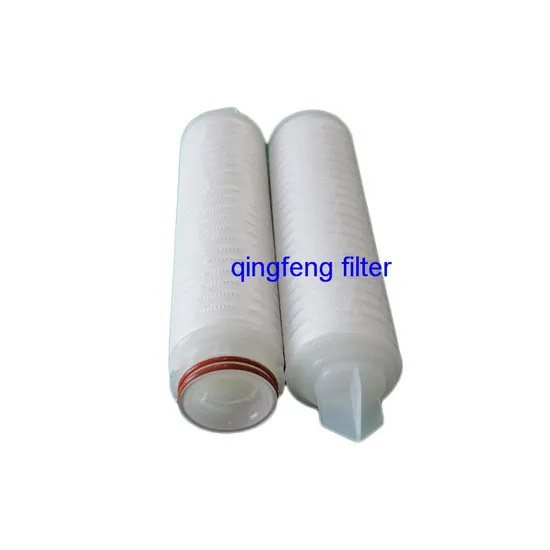

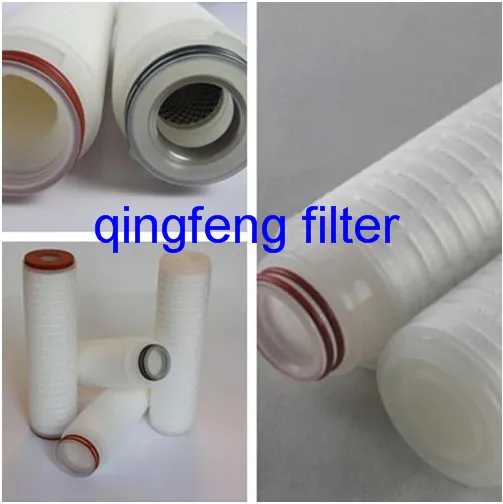

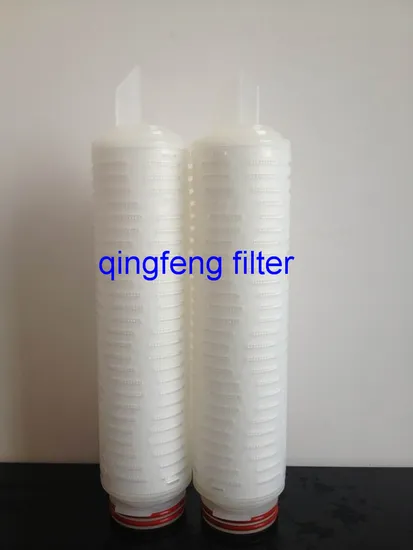

PES Filter Cartridge
Introduction:

The filtration media of PES micropore filter cartridge is PES membrane. High porosity(about ≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: unique hydrophily, no including surfactant and lubricant, so it provides wide filtration pore size and high folow rate, its wide range of PH values and lower adsorbance of protein and valuable biologicals, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressures. All products have passed 100% integrity testing.

Specification:

Filter medium: hydrophily PES membrane
Support layer: PP
Filter cage: PP
Pore size: 0.1, 0.2, 0.45, 0.65, 1 (um)
Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: ≥0.57square meter/10inch
Diameter: 68mm
Working temperature: ≤60ºC
Max. operating temperature:90ºC, 0.01Mpa
Max. bear temperature: 140ºC, 0.28Mpa
Max. positive pressure: 0.42Mpa (23ºC)
PH value: 2--13
Sterilizing temperature: 121ºC 30min
Others: special requirement of diameter and end caps can be customized
Seloct filter cartridge, refer to P10 (Interface/End caps)

Typical Applications:

Pharmacy industry; Food industry; Electronic industry etc.

Materials of Construction
Filter Media	Highly Asymmetric, Hydrophilic PES
Core, Cage	PP
End Caps	PP
O-rings/Gasket	Silicone/EPDM/Viton
Sealing technology	Thermal Bonding, No Adhesives
Dimensions
Diameter	Φ 68 (2.67 in)
Length(in)	5, 10, 20, 30, 40
Filtration Area
≥ 5.7 ft2/10 in (≥ 0.53 m2/250 mm)
Pore Size, μm
0.1, 0.22, 0.45, 0.65,1.0
Maximum Forward Differential Pressure
4.2 bar@23ºC
Integrity Test- water bubble point at 23 ºC
0.22μm:≥3100mbar (44.96psi)
0.45μm:≥1800mbar (26.1psi)
Sanitization
May be hot water sanitized for 30 cycles using purified water at 85ºC(185ºF) for 30 minutes.

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

Contact us:

Ji'an Qingyuan Qingfeng Filter Equipment Co., Ltd
Tel:	0796-8106818
Address:	New Industrial Area,Qingyuan District, Jian City, Jiangxi Province,China

Mobile:	13979608348
Fax:	0796-8106818

FAQ:
1. Package Details: Plastic bags inside,carton outer.

2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.

3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.

4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.

5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.
