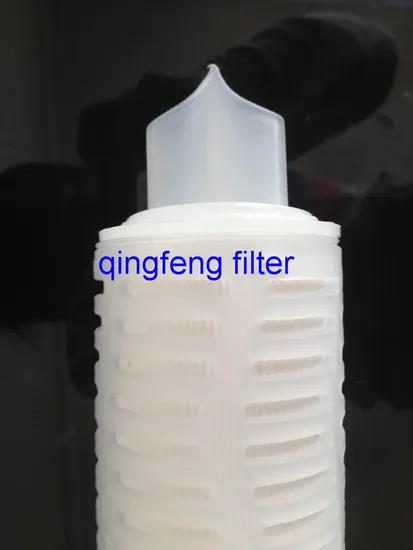

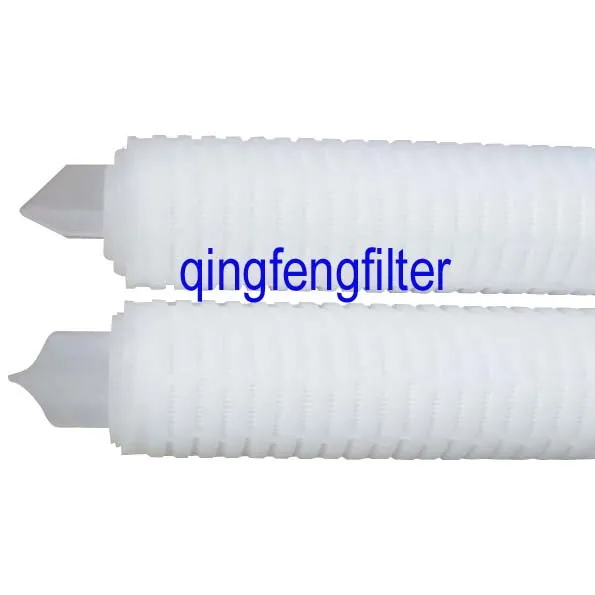

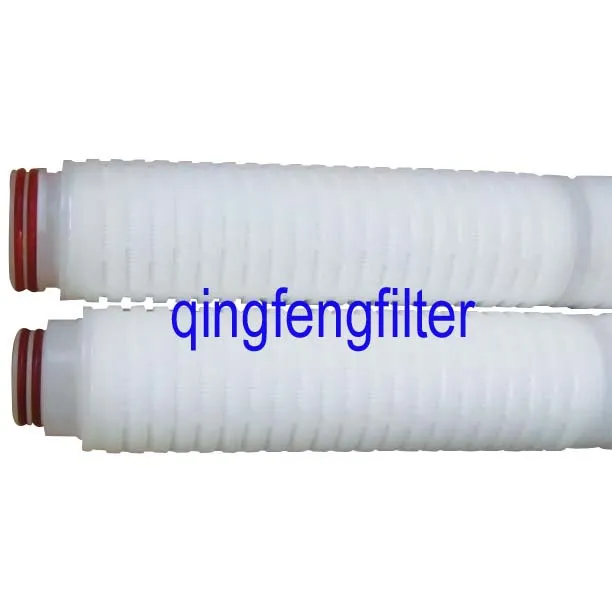

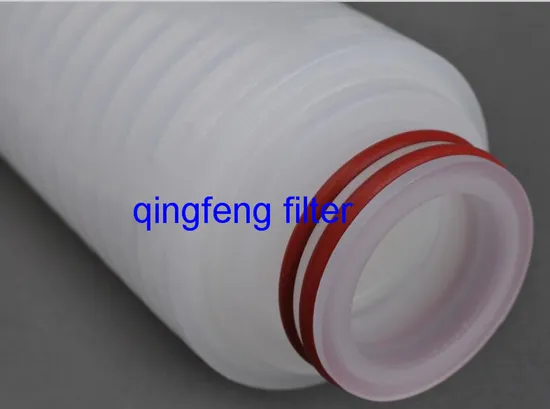

Nylon Pleated Filter Cartridge Introduction: The filtration media of nylon micropore filter catridge is hydrophily nylon membrane. It is constructed of two materials nylon and Ppto meet high standards of chemical and pharmaceutical industry. The benefit summary: stable hydrophily, strong flexibility, high retention rate, super chemical tolerance, especially suitable for filtration organic solvent. Withstand shocks and back pressures. All products have passed 100% integrity testing.
Typical Applications: Electronic industry; Medical industry; Chemical industry; Food industry Specification: | Filter medium | Nylon Filter membrane |
| Support layer | Polypropylene (PP) |
| Core & Cage | Polypropylene (PP) |
| End caps | Polypropylene (PP) |

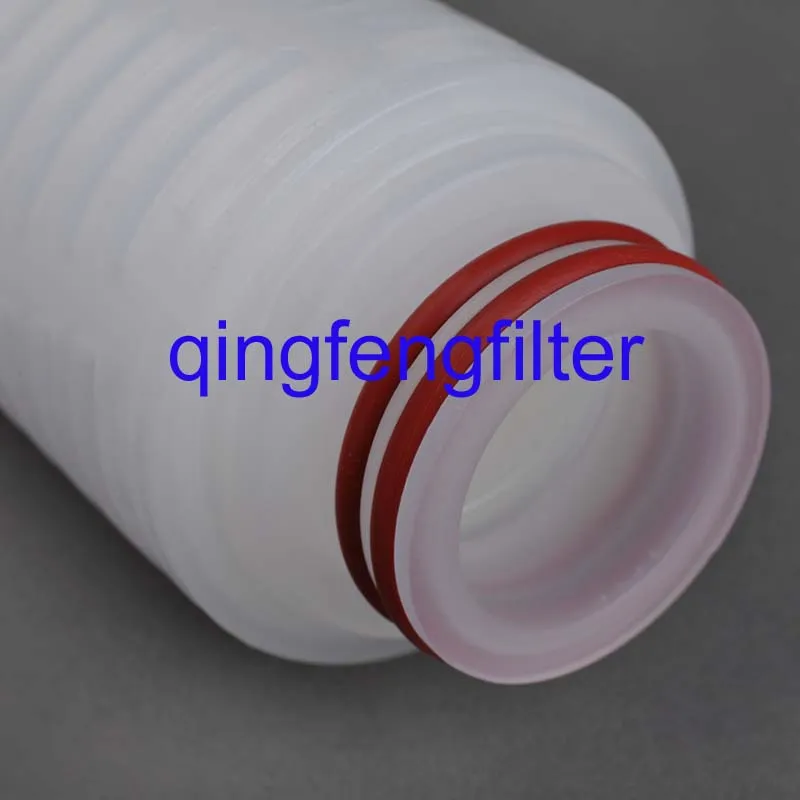

| O-rings/Gasket | Silicone/EPDM/Viton |

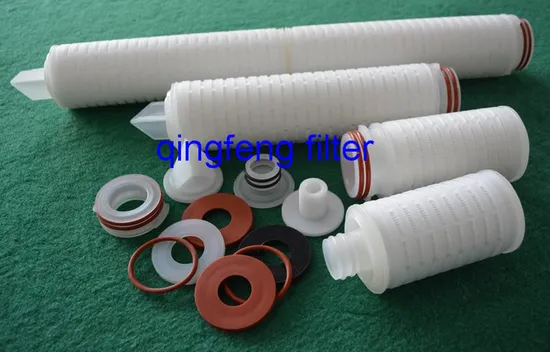

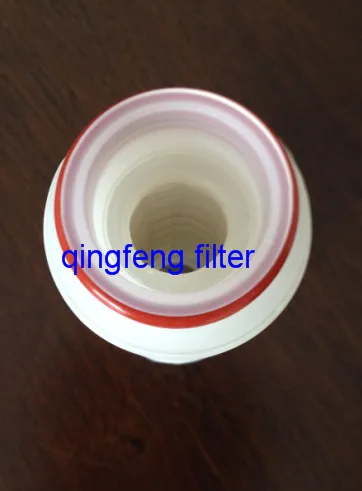

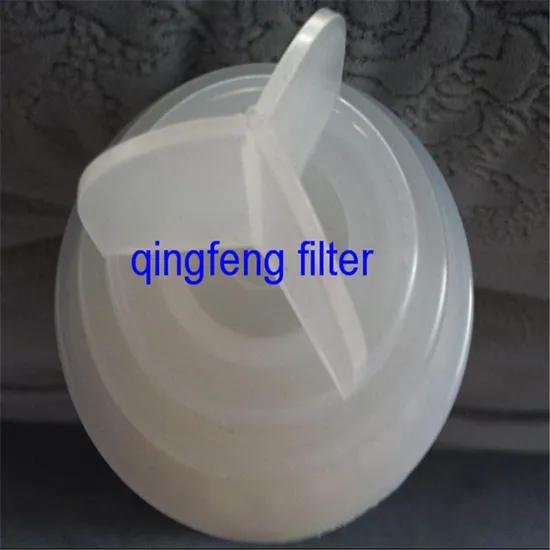

| End connection | DOE,222,SOE,Code-7(226/Fin) |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Removal Ratings(μm) | 0.1, 0.2, 0.45, 0.65,1.0(um) |
| Length | 5", 10", 20". 30", 40" |
| Outer Diameter | 68mm |
| Effective filtration area: | 0.6m2/10" |
| Max. operating temperature | 60ºC, 0.2Mpa |
| Max. positive pressure | 0.21Mpa(25ºC) |
| Sterilizing temperature | Autoclaving 121ºC/30min |
| Others: special requirement of diameter and end caps can be customized |
| Integrity test (minimum bubble point)(25ºC;95%isopropanol) |
| 0.20um >=2800 mbar |
| 0.45um >=2000 mbar |
FAQ: 1. Package Details: Plastic bags inside,carton outer.
2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.
3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.
4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.
5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.
Shipping: Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

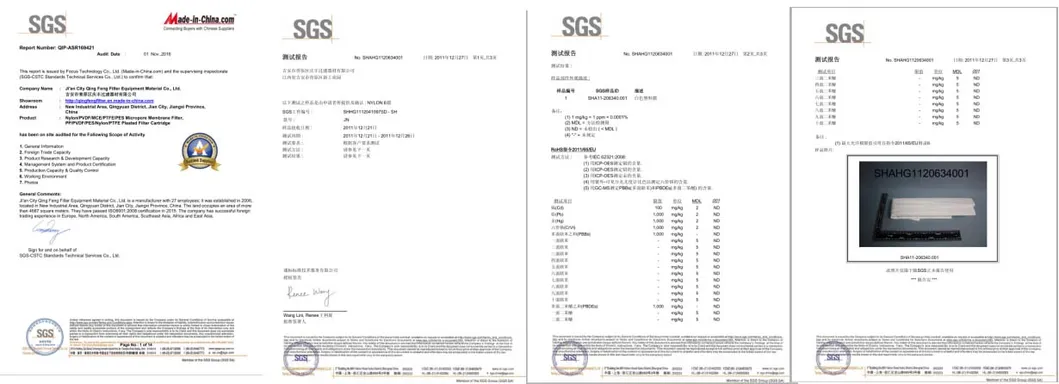

Certificates:
