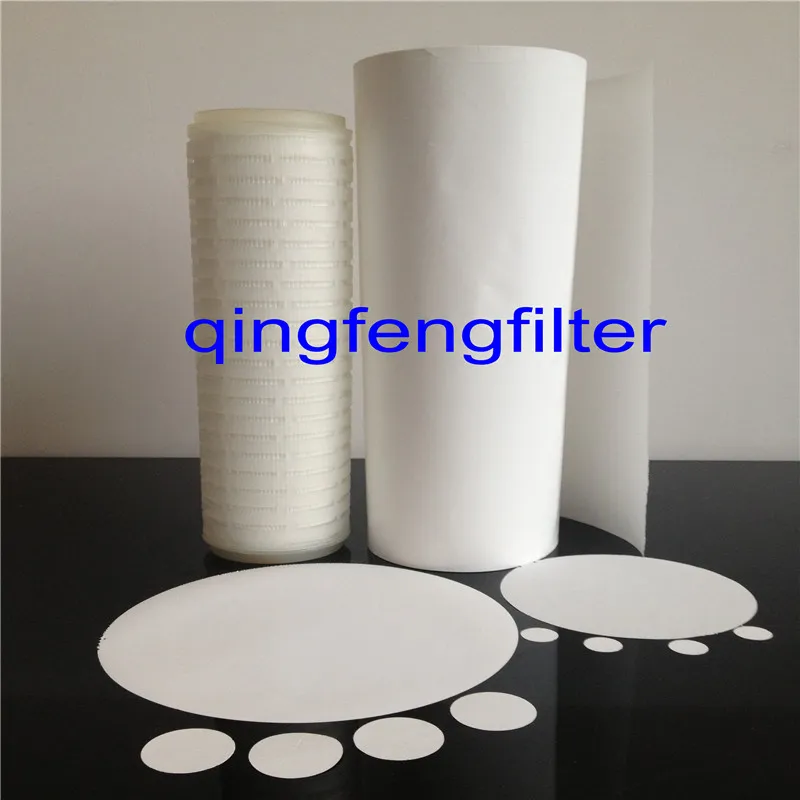

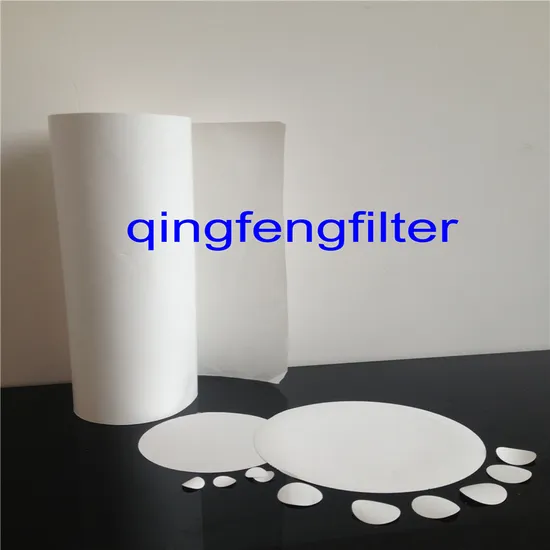

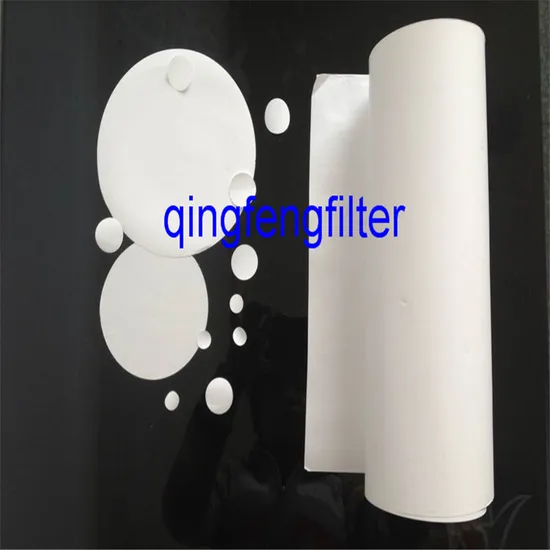

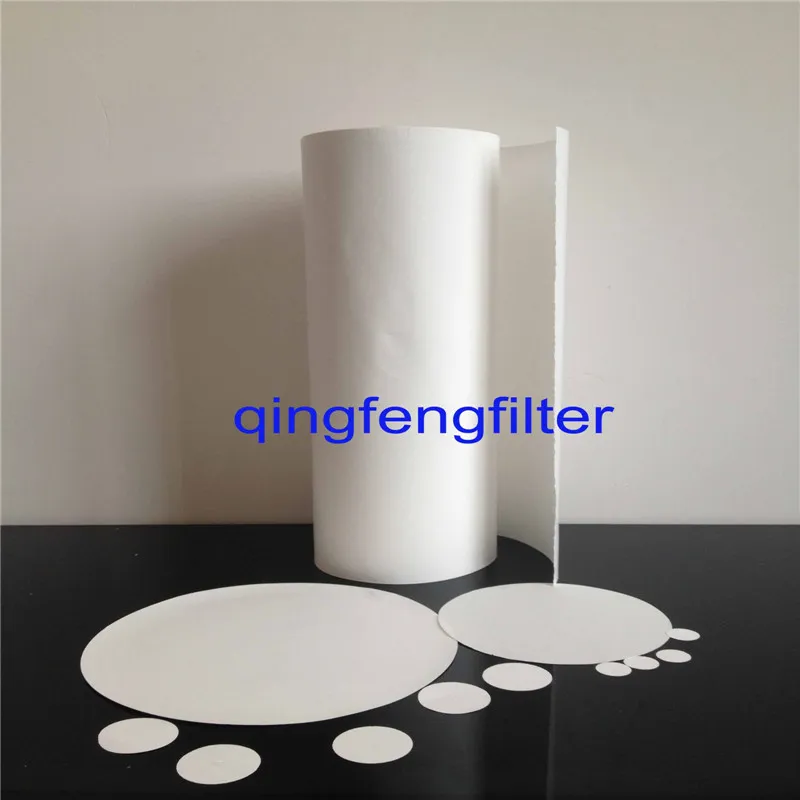

0.22 Micron PVDF Filter Membrane for Purification Filtration of Solvents and Chemical Materials
Main Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc
2.Superior temperature tolerance and anti-pollution.
3.Two types: Hydrophilic and Hydrophobic
Applications:
1.Effective filtration of organic solvent and additive
2.Filtration of solvent and chemical materials
3.Clarification Filtration of air and gas filter
4.Filtration of high-temperature liquid
5.Sterile Filtration of gas and steam
6.Aseptic treatment for reagent
7.Ultimate filtration of ink
Specification: 1.Pore size (um): 0.10,0.22, 0.45, 1.0, 3.0,5.0um
2.Configuration size (um)

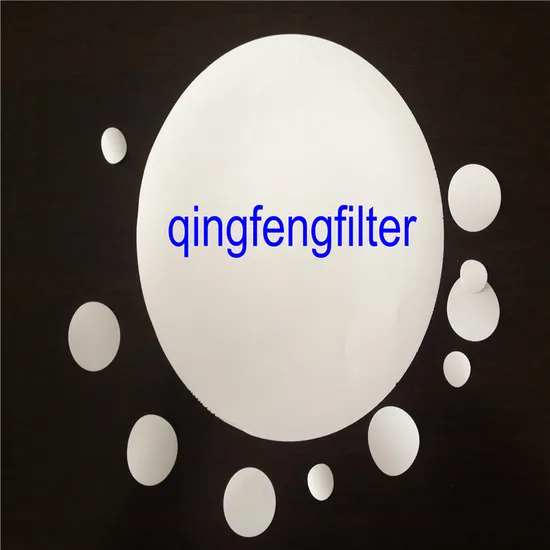

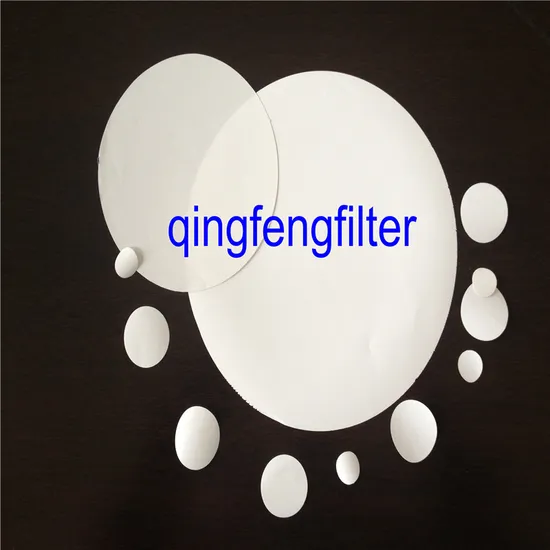

Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built

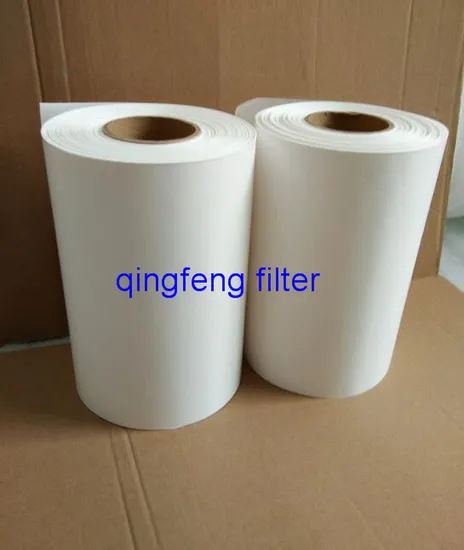

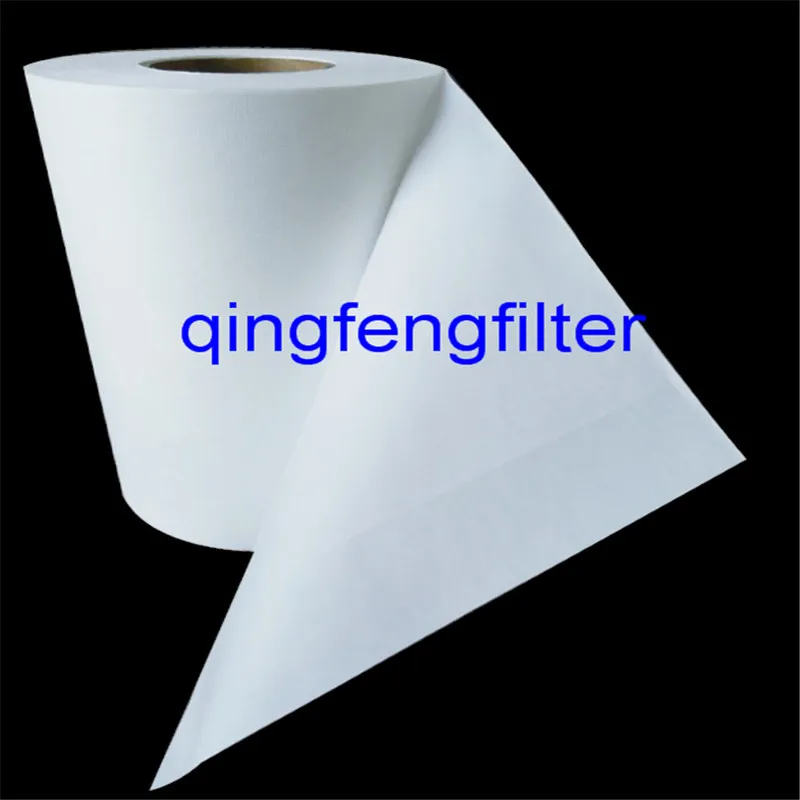

Rolling Film: custom-built,Width : 280,315,317,320,326,420mm
| Membrane | Hydrophobic Polyvinylidene (PVDF) |
| Color | White |
| Thickness, μm | 90~100 |
| Width | 280,315,317,320,326,420mm |
| Pore Size, μm | 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 |
| Absorption, 0.22 μm | 8 μg/cm 2 γ-globulin |
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85 ºC |
| Flow Rate |
| 0.22 μm | ≥ 3 mL/min/cm 2 at 1 bar |
| 0.45 μm | ≥ 7 mL/min/cm 2 at 1 bar |
| Particle Removal Efficiency (%) |
| > 98 |

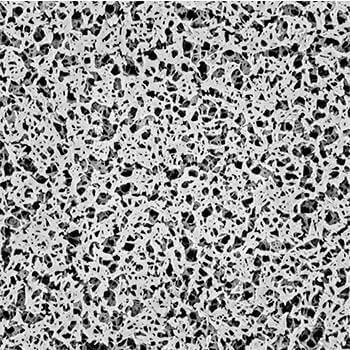

Microscope picture of PVDF membrane
Certifications:
Exhibition:
Shipping&Delivery
Delivery time: 1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.
Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China
in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
