0.22um 0.45 Micron Hydrophilic Pes Filter Membrane for Pharmaceutical and Biochemistry

0.22um 0.45 Micron Hydrophilic Pes Filter Membrane for Pharmaceutical and Biochemistry

Customization:	Available
Membrane Type:	Pes Filter Membrane
Type:	MF

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PES Filter Membrane

Color

White

Material

Polyethersulfone

Pore Size

0.1um, 0.2um, 0.45um, 0.65um, 0.8um, 1.2um

Wettability

Hydrophilic

Shape

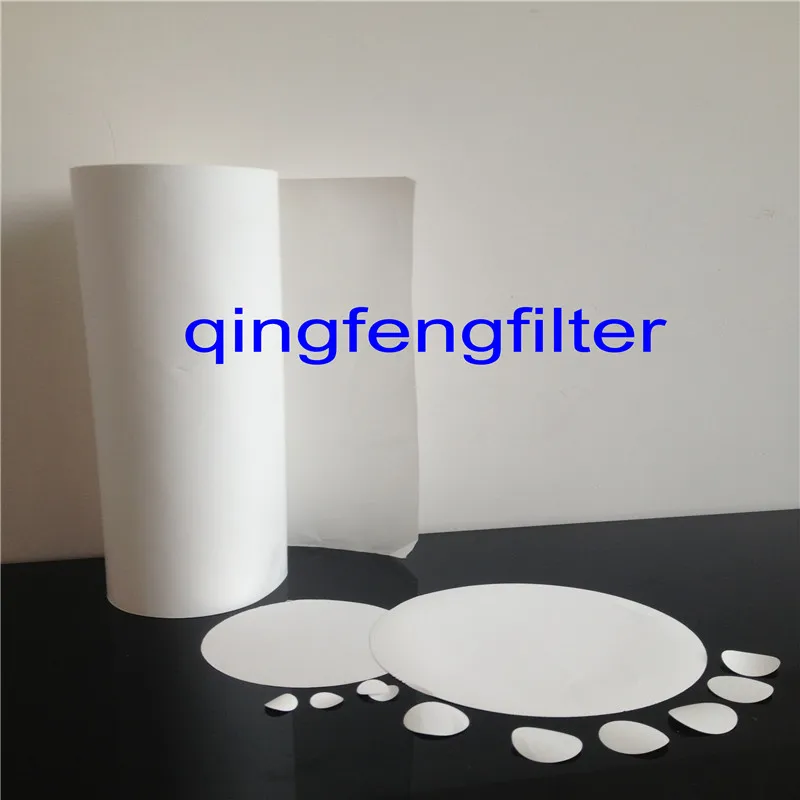

in Disc/Roll/Sheet

Width for Roll Membrane

254/320/420mm or Customized

Disc Membrane Diameter

Dia 13/25/35/47/50/60/77/90/100/150/200/300mm

Applied Industry

Pharmaceutical, Chemical, Electronics and Food

Certifications

ISO9001 & SGS

Transport Package

Package + Carton

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999

Production Capacity

100000PCS/Year

Product Description

Product Description:

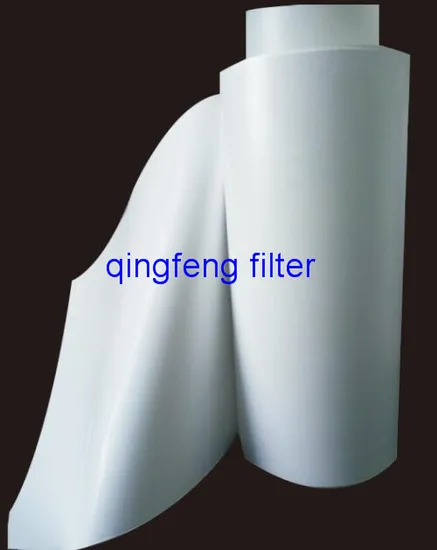

PES (Polyethersulfone) Filter Membrane:

Main Characteristics:

1.High flow rate, low solubility, good intensity, is designed for biochemical and inspection, pharmaceutical and aseptic filtration device

2.High flow filtration volume

3.No other wetting agent (hydrophilic membrane)

4.High strength

5.Low protein adsorption and high drug compatibility

6.Less membrane consumed under the same medium filtration

Application:

1.Clear filtration and aseptic and particle filtration

2.All kinds of solvent and liquid filtration

3.Photoresist filtration in the electronics industry

4.Ultimate filtration of chemical

Specifications:

Membrane	PES (Polyethersulfone) Filter Membrane
Thickness	110μm
Working Temperature	90ºC
Available Pore Size (μm)	0.1um, 0.2um, 0.45um, 0.65um, 0.8um, 1.2um
Diameter For Membrane Filter Disc	Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300
Minimum Bubble Point:
0.22μm	0.43±0.54Mpa
0.45μm	0.30±0.25Mpa
0.65μm	0.19±0.42Mpa
Standard Water Flow (ml/m2.min):
0.22μm	≥35
0.45μm	≥60
0.65μm	≥90
Sterilization Methods:
Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min)

ABOUT US:

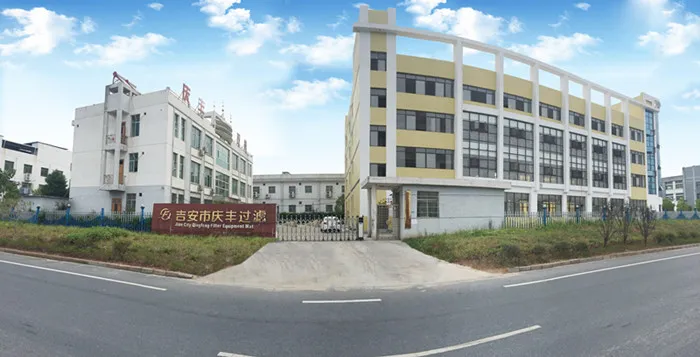

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
