https://qingfengfilter.en.made-in-china.com/product-list-1.html Nylon Membrane (N6/N66)
Features and Benefits
1.With imported non-textile supporting bolster, good resilience, torn-u tolerance and durability
2.Intense filtration and high filtration quality
3.Naturally hydrophilic. No need to use humectant, which prevents the filtrate from being contaminated.
4.Applies to water solvent and most organic solvent, especially to the filtration of alkalinity and alcohol solvent.
5.Nylon66 Membrane has higher mechanical strength, higher temperature resistance, better low temperature resistance. Application:
1.Purification and filtration of liquid and removal of particles.
2.Filtration of various solvent and medication solvent.
3.Filtration of corrosion- resistance
4.Ultimate filtration of ink
Sterilization: Non-Sterilization packaging; High temperature and high pressure sterilization 121 ° C for 30 minutes, Specifications:
1.Pore size(um): 0.1, 0.22, 0.45, 0.65, 0.8, 1.0, 3.0, 5.0, 10.0

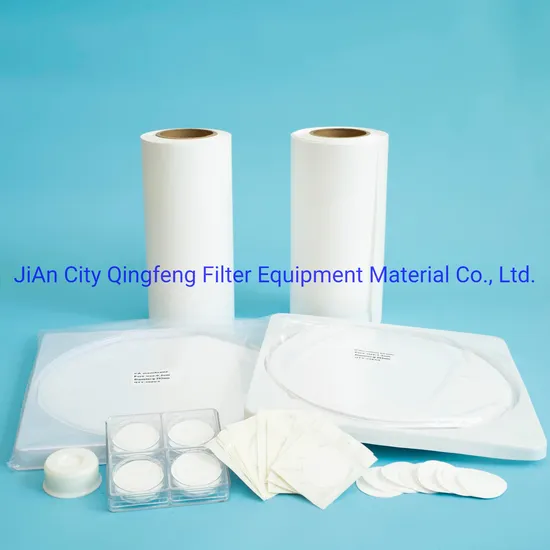

2.Configuration size (mm):

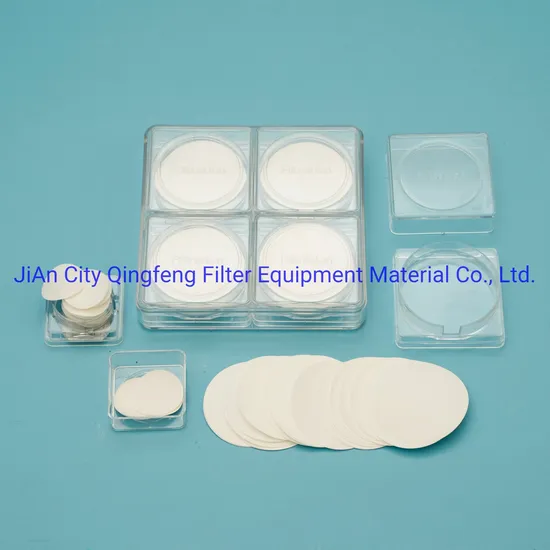

Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built, maximum size 400*400mm/315mm*640mm.

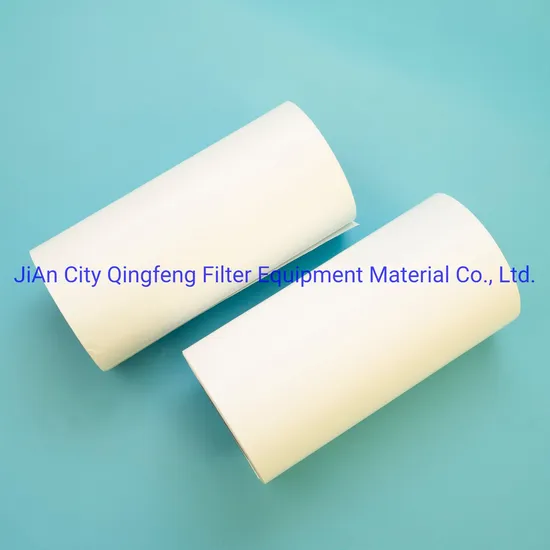

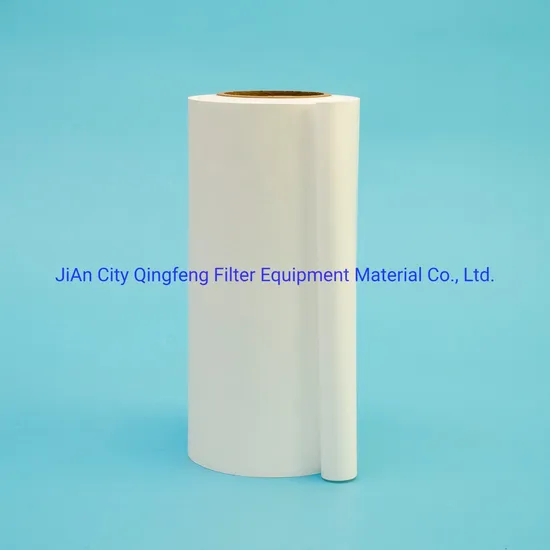

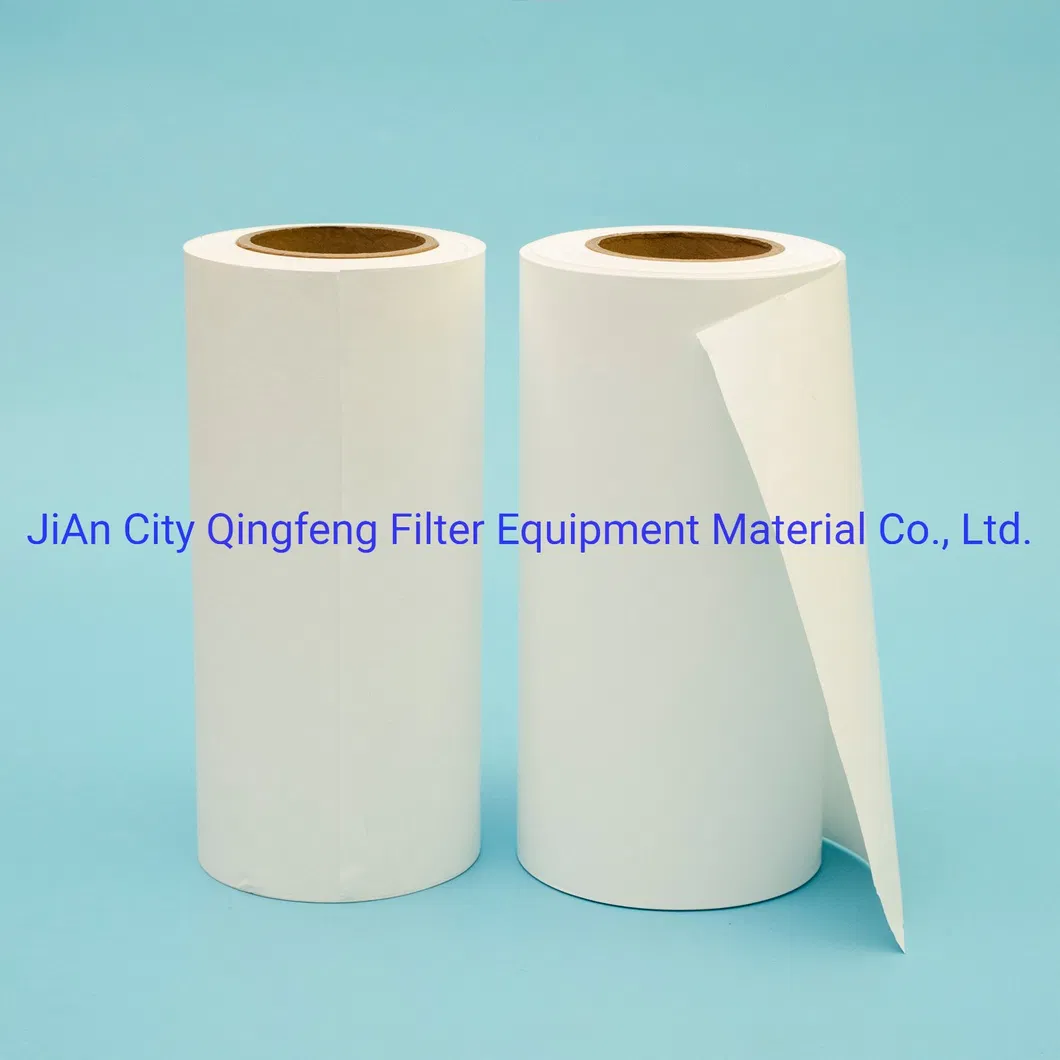

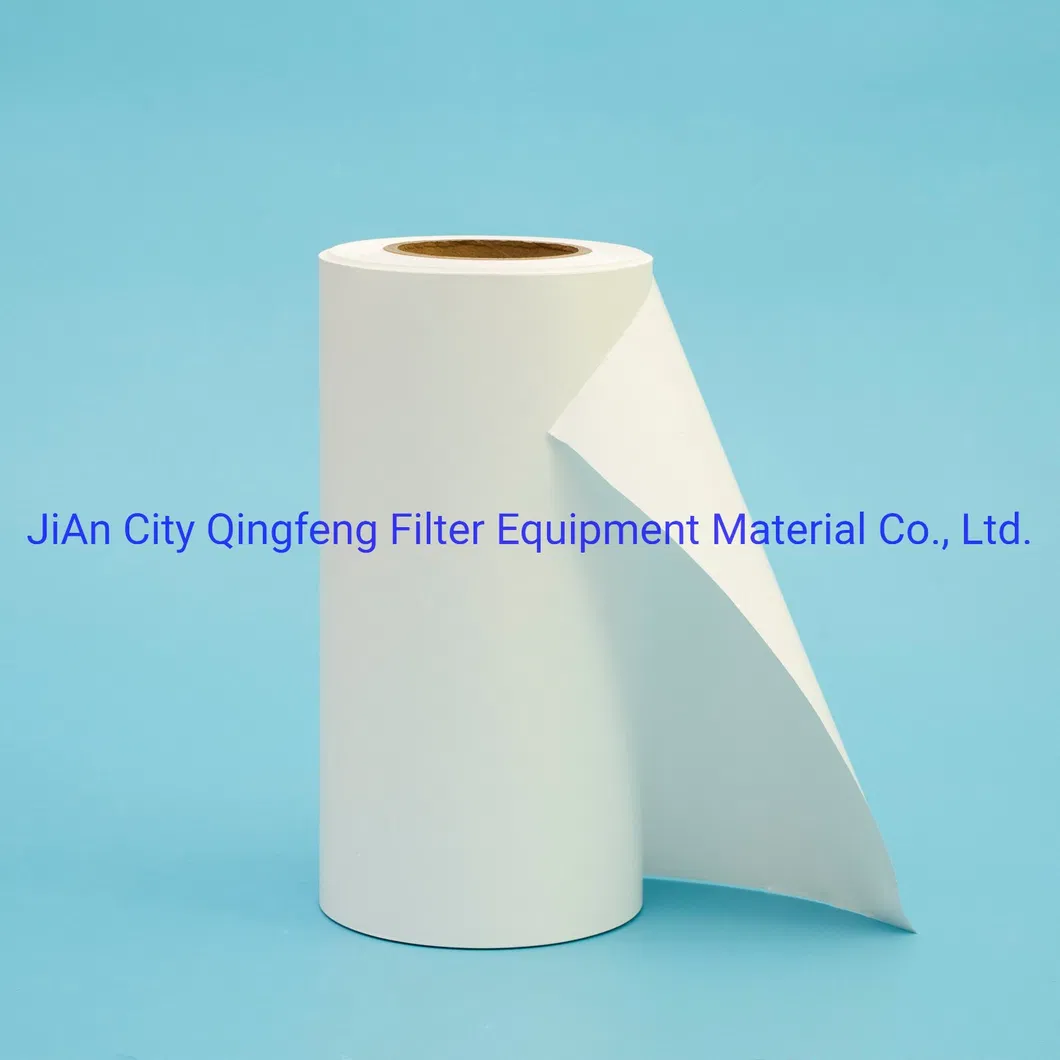

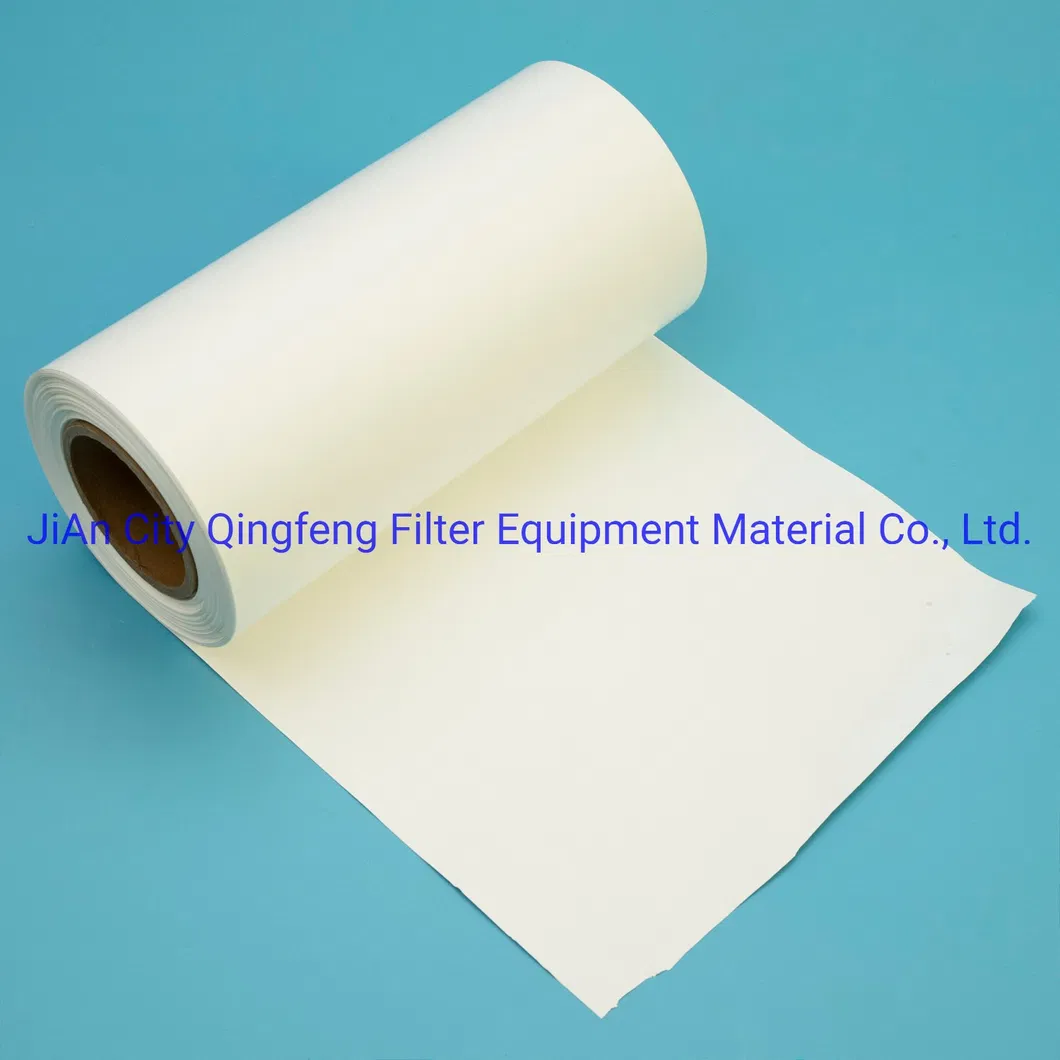

Rolling film: length for your choice,Width : 280/305/317/320/326/420mm | Name of filter membrane | material | pore size(um) | Bubble point(Mpa) | Water flow rate(ml/min.cm2) | Thickness(um) | PH value | sterilization | Normal operating temperature |
| Nylon | N6/N66 | 0.22 | ≥0.3 | ≥7.5 | 90±15 | 6--13 | (121°C/30min) | ≤60ºC(Max operating temperature 80ºC) |
| 0.45 | ≥0.2 | ≥14 |
| 0.65 | ≥0.14 | ≥46 |
| 1.00 | ≥0.08 | ≥81 |
| 3.00 | ≥0.05 | ≥162 |
microscopical picture of Nylon membarne
Certificates:
Exhibition
Warehouse
Shipping
Delivery time: 1.If this kind of products is in stock, the product will be sent for you 1-3 days after payment.

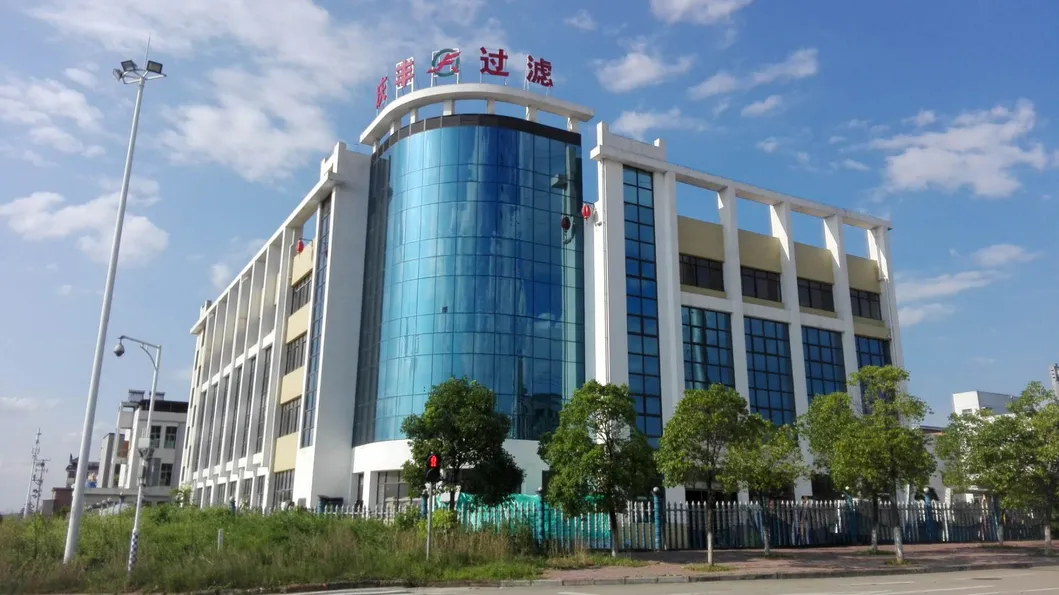

2.If this kind of products is not in stock, the products will take about 7-15days to produce. About us: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and filter elements

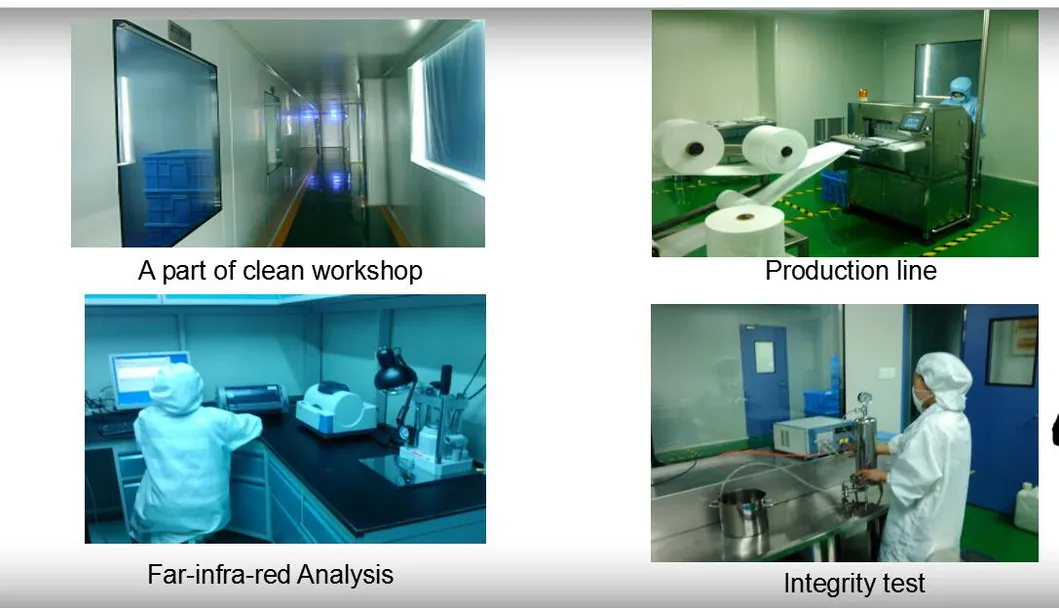

since 2006 year. Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
