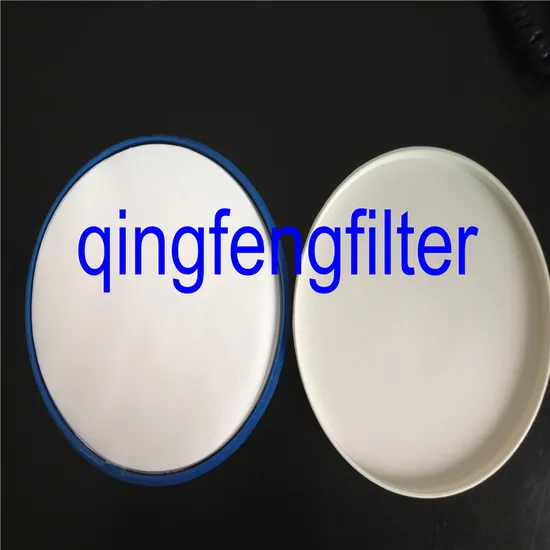

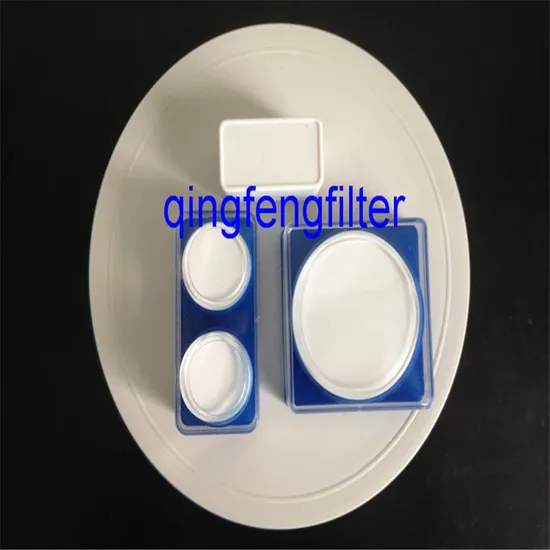

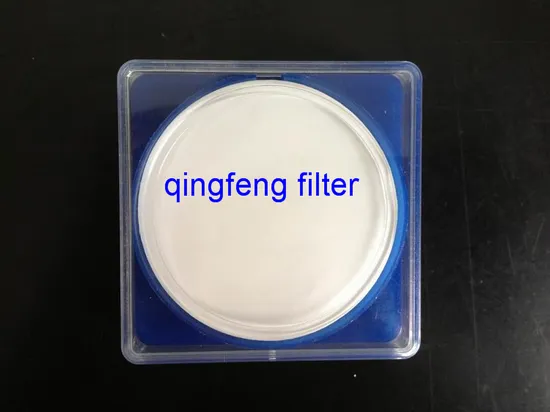

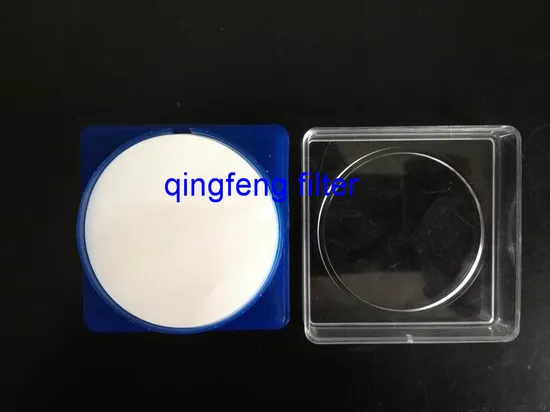

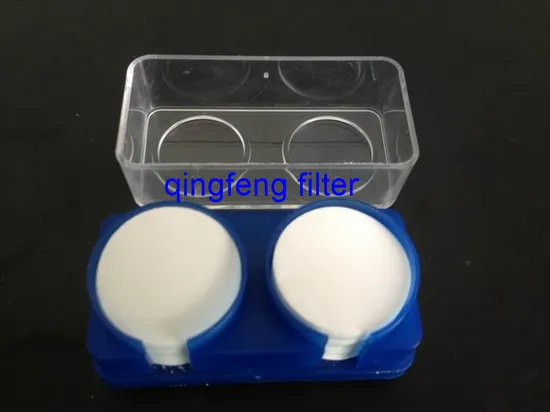

0.45 Micron Nylon (N6&N66) Filter Membrane in Disc for Syringe Filter and Laboratory Use

0.45 Micron Nylon (N6&N66) Filter Membrane in Disc for Syringe Filter and Laboratory Use

Customization:	Available
Membrane Type:	Nylon (N6&N66) Filter Membrane
Type:	MF

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Nylon (N6&N66) Filter Membrane

Material

Polyamide

Pore Size

Dia: 0.15/0.22/0.3/0.45/0.65/0.8/1.2/3.0/5.0/8.0um

Wettability

Hydrophilic

Color

White

Characteristic

Good Toughness

Appearance

Plain and Opaque

Shape

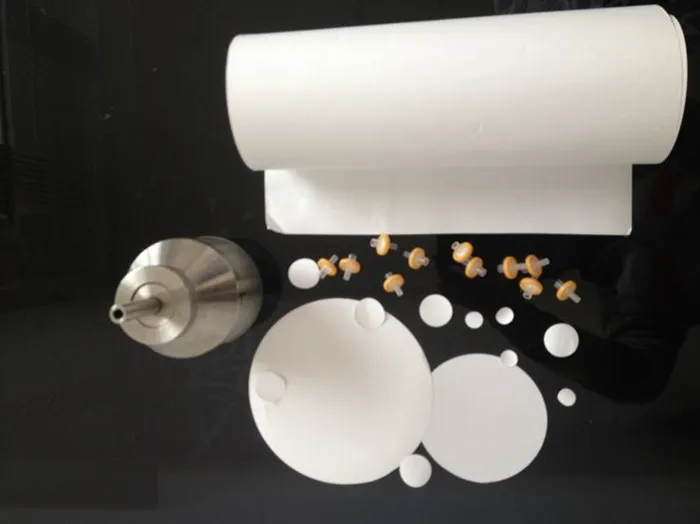

in Disc/Roll/Sheet

Applications

Chemicals, Pharmaceuticals, Food & Beverage

Certification

ISO9001 & SGS

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000PCS/Year

Product Description

Product Description:

Nylon6/66 Membrane
Product Characteristics:

1.With imported non-textile supporting bolster, good resilience, torn-u tolerance and durability

2.Intense filtration and high filtration quality

3.Naturally hydrophilic. No need to use humectant, which prevents the filtrate from being contaminated

4.Applies to water solvent and most organic solvent, especially to the filtration of alkalinity and alcohol solvent

5.Nylon66 Membrane has higher mechanical strength, higher temperature resistance, better low temperature resistance

Application:

1.Purification and filtration of liquid and removal of particles.

2.Filtration of various solvent and medication solvent.

3.Filtration of corrosion- resistance

4.Ultimate filtration of ink

Specifications:

Filter Media	Hydrophilic Nylon Membrance
Color	White
Filter Surface	Plain and Opaque
Thickness	82-110μm
Working Temperature	60ºC
Pore Size (μm)	0.15, 0.22, 0.3, 0.45, 0.65, 0.8, 1.2, 3.0, 5.0, 8.0

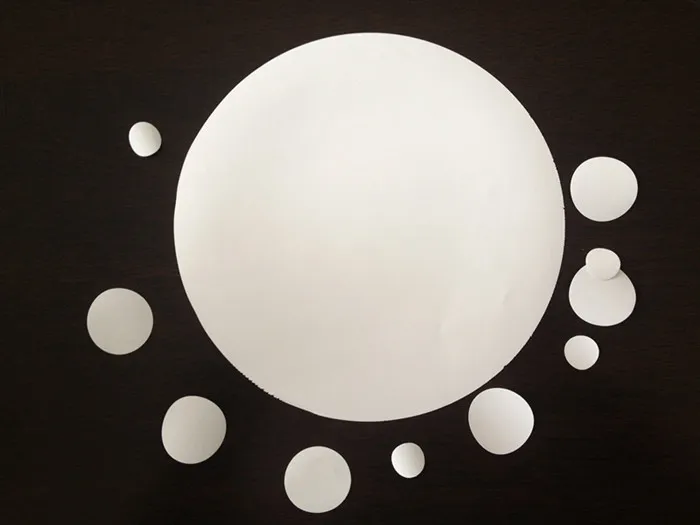

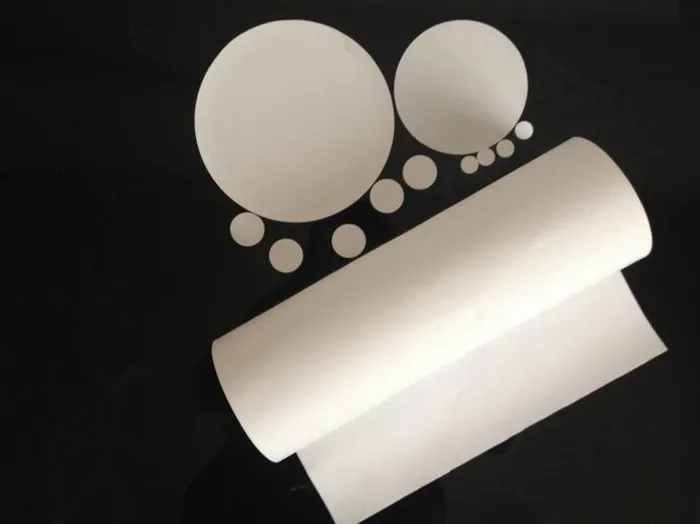

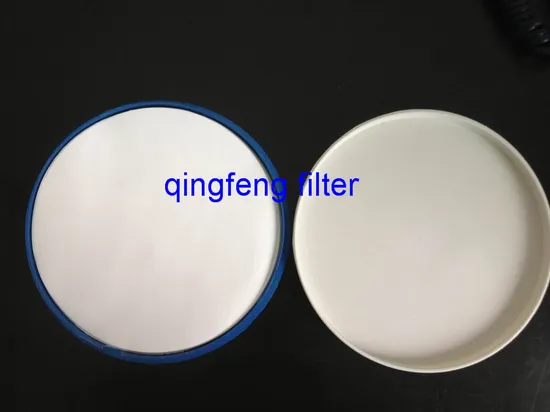

Diameter For Membrane Filter Disc	Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300

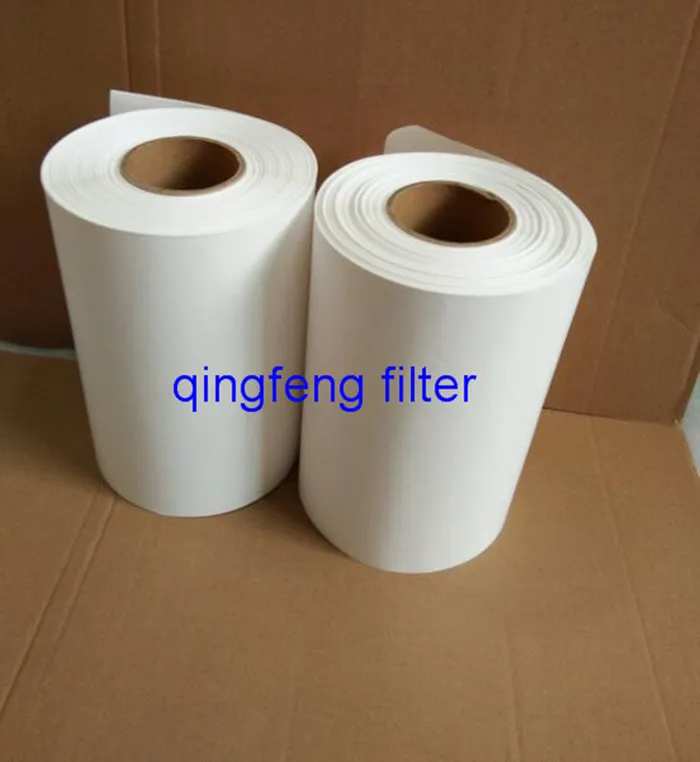

Filter Membrane Roll Width	280mm, 320mm, 420mm
Minimum Bubble Point:
0.22μm	≥0.35Mpa
0.45μm	≥0.21Mpa
0.65μm	≥0.12Mpa
Standard Water Flow(ml/m2.min):
0.22μm	≥8
0.45μm	≥20
0.65μm	≥46
Sterilization Methods:
Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min)

ABOUT US:

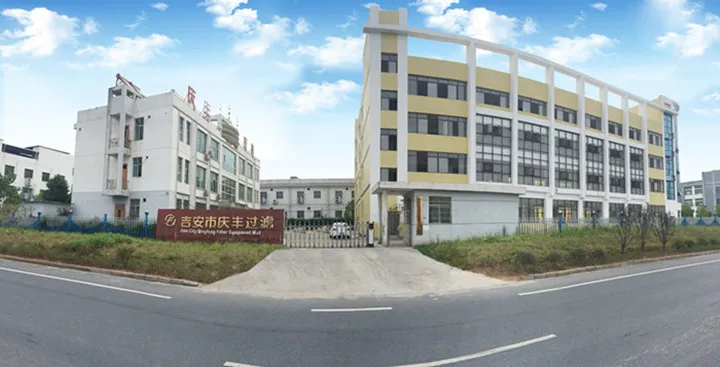

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
