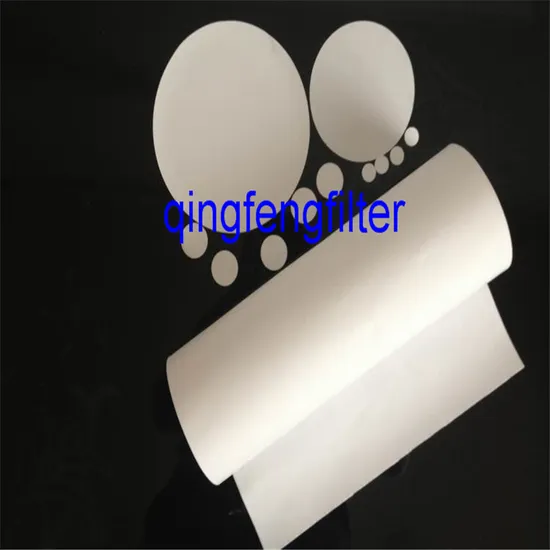

PES Membrane
PES membrane is a highly microporous membrane composed of modified polyethersulfone that is a tough, durable, and temperature-resistant aromatic polymer.
PES membrane provides high flow rate, low extractables and greater mechanical strength than competitive membranes. This membrane is specifically designed for biological, analytical, electronic, pharmaceutical, beverage, and sterilizing filtration applications.
PES membrane is available in pore sizes ranging from 0.01 μm to 1.0 μm. It is inherently hydrophilic as standard, but can be made hydrophobic upon request. | Filter Membrane | Hydrophilic PES |
| Color | White |
| Filter Surface | Plain |
| Thickness, μm | 110~140 |

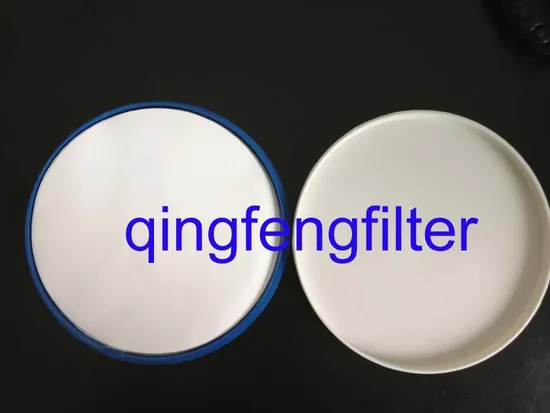

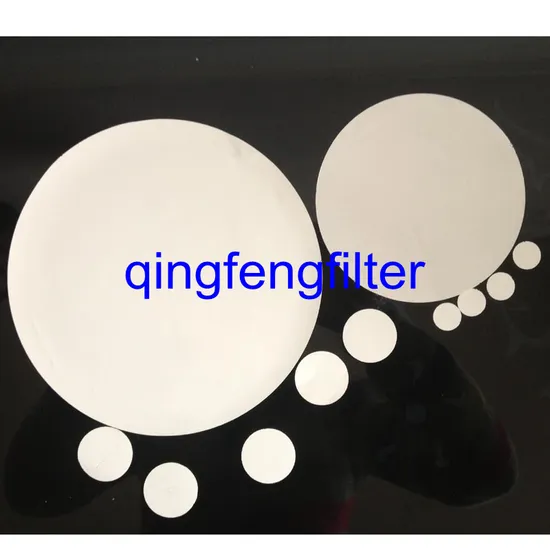

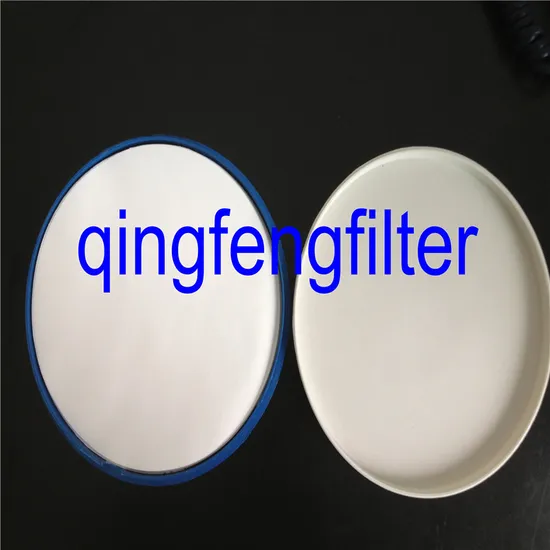

| Diameter | Disc: Φ13, Φ25, Φ47, Φ50, Φ60, Φ90, Φ100, Φ142, Φ150, Φ200, Φ250, Φ293, Φ300 |
| Pore Size, μm | 0.1, 0.22, 0.45, 0.65, 0.8, 1.2, 3.0 |
| Maximum Operating Pressure | Forward: 4.2 bar @ 23°C ; 1.5 bar @ 85 °C |
| pH | 1~14 |
| Flow Rate |
| 0.22 μm | ≥ 15 mL/min/cm 2 at 1 bar |
| 0.45 μm | ≥ 35 mL/min/cm 2 at 1 bar |
| Integrity Test -water bubble point at 23 °C |
| 0.22 μm | ≥ 3500 mbar |
| 0.45 μm | ≥ 2500 mbar |
