Product Description

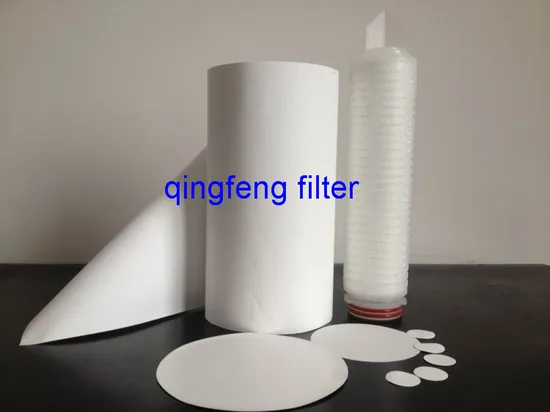

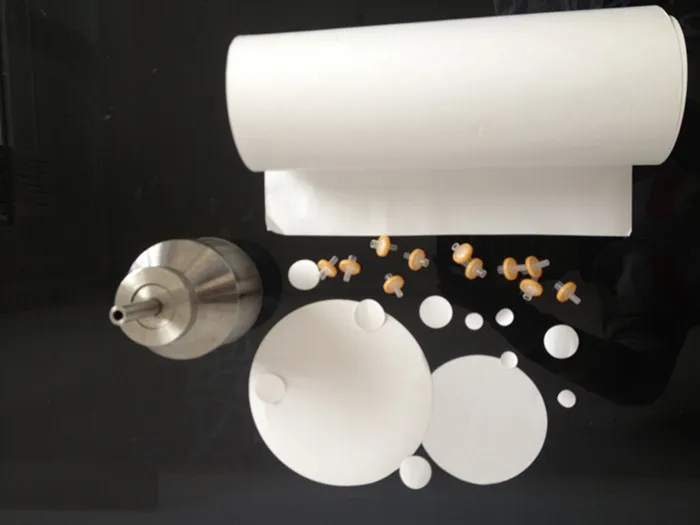

PVDF Filter Membrance
Main Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc
2.Superior temperature tolerance and anti-pollution.
3.Two types: Hydrophilic and Hydrophobic Applications: 1.Effective filtration of organic solvent and additive
2.Filtration of solvent and chemical materials
3.Clarification Filtration of air and gas filter
4.Filtration of high-temperature liquid
5.Sterile Filtration of gas and steam
6.Aseptic treatment for reagent
7.Ultimate filtration of ink Specification: | Material | Polyvinylidene Difluoride |
| Color | White |
| Surface | Plain and Opaque |
| Thickness | 85-110μm |
| Working Temperature | 90ºC |
| Pore Size (μm) | 0.22, 0.45, 1.0 |
| Wettability | Hydropholic & Hydrophobic |

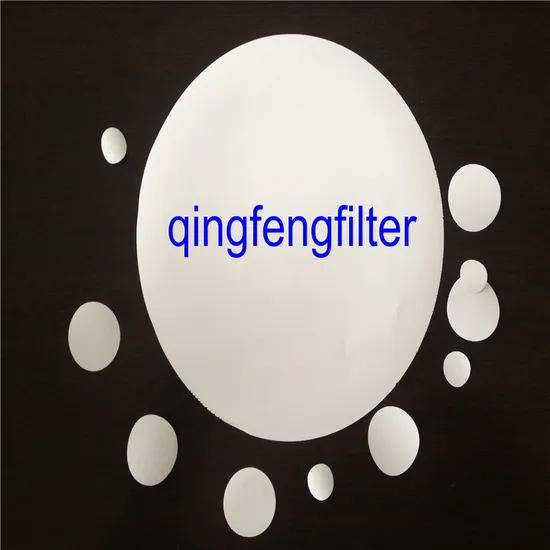

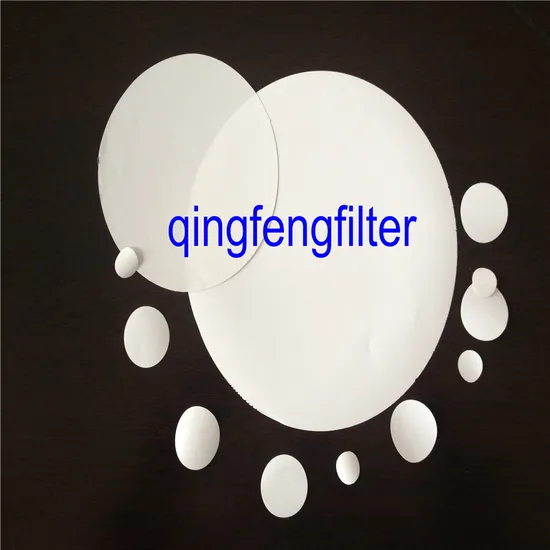

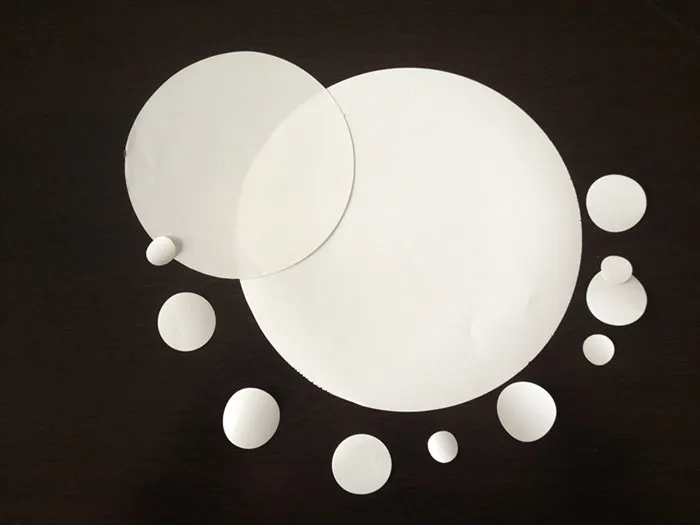

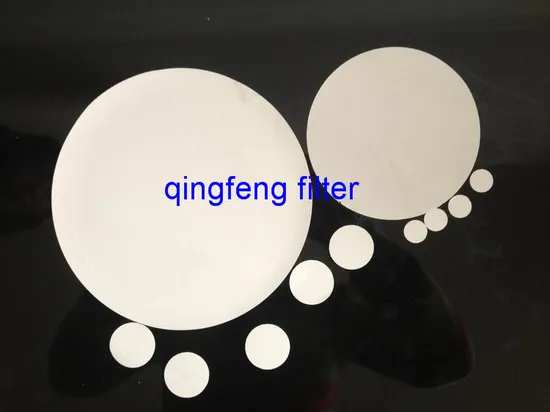

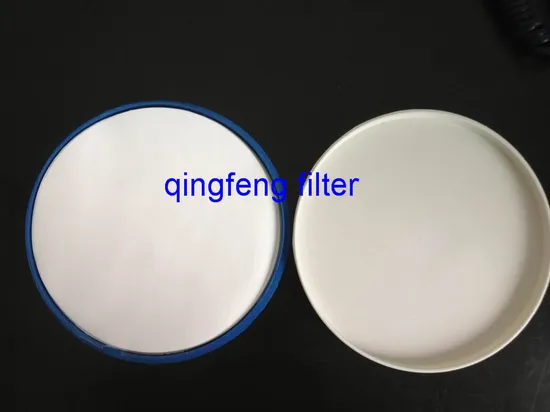

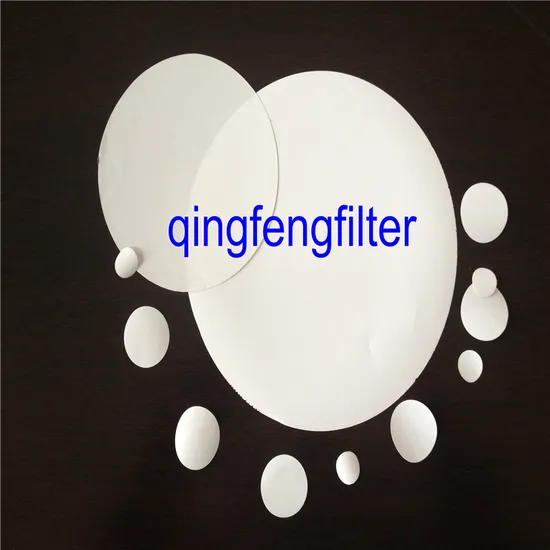

| Diameter For Membrane Filter Disc | Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300 |

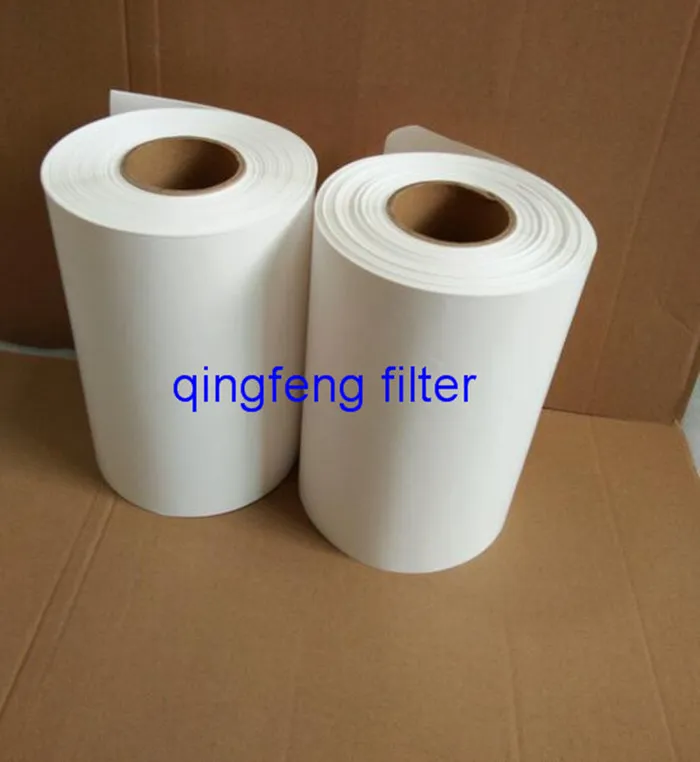

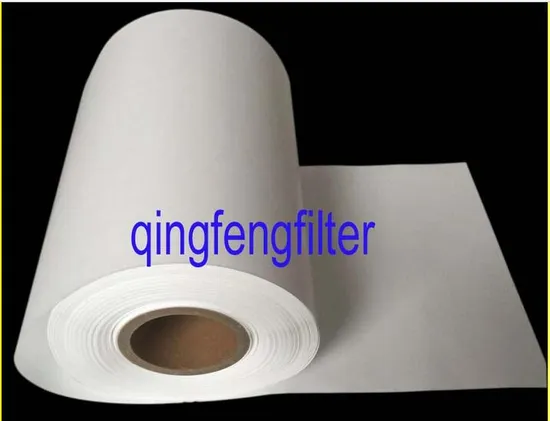

| Filter Membrane Roll Width | 280mm, 320mm, 420mm |
| Minimum Bubble Point: |
| 0.22μm | 0.08Mpa |
| 0.45μm | 0.04Mpa |
| Standard Water Flow (ml/m2.min): |
| 0.22μm | ≥8 |
| 0.45μm | ≥18 |
| Sterilization Methods: |
| Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min) |
ABOUT US:

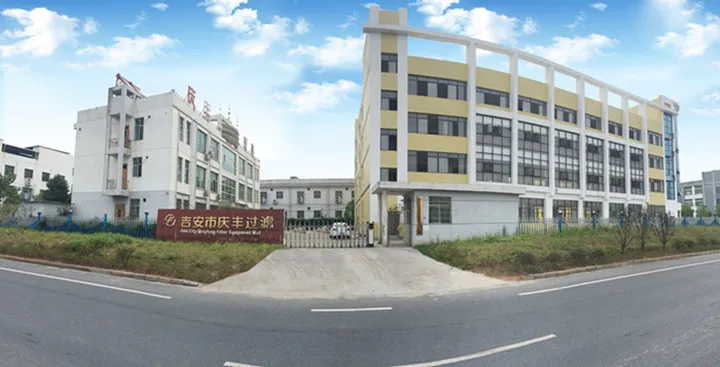

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality. CONTACT US: Ji'an Qingfeng Filter Equipment Material Co.,Ltd
