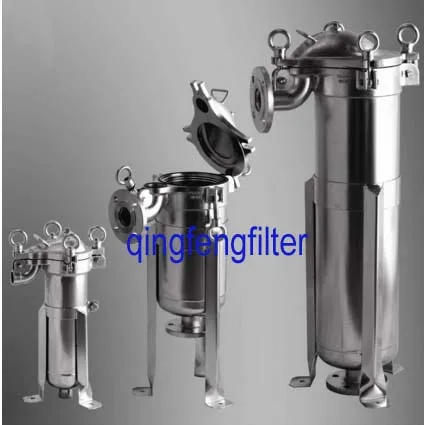

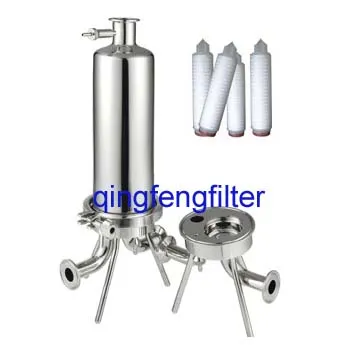

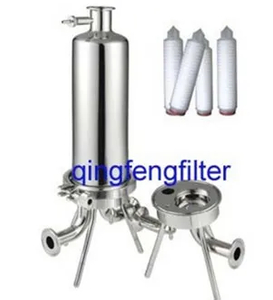

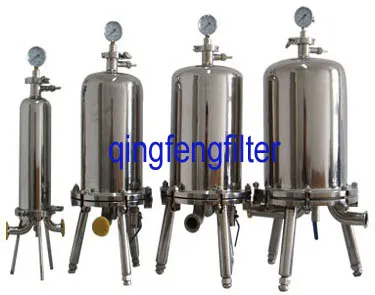

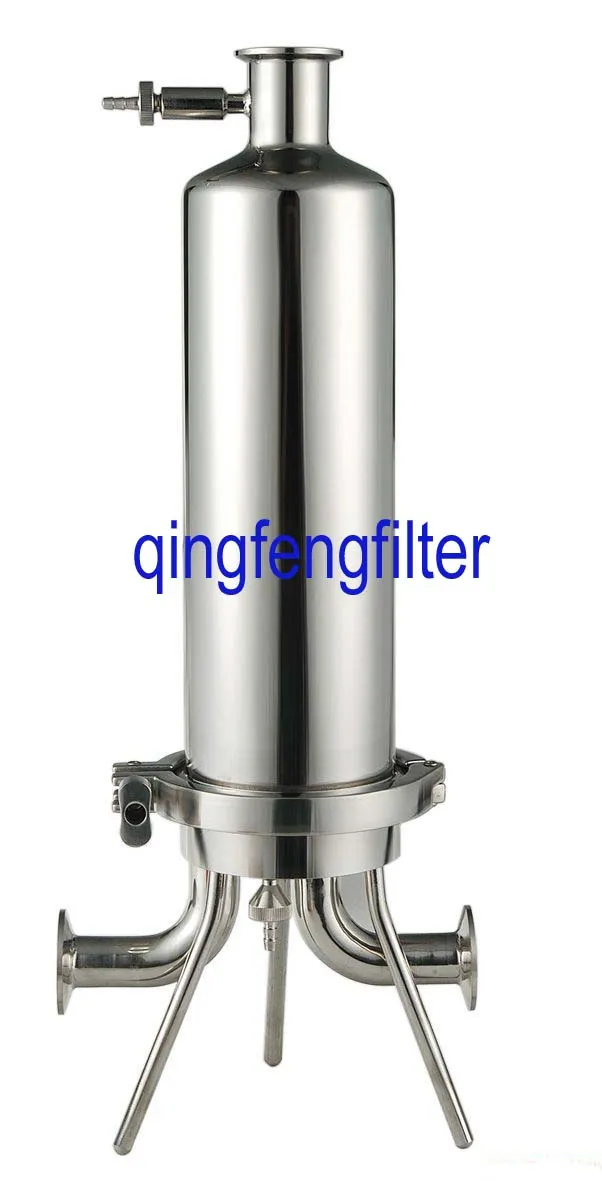

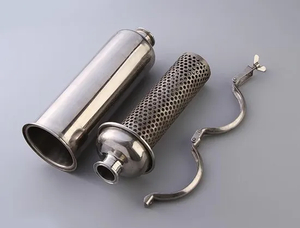

Stainless Steel Filter Housing
Introduction:
The filter shell can be used together with various types of cartridges. The inside and outside surfaces are polished finish with reasonable structure and no dead angle. It is convenient to install and clean, can achieve to the filtration effects required by the customers. Its desigh conforms to GMP standards in medical industry. The filter includes liquid filter and gas filter.
Specification and technical parameters:
Shell material: 304, 316L stainless steel
Shell type: liquid, gas
Length(matched cartridge): 5", 10", 20", 30", 40"
Connection methods(inlet and outlet): quick opening, screw thread, flange
Connection methods(shell and end plate): quick opening, flange
Sealing O-ring: silastic, NBR, EPDM, Viton
Interface: various specifications
Other: special specification of filter shell can be customized
Typical Applications:
Usually it is used to filter liquid of various industry and air purification Specification: | Materials of Construction |
| Housing | 316L/304 Stainless Steel |
| Clamp | 304 Stainless Steel |
| Seal | silastic, NBR, EPDM, Viton |
| Cartridge Capacity |
| 1-piece, 3-piece, 5-piece, |
| Connections |
| Inlet/Outlet | 1 1/2" Sanitary Flange |
| 1" Sanitary Flange |
| Gauge Port | 1 1/2" TC Sanitary Flange |
| Cartridge | Code 0/Code 7/DOE |
| Dome to Base | 4" Gaskets |
| Maximum Operating Conditions | 6.0 bar@121 ºC for housing |
| Surface Finish |
| Wetted Surfaces | Sanitary Finish, < 20 Ra |
| Exterior Surfaces | Sanitary Finish, < 32 Ra |
| Sterilization |
| Support in-line steam sterilization, autoclaved at 123ºC for 60 minutes, or hot water sanitized |
