316&314 Stainless Steel Filter Housing for Liquid Filtration

316&314 Stainless Steel Filter Housing for Liquid Filtration

Customization:	Available
Certification:	SGS and ISO9001
Length(Matched Cartridge):	10", 20", 30", 40"

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Stainless Steel Filter Housing

Usage

Chemical Industry

Cartridge

222/Fin, 226/Fin, DOE

Motive Force

Pressure

Clamp

304 Stainless Steel

Performance

Efficient Filtration

Maximum/Minimum Operating Pressure

-1 to 6 Bar(-14.5 to 87.0 Psi)

Maximum Operationg Temperature

140 Degree Centigrade

Transport Package

Carton Packing

Specification

304, 316L stainless steel

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

100000 PCS/Year

Product Description

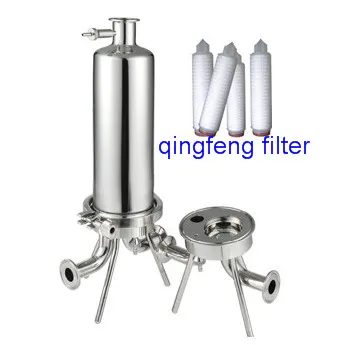

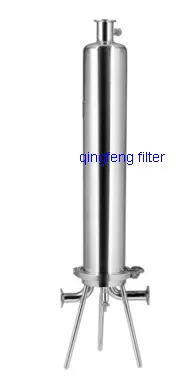

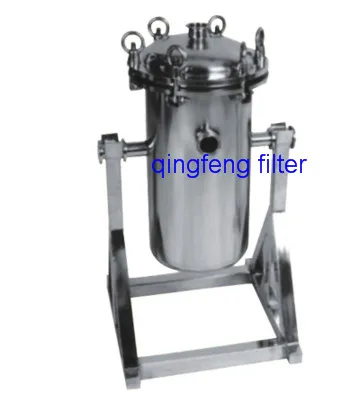

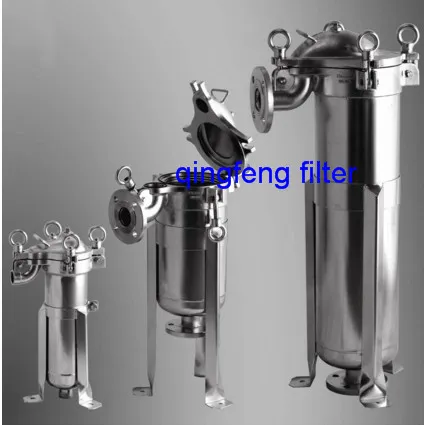

                                        Stainless Steel Filter housing
Introduction:

The filter shell can be used together with various types of cartridges. The inside and outside surfaces are polished finish with reasonable structure and no dead angle. It is convenient to install and clean, can achieve to the filtration effects required by the customers. Its desigh conforms to GMP standards in medical industry. The filter includes liquid filter and gas filter.

Specification and technical parameters:

Shell material: 304, 316 stainless steel
Shell type: liquid, gas
Length(matched cartridge): 5", 10", 20", 30", 40"
Connection methods(inlet and outlet): quick opening, screw thread, flange
Connection methods(shell and end plate): quick opening, flange
Sealing O-ring: silastic, NBR, EPDM, Viton
Interface: various specifications
Other: special specification of filter shell can be customized

Typical Applications:

Usually it is used to filter liquid of various industry and air purification

Materials of Construction
Housing	316/304 Stainless Steel
Clamp	304 Stainless Steel
Seal	silastic, NBR, EPDM, Viton
Cartridge Capacity
1-piece, 3-piece, 5-piece,
Connections
Inlet/Outlet	1 1/2" Sanitary Flange
Inlet/Outlet	1" Sanitary Flange
Gauge Port	1 1/2" TC Sanitary Flange
Cartridge	Code 0/Code 7/DOE
Dome to Base	4" Gaskets
Maximum Operating Conditions	6.0 bar@121 ºC for housing
Surface Finish
Wetted Surfaces	Sanitary Finish, < 20 Ra
Exterior Surfaces	Sanitary Finish, < 32 Ra
Sterilization
Support in-line steam sterilization, autoclaved at 123ºC for 60 minutes, or hot water sanitized

Company Profile:
QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
