| Customization: | Available |
|---|---|
| Application: | Pharmaceutical and Water Filtration |
| Outer Shell Material: | Stainless Steel |
| Quantity: | |
|---|---|

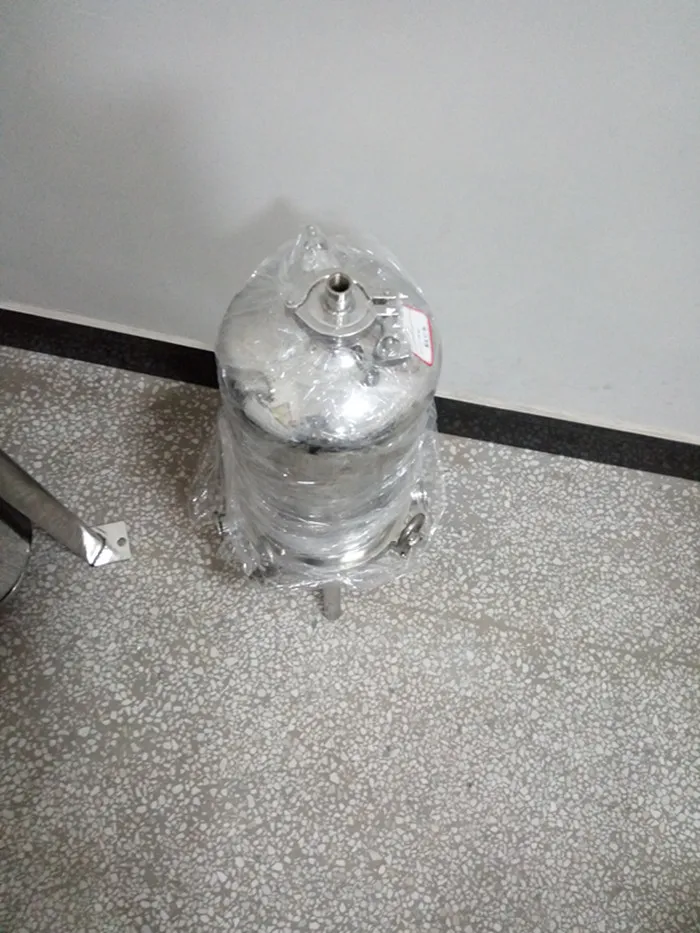

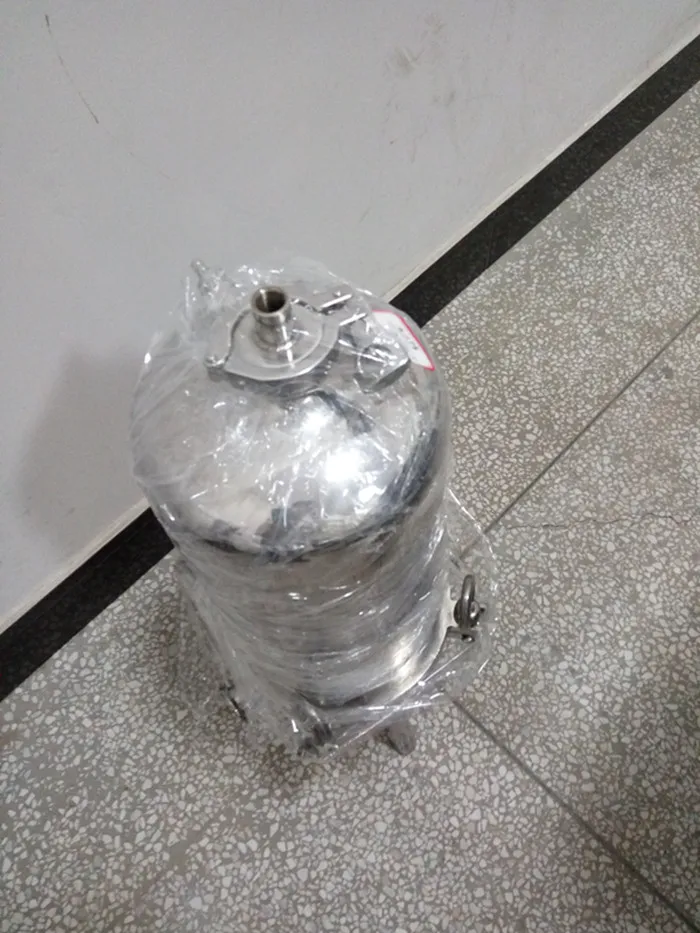

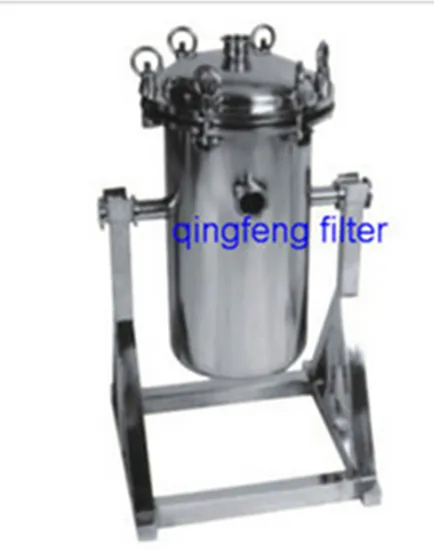

Titanium Filter
Titanium filer is designed for decarburization filtration of LVP/SVP in pharmaceutical industry and mineral water, pure water filtration after ozone sterilization; Structure in rotation type or stationary type.
Technical Data:
Designed pressure: 6bar within 30 minutes
Max operation pressure:5.0 bar
Operation working temperature:180ºC
Design Flow Rate: 0.5-150m³/h
Technical Specification:
| Model | Diameter (mm) | Height B (mm) | Height C (mm) | Total Height A (mm) | Width E (mm) | Inlet Diameter (mm) |
| BJTI-3-1 | 168 | 300 | 300 | 470 | 330 | 25 |
| BJTI-5-1 | 200 | 300 | 300 | 480 | 362 | 25 |
| BJTI-7-1 | 273 | 310 | 320 | 490 | 435 | 25 |
| BJTI-3-2 | 168 | 550 | 450 | 715 | 330 | 32 |
| BJTI-5-2 | 200 | 550 | 450 | 725 | 360 | 32 |
| BJTI-7-2 | 273 | 560 | 450 | 735 | 435 | 320 |
