Bag Filter for Food and Beverage Industry

Customization: Available
Material: Ss 304/316
Usage: Air Filter, Liquid Filter, Powder Filter, Solid Filter
Quantity:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
Bag Filter Housing
Type
Filter Elements
Paper Type
Filter Bag
Connection
Screw Thread or Flange
Filter Bag
Single Bag and Multi-Bag for Options
Transport Package
Carton Box
Specification
1-12bags
Trademark
Qingfeng filter, OEM
Origin
China
HS Code
8421999090
Production Capacity
10000PCS/Year

Product Description

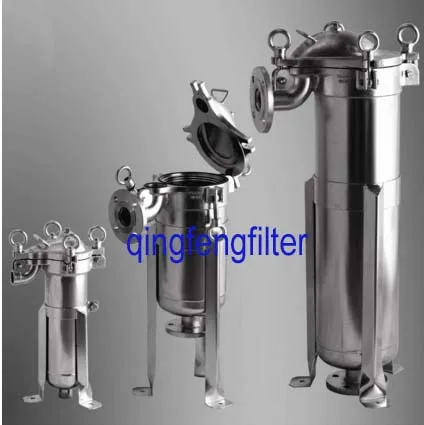

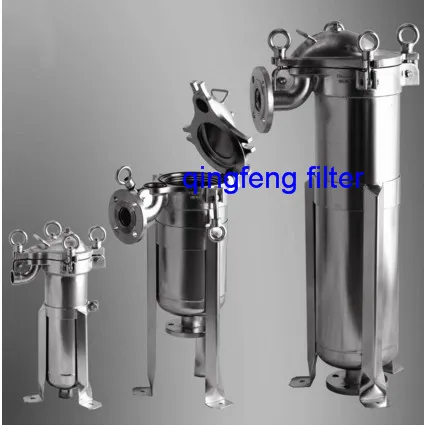

Bag Filter Housing
Stainless Steel filter housing is made of 100% SUS304 or SUS316L; Designed for bag filtration system; Surface is mechanical polished or sand blasting passivation; No dead space; Small flow resistance; Easy to install and clean; Wide chemical compatibility, can be used in acid and alkaline solvents; easy to clean; wide range of filter bags; Meet GMP requirements. Ideal for the filtration of food and beverage industry

Technical Data:
Designed pressure: 9.6bar within 30 minutes
Max operation pressure: 6.0 bar; Also can be customized
Surface Finish: Ra≤0.2
Design Flow Rate: 5.0-400m3/h
Connection: Screw thread or Flange
Single bag and Multi-bag for options

Technical Specifications:
  Single Bag Filter Housing
Item Model Diameter(mm) Height(mm) Inlet/Outlet Bag size Flow Rate(m3/h)
1 BJD1 220 550 2"Female Pipe;Screw thread;Flange 1 20
2 BJD2 220 950 2"Female Pipe;Screw thread;Flange 2 40
3 BJD3 130 350 1"Female Pipe;Screw thread;Flange 3 10
4 BJD4 130 650 1"Female Pipe;Screw thread;Flange 4 12

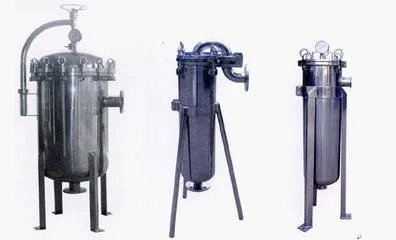

Multi-Bag Filter Housing
Item Model Diameter(mm) Height(mm) Inlet/Outlet Bag Size*Nos. Flow Rate(m3/h)
1 BJD2-2 400 1550 3"Female Pipe;Screw thread;Flange 2*2 80
2 BJD2-3 500 1550 3"Female Pipe;Screw thread;Flange 2*3 120
3 BJD2-4 550 1550 4"Female Pipe;Screw thread;Flange 2*4 160
4 BJD2-5 600 1550 4"Female Pipe;Screw thread;Flange 2*5 200
5 BJD2-6 650 1620 4"Female Pipe;Screw thread;Flange 2*6 240
Bag Filter for Food and Beverage Industry
Bag Filter for Food and Beverage Industry
Bag Filter for Food and Beverage Industry
