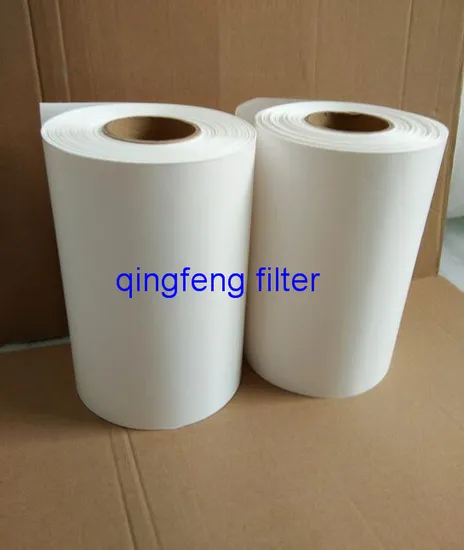

Factory Manufacture Mixed Cellulose Ester Membrane Rolls with Support Layer

Factory Manufacture Mixed Cellulose Ester Membrane Rolls with Support Layer

Customization:	Available
Membrane Type:	Mixed Cellulose Ester Membrane
Type:	MF

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Mixed Cellulose Ester Membrane

Pore Size

0.1/0.22/0.3/0.45/0.65/0.8/1.2/3.0/5.0/8.0um

Thickness

80-95um

Material

Cn (Cellulose Nitrate) & Ca (Cellulose Acetate)

Shape

in Disc/Sheet

Appearance

Plain & Opaque

Color

White

Wettability

Hydrophilic

Disc Membrane Diameter

Dia 13/25/35/47/50/60/77/90/100/150/200/300mm

Applications

Pharmaceuticals, Chemicals, Food & Beverage

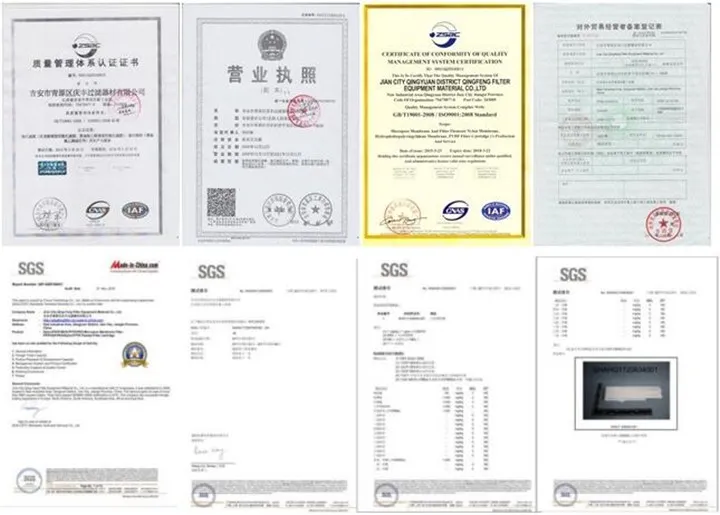

Certifications

ISO9001 & SGS

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999000

Production Capacity

100000 Square Meters/Year

Product Description

Product Description

MCE(CN-CA) Membrane(M/JM)

Main Characteristics:

1.Even pore distribution, and interstice rate reaches as high as 80%

2.Quick flow speed and high retention rate

3.Less adsorbing and no medium shed off

4.Less working pressure needed

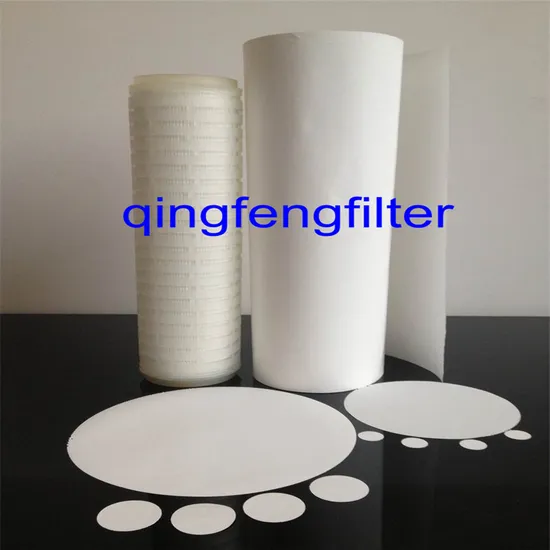

5.Enhanced Membrane JM is CN-CA dissolves in the support layer adhesive gel phase transformation, with good strength, toughness and can be made into disc or roll shapes

Applications:

1.Purification and filtration of liquid and removal of particles

2.Aseptic filtration of culture medium

3.Detection of special pollutant in the air

4.Detection of the Escherichia coli in waters

5.Detection of industrial and mineral dust

6.Applications in biology.,uch as the collection and cleaning of cells

Specifications:

Filter media	CN (Cellulose Nitrate) & CA (Cellulose Acetate)
Color	White
Filter Surface	Plain and Opaque
Thickness	80-95μm
Working Temperature	75ºC
Pore Size (μm)	0.45um

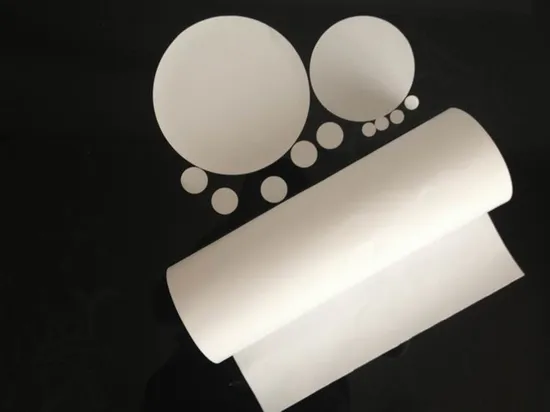

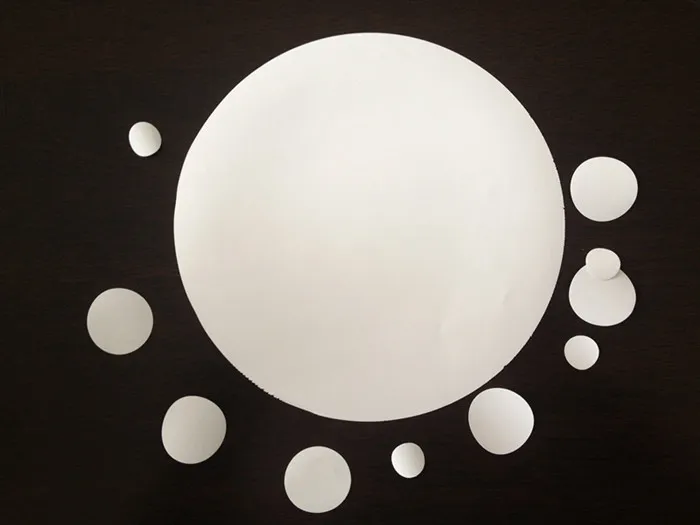

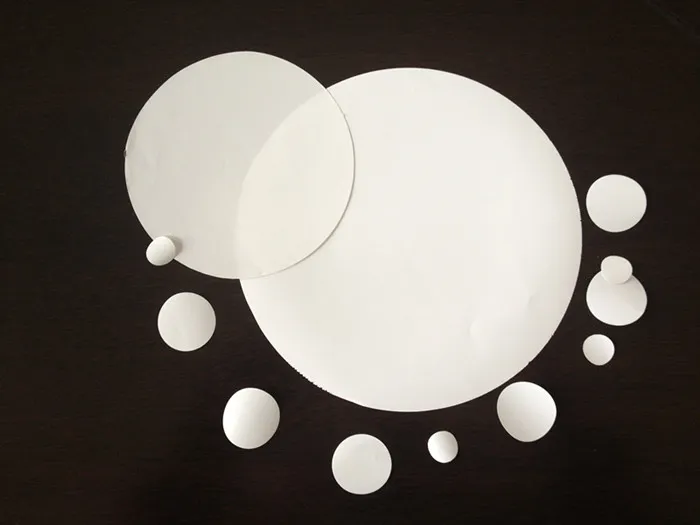

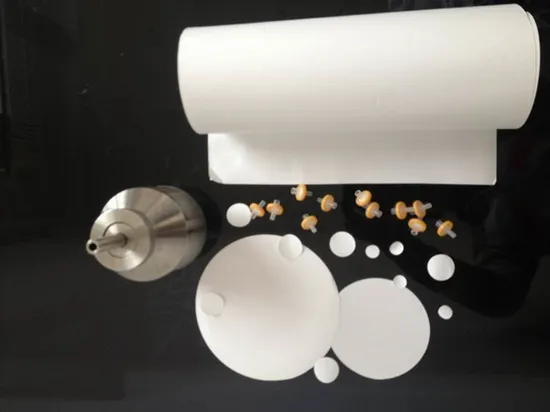

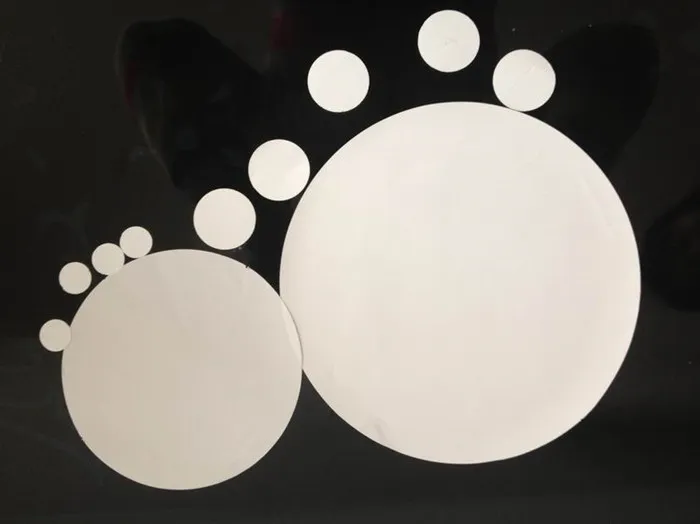

Diameter For Membrane Filter Disc	Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300

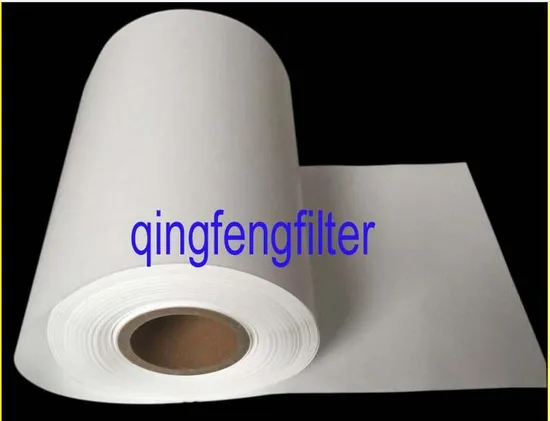

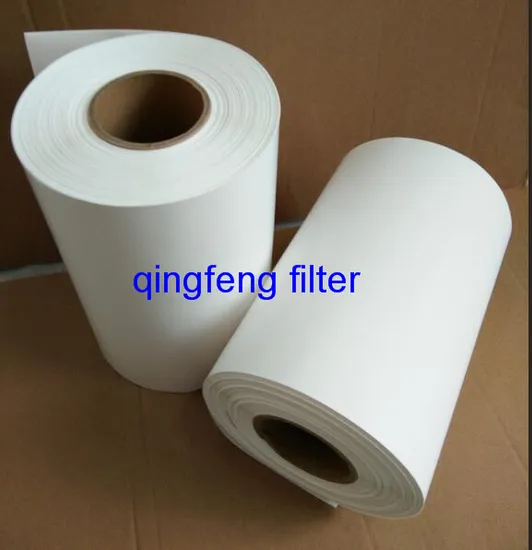

Filter Membrane Roll Width	280mm, 320mm, 420mm
Minimum Bubble Point:
0.45μm	≥0.20
Standard Water Flow(ml/m2.min):
0.45μm	≥20
Sterilization Methods:
Non-Sterilization Packaging: Sterilization under high temperature and pressure(121ºC/30min)
Special pore size/diameter/width can be customized

ABOUT US:

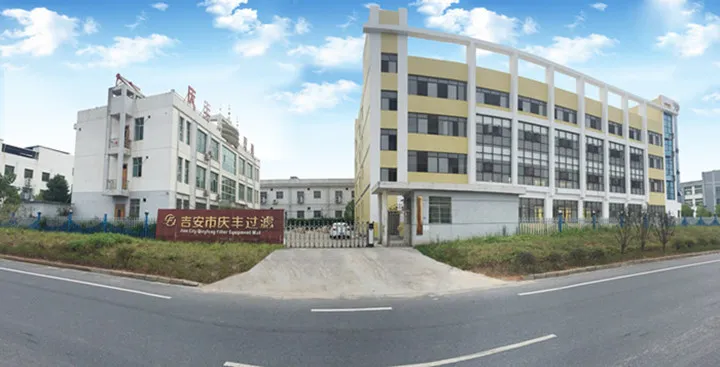

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
