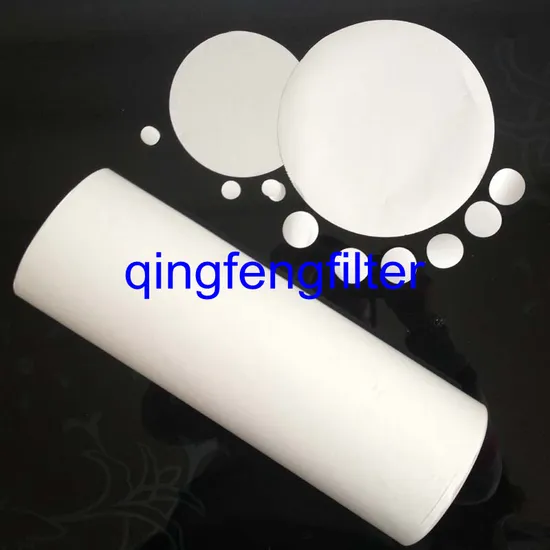

High Flow Rate 0.65um & 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration

Customization: Available
Material: Nylon
Usage: Air Filter
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Basic Info.

Model NO.
Nylon Filter Membrane
Thickness
85-115um
Basic Weight
<100g/m²
Type
Quantitative
Color
White
Pore Size
0.1/0.22/0.45/0.65/0.80/1.0/3.0um etc
Membrane Roll Width
280mm, 305mm, 310mm, 315mm, 317mm, 326mm, 420mm
Diameter
Dia 13/25/35/47/50/60/77/90/100/150/200/300mm
Wettability
Hydrophilic
pH
1-13
Application
Chemical, Food&Beverage, Pharmaceutical Industry
Max.Operating Temperature
80 Degree
Certification
ISO9001, SGS
Non-Sterilization Packaging
Under High Temperature and Pressure121ºC30min
Transport Package
Plastic Bag + Carton Packing
Trademark
QingFeng, OEM
Origin
China
HS Code
8421999000
Production Capacity
150000 Square Meter/Year

Product Description

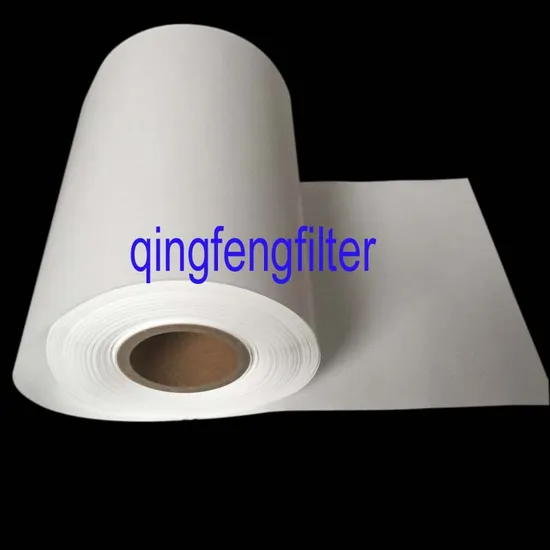

Nylon Filter Membrane

The Nylon microporous membrane uses 100% pure PA66 with stable chemical properties; the 100,000-level clean workshop, coupled with strict cleaning procedures, makes the membrane leaching material extremely low, accurately controlling the membrane pore size, and ensuring various filtration requirements.

Product Characteristics:
1.With imported non-textile supporting bolster, good resilience, torn-up tolerance and durability
2.Intense filtration and high filtration quality
3.Naturally hydrophilic. No need to use humectant, which prevents the filtrate from being contaminated
4.Applies to water solvent and most organic solvent, especially to filtration of alkalinity and alcohol solvents
5.But Nylon 66 is better mechanical strength, and temperature tolerance, better endure low temperature than Nylon 6 membrane

Product Applications:
1.Purification and filtration of liquid and removal of particles
2.Filtration of various solvent and medication solvent
3.Filtration of corrosion-resistance amentia
4.Ultimate filtration of ink

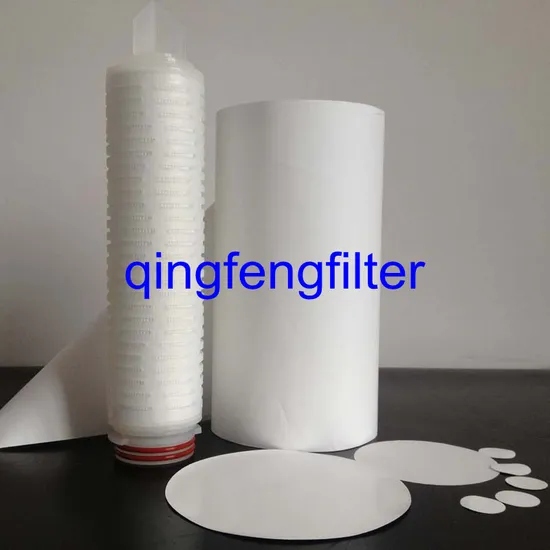

High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration
Specifications:

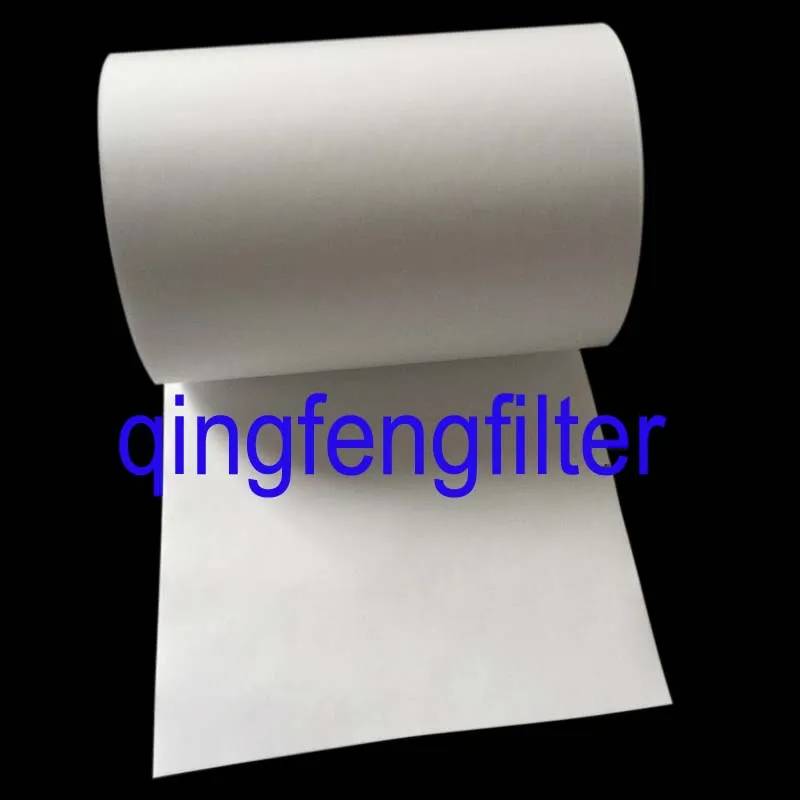

High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration

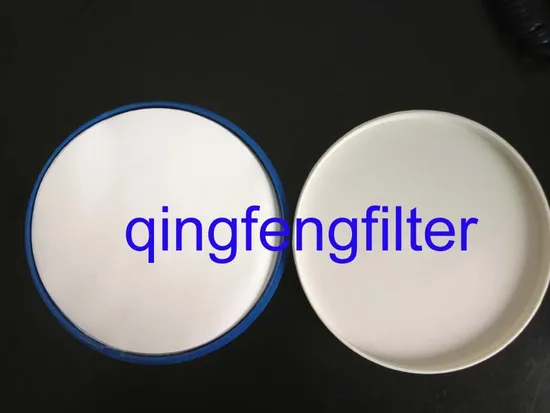

High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration

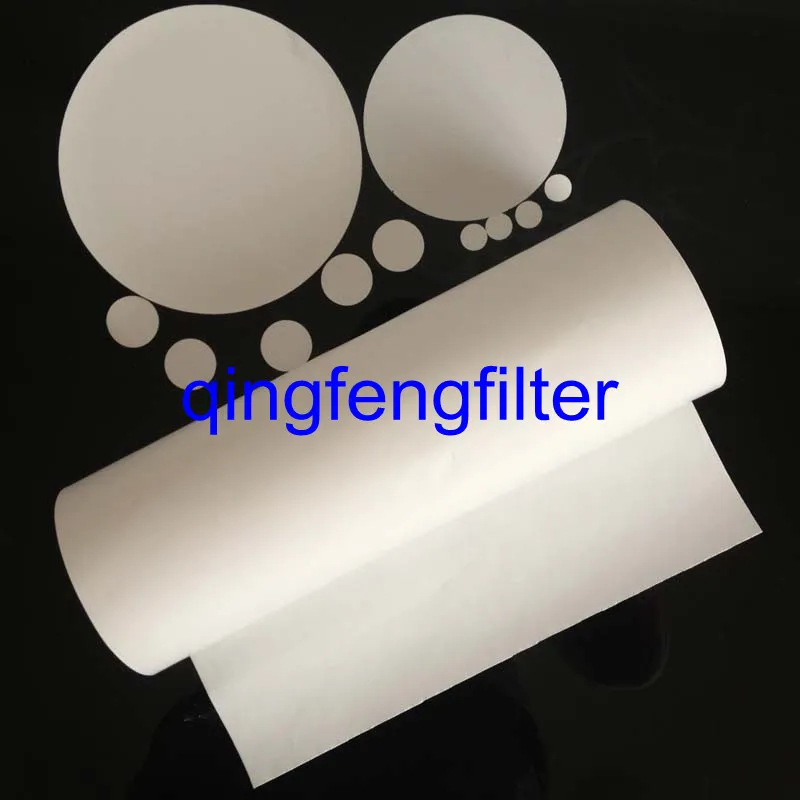

High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration


FAQ:
1. Package Details: Plastic bags inside,carton outer.

2. OEM including what items?
Brand OEM. Part number OEM. Sizes and Structure OEM.

3. What is warranty?
Our warranty is 1 year. It means in the correct installation and normal using condition,if our goods meet any quality questions,we will re-produce for you again for free.

4. Can you offer sample to check the quality?
We offer FREE SAMPLES based on freight collect.

5. What about delivery time?
Order delivering time has relations with the order quantity, order models and packagings. Generally, it takes about 1-15days to get the order ready.

Shipping
Maritime; Railway; Air (DHL/UPS/TNT/FEDEX)
High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration

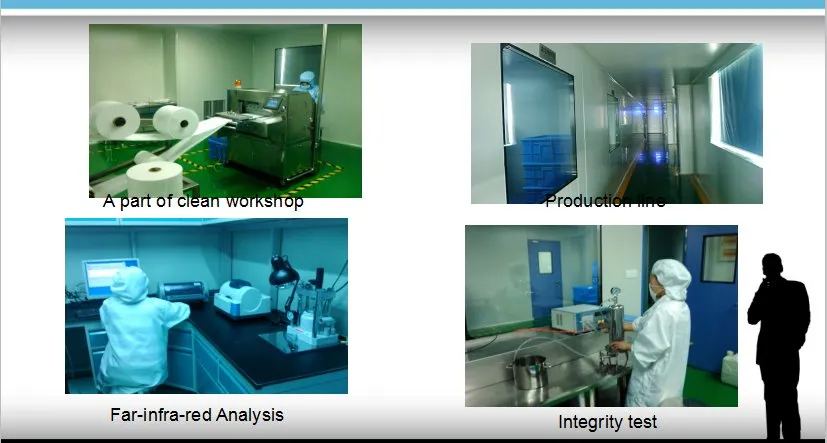

Company Profile:

JiAn city QingFeng Filter Equipment Co., Ltd is a direct chinese manufacturer in industrial filtration and separation region since 2006year , producing and marketing micro filtration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

Contact Us:
Ji'an Qingfeng Filter Equipment Material Co.,Ltd.
Website:qingfengfilter.en.made-in-china.com
     http://qingfengfilter.en.made-in-china.com
High Flow Rate 0.65um &amp; 0.8um Nylon Filter Membrane with Non- Textile Support Layer for Liquid Filtration

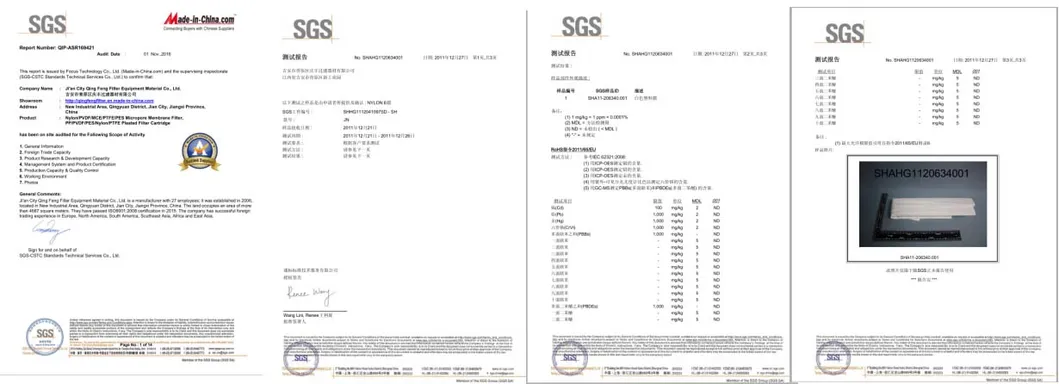

Certificates:
