ISO Certificated Hydrophilic PTFE Filter Membrane for Chemical&Water Treatment

ISO Certificated Hydrophilic PTFE Filter Membrane for Chemical&Water Treatment

Customization:	Available
Type:	0.1/0.2/0.45/1.0/3.0/5.0um
Certification:	SGS and ISO9001

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Hydrophilic PTFE Filter Membrane

Diameter

13/25/35/47/50/60/70/80/90/100/142/150

Usage

Air Filter

Color

White

Material

PTFE Memnbrane

Thickness

130mm±15

Transport Package

Carton Packing

Specification

width have 255/260/510/520mm

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

150000square Meter/Year

Product Description

                                                               PTFE Membrane
Polytetrafluoroethylene(PTFE)membrane belongs to microporous membrane, mainly including TF,NF,CF three series.
Of them:
   TF is divided into hydrophilic membrane and functional hydrophilic membrane. Permanent hydrophilic membrane is mainly used in turbidity removal, clarification, absolute degermation and sewerage treatment in hydro products. Permanent functional hydrophilic membrane is used in proton conduction, electron conduction and ion exchange.
   NF is hydrophobic membrane, which is mainly used in turbidity removal, clarification, and absolute degermation in organic solvent products and particle removal and absolute degermationin in all kinds of gas.
   CF is hydrophobic membrane, which is mainly used in air dust removal and gas ultra-cleaning filtration and particle removal in high-temperature or high-corrosion air.
  typical most aperture includes 1.0,0.45,0.22, 0.10μm

Membrane		Hydrophobic Membrane (PTFE)
Support		PP
Color		White
Filter Surface		Plain
Thickness, μm		150~250
Width		255/260/510/520mm
Pore Size, μm		0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Maximum Operating Pressure		Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C
Flow Rate	Liquid		Air
0.22 μm	≥ 6 mL/min/cm 2 at 1 bar		≥ 3.5 L/min/cm 2 at 1 bar
0.45 μm	≥ 30 mL/min/cm 2 at 1 bar		≥ 7 L/min/cm 2 at 1 bar

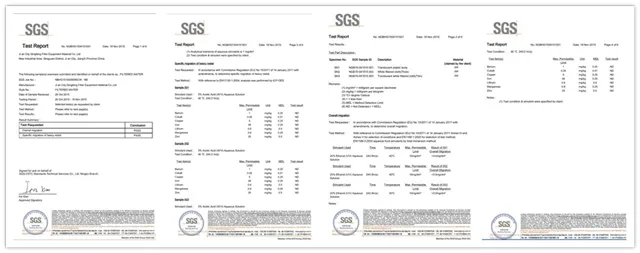

Certificates:
ISO Certificated Hydrophilic PTFE Filter Membrane for Chemical&Water Treatment

Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
