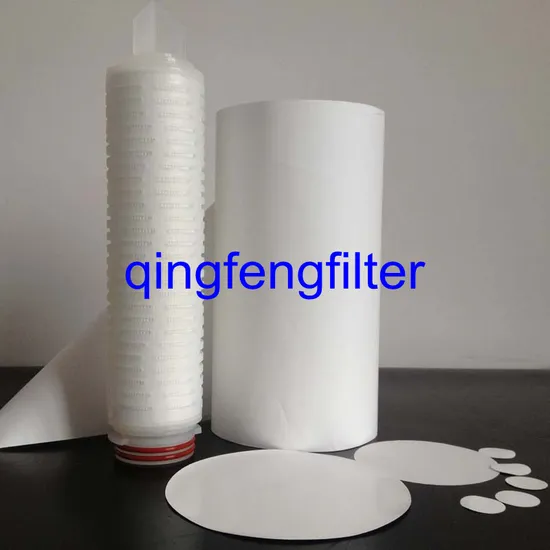

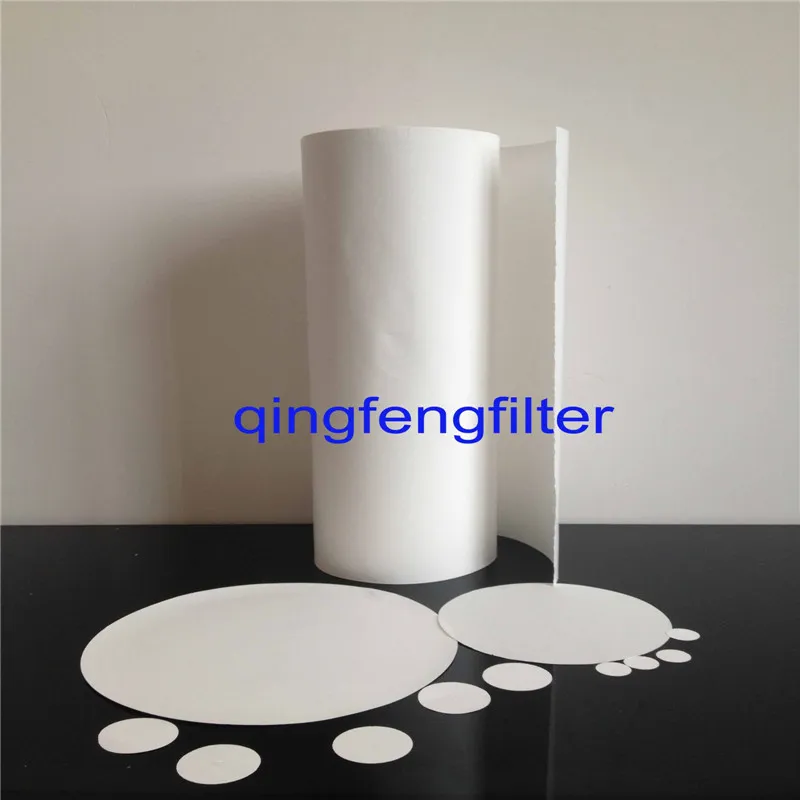

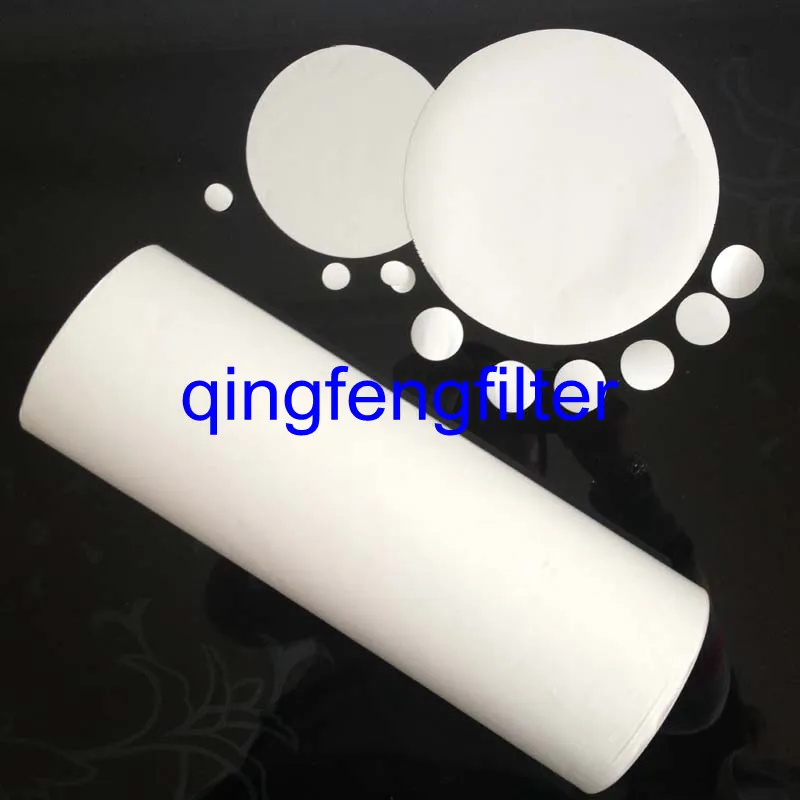

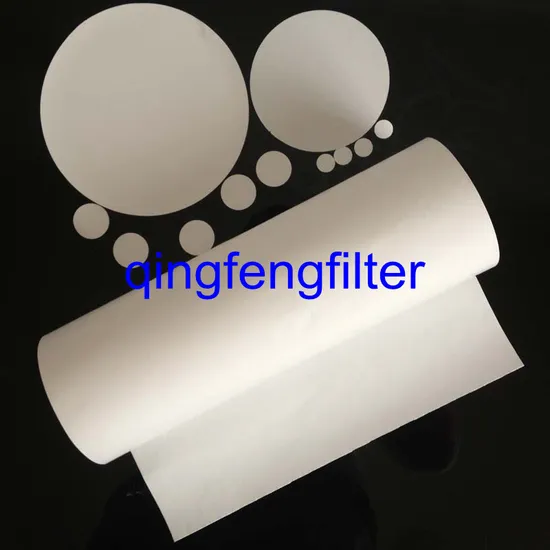

ISO Certificated PVDF Membrane Filter for Chemical and Air Filtration

ISO Certificated PVDF Membrane Filter for Chemical and Air Filtration

Customization:	Available
Material:	PVDF(Polyvinylidene Difluoride)
Usage:	Air Filter

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PVDF membrane filter

Thickness

85-115 Um

Basic Weight

<100g/m²

Type

Quantitative

Color

White

Types

Hydrophilic & Hydrophobic

Pore Size

0.1/0.22/0.45/0.65/0.80/1.2/3.0 etc

Membrane Roll Width

280mmemm,305mm,310mm,312mm,315mm,317mm,326mm,420mm

Diameter

Dia 13/25/35/47/50/60/77/90/100/150/200/300mm

Packing

Plastic Bag+ Carton

Application

Industry, Chemical & Water Treatment

Certification

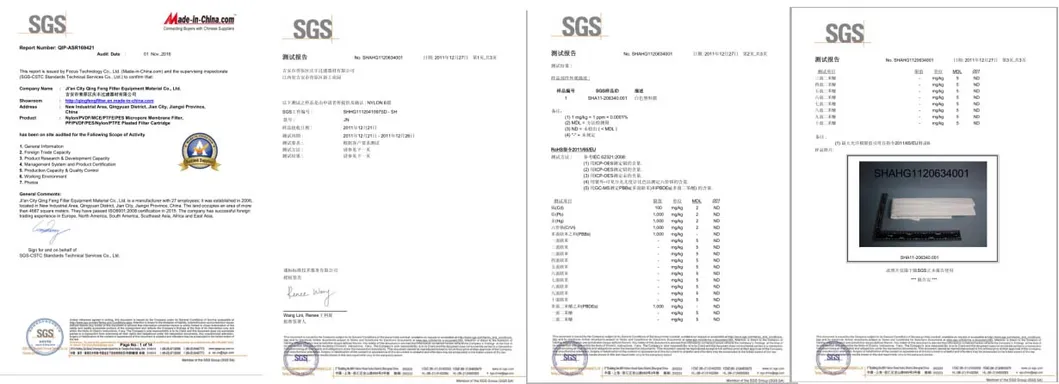

ISO9001,SGS

Non-Sterilization Packaging

Under High Temperature and Pressure121ºC30min

Transport Package

Box and Customer Like

Specification

customized

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999000

Production Capacity

180000 Square Meter/Year

Product Description

ABOUT US:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.

CONTACT US:

Ji'an Qingfeng Filter Equipment Material Co.,Ltd.
Mobile Phone: 86- 15070668581

Tel: 86-796-8106818
Fax: 86-796-8105786

Website: qingfengfilter.en.made-in-china.com

PVDF Filter Membrane

Product Characteristics:

1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc.
2.Superior temperature tolerance and anti-pollution
3.Two types, hydrophobic and modified-hydrophobic

Product Applications:

1.Effective filtration of organic solvent and additive
2.Ultimate filtration of ink
3.Filtration of solvent and chemical materials
4.Aspetic treatment for reagent
5.Filtration of high-temperature liquid
6.Dust-filtration of air and gas
7.Aseptic filtration of gas and vapor

Specifications:

Membrane	Hydrophilic and Hydrophobic PVDF membrane filter
Color	White
Filter Surface	Plain
Thickness	100±15um
Pore Size, μm	0.1, 0.22, 0.45, 0.65, 0.80, 1.2, 3.0, 5.0, 8.0, 10.0

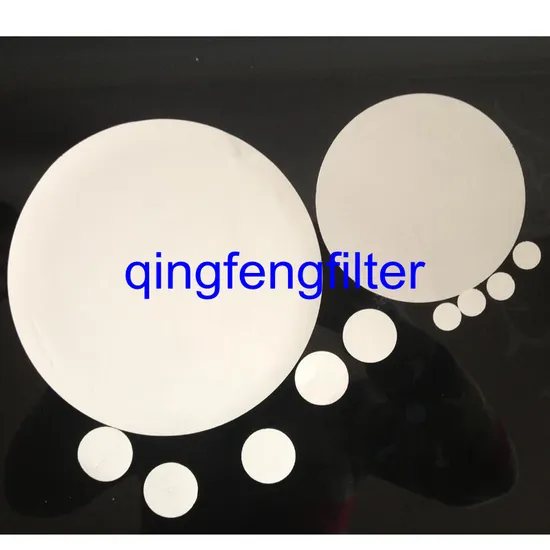

Diameter For Membrane filter Disc	Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ77,Φ90,Φ100,Φ150,Φ200,Φ300

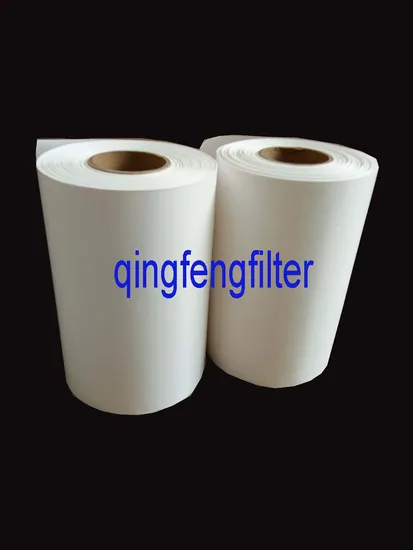

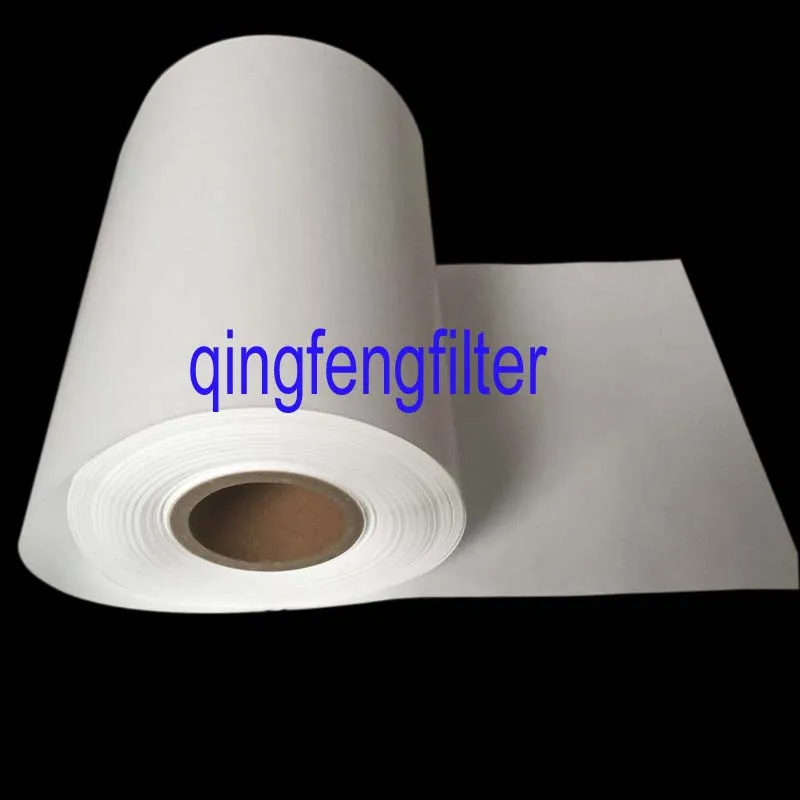

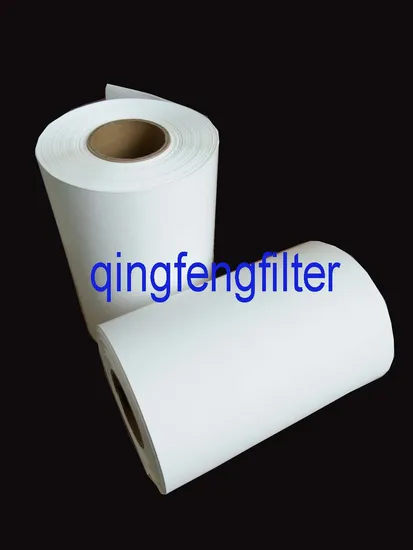

Filter membrane roll width	280mm,305mm,310mm,312mm,315mm,317mm,326mm,420mm
Integrity Test -95% IPA/water bubble point at 23 °C
0.22 μm	≥ 700 mbar
0.45 μm	≥ 400 mbar
Sterilization
By autoclave at 121°C or EO
