| Customization: | Available |
|---|---|
| Type: | 0.1/0.2/0.45/1.0/3.0/5.0um |

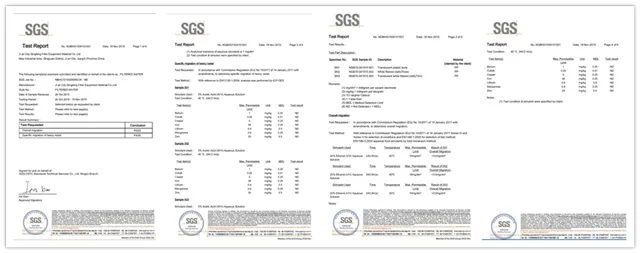

| Certification: | SGS and ISO9001 |
| Quantity: | |
|---|---|
| Membrane | Hydrophobic Membrane (PTFE) | ||
| Support | PP | ||
| Color | White | ||
| Filter Surface | Plain | ||
| Thickness, μm | 150~250 | ||
| Width in rolls | 255/260/510/520mm | ||
| Pore Size, μm | 0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 | ||
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C | ||
| Flow Rate | Liquid | Air | |
| 0.22 μm | ≥ 6 mL/min/cm 2 at 1 bar | ≥ 3.5 L/min/cm 2 at 1 bar | |
| 0.45 μm | ≥ 30 mL/min/cm 2 at 1 bar | ≥ 7 L/min/cm 2 at 1 bar | |
| Membrane | Hydrophobic Membrane (PTFE) | ||
| Support | PP | ||
| Color | White | ||
| Filter Surface | Plain | ||
| Thickness, μm | 150~250 | ||
| Width in rolls | 255/260/510/520mm | ||
| Pore Size, μm | 0.01(for air), 0.05, 0.1, 0.22, 0.45, 1.0, 3.0, 5.0 | ||
| Maximum Operating Pressure | Forward: 4.2 bar @ 23 °C; 1.5 bar @ 85 °C | ||
| Flow Rate | Liquid | Air | |
| 0.22 μm | ≥ 6 mL/min/cm 2 at 1 bar | ≥ 3.5 L/min/cm 2 at 1 bar | |
| 0.45 μm | ≥ 30 mL/min/cm 2 at 1 bar | ≥ 7 L/min/cm 2 at 1 bar | |
