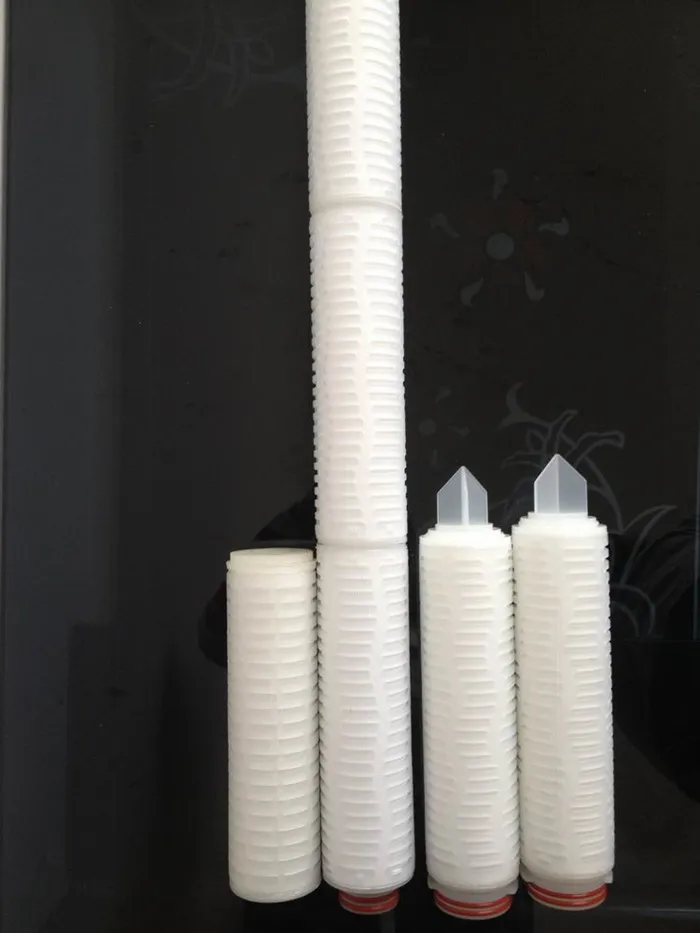

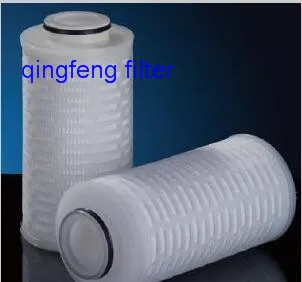

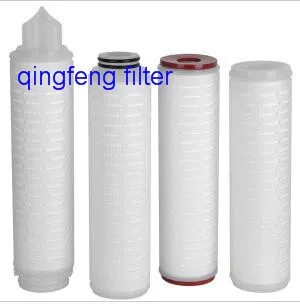

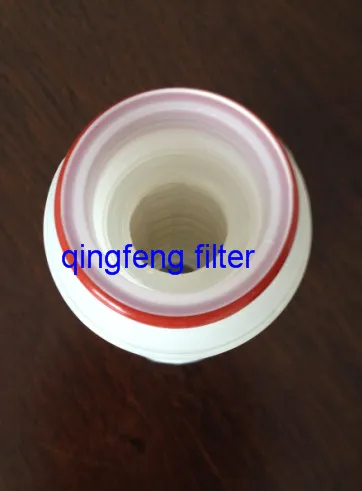

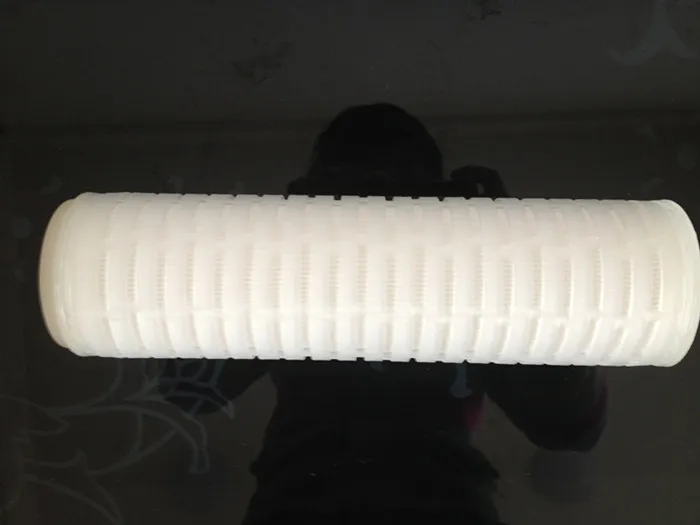

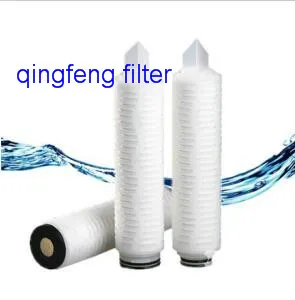

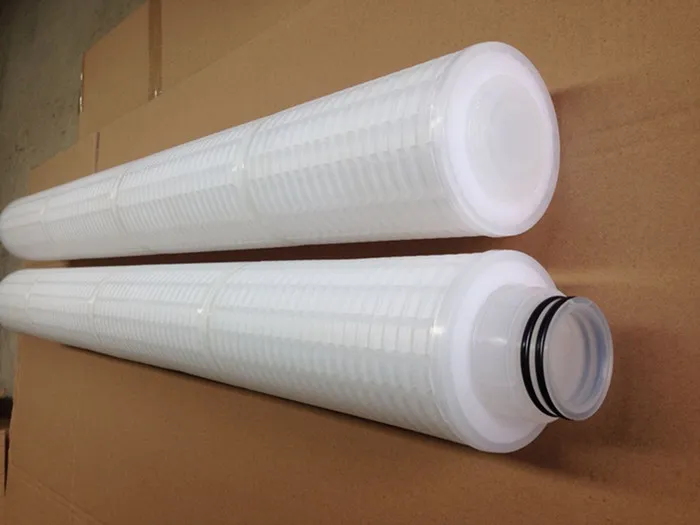

0.2 Micron 10 Inch Hydrophobic PVDF Filter Cartridge for Chemicals
Main Characteristics:
1. Strong negative static electricity, good pollution resistance, low adsorption to protein and long service life
2. Good chemical and climate resistance, not corroded by strong acid, strong alkali and halogen
3. Good temperature resistance and oxidation resistance
4. 100% integrity testing, Comply with FDA food safety regulations
Micron Rating(µm):
0.20 0.45 0.80 1.00 3.00
Typical Applications:
1. Biologicals impurity removal and bactericidal filtration
2. Bactericidal filtration of various organic solvents
3. Ozone resistant filtration of mineral water and pure water
4. High viscosity liquid filtration.
5. Filtration of gas in fermenting tank
Specifications: | Filter medium | PVDF membrane |
| Support Layer | Polypropylene |
| Inner Core | Polypropylene |
| Outer Core | Polypropylene/Stainless Steel |
| Outer Diameter | 69mm |
| Inner Diameter | 33mm |
| Effective Filtration Area | ≥0.65m2 |
| Normal Operating Temperature | ≤65ºC |
| Max. Operating Temperature | 90ºC(△P≤0.10Mpa) |
| Max. Differential Pressure | Normal Flow direction:0.42 MPa at 25ºC, Reverse Flow direction: 0.21MPa at 25ºC |
| PH Value compatibility | 1-13 |
| Sterilizing temperature | 30 minites at 140±2ºC reach 100 times or Sterilize cabinet at 30mins/time |
| Endotoxin | <0.25 EU/ml |
| Extractable | 0.03g/10" |
| Remark: special requirement of diameter and end caps can be customized |
| Complete test (minimum bubble point)(25ºC;95% isopropanol): |
| 0.2um | ≥0.07Mpa |
| 0.45um | ≥0.05Mpa |
Certifications:
Exhibition:
Shipping&Delivery
Delivery time: 1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.
Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China
in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
