0.2 Micron Hydrophilic Pleated Pes Water Filter Cartridge for Food & Beverage Industry

0.2 Micron Hydrophilic Pleated Pes Water Filter Cartridge for Food & Beverage Industry

Customization:	Available
Material:	Polypropylene + Pes Membrane
Application:	Industry, Food and Beverage, Medicine, Textile, Metallurgy, Pharmaceutical and Electronics

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

PES Water Filter Cartridge

Type

Folding Microporous Filter

Filter Connector

DOE, Soe (Code2/Code3/Code7/Code8)

Filtration Grade

Final Filter

Activated Carbon Filter Type

Pes Microporous Pleated Filter Cartridge

Filter Media

Polyethersulfone

Micron Rating(Um)

0.04um, 0.1um, 0.2um, 0.45um, 0.65um, 0.8um, 1.2um

Length

2.5′′ 10′′ 20′′ 30′′ 40′′

pH Value

2-13

Membrane Wettability

Hydrophilic

Outer Diameter

68mm

Inner Diameter

33mm

Installation Method

Vertical Hoisting

Test Passed

100% Integrity Test

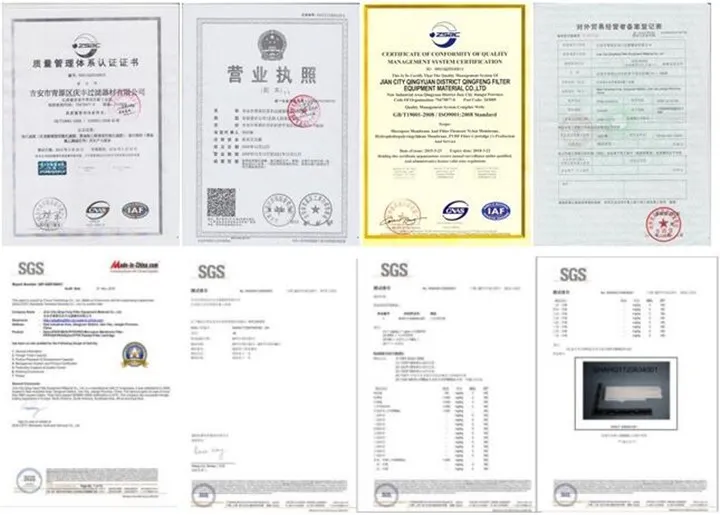

Certifications

ISO9001 & SGS

Transport Package

Plastic Bag + Carton Packing

Specification

Customized

Trademark

Qingfeng OEM

Origin

China

HS Code

8421999090

Production Capacity

100000PCS/Year

Product Description

Product Description

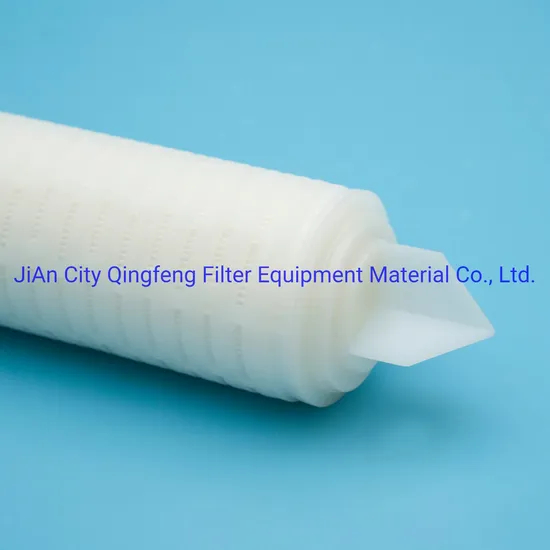

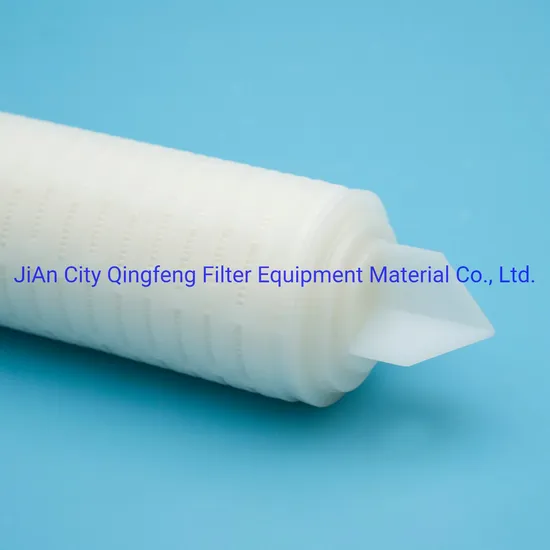

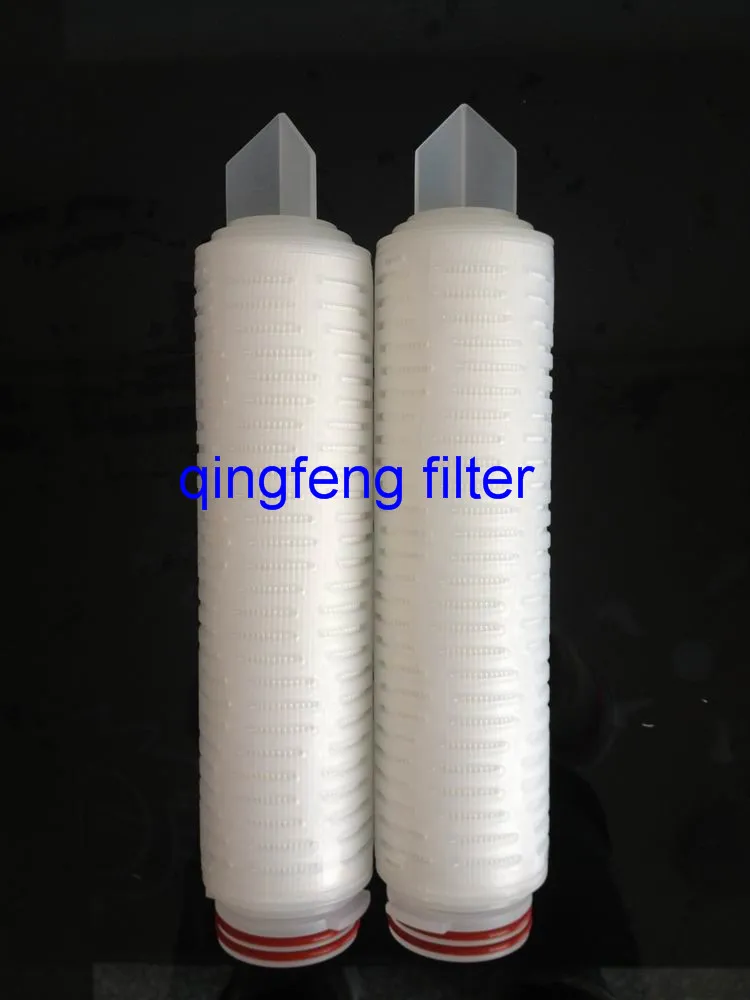

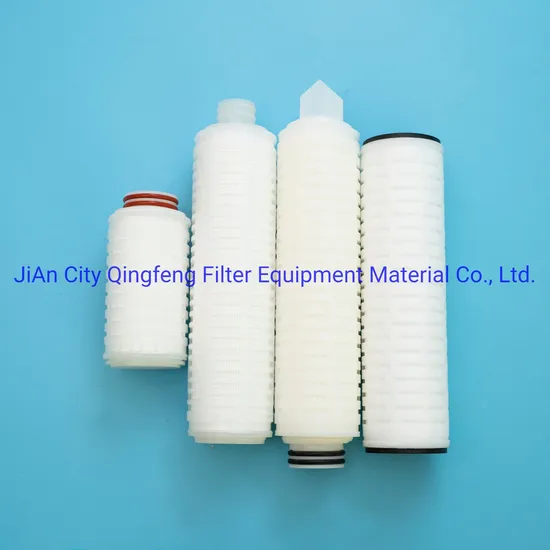

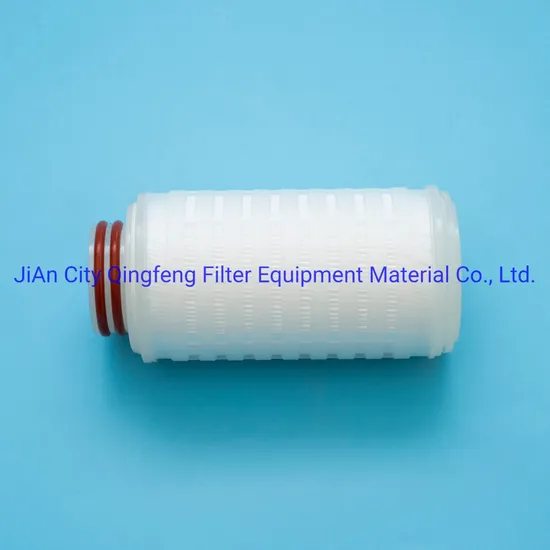

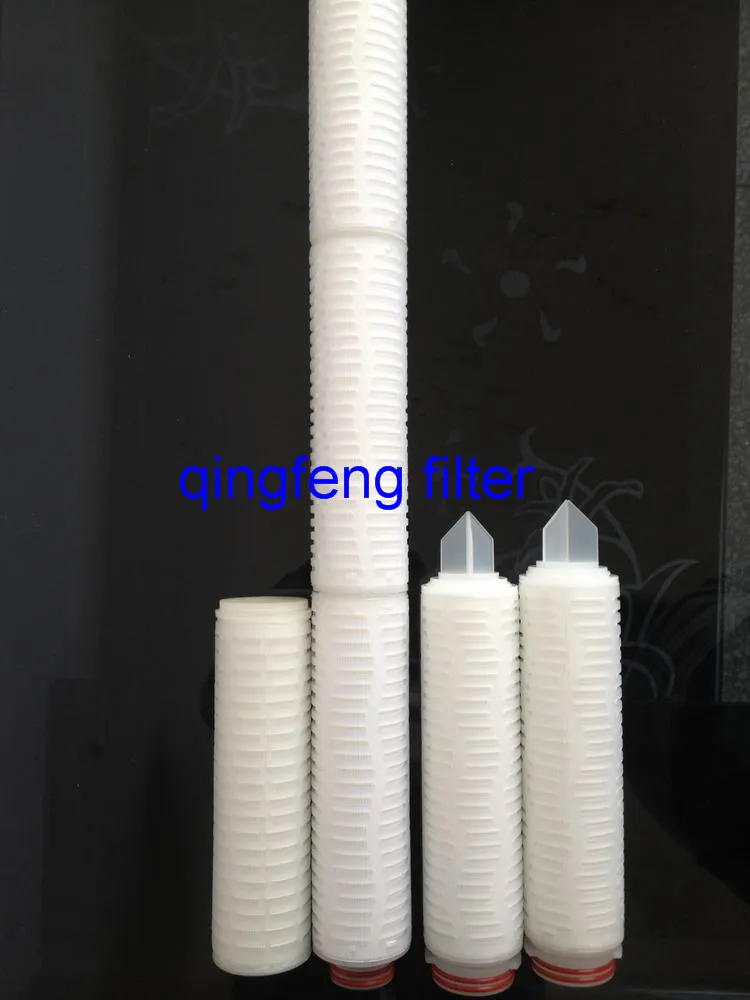

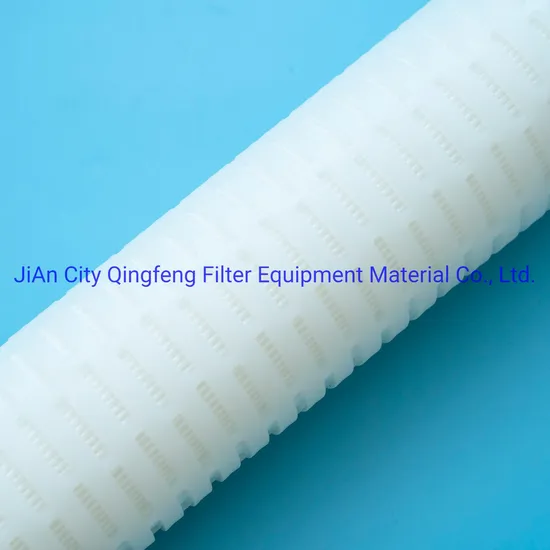

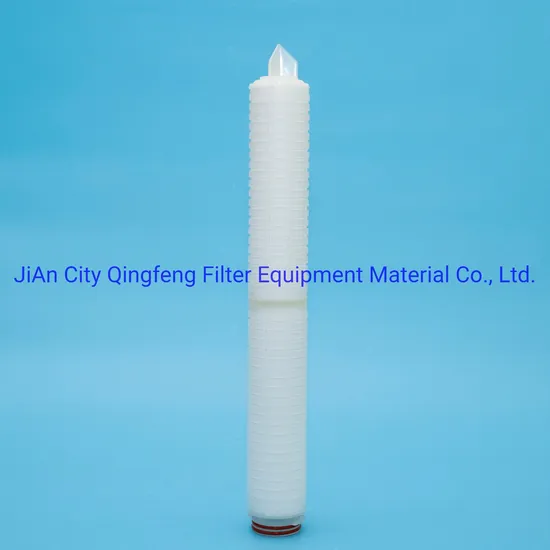

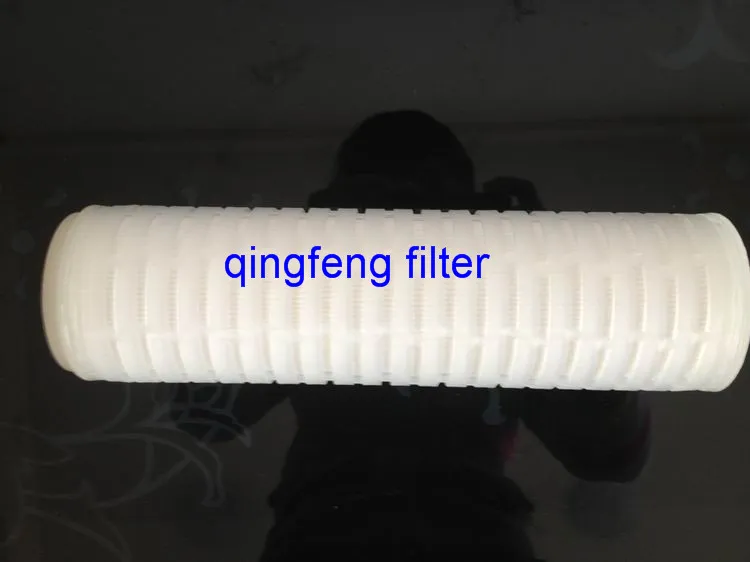

PES Pleated Filter Cartridge

PES pleated filter cartridge is made of pleated polyethersulfone membrane, polypropylene non-woven fabrics and polypropylene cage. During the production, it is purity, free of surfactants, resins, binders and adhesives. It can be used for the liquid critical filtration.

Main Characteristics:

1. Asymmetry polyethersulfone membrane provides high dirt holding capacity

2. Hydrophilic membrane with geometrically unique pores

3. High flow rate

4. Lower protein binding, super chemical tolerance and thermal stability

5. Filtration effective is up to 99.9999%

6. Ideal materials for critical filtration

7. All products have passed 100% integrity testing

8. Meet the current FDA standard

9. Clean and flushed with Pyrogen-free water. Rinse up to 17-18 Ω

10. Meet the requirements of electronic industry

Micron Rating(µm): 0.04 0.1 0.2 0.45 0.65 0.8 1.2

Typical Applications:

1. API, LPV, blood serum, biologicals, buffers and other pharmaceuticals

2. Ultrapure water and disk, display, multi silicon process water in electronic

3. Sterile Filtration of Food & Beverages, Wine, Beer, Mineral Water

5. Fine Chemicals

Specifications:

Filter medium	Polyethersulfone
Support Layer	Polypropylene
Inner Core	Polypropylene
Outer Core	Polypropylene
inner Diameter	33mm
Outer Diameter	68mm
Effective Filtration Area	≥0.60m2
Normal Operating Temperature	≤60ºC
Max. Operating Temperature	80ºC(△P≤0.10Mpa)
Max. Differential Pressure	Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC
PH Value compatibility	1-14
Sterilizing temperature	Steam Sterilization for 30 minutes at 121±2ºC
Endotoxin	<0.25 EU/ml
Extractable	0.03g/10"
Remark: special requirement of diameter and end caps can be customized

ABOUT US:

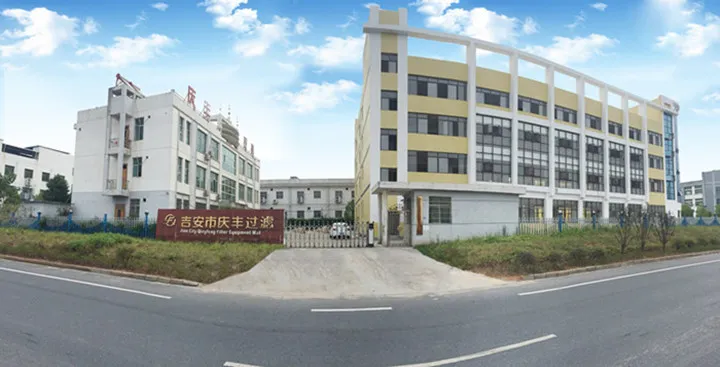

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
