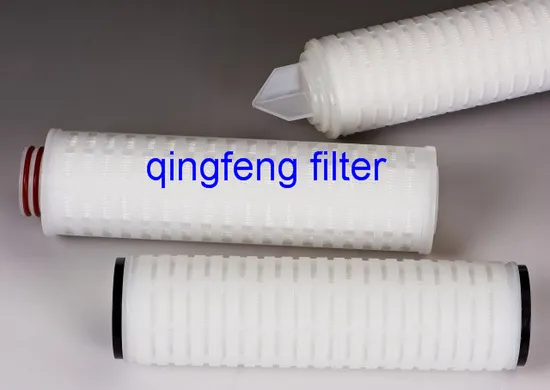

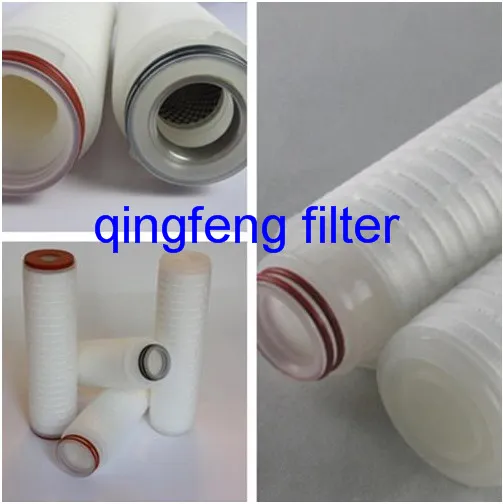

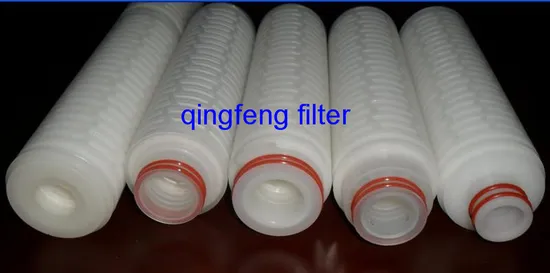

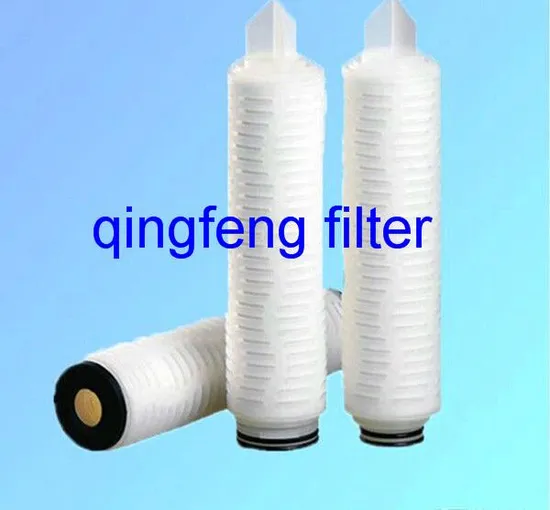

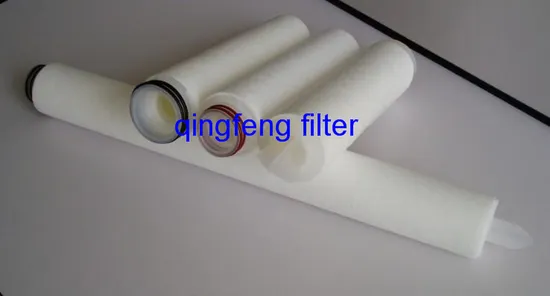

Glass Fiber Pleated Filter Cartridge for Process Filtration
Capacity:
High flow rates at low pressure drop
Cost-effective and long service life
Reliable retention of particulates
Featurea and benefits
High throughputs and high adsorption
Superior dirt-holding capacity
High flow rates at low pressure drop
Cost-effective and long service life
Reliable retention of particulates
Quality:
Cartridge filter produced in a controlled environment
Manufactured according to ISO 9001 certified quality management system
Application:
Pre-filtration before terminal gas filtration
Classification and Pre-filtration for viscous and colloidal liquids
Classification for wine and other viscous drinks | Materials of Construction |
| Filter Media | Glass Fiber |
| Support and Drainage | PP |
| Core, Cage | PP |
| End Caps | PP |

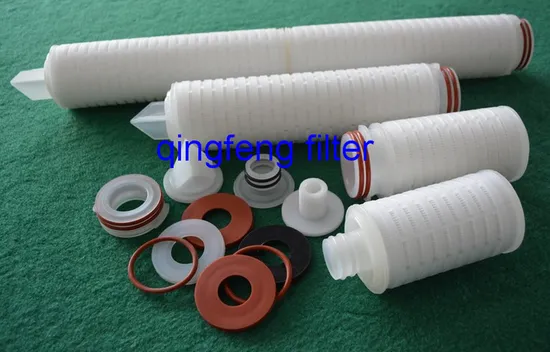

| O-rings/Gasket | Silicone/EPDM/Viton |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Dimensions |
| Diameter | Φ68 |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch |
| Filtration Area, ft 2 |
| ≥ 4.0 per 10-inch element |
| Pore Size, μm |
| 0.65, 1.0, 3.0, 5.0 |
| Maximum Differential Pressure |
| Forward: 4.2 bar @ 23 C; 1.5 bar @ 85 C |
| Flow Rate & Pressure Drop , per 10-inch cartridge |
| 0.65 μm | ≥ 28 L/min at 210 mbar |
| Particle Removal Efficiency (%) |
| ≥ 90 |
| Sanitization |
| May be hot water sanitized for 30 cycles using purified water at 85 C for 30 min |
