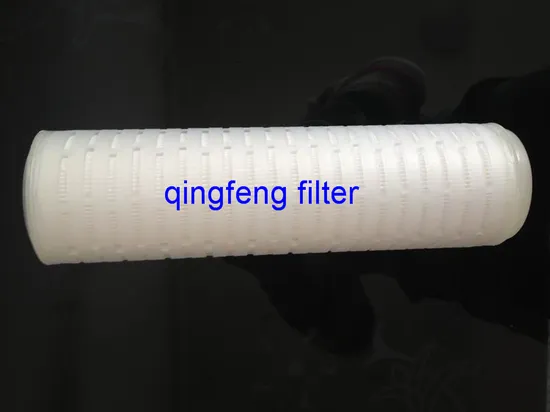

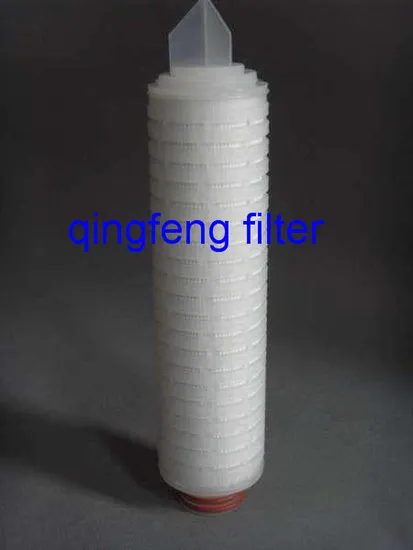

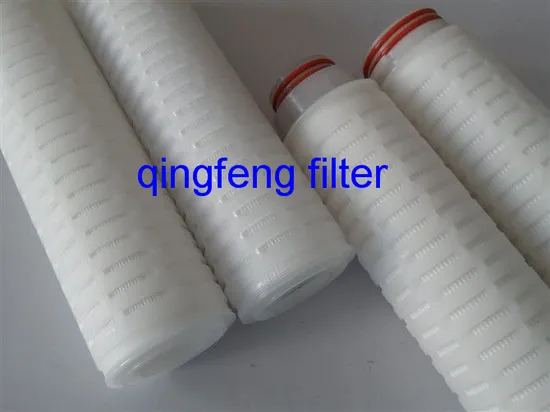

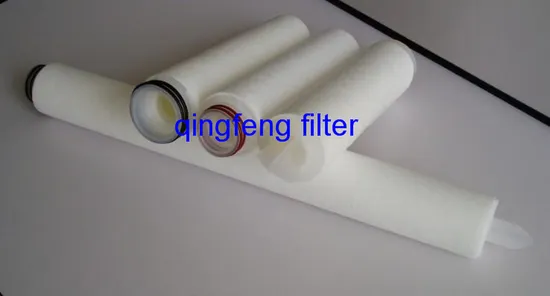

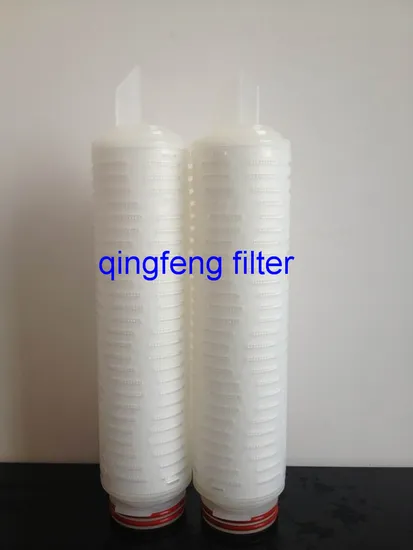

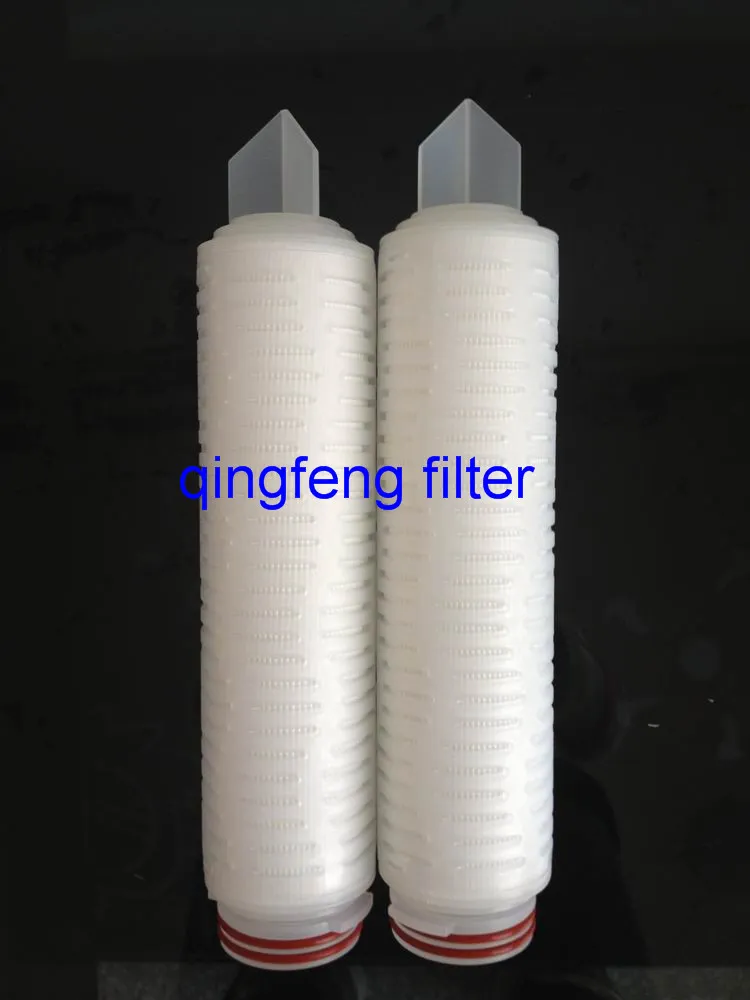

MCE Filter Cartridge
The Hydrophilic MCE Filter Cartridge are characterized by high performance hydrophilic mixed cellulose esters membrane, offering high flow rates, low protein absorption and superior microbiological safety.
Features and benefits Low protein binding
High flow rates
Superior throughputs and cost-effective
High retention efficiency for more critical degrees of prefiltration
Quality Cartridge filter produced in a controlled environment
Manufactured according to ISO 9001 certified quality management system
Application Security filtration before reverse osmosis
Sewage treatment
Filtration for high pure water
Prefiltration or terminal filtration for other chemicals
| Materials of Construction |
| Membrane | Hydrophilic MCE |
| Support | PP |
| Core, Cage and Drainage | PP |

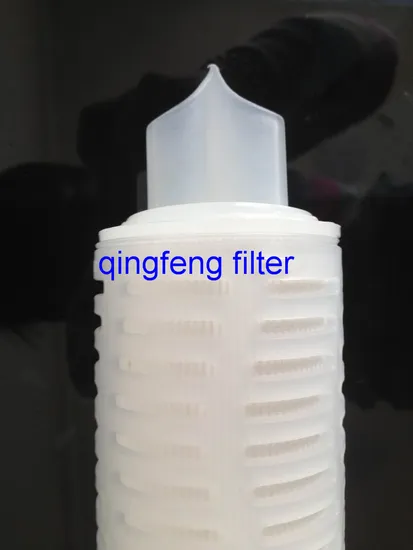

| End Caps | PP (222/226 with encapsulated stainless steel reinforcing ring) |
| O-rings/Gasket | Silicone/EPDM/Viton |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Dimensions |
| Diameter | Φ68 |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch |
| Filtration Area, FT 2 |
| ≥ 6.4 per 10-inch element |
| Pore Size, μm |
| 0.1, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0 |
| Maximum Differential Pressure |
| Forward: 4.2 bar @ 23 degrees Celsius |
| ; 1.5 bar @ 85 degrees Celsius |
| Flow Rate & Pressure Drop, per 10-inch cartridge |
| 0.22 μm | ≥ 17 L/min at 210 mbar |
| 0.45 μm | ≥ 30 L/min at 210 mbar |
| Bacterial Retention (for 0.45 μm only) |
| > 10 7 CFU/cm 2 Lactobacillus brevis and Saccharomyces cerevisae |
| Removal Efficiency (%) |
| > 99.97 |
| Non-Fiber Releasing |
| Meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6). |
| Sanitization |
| May be hot water sanitized for 30 cycles using purified water at 85 degrees Celsius For 30 min |
