Introduction:

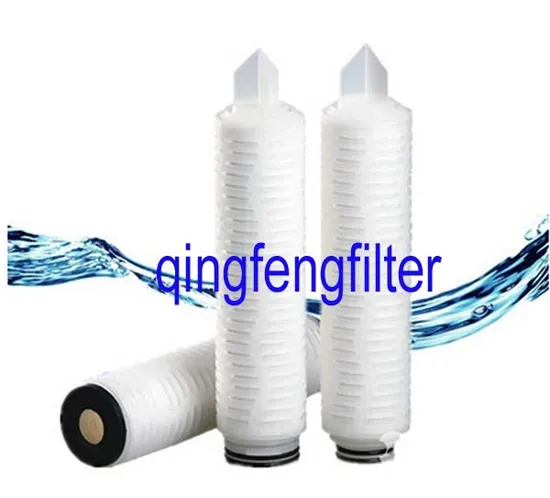

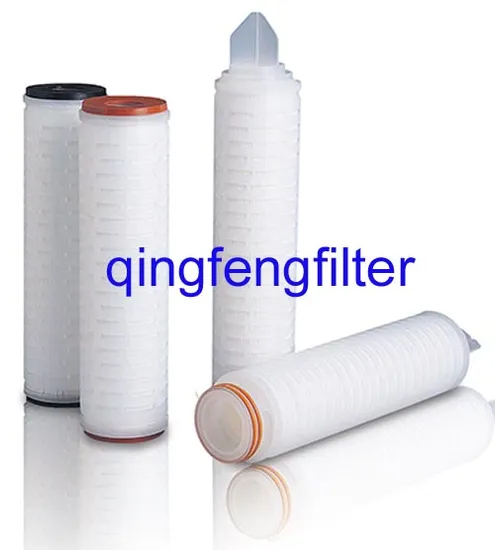

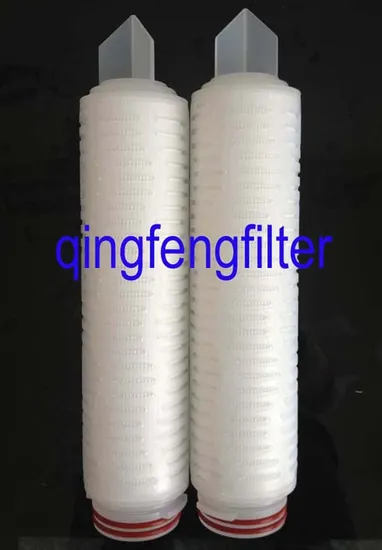

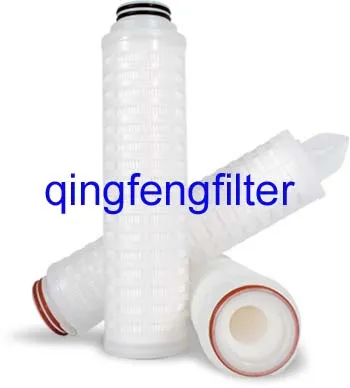

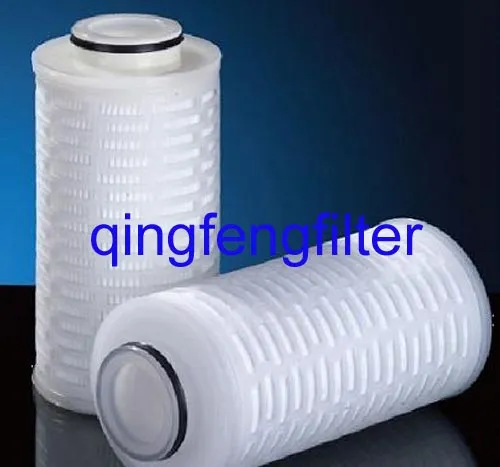

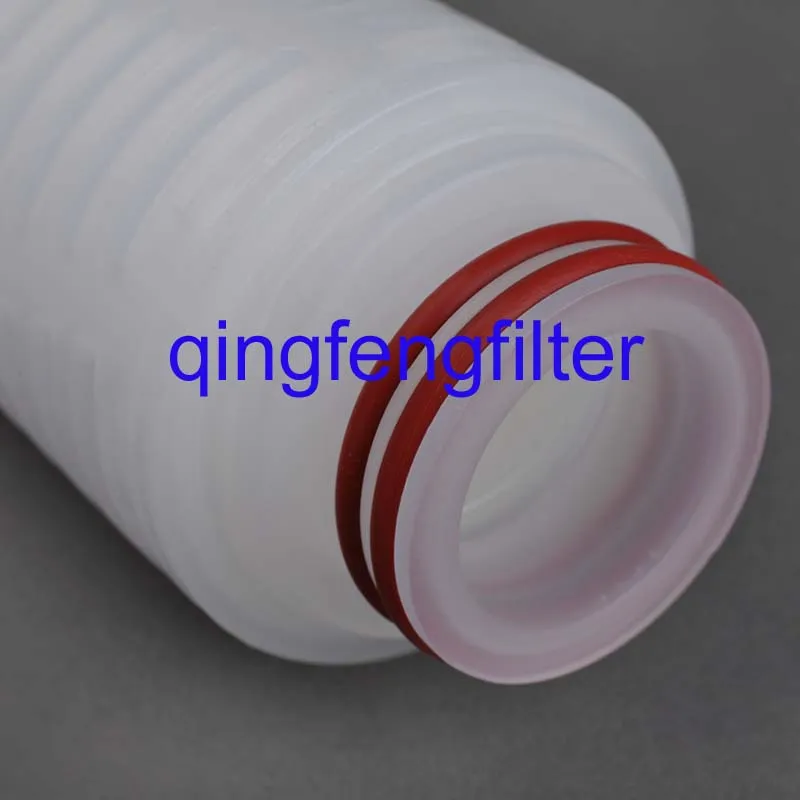

The filtration media of PES micropore filter cartridge is PES membrane. High porosity(about ≥80%) and geometrically unique pores of the PES cartridge contribute to high throughputs for difficult-to-filter solutions. It is constructed of two materials PES and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: unique hydrophily, no including surfactant and lubricant, so it provides wide filtration pore size and high folow rate, its wide range of PH values and lower adsorbance of protein and valuable biologicals, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressures. All products have passed 100% integrity testing.
Typical Applications:
Pharmacy industry; Food industry; Electronic industry etc.
Specification: | Filter medium | Hydrophilc PES Filter membrane |
| Support layer | Polypropylene (PP) |
| Core & Cage | Polypropylene (PP) |

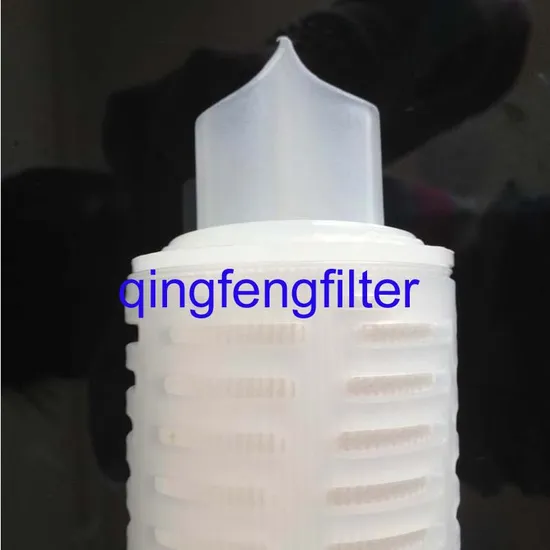

| End caps | Polypropylene (PP) |
| O-rings/Gasket | Silicone/EPDM/Viton |

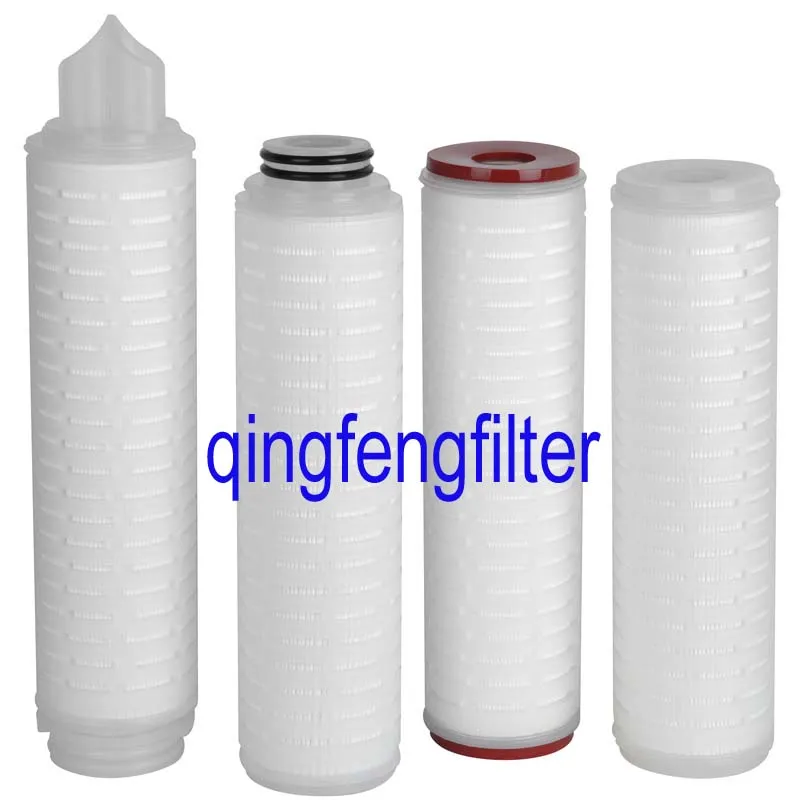

| End connection | DOE,222,SOE,Code-7(226/Fin) |
| Sealing Technology | Thermal Bonding, No Adhesives |
| Removal Ratings(μm) | 0.1, 0.2, 0.45, 0.65,1.0(um) |
| Length | 5", 10", 20". 30", 40" |
| Outer Diameter | 68mm |
| Effective filtration area: | 0.6m2/10" |
| Max. operating temperature | 85ºC,0.05Mpa |
| Max. positive pressure | 0.42Mpa (25ºC) |
| Sterilizing temperature | Autoclaving 121ºC/30min |
| Others: special requirement of diameter and end caps can be customized |
| Integrity test (minimum bubble point)(25ºC;95%isopropanol) |
| 0.10 um >= 4000 mbar | |
| 0.20 um >= 3000 mbar |
| 0.45 um >= 2000 mbar |
ABOUT US:
QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality. CONTACT US: Ji'an Qingfeng Filter Equipment Material Co.,Ltd.
Mobile Phone: 86- 15070668581
Tel: 86-796-8106818
Fax: 86-796-8105786
Website: qingfengfilter.en.made-in-china.com

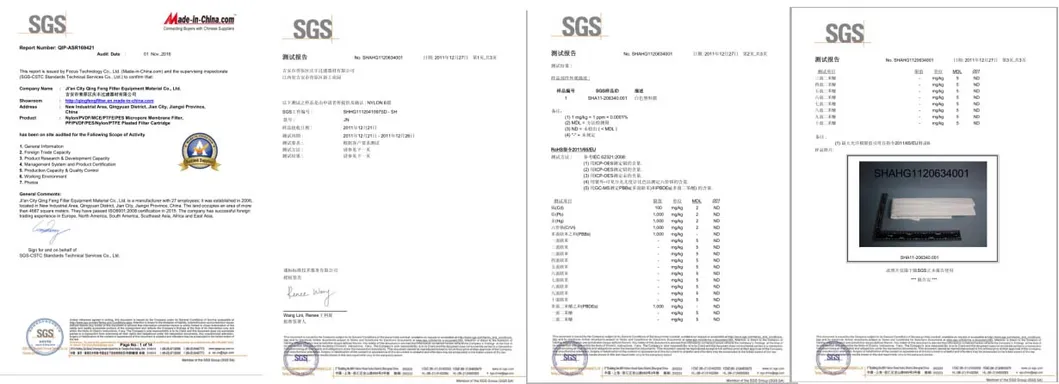

Certificates:
