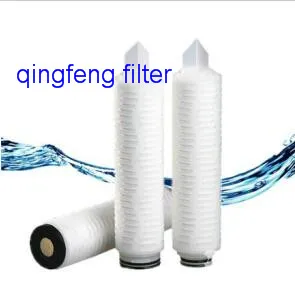

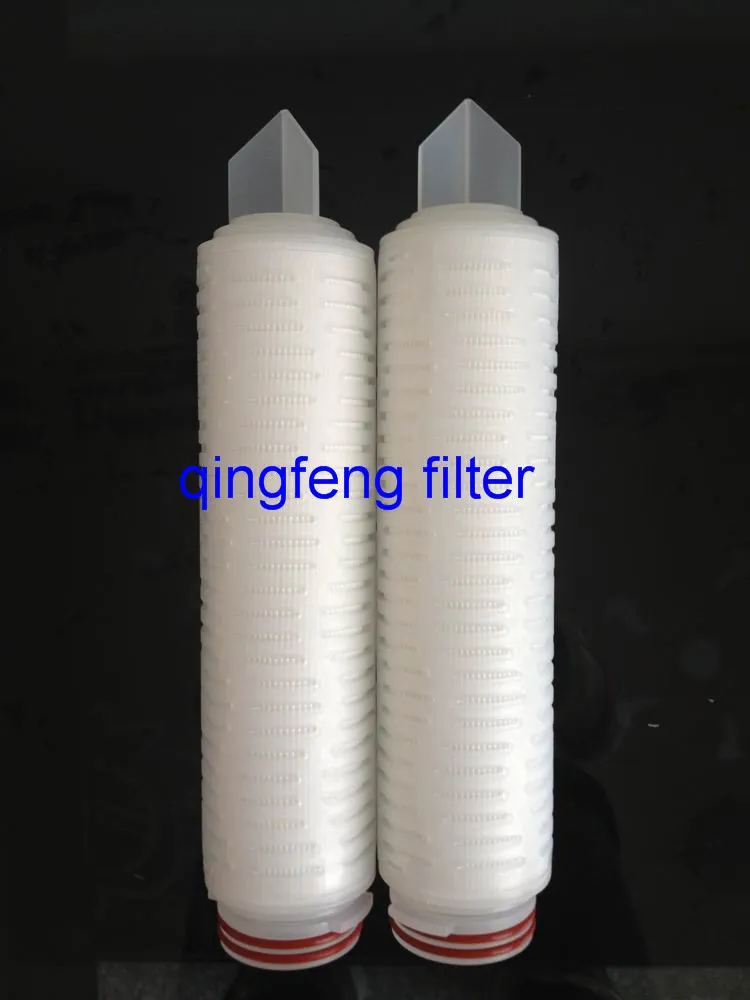

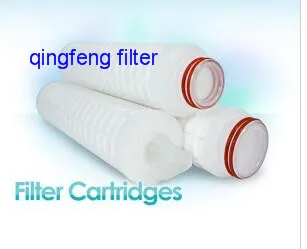

0.2um Micron 10'' 20'' 30 Inch PTFE Pleated Filter Cartridge for Food & Beverage Industry
Main Characteristics: 1. Strong hydrophobicity
2. Absolute filtration under the wet environment
3. Wide chemical compatibility, resistant to strong alkali, acids, aggressive gases and solvents, ozone
4. Geometrically unique pores, long service life, excellent performance
5. High temperature endurance performance
6. Biological safety and good pyrogen control
7. Irreplaceable filter materials
8. All products have passed 100% integrity testing Micron Rating(µm): 0.10 0.20 0.45 1.00 5.00 Typical Applications: 1. Tank vent, Fermentation air
2. Compressed air, CO2 line sterile filtration
3. Air filtration in aseptic packaging
4. Aggressive acids, Bases, Solvents
5. Photoresists, Etch Solutions Specifications: | Filter media | PTFE membrane |
| Support Layer | Polypropylene |
| Inner Core | Polypropylene |
| Outer Core | Polypropylene/Stainless Steel |
| Outer Diameter | 68mm |
| Inner Diameter | 33mm |
| Effective Filtration Area | ≥0.65m2 |
| Normal Operating Temperature | ≤65ºC |
| Max. Operating Temperature | 90ºC(△P≤0.10Mpa) |
| Max. Differential Pressure | Normal Flow direction:4.2 bar at 25ºC, Reverse Flow direction: 2.1 bar at 25ºC |
| PH Value compatibility | 1-14 |
| Sterilizing temperature | Steam Sterilization for 30 minutes at 140±2ºC |
| Endotoxin | <0.25 EU/ml |
| Extractable | 0.03g/10" |
| Remark: special requirement of diameter and end caps can be customized |
| Complete test (minimum bubble point)(25ºC;95% isopropanol): |
| 0.2um | ≥0.105Mpa |
| 0.45um | ≥0.075Mpa |
Certifications:
Exhibition:
Shipping&Delivery:
Delivery time: 1.If products is in stock, the lead time will be 1-3 days after payment.
2.If not in stock, the lead time will be about 7-15days after payment.
Company Profile: JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, QingFeng Filter Equipment Material Co., Ltd is an ISO9001 certified company.
Since 2006,We focused on developing, producing and marketing micropore filter membrane,filter cartridge and filter housing.
We are a professional manufacturer who are developing, producing and marketing filter membrane, filter cartridge and filter housing,Filter bag for more than 30 years, We are the first factory who developed and produced the nylon reinforced microfiltration membrane (JN) and polyvinylidene fluoride reinforced microporous membrane(PVDF) in China
in 1994. All our products with ISO9001/SGS/FDA approved and shipped to all over the world, USA, Australia, England. Canada, Russia, Thailand, India....... Strictly inspected by advanced instrument before packing.Welcome to contact with us.
