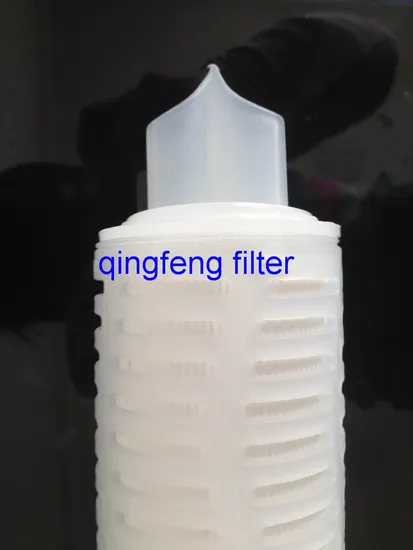

0.4 Micron Nylon Millipore Pleated Membrane Filter Cartridge for Alcohol Filtration

0.4 Micron Nylon Millipore Pleated Membrane Filter Cartridge for Alcohol Filtration

Customization:	Available
Material:	Nylon and PP
Application:	Industry, Food and Beverage, Medicine, Environmental Protection, Chemical Industry, Pharm

Quantity:




Inquire Add to Basket

Product Description

Basic Info.

Model NO.

Nylon Filter Cartridge

Type

Environmental Protection, Chemical Industry, Pharm

Filter Connector

DOE, Soe (Code2, Code3, Code7, Code8)

Filtration Grade

HEPA Filter

Certification

SGS and ISO9001

Pore Size

Pore Size, Um: 0.1, 0.22, 0.45, 0.65, 1.0

pH Value

6--13

Transport Package

Carton Packing

Specification

5 Inch, 10 Inch, 20 Inch, 30 Inch, 40 Inch

Trademark

QingFeng, OEM

Origin

China

HS Code

8421999090

Production Capacity

150000PCS/Year

Product Description

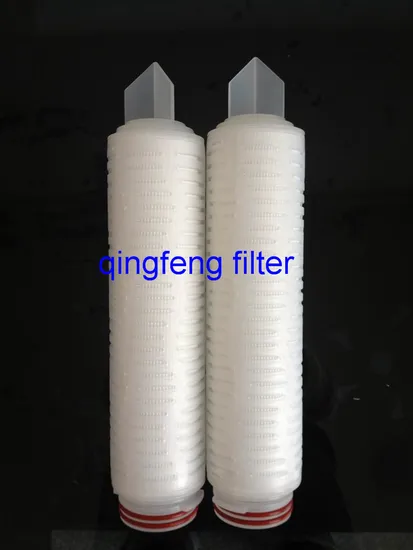

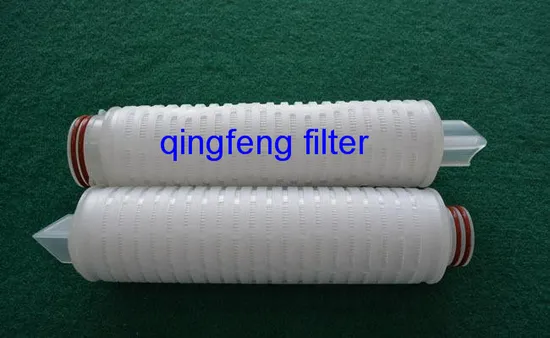

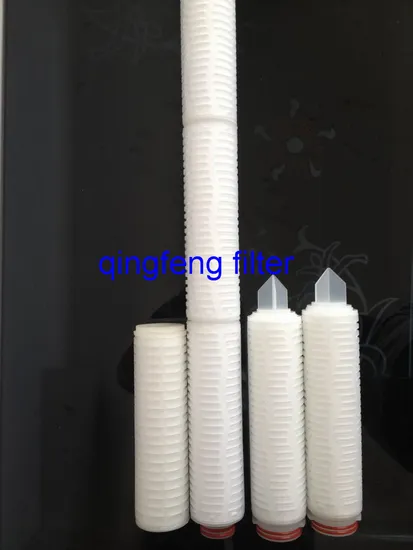

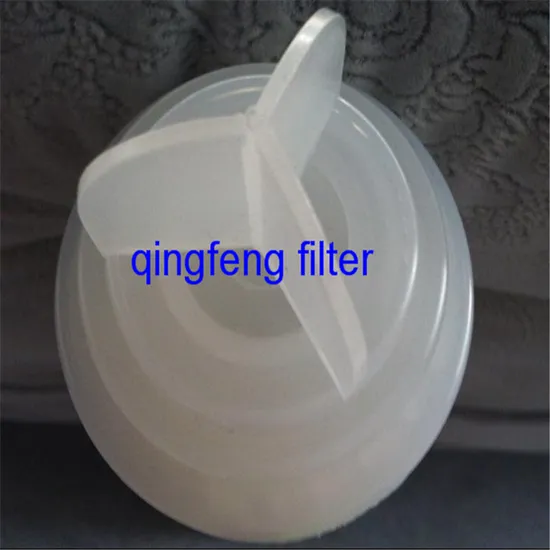

Nylon Filter Cartridge
Introduction:
The filtration media of nylon micropore filter catridge is hydrophily nylon membrane. It is constructed of two materials nylon and Ppto meet high standards of chemical and pharmaceutical industry. The benefit summary: stable hydrophily, strong flexibility, high retention rate, super chemical tolerance, especially suitable for filtration organic solvent. Withstand shocks and back pressures. All products have passed 100% integrity testing.

Specifications:
Filter medium: hydrophily nylon membrane
Support layer: PP
Filter cage: PP
Pore size: 0.2, 0.45, 0.65, 1 (um)

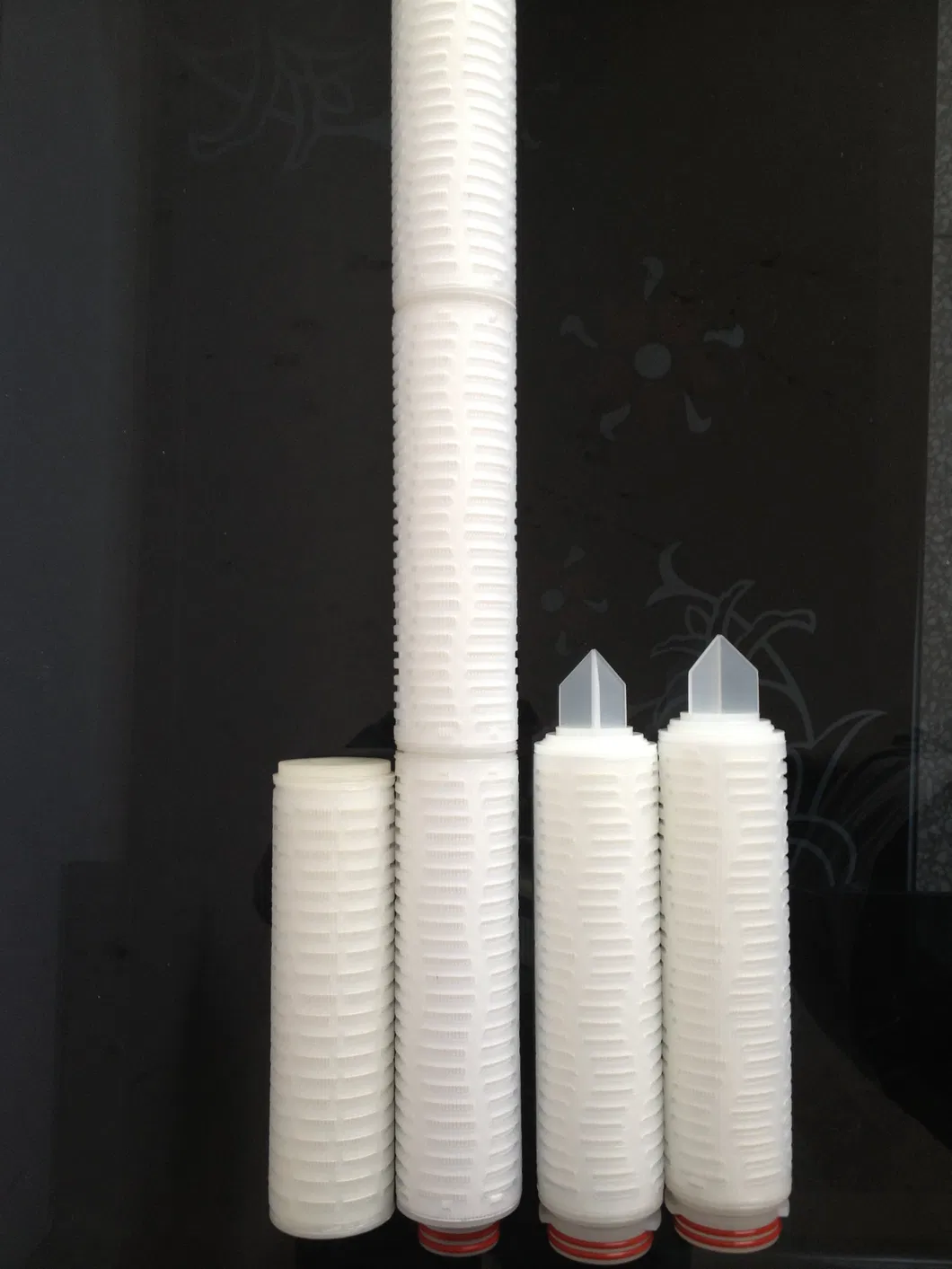

Length: 5", 10", 20", 30", 40"

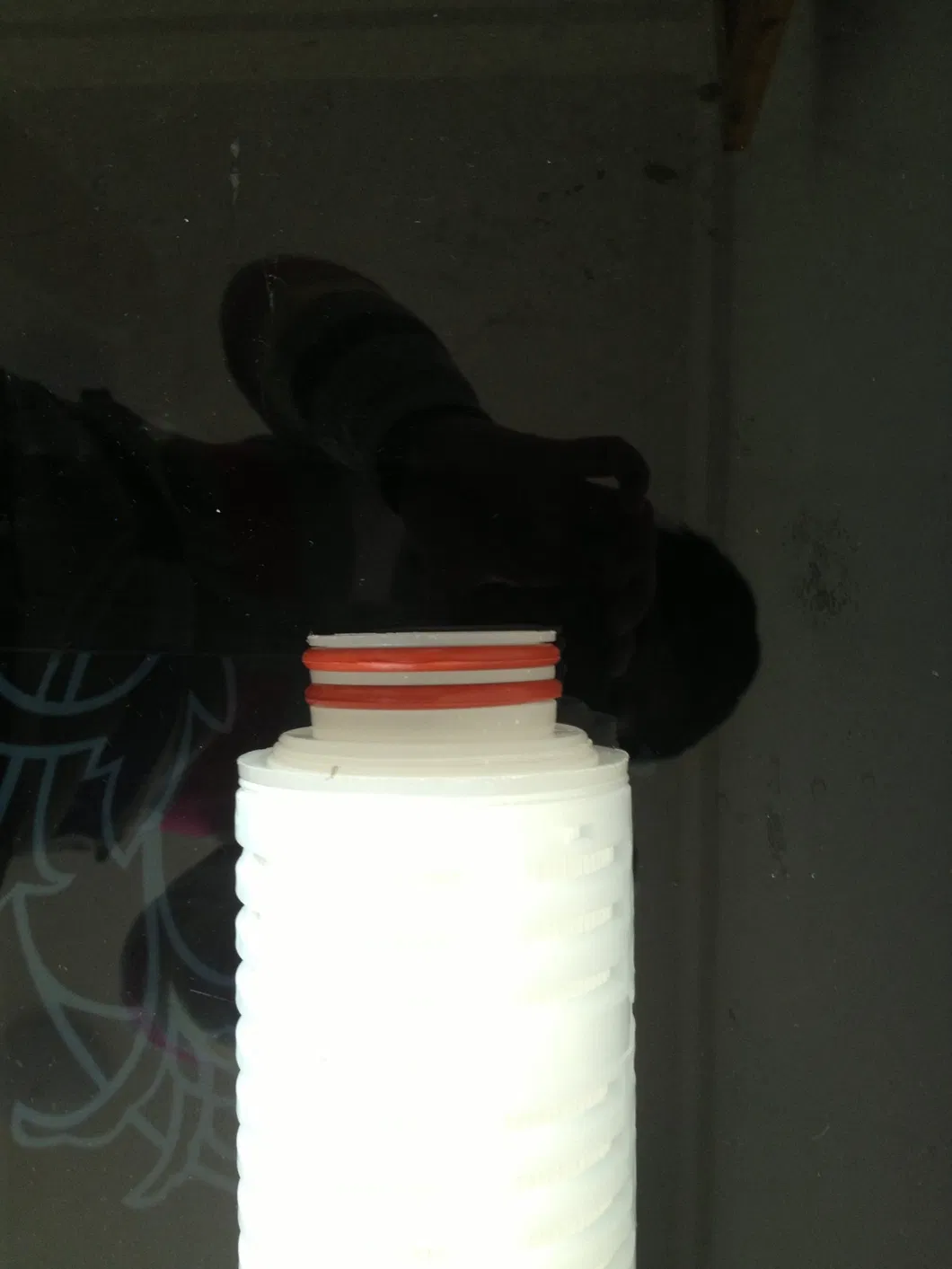

Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: ≥0.6 square mter/10"
Outer Diameter: 69.0mm
Inner Diameter: 33mm
Max. operating temperature: 60ºC, 0.2Mpa
Max. postitive pressure: 0.42Mpa(23ºC)
Max. back pressure: 0.21Mpa(23ºC)
Sterilizing temperature: 121ºC 30min

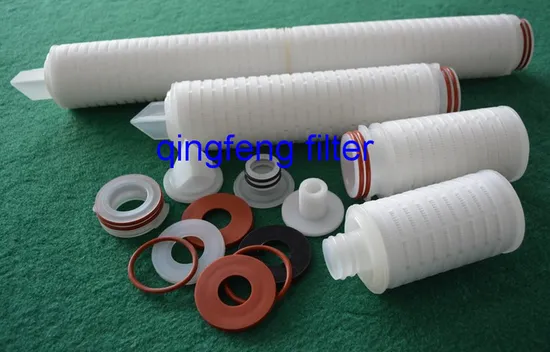

Others: special requirement of diameter and end caps can be customized

Typical Applications:
Electronic industry; Medical industry; Chemical industry; Food industry

Complete test(minimum bubble point )(23ºC,water)
0.20um  >=0.28Mpa
0.45um  >=0.20Mpa

Outside Diameter:	2.7''(69mm)
Length:	5'',10'',20'',30'',40''
Filter media:	Nylon6
Support Layer/Cage/Core/ End caps :	Polypropylene (PP)
Seal Material :	Silicone,EPDM,NBR,Vilton,Teflon,E-FKM
Removal Rating:	0.2um,0.45um,065um1.0um
Maximum Operating Temperature	60°C
Maximum Differential Pressure :	4.2Bar@23°C
Maximum Differential Pressure(Reverse Direction):	2.1Bar,23°C
Maximum temperature sterilization :	30times, 30minutes at 121°C

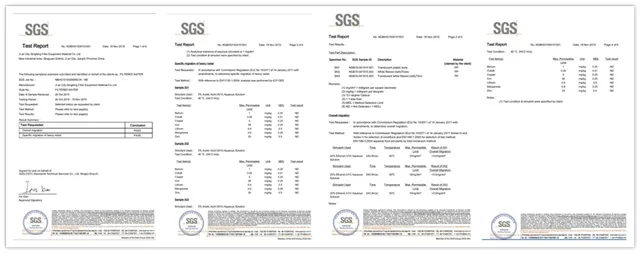

Certificates:
0.4 Micron Nylon Millipore Pleated Membrane Filter Cartridge for Alcohol Filtration

Exhibition:
0.4 Micron Nylon Millipore Pleated Membrane Filter Cartridge for Alcohol Filtration

About us:

JiAn city QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, we are specialize in manufacture of Filter Membranes,filter cartridges,syringe filter and other filter elements since 2006 year.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.
